B2B Electronic Connection Solution

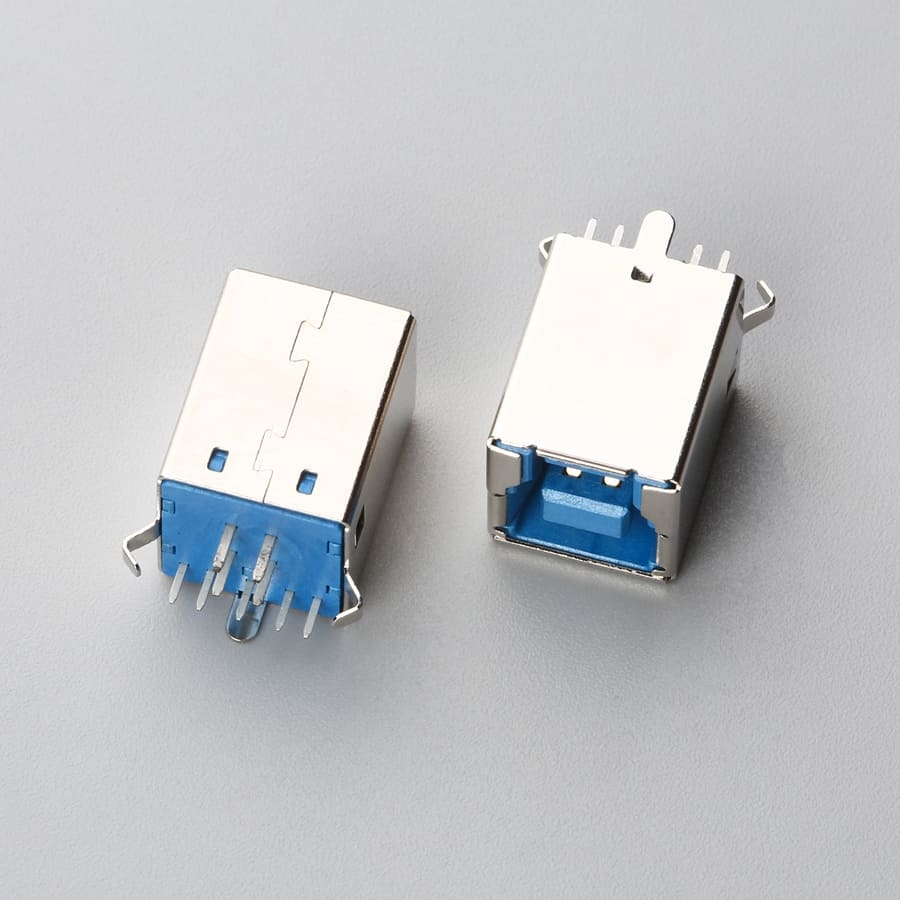

36.EU09F2L1N1253
Factory-backed connector sourcing and electric connection support for OEMs, distributors and electronic equipment manufacturers.
Product View
OEM Ready
Factory Supply
Fast Quote
Product Specifications
Key parameters for OEM, distributor and engineering evaluation.
- USB Connector Style
- Type B
- USB Version
- 3.0
- Interface
- B
- Waterproof
- N/A
- Approvals
- N/A
- Gender
- Receptacle (socket)
- PCB Orientation
- Vertical
- Number of Contacts
- 4
- PCB Mount Position
- Edge Mount
- Elevated
- Yes
- Mating Cycles
- 1,500
- Power Rating
- 240W
- Current Rating
- 2A
- Contact Pin Type
- Through Hole
- Voltage Rating
- 48V DC
- Shell Stake Type
- Through Hole
- Locating Peg
- Without
- Mating Face Lead In
- Without
Product Details
Overview and Application Notes
Product Document
Download Product PDF
Use this document for internal review, engineering comparison, and RFQ preparation.
Build a Reliable Supply Plan for This Product
We support importers, distributors, and electronics manufacturers with product matching, alternative sourcing, assembly integration, and factory-direct production coordination.
Include These Details in Your RFQ
- 1 Target quantity, annual forecast, and delivery destination.
- 2 Drawing, datasheet, sample photo, or current supplier part number.
- 3 Electrical, mechanical, compliance, testing, and packaging requirements.
