Product Category

Modular Jacks

Source modular jacks and RJ45 RJ11 connectors for Ethernet and telecom applications. Shielded unshielded and magnetic options with competitive OEM pricing.

Technical Filters Filter Modular Jacks 0 selected Reset

Scroll horizontally to browse specification columns.

Category
Mount type options
PCB orientation options
Number of positions
Positions loaded
Latch position
Shielding

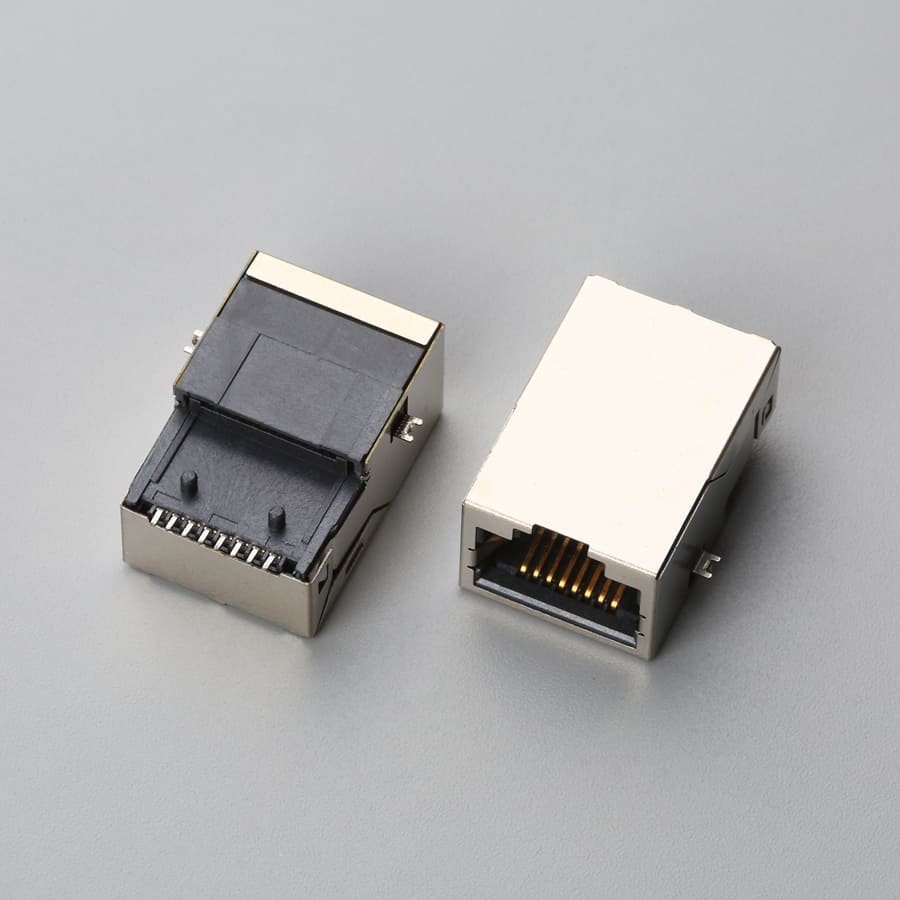

20 products found

Product cards show key ACF specification fields. Hover or focus a specification area to view full details in a tooltip.

RJ45 1×1 8P8C Female Right-Angle Through-Hole Unshielded Category 6 Modular Jack Connector
Modular Jacks

RJ45 1×1 8P8C Female Right-Angle Through-Hole Unshielded Category 6 Modular Jack Connector

Mates With: RJ45 8P8C Cat6 Modular Plugs & Patch Cords
Connector Type
: RJ45 1x1 Modular Jack (Single-Port)[cite: 1]
Number of Positions / Contacts
: 8P8C (8 Positions, 8 Contacts)[cite: 1]
Mounting Type
: Right-Angle Through-Hole (DIP)[cite: 1]
Port Configuration
: 1x1 Single Port
High-Speed Standard
: Category 6 (Cat6)
Key Dimensions
: 14.48mm (W) x 14.48mm (D) x 13.00mm (H)[cite: 1]
Solder Tail Length
: 3.25 ± 0.25 mm
Mounting Peg Spacing
: 14.48mm (2x Ø3.25mm peg diameter)
Recommended PCB Layout Hole
: 8x Ø0.89mm (for 0.46mm round pins), 2x Ø3.25mm (for mounting pegs)
Mechanical Forces
: Mating/Unmating Force: 30N / 3.06kgf Max.; Retention Strength: 50N Min. for 60s ± 5s
Operating Life
: 750 Mating Cycles Min.
Flame Retardancy
: UL94V-0
Standard Compliance
: UL Certified (File No. E484635), RoHS Compliant
RJ45 1×2 Ganged 8P8C Female Right-Angle Through-Hole Shielded Modular Jack 32.25×15.75mm Connector
Modular Jacks

RJ45 1×2 Ganged 8P8C Female Right-Angle Through-Hole Shielded Modular Jack 32.25×15.75mm Connector

Mates With: RJ45 8P8C Modular Plugs (Cat3 / Cat5 / Cat5e Ethernet Patch Cords)
Connector Type
: RJ45 1x2 Ganged Modular Jack (Dual-Port)
Number of Positions / Contacts
: 8P8C per port (16 signal pins total, J1–J8 x 2)
Mounting Type
: Right-Angle Through-Hole (DIP)
Key Dimensions (W x D x H)
: 32.25mm x 15.75mm x 13.10mm (Solder Tail Length: 2.50±0.30mm)
Recommended PCB Layout
: 28.45mm Mounting Peg Spacing (2x Ø3.25mm), 32.05mm Shield Tab Span, 16x Ø0.90mm Signal Holes
Packaging Method & Quantity
: Tray / Tube Packaging (Specific quantity not specified on drawing)
Mating Durability
: 750 Cycles Min. (at 12.5mm/minute)
Mechanical Force
: Insertion Force: 2.2 kgf Max.; Retention Strength: 7.7 kgf Min. (between jack and plug)
Standard Compliance
: UL94V-0 Flammability Rating, RoHS Compliant

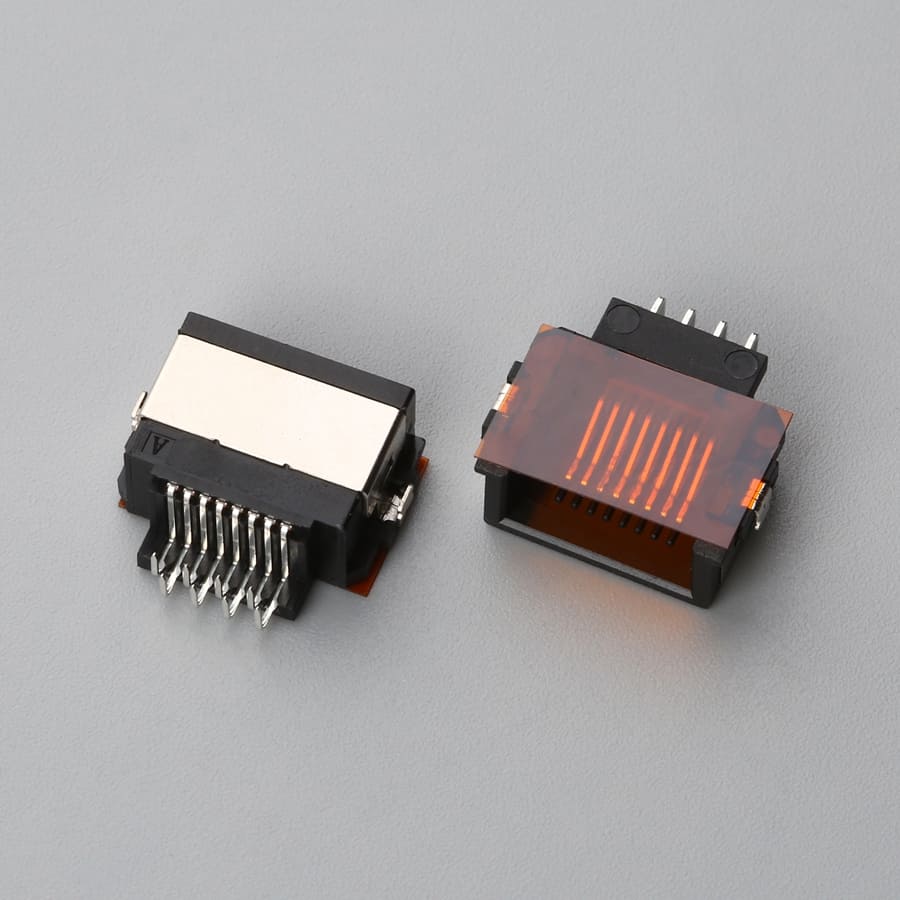

RJ45 8P8C Female Modular Jack Half-Shield Mid-Mount Sinking H5.50 DIP Type | EDOM
Modular Jacks

RJ45 8P8C Female Modular Jack Half-Shield Mid-Mount Sinking H5.50 DIP Type | EDOM

Alt. for: RJCSE-5380-01 / Molex 85505 Series Alternative Mates With: RJ45 / 8P8C Male Ethernet Plugs (Cat5e / Cat6)
Connector Type
: RJ45 8P8C Female Modular Jack
Number of Positions / Contacts
: 8 Positions / 8 Contacts (8P8C)
Mounting Type
: Mid-Mount (Sinking) / Through-Hole DIP Right Angle
Center / Sinking Depth (H)
: 5.50 mm
Shell Style
: Half-Shielded (Semi-Shielded)
Overall Dimensions (L x W x H)
: 17.05 mm x 16.80 mm x 11.90 mm (Body envelope)
Contact Pitch
: 1.02 mm (1.02 mm x 7 = 7.14 mm total span)
PCB Cutout Width
: 15.10 mm (16.80 mm at outer clearance steps)
Signal Hole Diameters
: 8x Ø0.90 mm
Shield Retention Hole Size
: 2x 2.00 mm x 0.70 mm ground slots (11.00 mm center pitch)
Standard Compliance
: RoHS Compliant, UL 94V-0

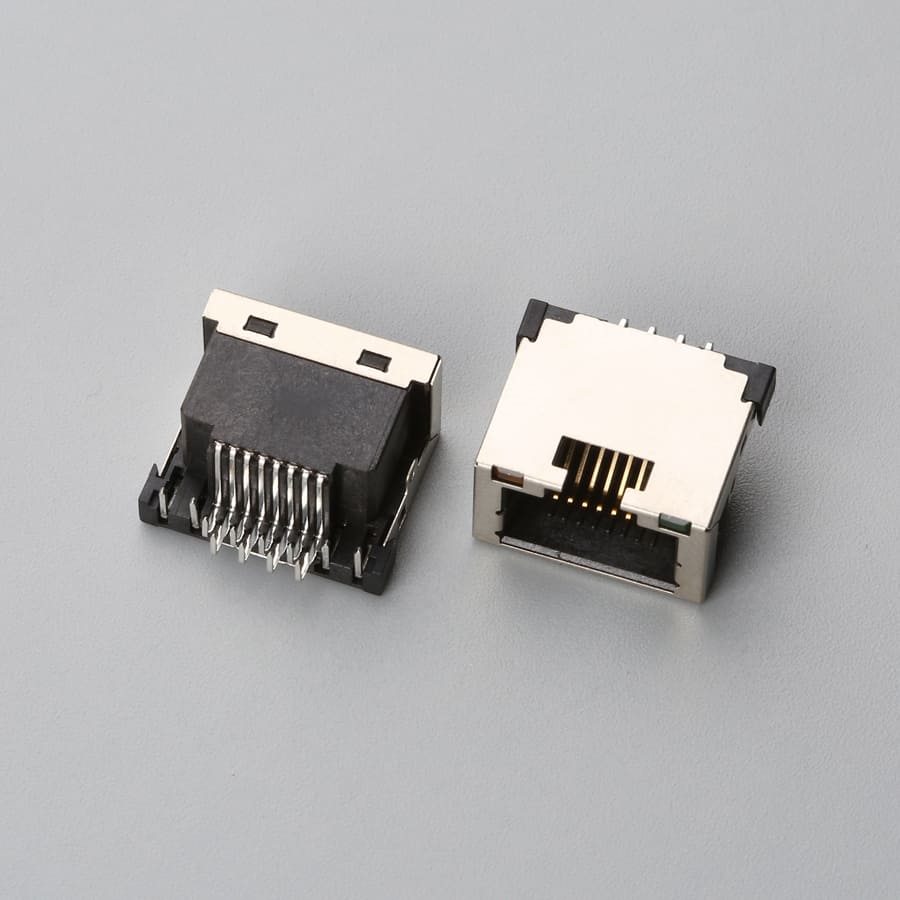

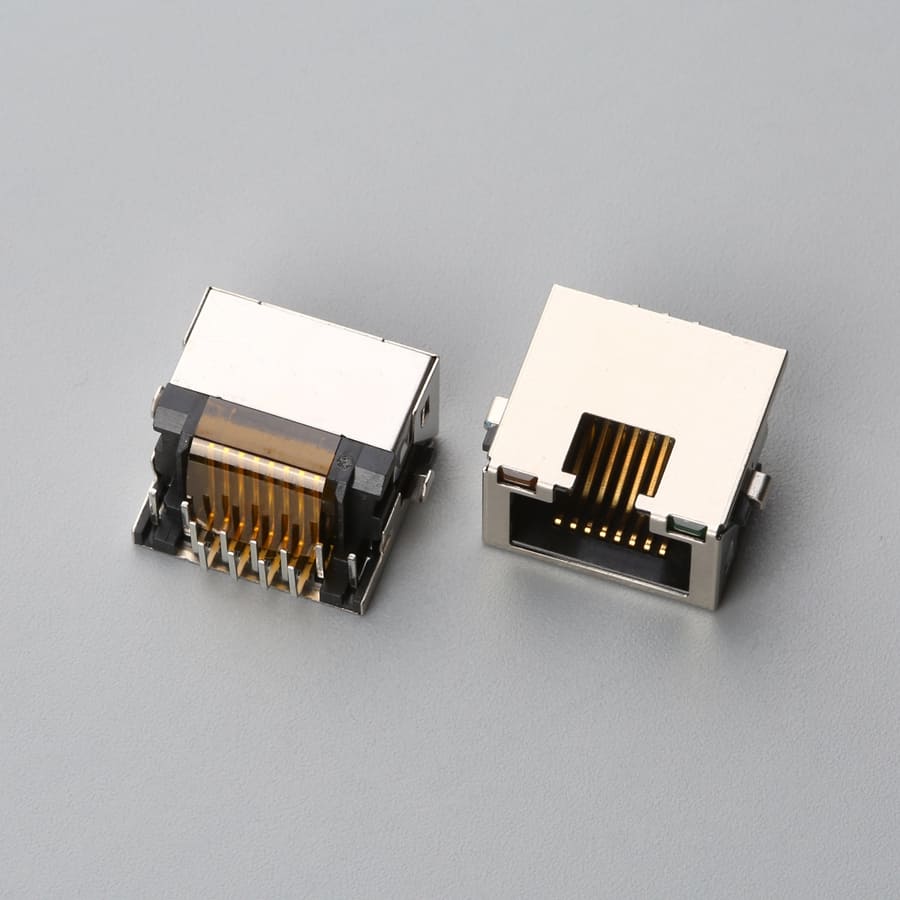

RJ45 8P8C Female Modular Jack Mid-Mount Sinking H2.95 DIP with LED | EDOM
Modular Jacks

RJ45 8P8C Female Modular Jack Mid-Mount Sinking H2.95 DIP with LED | EDOM

Drop-in for: RJHSE-5380 / Pulse J0011D01BNL Alternative Mates With: RJ45 / 8P8C Male Ethernet Plugs (Cat5e / Cat6)
Connector Type
: RJ45 8P8C Female Modular Jack
Number of Positions / Contacts
: 8 Positions / 8 Contacts (8P8C)
Mounting Type
: Mid-Mount (Sinking) / Through-Hole DIP
Center / Sinking Height
: 2.95 mm
Visual Indicators
: Dual Integrated LEDs: Left (Orange) / Right (Green)
Signal Pin Pitch
: 1.02 mm (1.02 mm x 7 = 7.14 mm total span)
Solder Tail Length
: 1.60 mm
Overall Dimensions (L x W x H)
: 16.20 mm x 13.60 mm x 9.80 mm (Excluding solder tails)
Recommended PCB Thickness
: 1.20 mm - 1.60 mm
Shielding Structure
: Stainless steel metal shield with grounding solder tabs
Standard Compliance
: RoHS Compliant, UL 94V-0

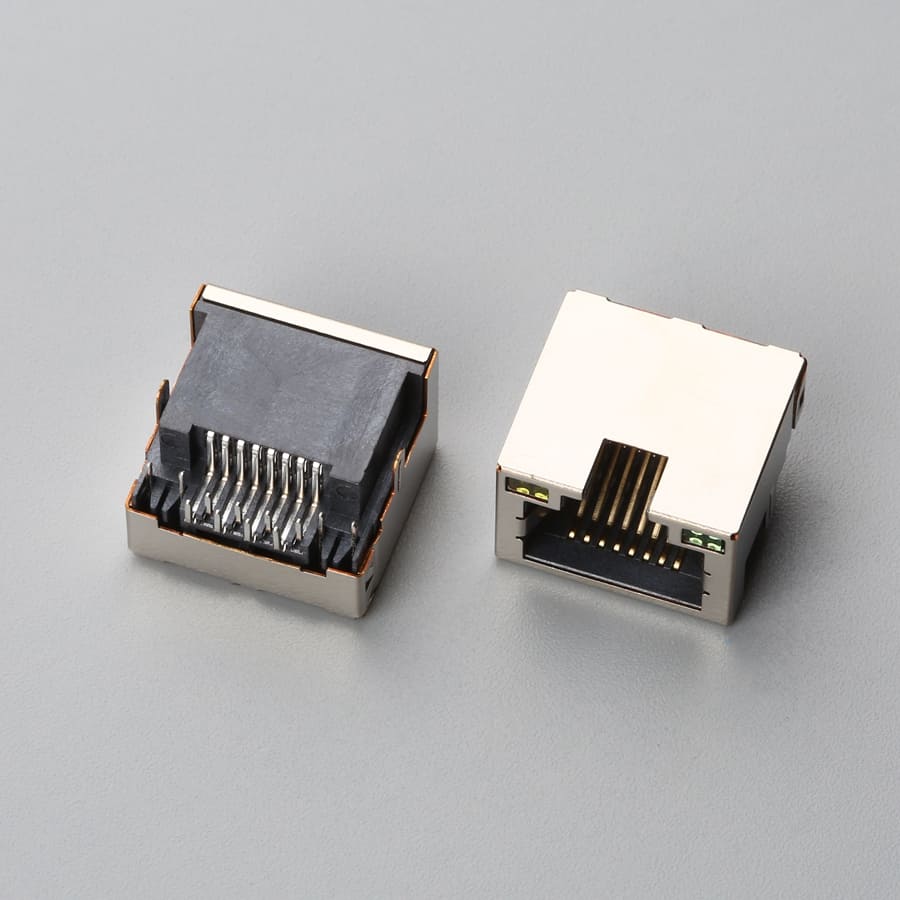

RJ45 8P8C Female Modular Jack Mid-Mount Sinking H4.20 DIP with LED | EDOM
Modular Jacks

RJ45 8P8C Female Modular Jack Mid-Mount Sinking H4.20 DIP with LED | EDOM

Drop-in for: RJHSE-5380 / Pulse J0011D01BNL Alternative Mates With: RJ45 / 8P8C Male Ethernet Plugs (Cat5e / Cat6)
Connector Type
: RJ45 8P8C Female Modular Jack
Number of Positions / Contacts
: 8 Positions / 8 Contacts (8P8C)
Mounting Type
: Mid-Mount (Sinking) / Through-Hole DIP Right Angle
Offset / Sinking Height
: 4.20 mm
Visual Indicators
: Dual Integrated LEDs: Left LED (Yellow, 9+/10-) / Right LED (Green, 11+/12-)
Contact Pitch
: 1.02 mm (1.02 mm x 7 = 7.14 mm total span)
PCB Hole Specifications
: 12x Ø1.00 mm (Signal + LED leads), 2x 2.20 mm Grounding slots
Overall Dimensions (L x W x H)
: 16.20 mm x 15.30 mm x 11.05 mm (Body profile excluding solder tails)
Recommended PCB Thickness
: 1.60 mm
Shielding Structure
: Full metal brass shell with integrated side and rear grounding tabs
Standard Compliance
: RoHS Compliant, UL 94V-0

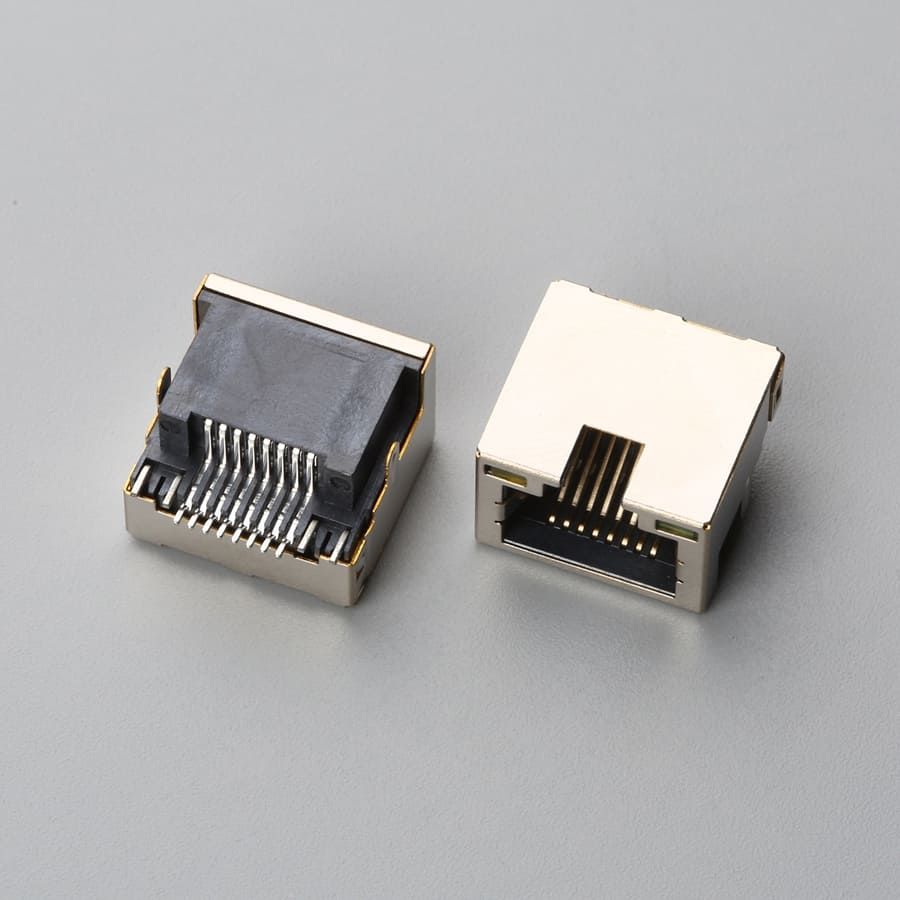

RJ45 8P8C Female Modular Jack Mid-Mount Sinking H4.20 SMT with LED | EDOM
Modular Jacks

RJ45 8P8C Female Modular Jack Mid-Mount Sinking H4.20 SMT with LED | EDOM

Drop-in for: RJHSE-5380 / Pulse J0011D01BNL Alternative Mates With: RJ45 / 8P8C Male Ethernet Plugs (Cat5e / Cat6)
Connector Type
: RJ45 8P8C Female Modular Jack
Number of Positions / Contacts
: 8 Positions / 8 Contacts (8P8C)
Mounting Type
: Mid-Mount (Sinking) / Surface Mount (SMT) Straight Pin with LED
Center / Sinking Depth
: 4.20 mm
Overall Dimensions (L x W x H)
: 16.20 mm x 15.30 mm x 11.05 mm (Body profile)
Visual Indicators
: Dual Integrated LEDs (Left LED / Right LED)
Contact Pitch
: 1.02 mm (1.02 mm x 7 = 7.14 mm total span)
SMT Solder Pad Size
: 0.55 mm x 1.92 mm
Recommended PCB Cutout Width
: 14.00 mm (with 0.70 mm relief notches)
Grounding Tab Spacing
: 16.08 mm (Dual 2.20 mm slots)
Shielding Structure
: Copper alloy full-metal shield with ground retention tabs
Standard Compliance
: RoHS Compliant, UL 94V-0

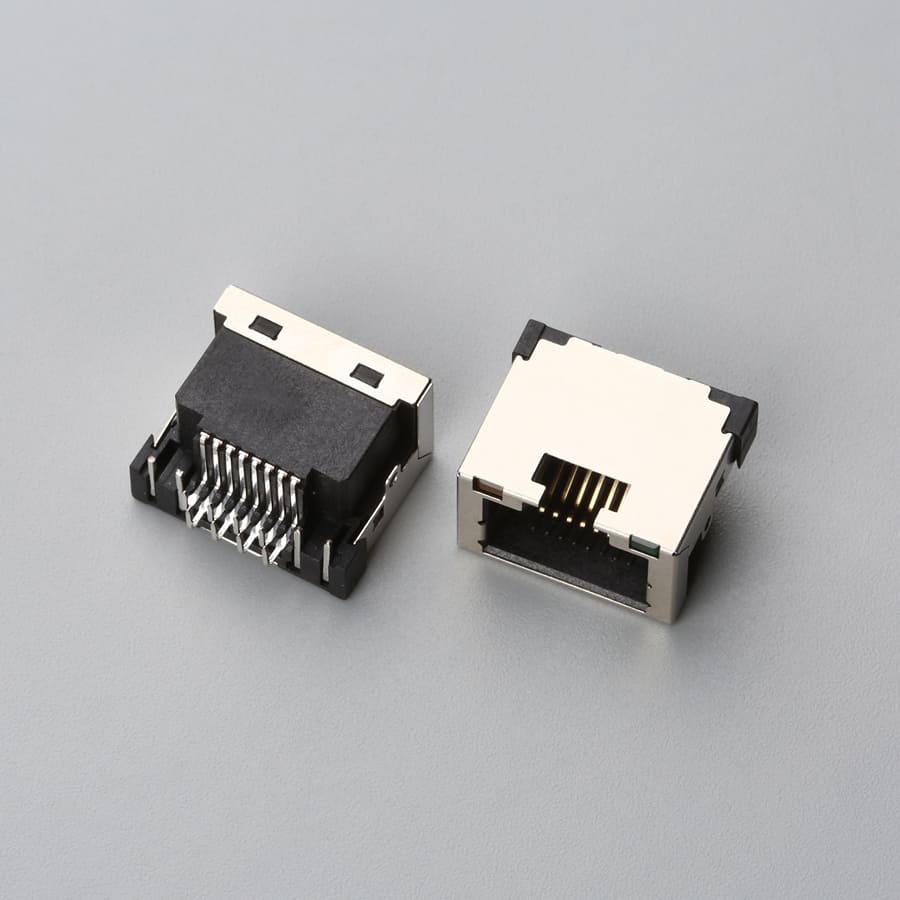

RJ45 8P8C Female Modular Jack Mid-Mount Sinking H4.30 DIP with LED | EDOM
Modular Jacks

RJ45 8P8C Female Modular Jack Mid-Mount Sinking H4.30 DIP with LED | EDOM

Drop-in for: RJHSE-5380 / Pulse J0011D01BNL Alternative Mates With: RJ45 / 8P8C Male Ethernet Plugs (Cat5e / Cat6)
Connector Type
: RJ45 8P8C Female Modular Jack
Number of Positions / Contacts
: 8 Positions / 8 Contacts (8P8C)
Mounting Type
: Mid-Mount (Sinking) / Through-Hole DIP Right Angle
Center / Sinking Height
: 4.30 mm
Visual Indicators
: Dual Integrated LEDs: Left (Orange) / Right (Green)
Contact Pitch
: 1.02 mm (1.02 mm x 7 = 7.14 mm total span)
Solder Tail Length
: 1.60 mm
Overall Dimensions (L x W x H)
: 16.20 mm x 13.60 mm x 9.80 mm (Excluding solder tails)
Recommended PCB Thickness
: 1.20 mm - 1.60 mm
Shielding Structure
: Full metal stainless steel shield with grounding solder legs
Standard Compliance
: RoHS Compliant, UL 94V-0

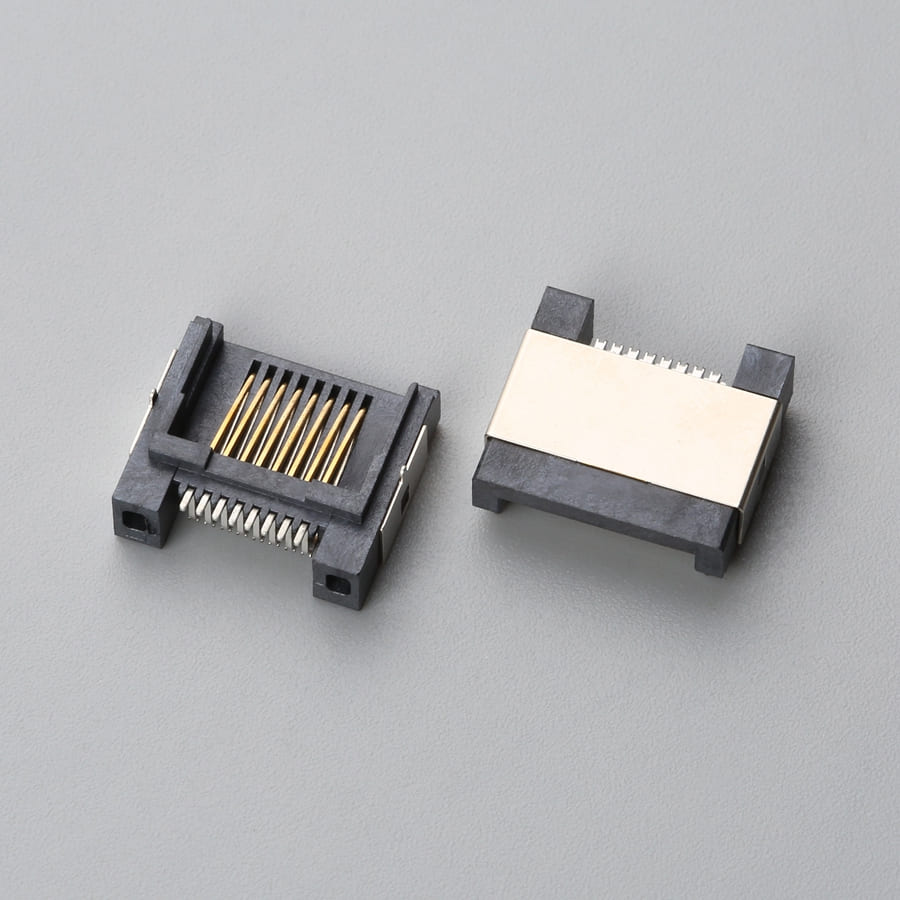

RJ45 8P8C Female Modular Jack Mid-Mount Sinking H4.60 SMT Type | EDOM
Modular Jacks

RJ45 8P8C Female Modular Jack Mid-Mount Sinking H4.60 SMT Type | EDOM

Drop-in for: RJCSE-5380-01 / Molex 85505 Series Alternative Mates With: RJ45 / 8P8C Male Ethernet Plugs (Cat5e / Cat6)
Connector Type
: RJ45 8P8C Female Modular Jack
Number of Positions / Contacts
: 8 Positions / 8 Contacts (8P8C)
Mounting Type
: Mid-Mount (Sinking) / Surface Mount (SMT)
Sinking Height (H)
: 4.60 mm
Overall Dimensions (L x W x H)
: 16.00 mm x 15.80 mm x 10.70 mm (Excluding solder tabs)
Contact Pitch
: 1.016 mm (7.11 mm total span across 8 pins)
Terminal Coplanarity
: 0.10 mm Max.
PCB Locating Pegs
: 2x Ø1.00 mm Plastic Alignment Posts
Recommended PCB Thickness
: 1.20 mm (±0.05 mm)
Solder Tab Dimensions
: Dual side grounding pads (2.40 mm x 4.95 mm)
Standard Compliance
: RoHS Compliant, UL 94V-0

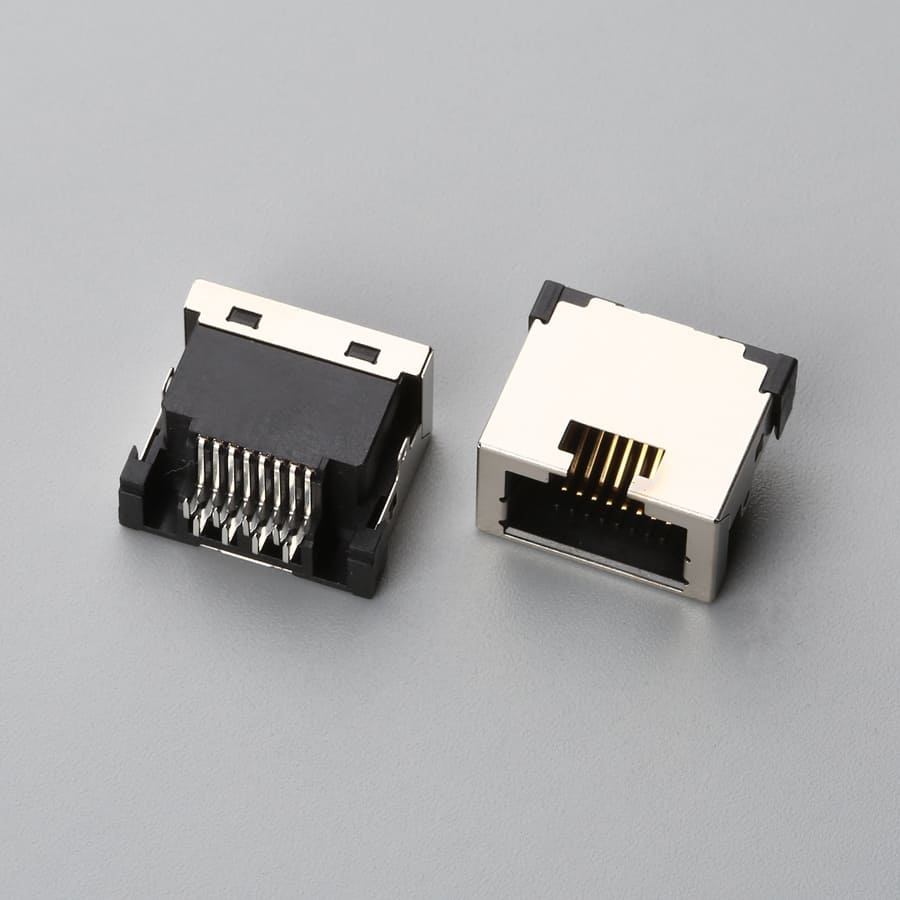

RJ45 8P8C Female Modular Jack Mid-Mount Sinking H5.15 DIP Type | EDOM
Modular Jacks

RJ45 8P8C Female Modular Jack Mid-Mount Sinking H5.15 DIP Type | EDOM

Drop-in for: RJCSE-5380-01 / Pulse J0011D01BNL Alternative Mates With: RJ45 / 8P8C Male Ethernet Plugs (Cat5e / Cat6 Patch Cables)
Connector Type
: RJ45 8P8C Female Modular Jack
Number of Positions / Contacts
: 8 Positions / 8 Contacts (8P8C)
Mounting Type
: Mid-Mount (Sinking) / Through-Hole DIP
Center / Sinking Height
: 5.15 mm
Contact Pitch
: 1.02 mm (1.02 mm x 7 = 7.14 mm total span)
Solder Tail Length
: 1.60 mm
Overall Dimensions (L x W x H)
: 16.20 mm x 13.60 mm x 9.80 mm (Excluding solder tails)
Recommended PCB Thickness
: 1.20 mm - 1.60 mm
Shielding Structure
: Full metal stainless steel shield with rear grounding tabs
Standard Compliance
: RoHS Compliant, UL 94V-0
