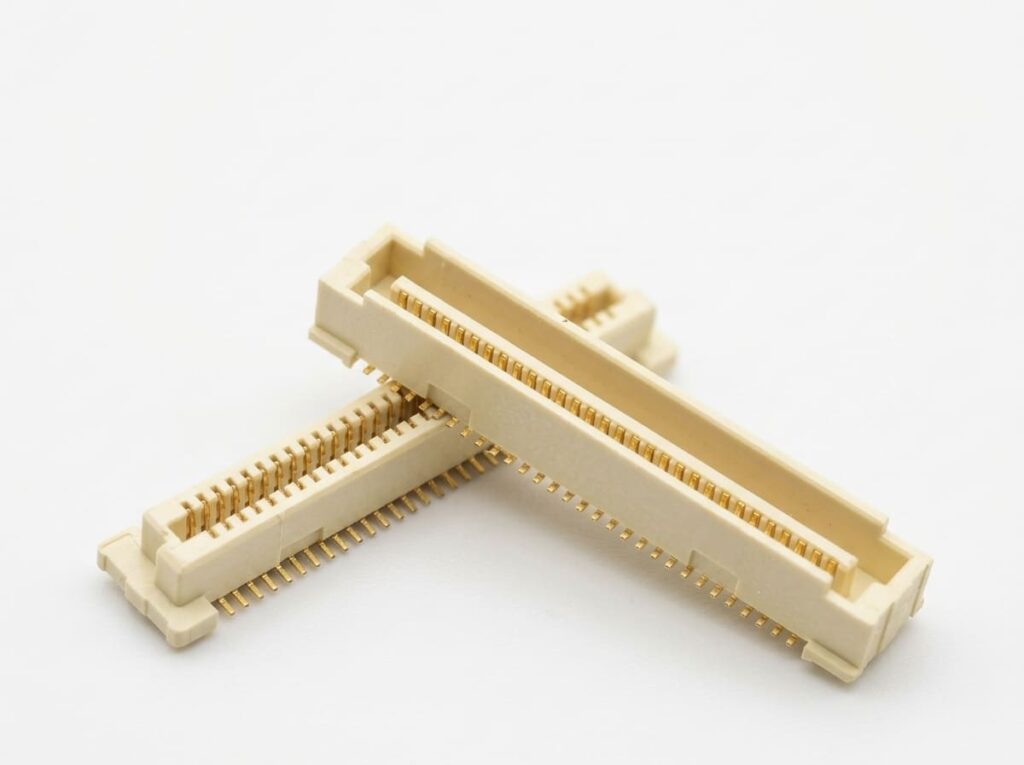

0.80mm Pitch Board-to-Board 40 to 200 Pin SMT Dual Row Vertical Plug Header 4.7mm Height Connector | EDOM
BOARD TO BOARD

0.80mm Pitch Board-to-Board 40 to 200 Pin SMT Dual Row Vertical Plug Header 4.7mm Height Connector | EDOM

Drop-in for: 0.80mm 61083 Series (e.g., 61083-041402LF for 40-Position) Mates With: 0.80mm Pitch Dual Row Board-to-Board Receptacles / Sockets (Compatible with Amphenol FCI 61082 Series Mating Receptacles)
Connector Type
: Board-to-Board (BTB) Plug / Male Header
Contact Pitch
: 0.80 mm
Number of Positions
: 40, 50, 60, 80, 100, 120, 140, 160, 180, 200 Pins (Dual Row)
Mounting Type
: Surface Mount (SMT), Vertical / Straight
Profile Height
: 4.70 mm Nominal Height (4.55 mm Housing Height; 3.70 mm Mating Wall Height)
Housing Width
: 5.60 mm ±0.20 mm (6.00 mm Across Solder Tails)
Overall Length (Dimension A)
: 21.80 mm (40P) to 85.80 mm (200P)
Locating Peg Dimensions
: Asymmetric Bosses: Ø0.70 mm & Ø1.10 mm ±0.05 mm (Length: 1.10 mm ±0.10 mm)
Recommended PCB Layout
: Pad Size: 0.50×2.00 mm; Outer Span: 6.40 mm; Peg Holes: Ø0.80 mm & Ø1.20 mm
Terminal Coplanarity
: 0.10 mm Max.
Standard Compliance
: UL94V-0 Flammability Rated, RoHS Compliant
0.80mm Pitch Board-to-Board 40 to 200 Pin SMT Dual Row Vertical Receptacle 3.7mm Height Connector | EDOM
BOARD TO BOARD

0.80mm Pitch Board-to-Board 40 to 200 Pin SMT Dual Row Vertical Receptacle 3.7mm Height Connector | EDOM

Drop-in for: 0.80mm 61082 Series (e.g., 61082-041402LF for 40-Position) Mates With: 0.80mm Pitch Dual Row Vertical or Right-Angle Board-to-Board Headers (Compatible with Amphenol FCI 61083 Series Mating Headers)
Connector Type
: Board-to-Board (BTB) Receptacle / Socket
Contact Pitch
: 0.80 mm
Number of Positions
: 40, 50, 60, 80, 100, 120, 140, 160, 180, 200 Pins (Dual Row)
Mounting Type
: Surface Mount (SMT), Vertical / Straight, Top Entry
Profile Height
: 3.70 mm Body Height (3.75 mm / 3.76 mm Overall Seated Height)
Housing Width
: 5.60 mm ±0.20 mm (6.00 mm Across Solder Tails)
Overall Length (Dimension A)
: 21.80 mm (40P) to 85.80 mm (200P)
Locating Peg Dimensions
: Asymmetric Bosses: Ø0.70 mm & Ø1.10 mm ±0.05 mm (Length: 0.75 mm ±0.15 mm)
Recommended PCB Layout
: Pad Size: 0.50×2.00 mm; Outer Span: 6.40 mm; Peg Holes: Ø0.80 mm & Ø1.20 mm
Terminal Coplanarity
: 0.10 mm Max.
Standard Compliance
: UL94V-0 Flammability Rated, RoHS Compliant
1×1 Port RJ45 MagJack 100/1000 Base-T Right Angle Through-Hole 13.50mm Connector
Magnetic Modular Jacks

1×1 Port RJ45 MagJack 100/1000 Base-T Right Angle Through-Hole 13.50mm Connector

Intermateable With: J0G-0001NL / Bel Fuse SI-50170-F / Wurth Elektronik WE-RJ45 LAN 1000Base-T Series Mates With: 68 Compliant RJ45 (8P8C) Modular Plugs (Cat5e / Cat6 Ethernet Patch Cables)
Connector Type
: RJ45 Modular Jack with Integrated Magnetics (MagJack)
Port Configuration
: 1x1 (Single Port)
Data Rate / Speed
: 100/1000 Base-T (Gigabit Ethernet)
Mounting Type
: Right Angle, Through-Hole (DIP)
Key Dimensions (W x D x H)
: 16.60mm x 32.60mm x 13.50mm
LED Indicator Configuration
: Left LED: Green / Right LED: Green (560–580nm, 2.1–2.2V Typ.)
Mating Durability
: 800 Mating Cycles Min.
Standard Compliance
: IEEE 802.3af, FCC Dimension Compliant, RoHS, UL94 V-0
1×1 Port RJ45 MagJack 100Base-TX PoE Tab-Up Right Angle Through-Hole 13.70mm Connector
Electronic Connectors

1×1 Port RJ45 MagJack 100Base-TX PoE Tab-Up Right Angle Through-Hole 13.70mm Connector

Intermateable With: J00-0065NL / Bel Fuse SI-46001-F / Halo Electronics HFJ11-RP24E-L12RL Mates With: 68 Compliant RJ45 (8P8C) Modular Plugs (Cat5 / Cat5e Ethernet Patch Cables)
Connector Type
: RJ45 Modular Jack with Integrated PoE Magnetics
Port Configuration
: 1x1 (Single Port), Tab-Up
Data Rate & PoE Standard
: 100Base-TX Fast Ethernet, IEEE 802.3af PoE (PSE / PD)
Mounting Type
: Right Angle, Through-Hole (DIP)
Key Dimensions (W x D x H)
: 16.50mm x 32.50mm x 13.70mm
Suggested Panel Opening (W x H)
: 17.06mm x 13.88mm (±0.10mm)
LED Indicator Configuration
: Left LED: Yellow (585nm) / Right LED: Green (568nm)
Mating Durability & Force
: 750 Cycles Min. / 23N Max. Mating Force
Standard Compliance
: IEEE 802.3af, RoHS, REACH, UL94 V-0
2.00mm Pitch Dual Row Female Pin Header (SMD, Top Entry)
BOARD TO BOARD

2.00mm Pitch Dual Row Female Pin Header (SMD, Top Entry)

Alt. for: 2.00mm series equivalents Mates With: 2.00mm pitch dual-row surface mount or through-hole male pin headers (0.50mm square pins)
Number Of Rows
: Dual
Socket Entry Type
: Top Entry
Socket Contact Type
: Leaf Spring
Header Pin Size
: 0.30mm
Polarisation
: Bump
Insulator Colour
: Black

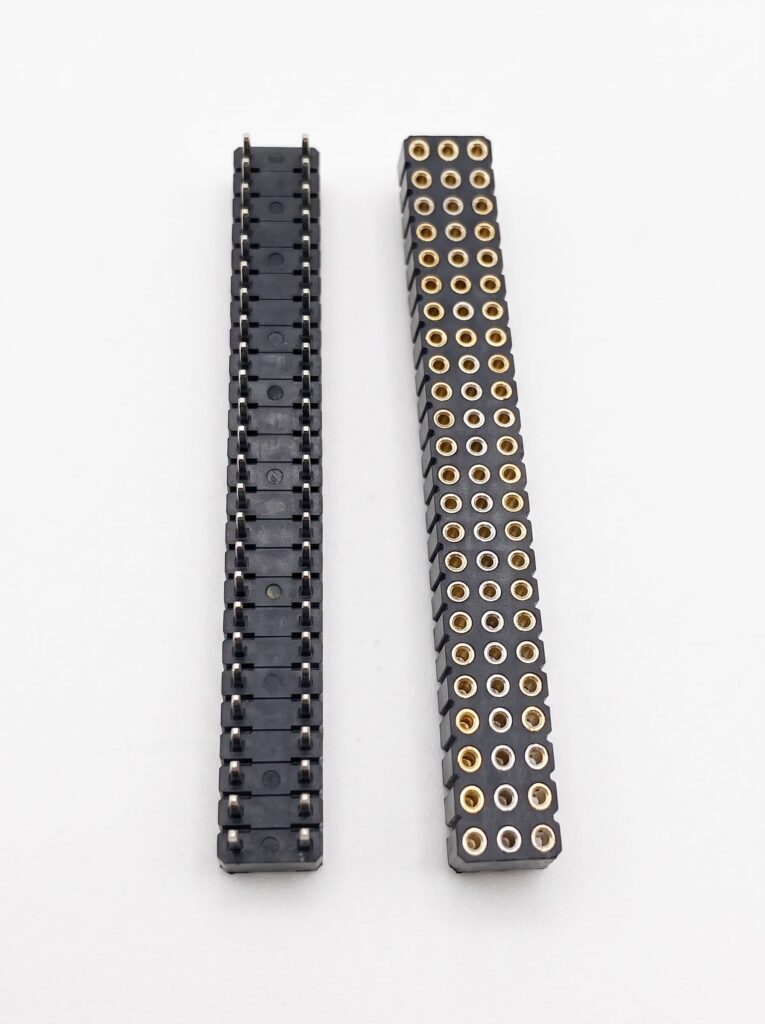

2.54mm Pitch Machined IC Socket Female Header Connector Straight Through-Hole 4.20mm Profile | EDOM
BOARD TO BOARD

2.54mm Pitch Machined IC Socket Female Header Connector Straight Through-Hole 4.20mm Profile | EDOM

Intermateable With: 310 / 801 Series, Preci-Dip 310 Series, TE Connectivity 5-1437537 Series (2.54mm Machined Female Socket Strips) Mates With: 2.54mm Pitch Machined Round Pin Headers or Square Pin Headers with Ø0.635mm to Ø0.889mm Mating Pins
Connector Type
: Machined Pin Female Header / IC Socket Strip
Pitch
: 2.54mm (0.100")
Number of Positions / Pins
: Customizable (Length = 2.54mm × No. of Positions ±0.40mm)
Mounting Type
: Straight Through-Hole (THT / DIP)
Key Dimensions
: Insulator Height: 4.20mm ±0.10mm; Total Height: 7.40mm ±0.15mm; Terminal Tail Diameter: Ø0.60mm ±0.02mm
Mating Pin Size
: Ø0.635mm to Ø0.889mm
Recommended PCB Hole Size
: Ø1.00mm ±0.05mm Plated Through-Hole on 2.54mm Grid
Mating Durability
: 500 Cycles Min.
Standard Compliance
: UL94V-0 Flammability Rating, RoHS Compliant
2FF SIM Card 8-Pin Hinged SMT 2.50mm Profile Connector
Electronic Connectors

2FF SIM Card 8-Pin Hinged SMT 2.50mm Profile Connector

Alt. for: C707-10M008, Molex 91228 Series Mates With: 7816 Standard 2FF (Mini-SIM) Cards (25.00mm x 15.00mm)
Connector Type
: 2FF (Mini-SIM) Hinged Card Socket
Number of Positions / Pins
: 8 Pins (C1, C2, C3, C5, C6, C7 + 2x SW Card Detection Terminals)
Mounting Type
: Surface Mount (SMT), Hinged Flip-Top with Slide-Lock (OPEN / LOCK)
Key Dimensions
: Length: 29.60 ±0.20mm, Width: 17.20 ±0.20mm, Profile Height: 2.50 ±0.10mm (Cover Step: 2.20 ±0.10mm, Standoff: 0.20mm)
Contact Pitch & Pad Width
: 2.54 ±0.10mm Pitch (3x2.54mm per row), 0.75mm Pad Width
Recommended PCB Footprint Span
: 29.60mm x 17.20mm (Inner Pad Span: 15.20 ±0.10mm, Longitudinal Span: 24.80 ±0.20mm)
6.35mm Pitch 9 Pin 3×3 Matrix Vertical Board-to-Wire Power Connector
Electronic Connectors

6.35mm Pitch 9 Pin 3×3 Matrix Vertical Board-to-Wire Power Connector

Drop-in for: 1-480706-0 (Universal MATE-N-LOK), Molex 50-84-1091 Mates With: 9-Pin (3x3) 6.35mm Pitch Female Wire-to-Wire Plug / Wire Harness
Connector Type
: Wire-to-Board Power Connector / Pin Header
Number of Positions / Pins
: 9 Pins (3x3 Matrix)
Pitch
: 6.35 mm (0.250")
Mounting Type
: Vertical PCB Through-Hole
Mounting Orientation
: Straight / Vertical
Locking Mechanism
: Latch / Retaining Tabs
Dimensions
: Width: A±0.20 (12.70mm) / Body Width: B±0.25 (20.32mm) / Overall Width: 22.88±0.25mm / Height: 14.73±0.25mm / Total Height with Pin: 18.30mm (approx)
Recommended PCB Hole
: Ø1.78±0.08 mm
Solder Pin Length (Tail)
: 3.57±0.20 mm
Pin Array
: 3 Rows & 3 Columns
Standard Compliance
: RoHS, REACH, UL
DC Power Jack Female Reverse Sinking DIP H1.60mm Flush Interface 24V 3A Connector | EDOM
DC Power Jacks

DC Power Jack Female Reverse Sinking DIP H1.60mm Flush Interface 24V 3A Connector | EDOM

Alt. for: PJ-002AH-SMT-TR / Wurth Elektronik 694106301002 Series Mates With: 2.1mm / 2.5mm Center Pin DC Power Male Plugs (Outer Diameter 5.5mm)
Connector Type
: DC Power Jack Female Receptacle
Center Pin Diameter
: Ø 1.00 mm / Ø 1.30 mm Center Pin Option
Mounting Type
: Reverse Sinking DIP (Mid-Mount / Through Hole)
Interface Feature
: Flat-Mouth / Flush Interface
Profile Height (Centerline Height)
: 1.60 mm
Overall Dimensions
: 10.70 mm (L) x 8.90 mm (W) x 3.85 mm (H)
Cut-Out Depth from Edge
: 6.90 mm to PCB Edge Reference
Mating Durability
: 50,000 Mating Cycles
Insertion Force
: 0.3 kgf to 3.0 kgf
Withdrawal Force
: 0.3 kgf to 3.0 kgf
Packaging Method
: Tray / Tape & Reel (Contact Factory for Automated Line Options)
Standard Compliance
: RoHS Compliant, UL 94V-0
