LAN Patch Cable: Cat5e Cat6 Cat6a Ethernet Cable Assembly

LAN PATCH CABLE

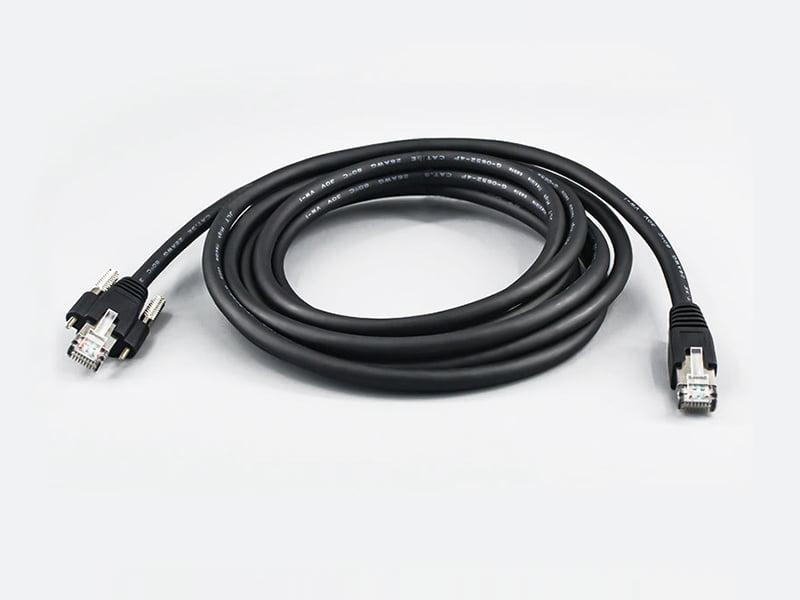

Industrial Cat5e PROFINET RJ45 Patch Cable with Screw Locking

Drop-in for: RJ45 Screw-Lock Cable Series Compatible Mates With: RJ45 (8P8C) Receptacles featuring Panel-Mount Screw Lock Flanges, Machine Vision Cameras, and PLC Interface Ports.

Connector A & B: : Shielded RJ45 Male with Screw Locks
Data Rate: : Up to 1 Gbps (PROFINET Compatible)
Locking Mechanism: : M2.0 / M2.5 / M3 Thumbscrews
Impedance: : 100 Ohms ± 15 Ohms @ 1-100MHz
Conductor Gauge: : 22 AWG or 24 AWG (Customizable)
Shielding Type: : SF/UTP or S/FTP (Overall Foil & Braid)
Cable Length: : 0.5m to 20m (Custom Lengths Available)
Assembly Standard: : IPC/WHMA-A-620

View Details Datasheet

LAN PATCH CABLE

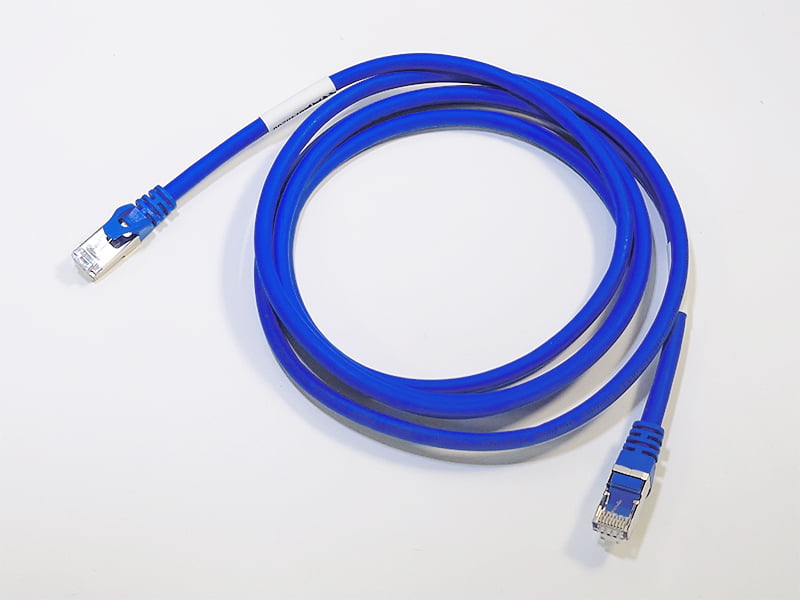

Industrial Cat6A PROFINET RJ45 Shielded Patch Cable Assembly (LSZH, Blue)

Drop-in for: Cat6A Industrial Ethernet Cable Series Compatible Mates With: RJ45 (8P8C) Ethernet Receptacles, 10G PROFINET Network Switches, and PLC Interface Ports.

Number of Pins: : 8 Pins (RJ45 Plug to RJ45 Plug)
Data Rate: : Up to 10 Gbps (10GBASE-T)
Cable Category: : Cat6A (PROFINET Compatible)
Bandwidth: : 500 MHz
Conductor Gauge: : 24 AWG to 26 AWG
Impedance: : 100 Ohms ± 15 Ohms
Cable Length: : Customization Length
Shielding Type: : S/FTP (Overall Braid & Individual Foil)

View Details Datasheet

LAN PATCH CABLE

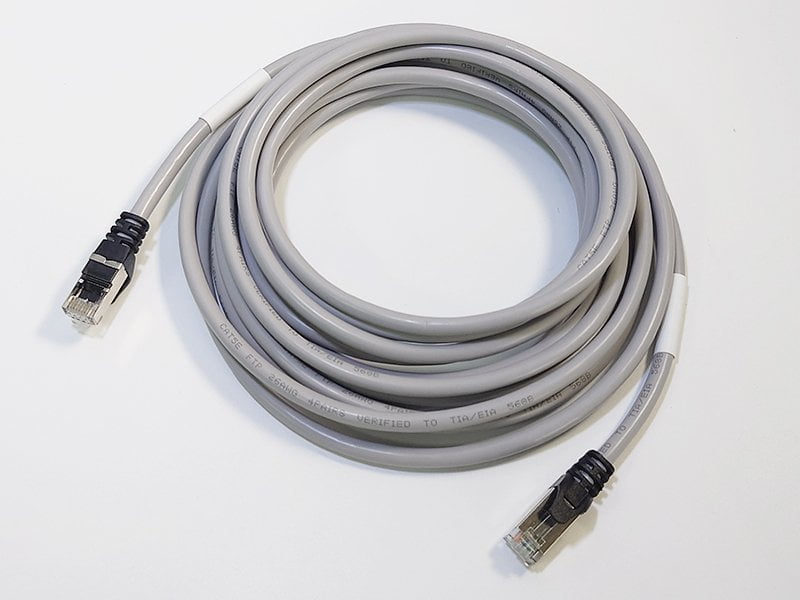

Industrial Cat6A PROFINET RJ45 Shielded Patch Cable Assembly (LSZH, Gray)

Drop-in for: Cat6A Industrial Ethernet Cable Series Compatible Mates With: RJ45 (8P8C) Ethernet Receptacles, PROFINET Network Switches, and PLC Interface Ports.

Connector A & B: : Shielded RJ45 (8P8C) Male Plug
Data Rate: : 10/100/1000 Mbps (Gigabit Ethernet)
Cable Category: : Cat6A (PROFINET Compatible)
Impedance: : 100 Ohms ± 15 Ohms @ 1-100MHz
Conductor Gauge: : 24 AWG or 26 AWG (Customizable)
Shielding Type: : F/UTP or S/FTP (Overall Foil & Braid)
Cable Length: : 0.5m to 50m (Custom Lengths Available)
Assembly Standard: : IPC/WHMA-A-620 & TIA/EIA-568-B

View Details Datasheet

LAN PATCH CABLE

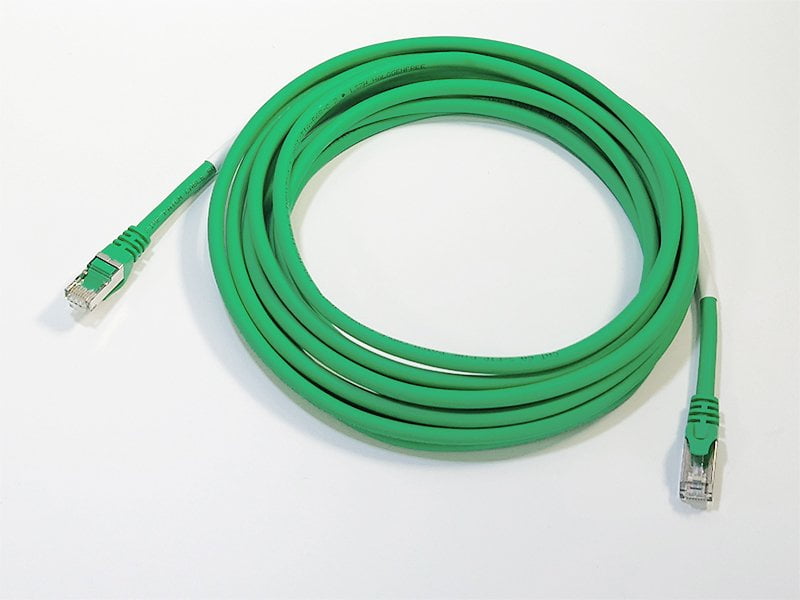

Industrial Cat6A PROFINET RJ45 Shielded Patch Cable Assembly (LSZH, Green)

Drop-in for: Cat6A Industrial Ethernet Cable Series Compatible Mates With: RJ45 (8P8C) Receptacles, 10G PROFINET Network Switches, and advanced PLC Interface Ports.

Number of Pins: : 8 Pins (RJ45 Plug to RJ45 Plug)
Data Rate: : Up to 10 Gbps (10GBASE-T)
Cable Category: : Cat6A (PROFINET Compatible)
Bandwidth: : 500 MHz
Conductor Gauge: : 24 AWG or 26 AWG
Impedance: : 100 Ohms ± 15 Ohms @ 1-500MHz
Cable Length: : Custom Lengths Available
Shielding Type: : S/FTP (Overall Braid & Individual Foil)

View Details Datasheet

LAN PATCH CABLE

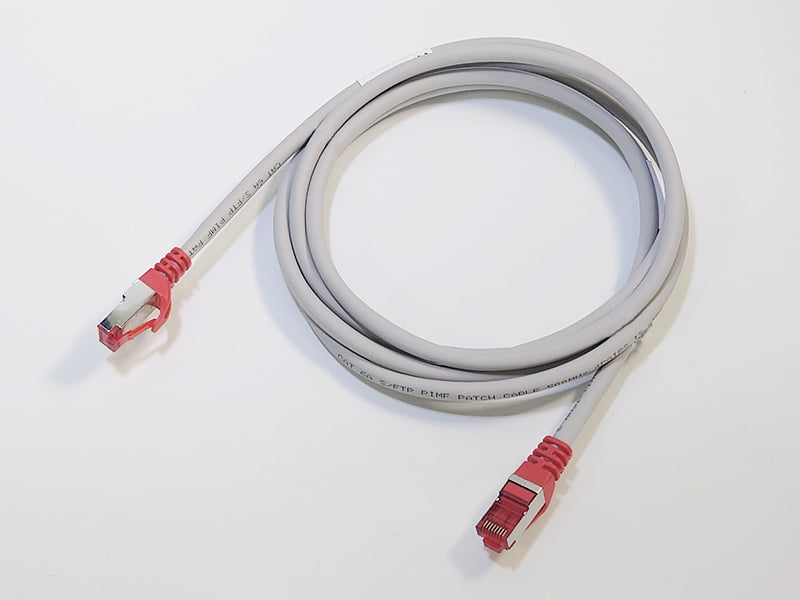

Industrial Cat6A PROFINET RJ45 Shielded Patch Cable Assembly (LSZH, Red)

Drop-in for: Cat6A Industrial Ethernet Cable Series Compatible Mates With: RJ45 (8P8C) Receptacles, 10G PROFINET Network Switches, and advanced PLC Interface Ports.

Number of Pins: : 8 Pins (RJ45 Plug to RJ45 Plug)
Data Rate: : Up to 10 Gbps (10GBASE-T)
Cable Category: : Cat6A (PROFINET Compatible)
Bandwidth: : 500 MHz
Conductor Gauge: : 24 AWG or 26 AWG
Impedance: : 100 Ohms ± 15 Ohms @ 1-500MHz
Cable Length: : Custom Lengths Available
Shielding Type: : S/FTP (Overall Braid & Individual Foil)

View Details Datasheet

LAN PATCH CABLE

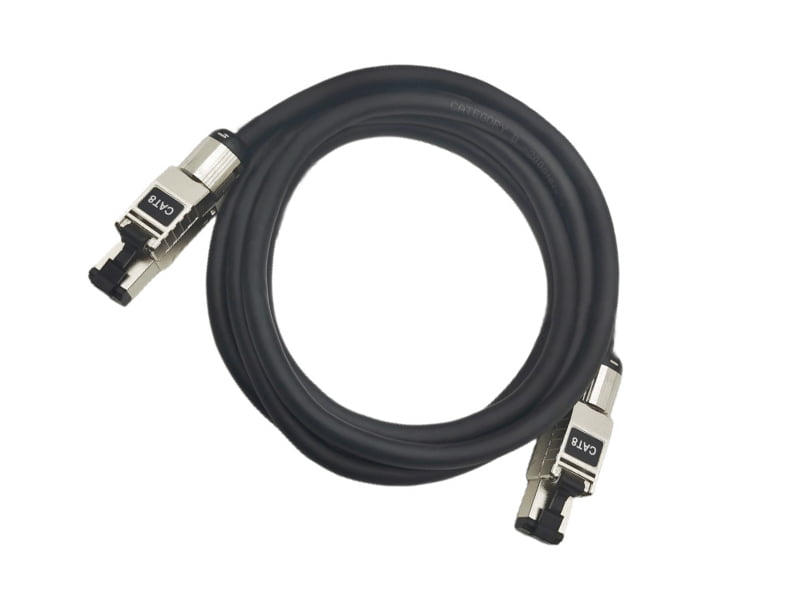

Industrial Cat8 PROFINET RJ45 Shielded Patch Cable Assembly

Drop-in for: Cat8 Industrial Ethernet Cable Series Compatible Mates With: RJ45 (8P8C) Receptacles, 25G/40G PROFINET Network Switches, and advanced PLC Interface Ports.

Number of Pins: : 8 Pins (RJ45 Plug to RJ45 Plug)
Data Rate: : Up to 25/40 Gbps (40GBASE-T)
Cable Category: : Cat8 (PROFINET Compatible)
Bandwidth: : 2000 MHz
Conductor Gauge: : 26 AWG to 22 AWG
Impedance: : 100 Ohms ± 15 Ohms @ 1-2000MHz
Cable Length: : Customization Length
Shielding Type: : S/FTP (Overall Braid & Individual Foil)

View Details
