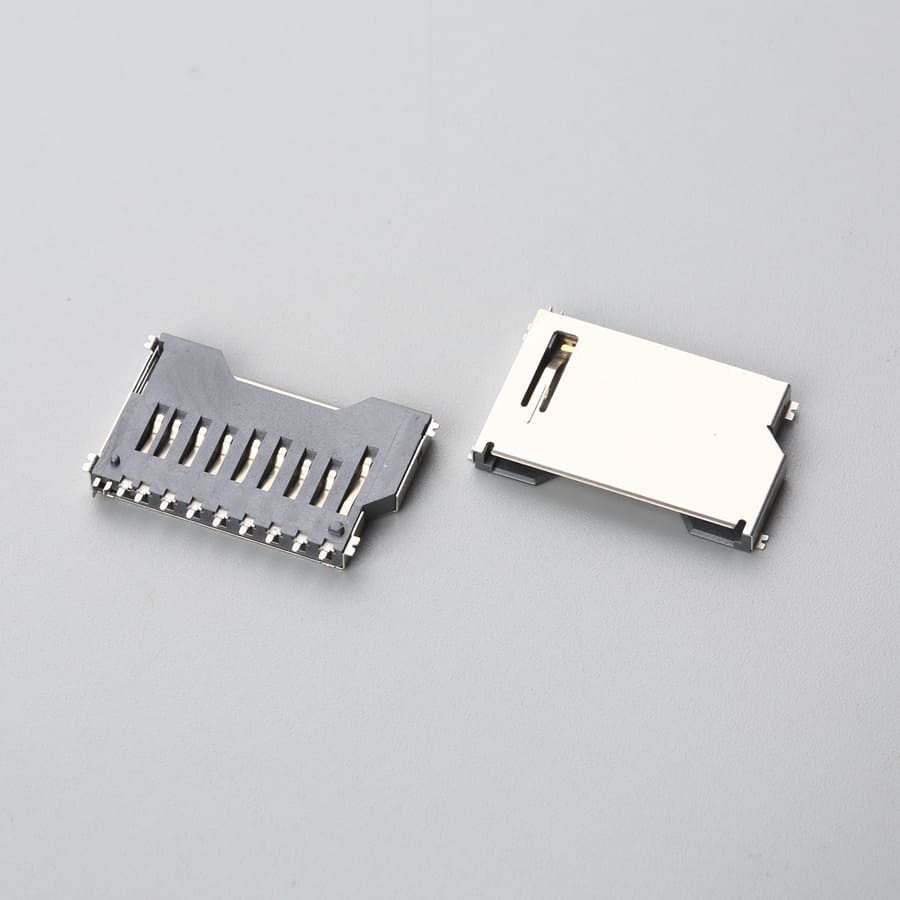

SD Card 11-Pin SMT Push-Pull 2.85mm Profile Height Memory Card Connector | EDOM
Intermateable With: DM1AA-SF-PEJ / Molex 500901-0801 / TE Connectivity 2041021-1 / Amphenol 10100581
Mates With: (24.0mm x 32.0mm x 2.1mm)
- Connector Type
- : Secure Digital (SD) Memory Card Connector
- Connector Style
- : Push-Pull (Manual Insertion / Extraction), Top-Mount
- Number of Positions / Pins
- : 11 Pins (9 Signal/Power Pins + Pin 10 Card Detect + Pin 11 Write Protect)
- Mounting Type
- : Surface Mount (SMT) with Dual Polarized PCB Locating Pegs
- Key Dimensions
- : Profile Height: 2.85mm; Body Width: 24.24mm (26.45mm Overall with Tabs); Depth: 19.60mm
- PCB Locating Pegs & Footprint
- : Pegs: Ø0.85mm & Ø1.40mm (21.03mm Pitch); Recommended PCB Holes: Ø0.95mm & Ø1.50mm; Outer Pad Span: 27.30mm
- Solder Tail Coplanarity
- : 0.08 mm Max.
- Card Detection & Write Protect Switch
- : Normally Open (Card Ejected: OPEN; Card Inserted: CLOSE to Ground)
- Packaging Method & Quantity
- : 44.0mm Tape & Reel (Ø330mm Reel), 600 PCS/Reel, 6 Reels/Carton (3,600 PCS/Carton, Carton Size: 350x350x330mm)
- Standard Compliance
- : RoHS Compliant, UL 94V-0 Flammability Rating
Full specifications
- Connector Type
- Secure Digital (SD) Memory Card Connector
- Connector Style
- Push-Pull (Manual Insertion / Extraction), Top-Mount
- Number of Positions / Pins
- 11 Pins (9 Signal/Power Pins + Pin 10 Card Detect + Pin 11 Write Protect)
- Mounting Type
- Surface Mount (SMT) with Dual Polarized PCB Locating Pegs
- Key Dimensions
- Profile Height: 2.85mm; Body Width: 24.24mm (26.45mm Overall with Tabs); Depth: 19.60mm
- PCB Locating Pegs & Footprint
- Pegs: Ø0.85mm & Ø1.40mm (21.03mm Pitch); Recommended PCB Holes: Ø0.95mm & Ø1.50mm; Outer Pad Span: 27.30mm
- Solder Tail Coplanarity
- 0.08 mm Max.
- Card Detection & Write Protect Switch
- Normally Open (Card Ejected: OPEN; Card Inserted: CLOSE to Ground)
- Packaging Method & Quantity
- 44.0mm Tape & Reel (Ø330mm Reel), 600 PCS/Reel, 6 Reels/Carton (3,600 PCS/Carton, Carton Size: 350x350x330mm)
- Standard Compliance
- RoHS Compliant, UL 94V-0 Flammability Rating
