Waterproof Cable: IP67 IP68 Cable Assembly Manufacturing

WATERPROOF CABLE

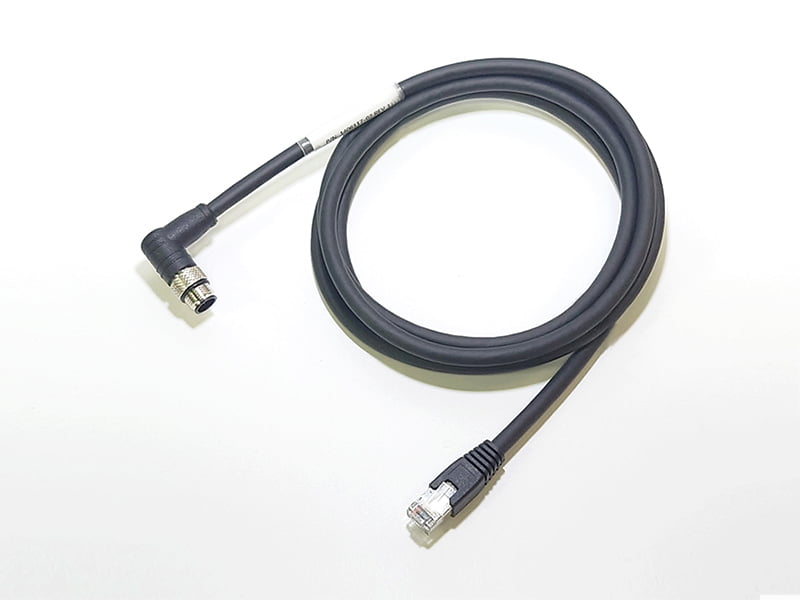

M12 A-Code Right Angle Screw Locking Waterproof Cable for Industrial Ethernet & PROFINET

Drop-in for: M12 A-Code Series (e.g., SAC-8P-MR/ 1,0-933/FS SCO equivalents) Mates With: M12 A-Code 8-pin panel mount receptacles (e.g., Phoenix Contact / TE Connectivity M12 chassis sockets)

Number of Pins: : 8 Pins
Key Position: : A Code
Left Connector: : M12 Right Angle Plug (Male)
Right Connector: : RJ45 Plug (Shielded)
AWG Gauge: : 26 AWG ~ 24 AWG
Connection Type: : Screw Locking (M12)
IP Rating: : IP67 / IP68 (Mated condition)
Cable Length: : 1M ~ 50M (Customizable)

View Details Datasheet

WATERPROOF CABLE

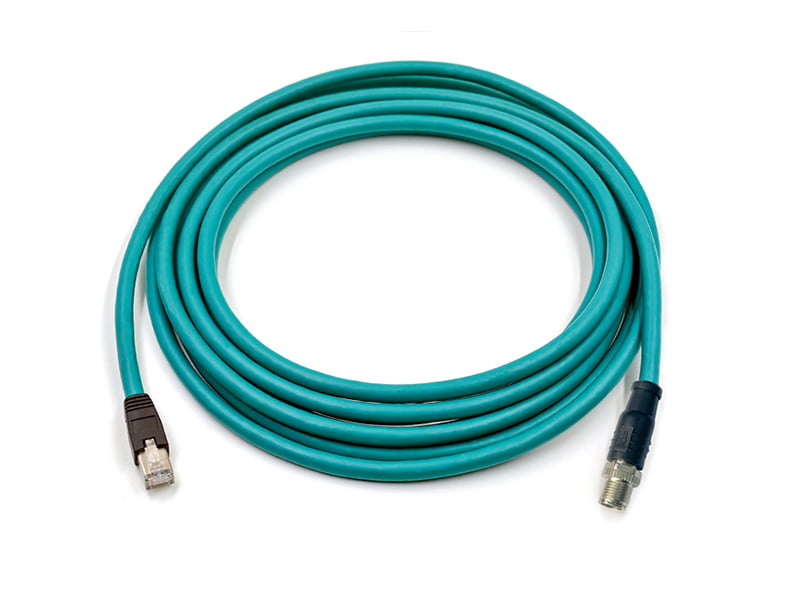

M12 X-Code to RJ45 Waterproof Cable for Industrial Ethernet

Drop-in for: M12 X-Code Series (e.g., Phoenix SAC-8P-M12MSX/ RJ45) Mates With: M12 X-Code 8-pin panel mount receptacles (e.g., IEC 61076-2-109 compliant sockets)

Number of Pins: : 8 Pins
Key Position: : X-Code
Left Connector: : M12 X-Code Plug (Male)
Right Connector: : RJ45 Plug (Shielded)
AWG Gauge: : 24 AWG ~ 26 AWG
Connection Type: : Screw Locking (M12)
Data Protocol: : Cat6a (Up to 10 Gbps)
Cable Length: : Fully Customizable
IP Rating: : IP67 (M12 Mated Condition)
Standard: : IEC 61076-2-109

View Details Datasheet

WATERPROOF CABLE

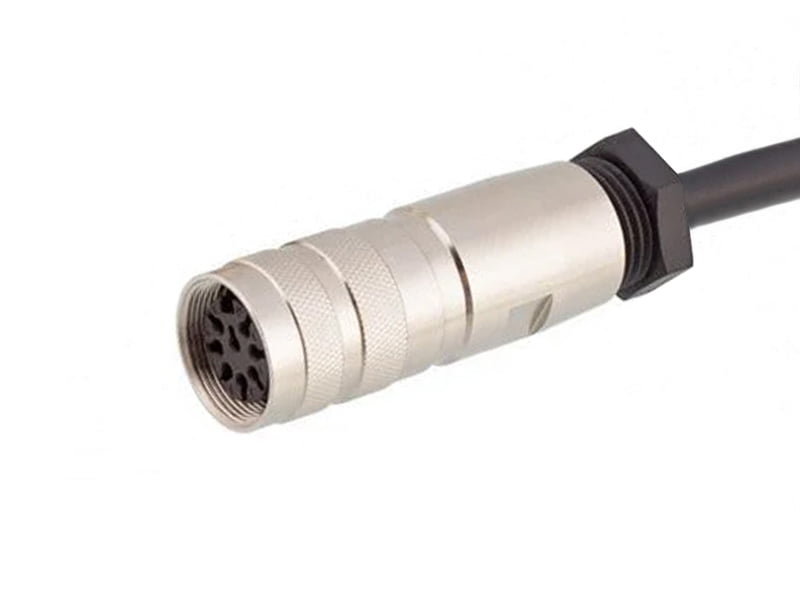

M16 8-Pin AISG C091 Waterproof Cable Assembly for 5G Base Stations

Drop-in for: C091 Series (e.g., C091 31H008 100 2) Mates With: 8-pin M16 panel mount receptacles (e.g., Amphenol C091 31G008 100 2)

Number of Pins: : 8 Pins (AISG Standard)
Key Position: : Standard AISG Polarization
Left Connector: : M16 8-Pin Socket (Female)
Right Connector: : Custom (Bare wire, M16 Male, etc.)
AWG Gauge: : 18 AWG ~ 20 AWG
Connection Type: : Threaded Screw Locking (M16x0.75)
IP Rating: : IP67 / IP68 (Mated condition)
Cable Length: : Fully Customizable

View Details Datasheet

WATERPROOF CABLE

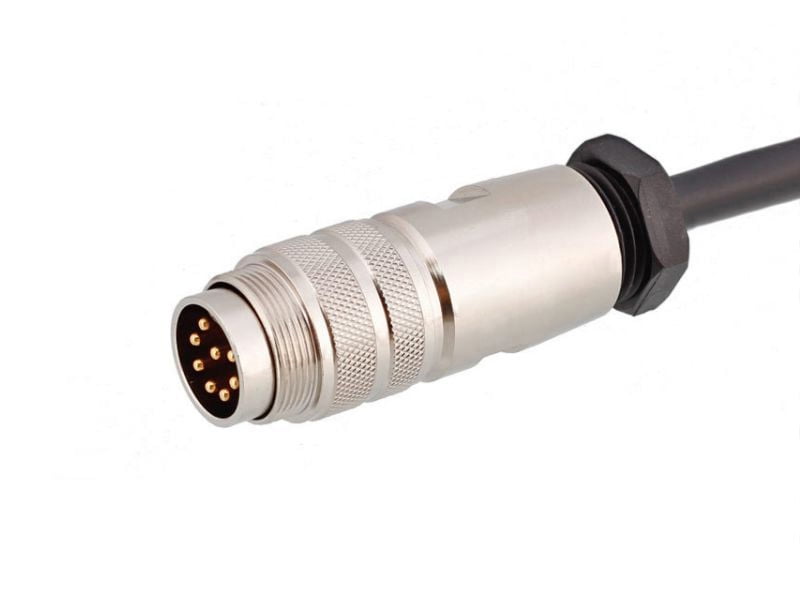

M16 8-Pin AISG C091 Waterproof Cable Assembly for 5G Base Stations

Drop-in for: C091 Series (e.g., C091 31H008 100 2) Mates With: 8-pin M16 panel mount receptacles (e.g., Amphenol C091 31G008 100 2)

Number of Pins: : 8 Pins (AISG Standard)
Key Position: : Standard AISG Polarization
Left Connector: : M16 8-Pin Plug (Male)
Right Connector: : Custom (Bare wire, M16 Female, etc.)
AWG Gauge: : 18 AWG ~ 20 AWG
Connection Type: : Threaded Screw Locking (M16x0.75)
IP Rating: : IP67 / IP68 (Mated condition)
Cable Length: : Fully Customizable

View Details Datasheet

WATERPROOF CABLE

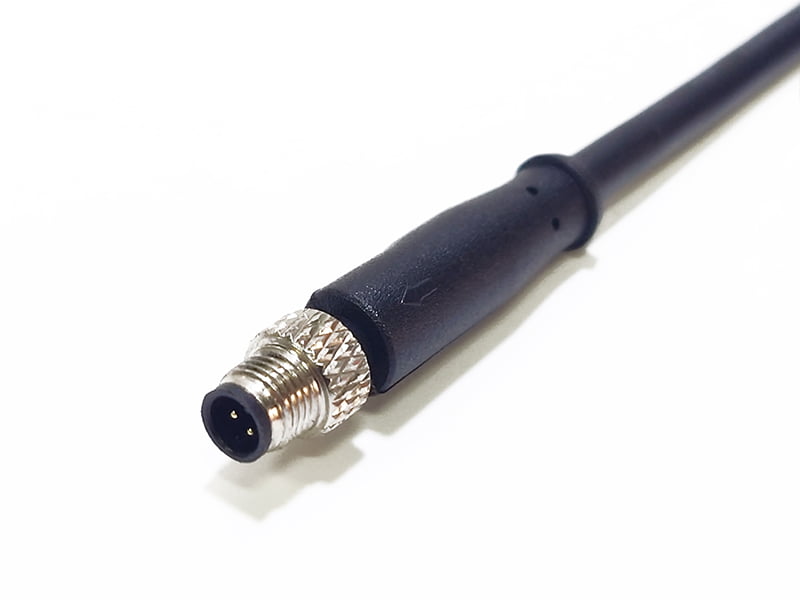

M5 4-Pin A-Code Male Sensor Cable Assembly, IP67 Waterproof

Drop-in for: 707 (e.g., M5 A-Code 4-Pin Male Plug) Mates With: M5 A-Code 4-pin panel mount receptacles (e.g., Binder 707 Series female sockets)

Number of Pins: : 4 Pins
Key Position: : A-Code
Left Connector: : M5 Male Plug (Standard)
Right Connector: : Custom (Bare wire, Female, etc.)
AWG Gauge: : 26 AWG
Connection Type: : Threaded Screw Locking (M5x0.5)
IP Rating: : IP67 (Mated Condition)
Cable Length: : Fully Customizable

View Details Datasheet

WATERPROOF CABLE

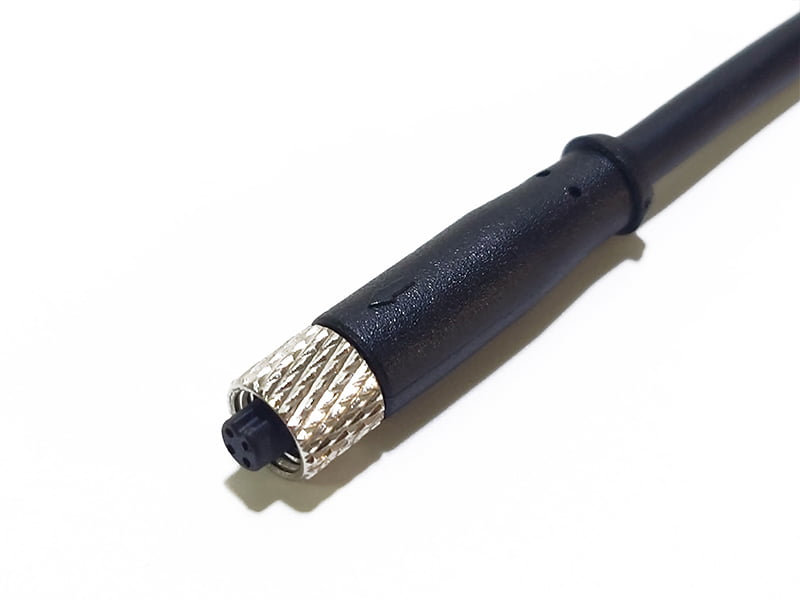

M5 4-Pin Female Sensor Cable Assembly, IP67 Waterproof

Drop-in for: 707 (e.g., M5 4-Pin Female Cable equivalents), TE Connectivity M5 Series. Mates With: M5 4-pin panel mount receptacles or male plugs (e.g., Binder 707 Series Male Plugs).

Number of Pins: : 4 Pins
Key Position: : Standard M5
Left Connector: : M5 Female Socket (Overmolded)
Right Connector: : Custom (Bare wire, Male Plug, etc.)
AWG Gauge: : 26 AWG (Standard for M5)
Connection Type: : Threaded Screw Locking (M5x0.5)
IP Rating: : IP67 (Mated Condition)
Cable Length: : Fully Customizable

View Details Datasheet

WATERPROOF CABLE

M8 3-Pin Female Sensor Cable Assembly, A-Coded, IP67 Waterproof

Intermateable With: M8 3-Pos Sensor Cables (e.g., Phoenix Contact 1681677 or equivalent) Mates With: M8 3-Pin A-Coded Male Plugs / Panel Mount Connectors

Number of Pins:: : 3 Pos
Key Position:: : A-Coded
Connector Type:: : M8 Socket (Female)
Connection Type:: : Threaded Screw Locking (M8 x 1.0)
Wire Gauge:: : 22 AWG (Standard)
Cable Length:: : Customized to requirements
Termination:: : Overmolded
Cable End:: : Flying Leads / Blunt Cut / Custom

View Details Datasheet

WATERPROOF CABLE

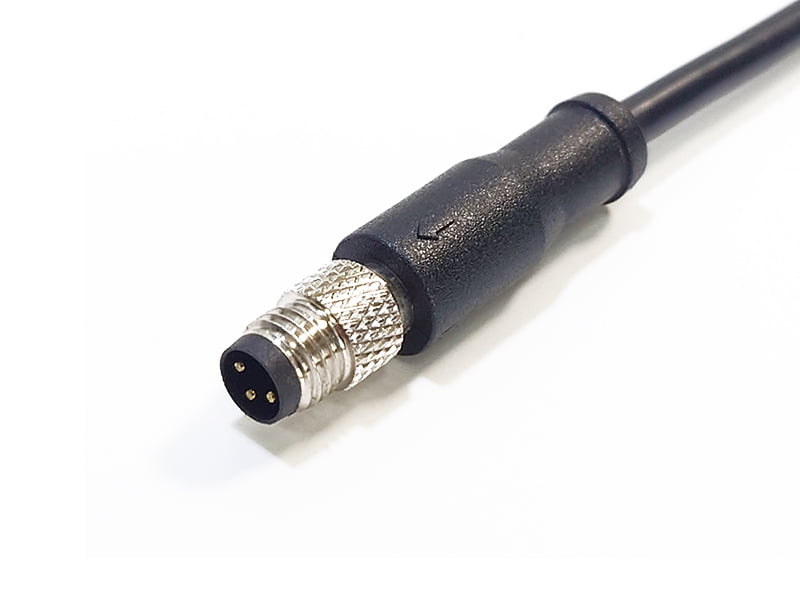

M8 3-Pin Male Sensor Cable Assembly, IP67 Waterproof

Drop-in for: M8 Series (e.g., Binder 718/768 Series Male Plugs). Mates With: M8 3-pin female panel mount receptacles or extension cables (IEC 61076-2-104 compliant).

Number of Pins: : 3 Pins
Key Position: : A-Code (Standard)
Left Connector: : M8 Male Plug (Straight / Right Angle)
Right Connector: : Custom (Bare wire, Female socket, etc.)
AWG Gauge: : 24 AWG (Standard for M8)
Connection Type: : Threaded Screw Locking (M8x1.0)
IP Rating: : IP67 (Mated Condition)
Cable Length: : Fully Customizable

View Details Datasheet

WATERPROOF CABLE

M8 4-Pin Female Sensor Cable Assembly, A-Coded, IP67 Waterproof

Intermateable With: M8 4-Pos Sensor Cables (e.g., Phoenix Contact 1668111 or equivalent) Mates With: M8 4-Pin A-Coded Male Plugs / Panel Mount Sockets

Number of Pins:: : 4 Pos
Key Position:: : A-Code
Connector Type:: : M8 Socket (Female)
Connection Type:: : Threaded Screw Locking (M8 x 1.0)
Wire Gauge:: : 22 AWG
Cable Length:: : Customization length
Termination:: : Overmolded
Cable End:: : Flying Leads / Blunt Cut / Custom

View Details Datasheet
