Custom Cable Assemblies

Browse our full catalog of custom cable assemblies, including HDMI, USB, Audio, AOC, and Power Cords with engineering pinouts and downloadable datasheets.

Need specialized OEM cable development, custom overmolding, or engineering drawing reviews? Explore our Custom Cable Assembly Sourcing & Manufacturing Services.

40 products found

Browse available products in this category.

0.4mm Pitch 40-Pin Micro-Coaxial Shielded Cable Assembly 40AWG 50 Ohm LVDS/FPGA-RF Harness
Custom Cable Assemblies

0.4mm Pitch 40-Pin Micro-Coaxial Shielded Cable Assembly 40AWG 50 Ohm LVDS/FPGA-RF Harness

Intermateable With: 20878-040T-01 / I-PEX CABLINE-CA II 40-Pin Series Mates With: 20525-040E Series 0.4mm Pitch 40-Pin Board Receptacle Header
Cable Type
: Shielded Micro-Coaxial Cable Assembly (LVDS / FPGA-RF Harness)
Number of Positions / Pins
: 40 Pins
Pitch
: 0.4 mm
Orientation Configuration
: P1: Goldfinger Down / P2: Goldfinger Up (1-to-1 Pinout)
Overall Cable Length
: 60.5 mm (+2.5 / -1.5 mm)
Wire Gauge & Impedance
: 40 AWG, 50 Ohms Micro-Coaxial Cable (41 PCS)
Strain Relief Method
: UV Adhesive Encapsulation at Both Soldering Points
Standard Compliance
: RoHS Compliant, 100% Electrical Tested
15-Pin MIL-Spec Micro-D (D-Sub) Pre-Wired Connector Assembly (3A, 2xM2 Jackscrews, 18.22mm Pitch)
Custom Cable Assemblies

15-Pin MIL-Spec Micro-D (D-Sub) Pre-Wired Connector Assembly (3A, 2xM2 Jackscrews, 18.22mm Pitch)

Intermateable With: MIL-DTL-83513 (M83513) 15-Pin Micro-D Series, Glenair MWDM 15P Series, ITT Cannon MDM-15 Series, Amphenol M83513 15-Position Series Mates With: 15-Pin MIL-Spec Micro-D (M83513 Compatible) Mating Plugs / Receptacles with 18.22mm Mounting Pitch
Connector Type
: MIL-Spec D-Sub / Micro-D Pre-Wired Connector
Number of Positions
: 15 Pins (15P)
Locking Mechanism
: 2 × M2 Jackscrews (Removable; 2 × Ø2.3mm holes without locking assembly)
Key Dimensions
: Overall Width: 23.6 mm; Mounting Pitch: 18.22 ± 0.10 mm; Body Height/Depth: 14.0 mm / 8.0 mm
Wire Lead Length (L)
: Customizable in millimeters (mm) per customer order requirements
Rated Current
: 3 A
Mechanical Life
: 500 Mating Cycles
Vibration Resistance
: Sinusoidal: 10 Hz–2000 Hz, 196 m/s²; Random: PSD 0.4 G²/Hz, 23.1 G RMS
Shock Resistance
: 735 m/s², 11 ms
3-Pin XLR Male to Female Microphone and DMX Cable Assembly
AUDIO CABLE

3-Pin XLR Male to Female Microphone and DMX Cable Assembly

Drop-in for: NC3MXX / NC3FXX Series Compatible Mates With: 3-Pin XLR Receptacles / Panel Mount Sockets (e.g., Neutrik NC3MD-LX, Switchcraft D3F)
Number of Pins
: 3 Pins
Connector 1
: 3-Pin XLR Plug (Male)
Connector 2
: 3-Pin XLR Socket (Female)
Wire Gauge
: 20 AWG (Customizable)
Connection Type
: Push-Pull Latch Lock
Cable Length ("A")
: Custom length (Tolerances: 0–500 mm: +15/-0 mm; > 501 mm: +3%/-0 of length)
Impedance
: Standard Audio / 120Ω (For DMX)
Cable Outer Diameter (OD)
: Ø 6.00 mm
Stripping Off Dimensions
: 36.00 mm / 3.00 mm
Quality & Manufacturing Standard
: IEC 61076-2-103 / 100% Open/Short/Miswiring Tested
Automotive HDMI Type-E to Type-E High-Speed Cable Assembly
HDMI CABLE

Automotive HDMI Type-E to Type-E High-Speed Cable Assembly

Mates With: 2337019-1 or Mitsumi equivalents) on both ends.
Number of Pins
: 19 Pins (HDMI Standard)
Connector A (Left)
: Automotive HDMI Type-E Plug (Male) with Locking Latch
Connector B (Right)
: Automotive HDMI Type-E Plug (Male) with Locking Latch
AWG Gauge
: 32 AWG (Data) & 26 AWG (Power)
Cable Length
: Fully customizable upon request (e.g., 0.5m to 5m+)
Bandwidth Support
: Up to 18 Gbps (Supports 4K/60Hz depending on length)
Cat6 STP Shielded RJ45 Ethernet Patch Cable Assembly (26AWG, OD6.0mm)
Custom Cable Assemblies

Cat6 STP Shielded RJ45 Ethernet Patch Cable Assembly (26AWG, OD6.0mm)

Drop-in for: 15018 / 15020 series, Amphenol CONEC 17-10006 series, Stewart Connector BM-CBRR / SS-60400 series, L-com TRD855DSZ / TRD695 series Mates With: 8P8C RJ45 Female Sockets, Couplers, Keystone Jacks (Unshielded & Shielded)
Connector A
: RJ45 PLUG 8P8C, Shielded with Metallic Shell
Connector B
: RJ45 PLUG 8P8C, Shielded with Metallic Shell
Cable Type
: CAT6 STP (Shielded Twisted Pair)
Wire Gauge & Wire Count
: 26AWG × 4PR (4 Pairs) + Drain (DA)
Outer Diameter (OD)
: 6.0 mm
Conductor Material
: Bare Copper (Stranded)
Length Options
: 250 ± 15 mm / 1000 ± 30 mm
Shielding
: Aluminum Foil Shielding with Ground/Drain Connection (STP)
Pin Assignment
: Straight Through (Pin 1 to Pin 1 ... Pin 8 to Pin 8 + Shield to Shield)
Packaging Method
: 1 PCS / PE BAG
Standard Compliance
: RoHS

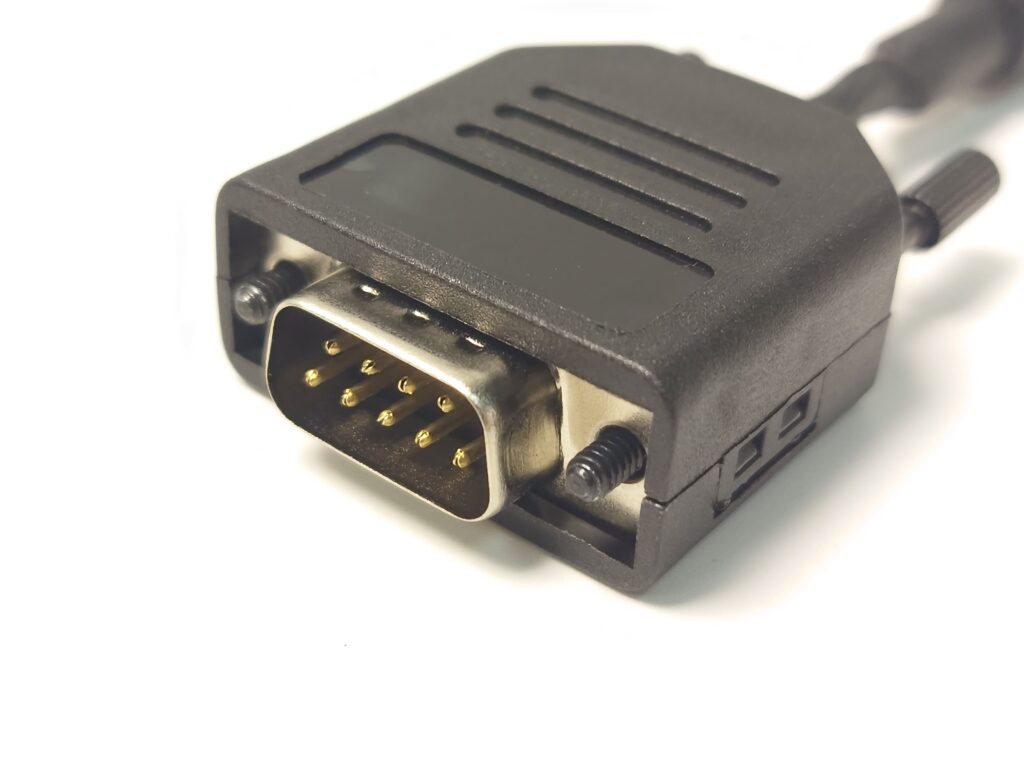

DB9 Male to DC 2.1×5.5mm Power Cable Assembly
Custom Cable Assemblies

DB9 Male to DC 2.1×5.5mm Power Cable Assembly

Mates With: DB9 Female (RS232/Serial D-Sub Ports) & 2.1x5.5mm DC Power Plug
Product Part Number
: A002-00053-001
Drawing Number
: A002-00053
Connector 1 (P1)
: DB9 Male 9-Pin Solder Type with Backshell
Connector 2 (P2)
: DC Power Jack 2.1 x 5.5mm Solder Type
Wire Type
: UL1007 18AWG Hook-up Wire (Red / Black)
Cable Length
: 100 ± 10 mm
Pinout / Wiring
: P1 Pin 5 to P2 Pin 2 (Black / GND), P1 Pin 6 to P2 Pin 1 (Red / VCC)
Standard Packaging
: 10 PCS / PE Bag
DP1.4 AOC cable 4
AOC CABLE

DisplayPort 1.4 Active Optical Cable (AOC) Assembly

Drop-in for: N/A (Custom AOC Assembly) Mates With: 20-Pin Receptacles (e.g., Molex 47272 Series, TE Connectivity compatible parts)
Number of Pins
: 20 Pins
Transmission Technology
: Active Optical (Hybrid Fiber/Copper)
Connector 1
: DisplayPort Male (Source)
Connector 2
: DisplayPort Male (Display)
Max Resolution
: 8K@60Hz / 4K@144Hz
Max Bandwidth
: 32.4 Gbps (HBR3)
Cable Length
: 10m to 100m (Customizable)
Supported Features
: HDR, HDCP 2.2, FEC, DSC 1.2
DVI cable 1
AOC CABLE

DVI-D 24+1 Male to Male Active Optical Cable (AOC) Assembly

Drop-in for: N/A (Custom AOC Assembly) Mates With: 74320 Series, TE Connectivity compatible parts)
Number of Pins
: 24+1 (DVI-D Dual Link Physical)
Transmission Technology
: Active Optical (Fiber + Copper)
Connector 1
: DVI-D Male (Source)
Connector 2
: DVI-D Male (Display)
Max Resolution
: 2560x1600 @ 60Hz / 1080p @ 120Hz
Max Bandwidth
: 9.9 Gbps
Cable Length
: 10m to 100m (Customizable)
Cable Outer Diameter
: 4.5mm ~ 5.0mm
Euro CEE 7/7 to IEC C13 VDE Power Cord Assembly
POWER CORD

Euro CEE 7/7 to IEC C13 VDE Power Cord Assembly

Mates With: 60320 C14 Inlets and Standard European Schuko Sockets
Number of Pins
: 3 Pins (Live, Neutral, Ground)
Left Connector
: CEE7/7 Schuko Plug (European Standard)
Right Connector
: IEC 60320 C13 Receptacle
AWG Gauge / Cross Section
: 3 x 0.75mm², 3 x 1.0mm², 3 x 1.5mm² (Approx. 14 AWG - 18 AWG equivalent)
Wire & Cable Length
: 100mm (per standard drawing) or customizable up to 3.0m
Connection Type
: Plug and unplug (Friction fit)
