HDMI Cable Assembly: Custom High-Speed HDMI Cable Manufacturing

HDMI CABLE

Automotive HDMI Type-E to Type-E High-Speed Cable Assembly

Mates With: 2337019-1 or Mitsumi equivalents) on both ends.

Number of Pins: : 19 Pins (HDMI Standard)
Connector A (Left): : Automotive HDMI Type-E Plug (Male) with Locking Latch
Connector B (Right): : Automotive HDMI Type-E Plug (Male) with Locking Latch
AWG Gauge: : 32 AWG (Data) & 26 AWG (Power)
Cable Length: : Fully customizable upon request (e.g., 0.5m to 5m+)
Bandwidth Support: : Up to 18 Gbps (Supports 4K/60Hz depending on length)

View Details Datasheet

HDMI CABLE

HDMI 2.0 Active Optical Cable (Type-A to Type-A)

Mates With: Standard HDMI Type-A Receptacles

Connector A: : HDMI Type A Male (Source)
Connector B: : HDMI Type A Male (Display)
Standard: : HDMI 2.0 (Backward compatible with HDMI 1.4)
Bandwidth: : 18 Gbps
Resolution Support: : Up to 4K (3840x2160) @ 60Hz (4:4:4 color space), 3D, HDR, HDCP 2.2 compliant
Cable Length: : Custom lengths available from 10m up to 100m+ (33ft to 328ft+)
Audio Support: : Up to 32 audio channels, ARC (Audio Return Channel) supported

View Details

HDMI CABLE

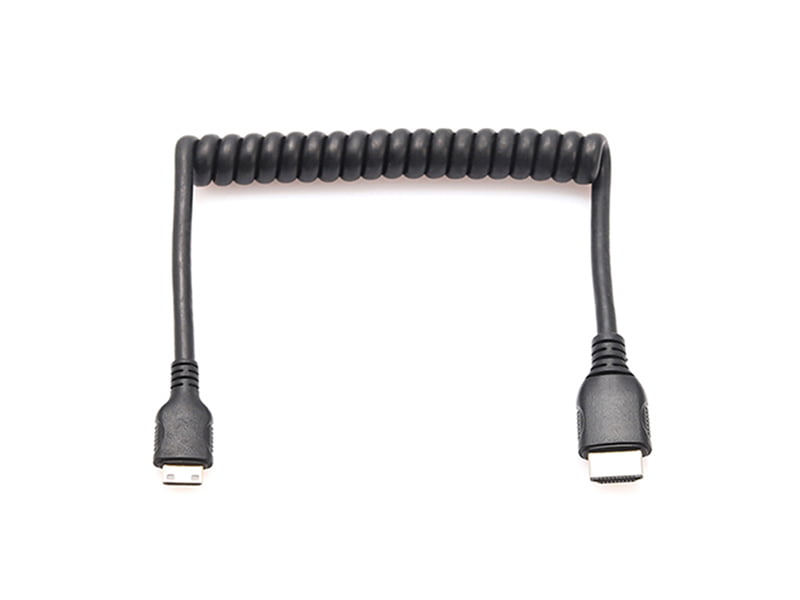

HDMI Mini-C to Standard-A Coiled High-Speed Cable Assembly

Mates With: Standard HDMI Type-A and Mini HDMI Type-C Receptacles

Number of Pins: : 19 Pins
Left Connector: : HDMI Type C Plug (Mini HDMI, Male)
Right Connector: : HDMI Type A Plug (Standard HDMI, Male)
Bandwidth & Standard: : 18 Gbps (HDMI 2.0, backward compatible with HDMI 1.4)
Resolution Support: : Up to 4K (3840x2160) @ 60Hz, 3D, Audio Return Channel (ARC)
AWG Gauge: : 30 AWG / 32 AWG (Optimized for flexibility)
Wires & Cables Length: : Custom coiled length (e.g., 0.5m retracted / 1.5m extended)

View Details Datasheet

HDMI CABLE

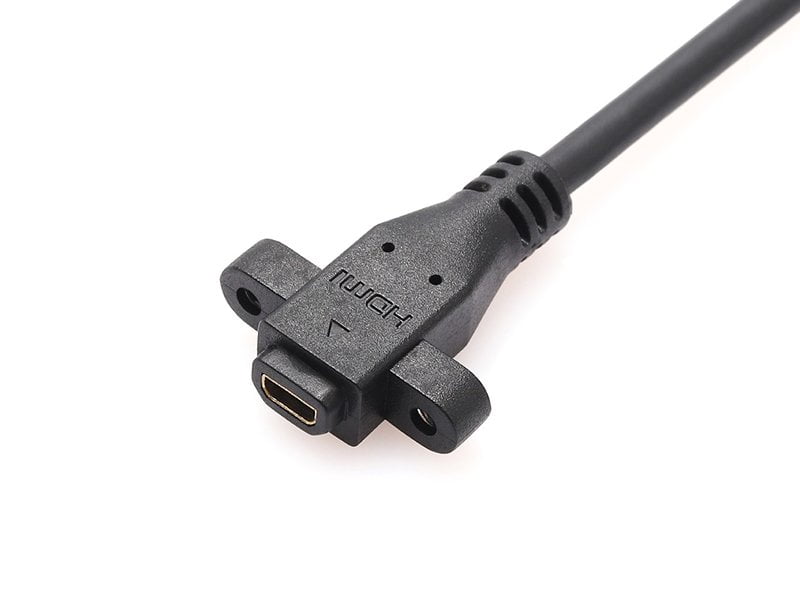

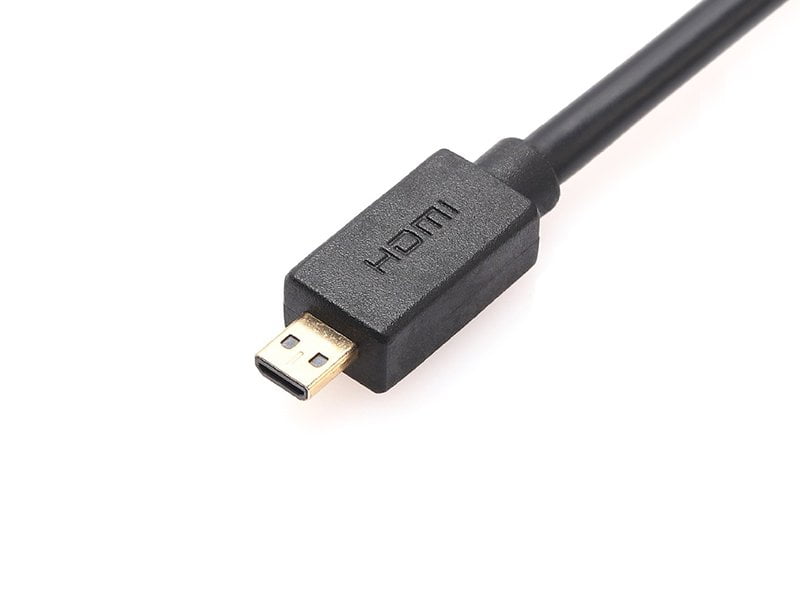

Micro HDMI Type-D Panel Mount Socket to Angled Plug Cable Assembly

Mates With: Panel Socket End: Mates with standard Micro HDMI Type-D Plugs. Angled Plug End: Connects to standard Micro HDMI Type-D receptacles on PCBs, cameras, or internal display controllers.

Number of Pins: : 19 Pins
Key Position: : HDMI Type-D
Connector 1: : Micro HDMI Type-D Socket (Panel Mount)
Connector 2: : Micro HDMI Type-D Angled Plug (Standard) / Customizable
Wire Gauge: : 24 AWG ~ 30 AWG (Customizable)
Connection Type: : Push-Pull with Panel Screw Lock
Cable Length: : Custom Lengths Available
Supported Standards: : HDMI High-Speed Specifications

View Details Datasheet

HDMI CABLE

Micro HDMI Type-D Panel Mount Socket to Angled Plug Cable Assembly

Mates With: 46765 Series, TE Connectivity 2134441 Series).

Number of Pins: : 19 Pins
Key Position: : HDMI Type-D
Connector 1: : Micro HDMI Type-D Socket (Female, Panel Mount)
Connector 2: : Micro HDMI Type-D Angled Plug (Male)
Wire Gauge: : 24 AWG ~ 30 AWG (Customizable)
Connection Type: : Push-Pull, Friction Lock
Cable Length: : 100mm ±30mm (Standard) / Customizable
Supported Standards: : HDMI High-Speed Specifications

View Details Datasheet

HDMI CABLE

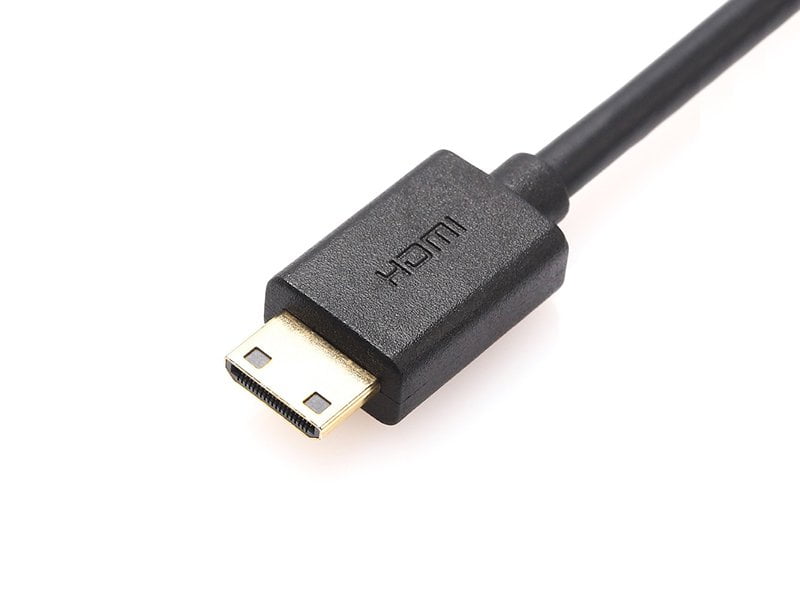

Mini HDMI Type-C Plug Pre-Molded Cable Assembly

Drop-in for: N/A (Custom Cable Assembly) Mates With: 47352 Series, TE Connectivity compatible parts).

Number of Pins: : 19 Pins
Key Position: : HDMI Type-C (Mini HDMI)
Connector 1: : Mini HDMI Type-C Plug (Male)
Connector 2: : Mini HDMI Type-C Plug (Male)
Wire Gauge: : 24 AWG ~ 30 AWG (Customizable)
Connection Type: : Push-Pull, Friction Lock
Cable Length: : 100mm ±30mm (Standard) / Customizable
Supported Standards: : HDMI High-Speed Specifications

View Details Datasheet

HDMI CABLE

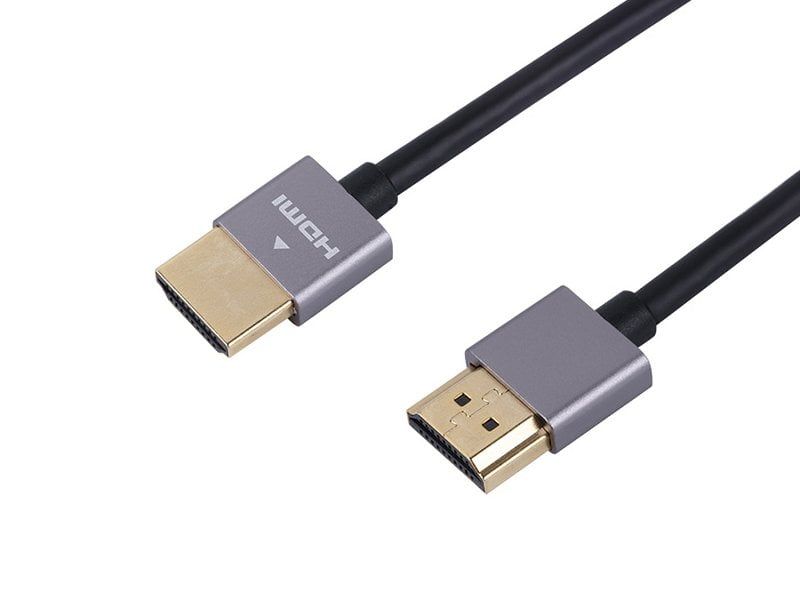

Standard HDMI Type-A Male to Male High-Speed Cable Assembly

Mates With: 47151 Series, TE Connectivity 2008063 Series)

Number of Pins: : 19 Pins
Key Position: : HDMI Type-A
Connector 1: : HDMI Type-A Plug (Male)
Connector 2: : HDMI Type-A Plug (Male)
Wire Gauge: : 24 AWG ~ 30 AWG (Customizable)
Connection Type: : Push-Pull, Friction Lock
Cable Length: : 100mm ±30mm (Standard) / Customizable
Supported Standards: : HDMI 2.0 / HDMI 2.1 (4K/8K)

View Details Datasheet

HDMI CABLE

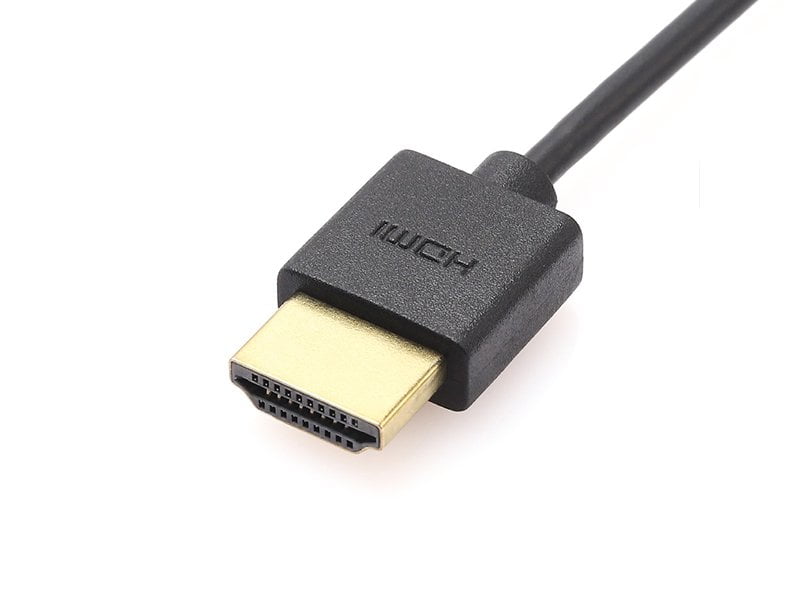

Standard HDMI Type-A Plug Cable Assembly

Mates With: Mates with standard HDMI Type-A Receptacles (Sockets) on industrial displays, commercial digital signage, medical imaging equipment, and standard motherboards.

Number of Pins: : 19 Pins
Key Position: : HDMI Type A
Left Connector: : HDMI Type A Plug
Right Connector: : HDMI Type A Plug
AWG Gauge: : 24 AWG ~ 30 AWG (Customizable)
Connection Type: : Plug and Unplug
Cable Length: : 100mm ±30mm (Standard) / Customizable

View Details Datasheet

HDMI CABLE

Standard HDMI Type-A Plug to Plug Cable Assembly

Mates With: Mates with standard HDMI Type-A Receptacles (Sockets) on industrial displays, commercial digital signage, medical imaging equipment, and standard PC motherboards.

Number of Pins:: : 19 Pins
Connector Type (Left):: : HDMI Type-A Plug (Male)
Connector Type (Right):: : HDMI Type-A Plug (Male)
Wire Gauge:: : 24 AWG ~ 30 AWG (Customizable)
Cable Length:: : 100mm ±30mm (Standard) / Customizable

View Details Datasheet
