Magnetic Modular Jacks

Magnetic modular jacks with integrated magnetics for Ethernet applications. 10/100/1000Base-T and PoE options for networking equipment and industrial automation.

Technical Filters Filter Magnetic Modular Jacks 0 selected Reset

Scroll horizontally to browse specification columns.

Type
Number of Ports
Speed
Orientation
Height Above PCB
LED Colour
Latch Position

5 products found

Product cards show key ACF specification fields. Hover or focus a specification area to view full details in a tooltip.

1×1 Port RJ45 MagJack 100/1000 Base-T Right Angle Through-Hole 13.50mm Connector
Magnetic Modular Jacks

1×1 Port RJ45 MagJack 100/1000 Base-T Right Angle Through-Hole 13.50mm Connector

Intermateable With: J0G-0001NL / Bel Fuse SI-50170-F / Wurth Elektronik WE-RJ45 LAN 1000Base-T Series Mates With: 68 Compliant RJ45 (8P8C) Modular Plugs (Cat5e / Cat6 Ethernet Patch Cables)
Connector Type
: RJ45 Modular Jack with Integrated Magnetics (MagJack)
Port Configuration
: 1x1 (Single Port)
Data Rate / Speed
: 100/1000 Base-T (Gigabit Ethernet)
Mounting Type
: Right Angle, Through-Hole (DIP)
Key Dimensions (W x D x H)
: 16.60mm x 32.60mm x 13.50mm
LED Indicator Configuration
: Left LED: Green / Right LED: Green (560–580nm, 2.1–2.2V Typ.)
Mating Durability
: 800 Mating Cycles Min.
Standard Compliance
: IEEE 802.3af, FCC Dimension Compliant, RoHS, UL94 V-0
1×1 Port RJ45 MagJack 100Base-TX PoE Tab-Up Right Angle Through-Hole 13.70mm Connector
Electronic Connectors

1×1 Port RJ45 MagJack 100Base-TX PoE Tab-Up Right Angle Through-Hole 13.70mm Connector

Intermateable With: J00-0065NL / Bel Fuse SI-46001-F / Halo Electronics HFJ11-RP24E-L12RL Mates With: 68 Compliant RJ45 (8P8C) Modular Plugs (Cat5 / Cat5e Ethernet Patch Cables)
Connector Type
: RJ45 Modular Jack with Integrated PoE Magnetics
Port Configuration
: 1x1 (Single Port), Tab-Up
Data Rate & PoE Standard
: 100Base-TX Fast Ethernet, IEEE 802.3af PoE (PSE / PD)
Mounting Type
: Right Angle, Through-Hole (DIP)
Key Dimensions (W x D x H)
: 16.50mm x 32.50mm x 13.70mm
Suggested Panel Opening (W x H)
: 17.06mm x 13.88mm (±0.10mm)
LED Indicator Configuration
: Left LED: Yellow (585nm) / Right LED: Green (568nm)
Mating Durability & Force
: 750 Cycles Min. / 23N Max. Mating Force
Standard Compliance
: IEEE 802.3af, RoHS, REACH, UL94 V-0

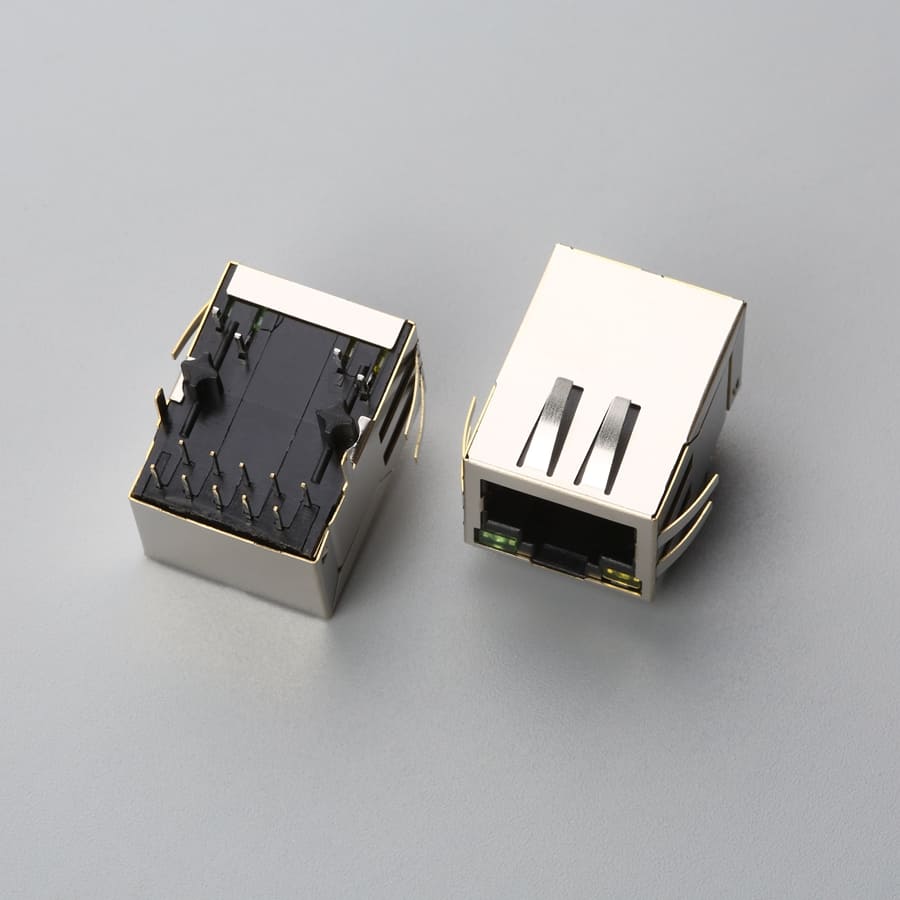

RJ45 8P8C Female Modular Jack with Transformer 1000Base-TX Right Angle DIP Tab-Down with LED | EDOM
Magnetic Modular Jacks

RJ45 8P8C Female Modular Jack with Transformer 1000Base-TX Right Angle DIP Tab-Down with LED | EDOM

Drop-in for: J0G-0001NL / Bel Fuse 0826-1X1T-GH-F Alternative Mates With: RJ45 / 8P8C Male Ethernet Plugs (Cat5e / Cat6 / Cat6a Patch Cables)
Connector Type
: RJ45 8P8C Female Magnetic Modular Jack (MagJack)
Port Configuration
: 1x1 Single Port
Data Rate / Protocol
: 10/100/1000Base-TX Gigabit Ethernet (Meets or exceeds IEEE 802.3)
Mounting Type
: Through-Hole DIP / Right Angle
Latch Orientation
: Tab-Down (Standard Latch Bottom)
Signal Pin Count
: 10-Pin Staggered PCB Array (P1–P10) + 4 LED Pins (P11–P14)
Visual Indicators
: Dual Integrated Square LEDs: Left (Green/Yellow, Pins 11–12) / Right (Yellow, Pins 13–14)
Shield Grounding Center Span
: 15.75 mm
Isolation Voltage (Hi-Pot)
: 1500 Vrms Min. per IEEE 802.3
Standard Compliance
: RoHS Compliant, UL 94V-0, IEEE 802.3
RJ45 8P8C Female Modular Jack with Transformer 100Base-TX Right Angle DIP Tab-Down L21.35 | EDOM
Magnetic Modular Jacks

RJ45 8P8C Female Modular Jack with Transformer 100Base-TX Right Angle DIP Tab-Down L21.35 | EDOM

Drop-in for: J0011D21BNL / Bel Fuse SI-60062-F Alternative Mates With: RJ45 / 8P8C Male Ethernet Plugs (Cat5 / Cat5e Patch Cables)
Connector Type
: RJ45 8P8C Female Magnetic Modular Jack (MagJack)
Port Configuration
: 1x1 Single Port
Data Rate / Standard
: 10/100Base-TX (Meets or exceeds IEEE 802.3)
Mounting Type
: Through-Hole DIP / Right Angle
Latch Orientation
: Tab-Down (Latch Bottom)
Visual Indicators / LEDs
: Without LEDs
Overall Dimensions (L x W x H)
: 21.35 mm x 15.95 mm x 13.50 mm (Excluding solder leads)
Height Above PCB
: 13.50 mm (Nominal)
Solder Tail Length
: 3.05 mm
Signal Pin Pitch
: 1.27 mm / 2.54 mm grid (11.43 mm total span)
PCB Hole Specifications
: 8x Ø0.90 mm (Signal P1–P8), 2x Ø1.60 mm (Locating), 2x Ø3.25 mm (Grounding)
Shield Grounding Center Span
: 15.75 mm
High-Voltage Isolation (Hi-Pot)
: 1500 Vrms, 1 mA Max. per IEEE 802.3
Standard Compliance
: RoHS Compliant, UL 94V-0, IEEE 802.3
RJ45 8P8C Female Modular Jack with Transformer 100Base-TX Right Angle DIP Tab-Down with LED L21.35 | EDOM
Magnetic Modular Jacks

RJ45 8P8C Female Modular Jack with Transformer 100Base-TX Right Angle DIP Tab-Down with LED L21.35 | EDOM

Drop-in for: J0011D21BNL / Bel Fuse SI-60062-F Alternative Mates With: RJ45 / 8P8C Male Ethernet Plugs (Cat5 / Cat5e Patch Cables)
Connector Type
: RJ45 8P8C Female Magnetic Modular Jack (MagJack)
Port Configuration
: 1x1 Single Port
Data Rate / Protocol
: 10/100Base-TX (Meets or exceeds IEEE 802.3)
Mounting Type
: Through-Hole DIP / Right Angle
Latch Orientation
: Tab-Down (Standard Latch Bottom)
Visual Indicators
: Dual Integrated LEDs (Left LED / Right LED)
Overall Dimensions (L x W x H)
: 21.35 mm x 15.95 mm x 13.50 mm (Excluding solder leads)
Height Above PCB
: 13.50 mm (Nominal)
Solder Tail Length
: 3.05 mm
Signal Pin Pitch
: 2.54 mm grid (11.43 mm total span across pins P1–P8)
PCB Hole Specifications
: 8x Ø0.90 mm (Signal), 4x Ø1.02 mm (LEDs P9–P12), 2x Ø1.60 mm (Locating), 2x Ø3.25 mm (Grounding)
Shield Grounding Center Span
: 15.75 mm
Isolation Voltage (Hi-Pot)
: 1500 Vrms Min. per IEEE 802.3
Standard Compliance
: RoHS Compliant, UL 94V-0, IEEE 802.3
