Product Category

POWER CORD

Custom power cords and AC power cable assemblies with IEC NEMA C13 C14 C19 connectors. Global plug standards with full safety certification support.

5 products found

Browse available products in this category.

Custom Cable Assemblies

Mates With: DB9 Female (RS232/Serial D-Sub Ports) & 2.1x5.5mm DC Power Plug

Product Part Number: : A002-00053-001
Drawing Number: : A002-00053
Connector 1 (P1): : DB9 Male 9-Pin Solder Type with Backshell
Connector 2 (P2): : DC Power Jack 2.1 x 5.5mm Solder Type
Wire Type: : UL1007 18AWG Hook-up Wire (Red / Black)
Cable Length: : 100 ± 10 mm
Pinout / Wiring: : P1 Pin 5 to P2 Pin 2 (Black / GND), P1 Pin 6 to P2 Pin 1 (Red / VCC)
Standard Packaging: : 10 PCS / PE Bag

View Details Datasheet

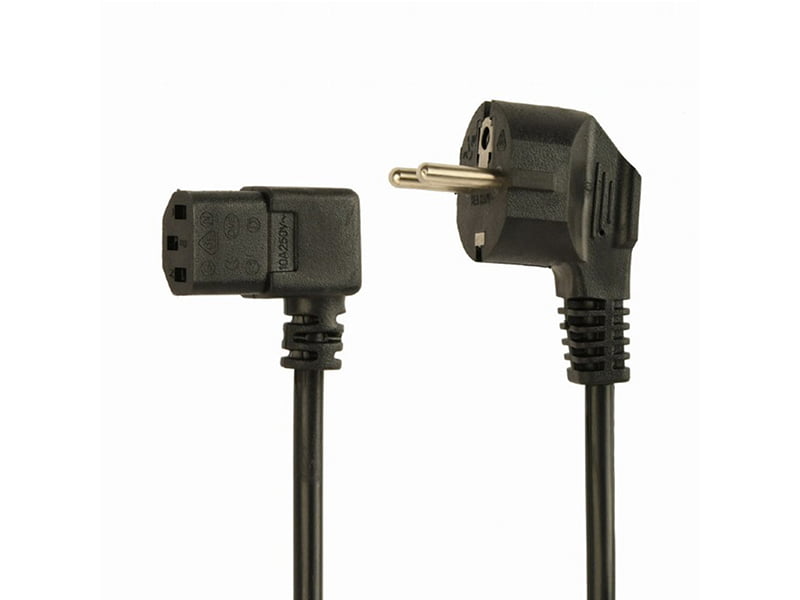

POWER CORD

Mates With: 60320 C14 Inlets and Standard European Schuko Sockets

Number of Pins: : 3 Pins (Live, Neutral, Ground)
Left Connector: : CEE7/7 Schuko Plug (European Standard)
Right Connector: : IEC 60320 C13 Receptacle
AWG Gauge / Cross Section: : 3 x 0.75mm², 3 x 1.0mm², 3 x 1.5mm² (Approx. 14 AWG - 18 AWG equivalent)
Wire & Cable Length: : 100mm (per standard drawing) or customizable up to 3.0m
Connection Type: : Plug and unplug (Friction fit)

View Details Datasheet

POWER CORD

Mates With: 60320 C14 Inlets and Standard European Schuko Sockets

View Details Datasheet

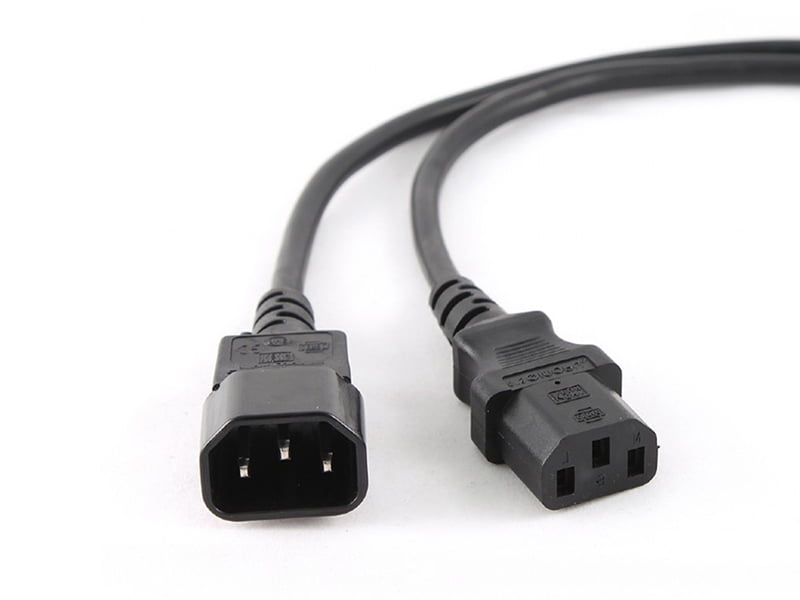

POWER CORD

Mates With: 60320 C14 Inlets and IEC 60320 C13 Receptacles

Number of Pins: : 3 Pins (Live, Neutral, Earth / Ground)
Left Connector: : IEC 60320 C14 Plug (Male)
Right Connector: : IEC 60320 C13 Receptacle (Female)
Wire Cross-Section / AWG Gauge: : VDE H05VV-F 3G1.5mm²
Wire & Cable Length: : 100±30mm (0.1m short jumper length)
Connection Type: : Plug and unplug (Friction fit / Optional locking mechanism)

View Details Datasheet

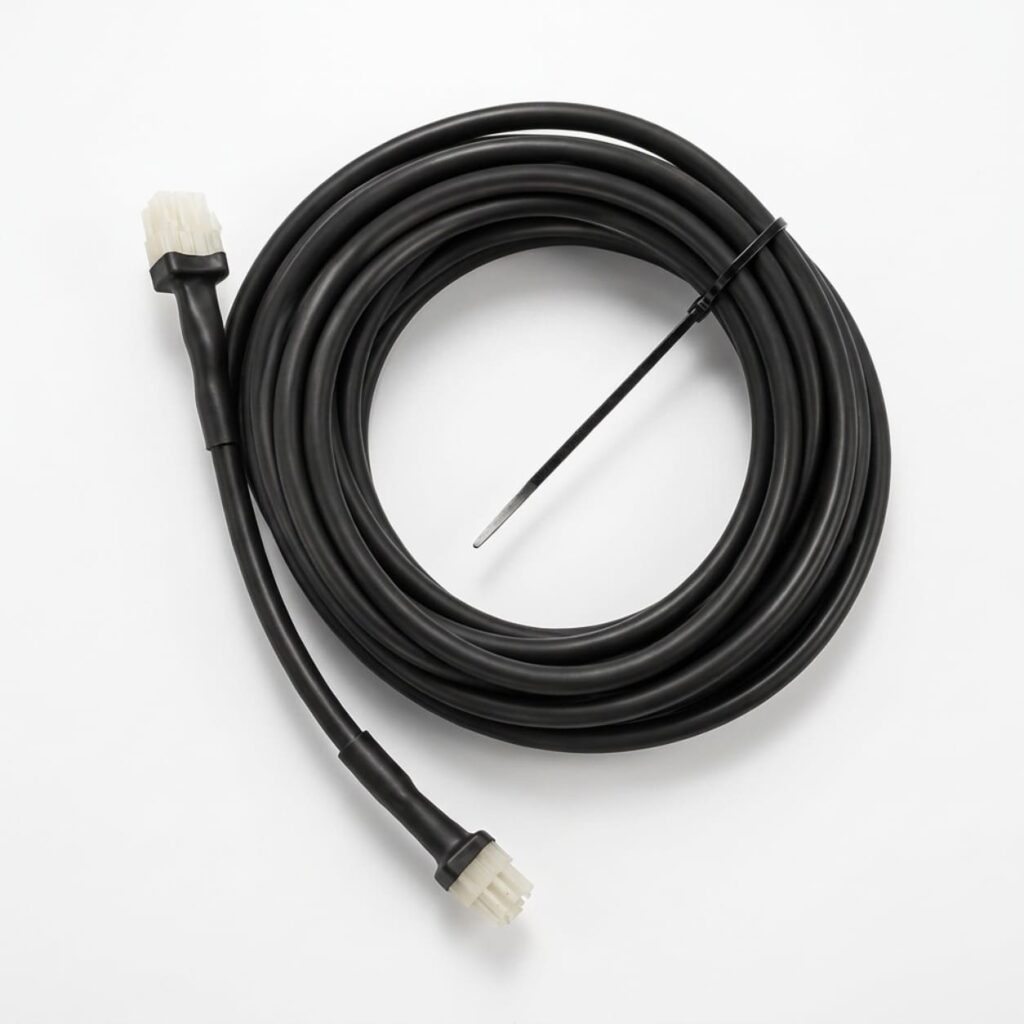

POWER CORD

Drop-in for: 39-01-2060, Molex 39-01-2061 Mates With: 4.2mm 6-Pin Receptacle / Plug (39-01-2060 / 39-01-2061 series)

Cable Length: : 7000 ± 210 mm
Conductor Size: : 3 x 0.75 mm² (Flexible stranded copper)
Connector P1: : Molex 39012061 6-Pin Plug Housing (Panel Mount, Pitch 4.2mm) with 39000040 Male Pins
Connector P2: : Molex 39012060 6-Pin Receptacle Housing (Pitch 4.2mm) with 39000038 Female Sockets
Pin / Wiring Assignment: : Pin 1 to Pin 1 (Red), Pin 2 to Pin 2 (Blue), Pin 3 to Pin 3 (Yellow/Green); Pins 4, 5, 6 NC
Packaging: : 1 PCS / Anti-Static or PE Bag

View Details Datasheet
