Custom M12 Connectors & Cable Assemblies

M12 connector

M12 B-Code 5-Pin Female Right Angle Field Wireable Screw Termination Connector Socket | EDOM

Intermateable With: SACC-M12FRB-5CON-PG9 (1662298) / Binder 713 Series (99-0436-14-05) / Murrelektronik 7000-12441-0000000 / TE Connectivity T4110401051-000 Mates With: 61076-2-101 M12 B-Code 5-Pin Male Panel Receptacles and Male Cable Plugs (M12x1 Thread)

Connector Type: : M12 Circular Field Wireable Connector Socket (Female Right Angle)
Coding & Number of Positions: : B-Code 5-Pin (Main); Also available in A-Code (4/5/8P), D-Code (4P), K/L-Code (5P), M-Code (6P), S/T-Code (4P)
Termination Style: : Screw-Clamp Termination (Field Installation, No Soldering Required)
Orientation & Locking Thread: : 90° Right Angle, M12x1 Threaded Coupling
Key Dimensions: : Right Angle Profile: ~39mm (L) × 38.5mm (H) Ref., Body Dia: Ø17.5mm / Ø20mm (Wrench Flats: SW13 / SW16)
Applicable Cable OD: : 4–6mm (B-Code 5P / D-Code 4P); 4–6mm or 6–8mm (A-Code 4/5/8P); 8–10mm (K/L/M/S/T Power Codings)
Contact Pin Diameter: : Ø1.0mm (B-Code 5P, A-Code 4/5P, D-Code 4P, M-Code 6P); Ø0.8mm (A-Code 8P); Ø1.5mm (K/L/S/T-Code)
Mating Durability: : ≥ 500 Mating Cycles
Waterproof Rating: : IP67 (In correct locked state)
Standard Compliance: : IEC 61076-2-101 (A/B/D-Code), IEC 61076-2-111 (K/L/M/S/T-Code), RoHS Compliant

View Details Datasheet

M12 connector

M12 B-Code 5-Pin Female Straight Field Wireable Screw Termination Connector Socket | EDOM

Intermateable With: SACC-M12FSB-5CON-PG9 (1662272) / Binder 713 Series (99-0436-10-05) / Murrelektronik 7000-12381-0000000 / TE Connectivity T4110401051-000 Mates With: 61076-2-101 M12 B-Code 5-Pin Male Panel Receptacles and Male Cable Plugs (M12x1 Thread)

Connector Type: : M12 Circular Field Wireable Connector Socket (Female Straight)
Coding & Number of Positions: : B-Code 5-Pin (Main); Also available in A-Code (4/5/8P), D-Code (4P), K/L-Code (5P), M-Code (6P), S/T-Code (4P)
Termination Style: : Screw-Clamp Termination (Fast Field Installation, No Soldering Required)
Orientation & Locking Thread: : 180° Straight Inline, M12x1 Threaded Coupling
Key Dimensions: : Overall Length: 55mm Ref. (Standard Signal Shell) / 60mm Ref. × Ø20mm (Power Shell); Wrench Flats: SW14 / SW16 / SW17 / SW18
Applicable Cable OD: : 4–6mm (B-Code 5P / D-Code 4P); 4–6mm or 6–8mm (A-Code 4/5/8P); 8–10mm (K/L/M/S/T Power Codings)
Contact Pin Diameter: : Ø1.0mm (B-Code 5P, A-Code 4/5P, D-Code 4P, M-Code 6P); Ø0.8mm (A-Code 8P); Ø1.5mm (K/L/S/T-Code)
Mating Durability: : ≥ 500 Mating Cycles
Waterproof Rating: : IP67 (In correct locked state)
Standard Compliance: : IEC 61076-2-101 (A/B/D-Code), IEC 61076-2-111 (K/L/M/S/T-Code), RoHS Compliant

View Details Datasheet

M12 connector

M12 C-Code 6-Pin Female Rear Panel Mount Receptacle PCB Solder Pins PG9 / M16x1.5 IP67 | EDOM

Intermateable With: 715 / 765 Series (M12 C-Code Panel Mount), Phoenix Contact SACC-DSI-M12FS C-Code Series, Molex Brad Micro-Change M12 C-Code Series, Turck Eurofast C-Code Receptacles Mates With: 61076-2-101 M12x1 C-Code Male Cable Plugs and Overmolded Cordsets (Matching 3, 4, 5, or 6 Positions)

Connector Type: : M12 Female Device Receptacle / Socket
Coding & Pin Configurations: : C-Code: 6-Pin (Also Available in 3-Pin with PE, 4-Pin, and 5-Pin)
Mounting Type: : Rear Panel Mount with Anti-Rotation D-Flat
Panel Mounting Thread: : PG9 or M16x1.5 (Optional)
Mating Thread: : M12x1 Internal Thread
Termination Style: : Straight PCB Solder Pins
Key Dimensions: : Body Length: 18.5mm; Max Panel Thickness: 4.0mm Max.
Recommended Panel Cutout: : Flat: 13.5mm (+0.1/-0mm); Hole Diameter: Ø15.3mm (+0.1/-0mm) for PG9 / Ø16.1mm (+0.1/-0mm) for M16x1.5
Ingress Protection: : IP67 (In Correct Locking State, Epoxy Potted)
Mating Durability: : ≥ 500 Mating Cycles
Standard Compliance: : IEC 61076-2-101, RoHS Compliant

View Details Datasheet

M12 connector

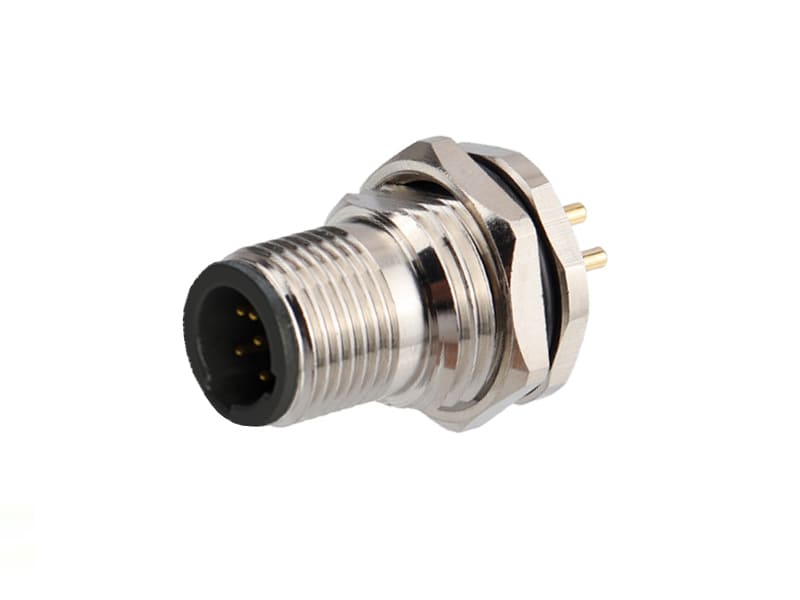

M12 C-Code Male Rear Panel Mount Connector 3-6 Pin PCB Solder PG9/M16x1.5 | EDOM

Intermateable With: SACC-E-M12MS-3/4/5/6CON Series, Binder 713/763 Series (C-Coded Male Receptacles), TE Connectivity M12 C-Code Panel Mount Series Mates With: M12x1 C-Coded Female Sockets, Field-Wireable Plugs, or Overmolded Female Cable Assemblies conforming to IEC 61076-2-101

Connector Type: : M12 Male Device Connector Plug (Panel Receptacle)
Coding & Number of Pins: : C-Code (3 Pin, 4 Pin, 5 Pin, 6 Pin)
Mounting Type: : Rear Panel Mount, Straight Through-Hole (DIP PCB Solder Pins)
Mating & Panel Threads: : Mating Thread: M12x1; Panel Mounting Thread: PG9 or M16x1.5
Key Dimensions: : Body Length: 19.8mm; Pin Extension Length: 13.40mm
Recommended Panel Cutout & Thickness: : PG9: Ø15.3 (+0.1/-0) mm; M16: Ø16.1 (+0.1/-0) mm; Anti-Rotation Flat: 13.5 (+0.1/-0) mm; Max Panel Thickness: 3.0mm
Mating Durability: : ≥ 500 Mating Cycles
Ingress Protection: : IP67 (in correct locking state)
Standard Compliance: : IEC 61076-2-101, RoHS Compliant

View Details

M12 connector

M12 D-Code 4-Pin Female Rear Panel Mount PCB Solder Socket Connector (PG9 / M16x1.5) | EDOM

Intermateable With: SACC-DSI-FSD-4CON-PG9/0.5 (1552256) / Binder 713/825 Series / TE Connectivity T4141312041-000 / Molex Brad M12 120084 Series Mates With: 61076-2-101 M12 D-Code 4-Pin Male Plugs and Overmolded Cable Assemblies (M12x1 Thread)

Connector Type: : M12 Circular Device Connector Socket (Female Receptacle)
Coding & Number of Positions: : D-Code 4-Pin (Main); Also available in A-Code (4/5/8/12/17P), B-Code (5P), K/L-Code (5P), M-Code (6P), S/T-Code (4P)
Mounting Type: : Rear Panel Mount, Through-Hole PCB Solder Pins (DIP)
Panel Mounting Thread: : PG9 or M16x1.5 (Front Mating Thread: M12x1)
Key Dimensions: : Body Length: 18.5mm; Solder Pin Length (L1): 6.0mm (A/B/D/T-Code) / 5.0mm (K/L/M/S-Code)
Contact Pin Diameter: : Ø1.0mm (D-Code 4P, A-Code 4/5P, B-Code 5P); Ø0.8mm (8P); Ø0.6mm (12/17P); Ø1.5mm (K/L/S/T Power)
Recommended Panel Cut-Out: : PG9: Ø15.3 +0.1/-0mm; M16: Ø16.1 +0.1/-0mm (Flat D-Cut: 13.5 +0.1/-0mm)
Max. Panel Thickness: : 5.0mm Max.
Mating Durability: : ≥ 500 Mating Cycles
Waterproof Rating: : IP67 (In correct locked state)
Standard Compliance: : IEC 61076-2-101 (A/B/D-Code), IEC 61076-2-111 (K/L/M/S/T-Code), RoHS Compliant

View Details Datasheet

M12 connector

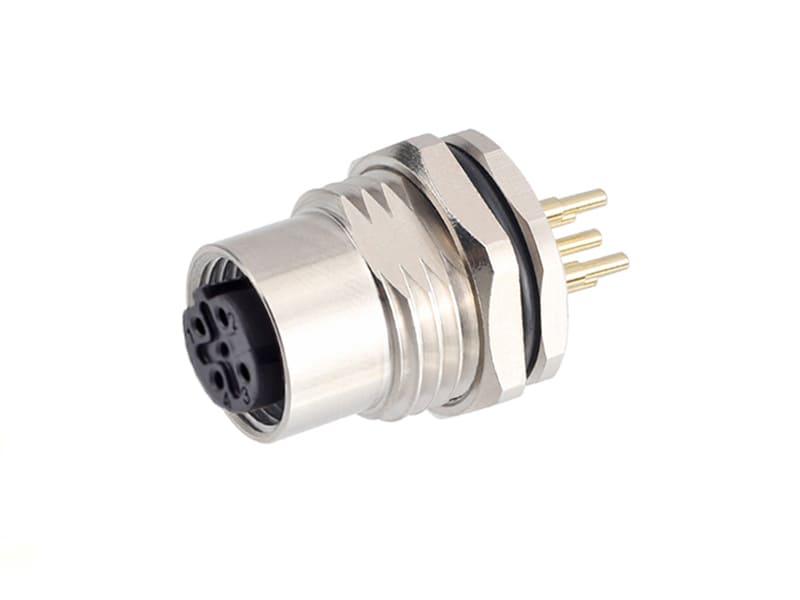

M12 Female Rear Panel Mount Connector 4-17 Pin PCB Solder PG9/M16x1.5 | EDOM

Intermateable With: 713/763/823 Series, TE Connectivity T4141 Series, Murrelektronik M12 Rear Panel Receptacles Mates With: M12x1 Male Field-Wireable Connectors and Overmolded M12 Male Cable Assemblies with matching Coding (A, B, D, K, L, M, S, or T Code) per IEC 61076-2-101 / IEC 61076-2-111

Connector Type: : M12 Female Device Connector Socket (Receptacle)
Coding & Number of Pins: : A-Code (4, 5, 8, 12, 17 Pin); B-Code (5 Pin); D-Code (4 Pin); K-Code (5 Pin); L-Code (5 Pin); M-Code (6 Pin); S-Code (4 Pin); T-Code (4 Pin)
Mounting Type: : Rear Panel Mount, Straight PCB Through-Hole (DIP Solder Pins)
Mating & Panel Threads: : Mating Thread: M12x1; Panel Mounting Thread: PG9 or M16x1.5
Key Dimensions: : Body Length: 18.5mm; Solder Pin Length (L1): 6.0mm (A/B/D/T Code) / 5.0mm (K/L/M/S Code)
Contact Pin Diameter: : Ø0.6mm (12/17 Pin); Ø0.8mm (8 Pin); Ø1.0mm (A/B/D 4-5 Pin, M 6 Pin); Ø1.5mm (K/L/S/T 4-5 Pin)
Recommended Panel Cutout & Thickness: : PG9: Ø15.3 (+0.1/-0) mm; M16x1.5: Ø16.1 (+0.1/-0) mm; Anti-Rotation Flat: 13.5 (+0.1/-0) mm; Max Panel Thickness: 5.0mm
Mating Durability: : ≥ 500 Mating Cycles
Ingress Protection: : IP67 (in correct locking state)
Standard Compliance: : IEC 61076-2-101 (A/B/D Code), IEC 61076-2-111 (K/L/M/S/T Code), RoHS Compliant

View Details

M12 connector

M12 Right-Angle Female Field-Wireable Connector Screw Termination IP67 Socket (A/B/D/K/L/M/S/T-Coding, 4 to 8 Pins) | EDOM

Intermateable With: SACC-M12FR Series / Binder 713 & 813 Series / TE Connectivity T4112 Series / Murrelektronik 7000-12421 (Standard IEC 61076-2-101 / 2-111 Right-Angle Field-Wireable Female Sockets) Mates With: M12x1 Male Plugs, Panel-Mount Male Receptacles, and Overmolded Male Cordsets with matching Coding (A, B, D, K, L, M, S, or T Code) compliant with IEC 61076-2-101 / IEC 61076-2-111

Connector Type: : M12 Right-Angle Female Socket (Plastic Field Installation)
Coding & Number of Positions: : A-Code (4, 5, 8 Pin); B-Code (5 Pin); D-Code (4 Pin); K-Code (5 Pin); L-Code (5 Pin); M-Code (6 Pin); S-Code (4 Pin); T-Code (4 Pin)
Termination Style: : Field-Wireable Screw Termination
Mounting / Orientation: : Free-Hanging / In-Line Cable Mount, Right-Angle (90°)
Key Dimensions: : Overall Length: 38.5mm (Ref.) / 34mm; Right-Angle Height: 39mm (Ref.); Front Thread: M12x1 (Ø17.5mm / Ø20mm Max.); Wrench Flats: SW13, SW16
Contact Pin Size: : Ø0.8mm (A-Code 8-Pin); Ø1.0mm (A-Code 4/5-Pin, B-Code, D-Code, M-Code); Ø1.5mm (K-Code, L-Code, S-Code, T-Code)
Applicable Cable Outer Diameter (OD): : 4–6mm / 6–8mm (A, B, D Code); 8–10mm (K, L, M, S, T Code)
Mating Durability: : ≥ 500 Mating Cycles
Ingress Protection Rating: : IP67 (In correct locking state)
Standard Compliance: : IEC 61076-2-101 (A/B/D-Code), IEC 61076-2-111 (K/L/M/S/T-Code), RoHS Compliant
Packaging Method & Quantity: : Bulk / Industrial Bag Packaging (Specific PCS/Bag or PCS/Carton not specified in drawing)

View Details Datasheet

M12 connector

M12 Straight Female Field-Wireable Connector Screw Termination IP67 Socket (A/B/D/K/L/M/S/T-Coding, 4 to 8 Pins) | EDOM

Intermateable With: SACC-M12FS Series / Binder 713 & 813 Series / TE Connectivity T4110 Series / Murrelektronik 7000-12221 (Standard IEC 61076-2-101 / 2-111 Straight Field-Wireable Female Sockets) Mates With: M12x1 Male Plugs, Panel-Mount Male Receptacles, and Overmolded Male Cordsets with matching Coding (A, B, D, K, L, M, S, or T Code) compliant with IEC 61076-2-101 / IEC 61076-2-111

Connector Type: : M12 Straight Female Socket (Plastic Field Installation)
Coding & Number of Positions: : A-Code (4, 5, 8 Pin); B-Code (5 Pin); D-Code (4 Pin); K-Code (5 Pin); L-Code (5 Pin); M-Code (6 Pin); S-Code (4 Pin); T-Code (4 Pin)
Termination Style: : Field-Wireable Screw Termination
Mounting / Orientation: : Free-Hanging / In-Line Cable Mount, Straight (180°)
Key Dimensions: : Overall Length: 55mm (Ref.); Coupling Thread: M12x1; Wrench Flats: SW18 / SW17 / SW16 (for OD 6–8mm & 8–10mm), SW18 / SW14 / SW13 (for OD 4–6mm)
Contact Pin Size: : Ø0.8mm (A-Code 8-Pin); Ø1.0mm (A-Code 4/5-Pin, B-Code, D-Code, M-Code); Ø1.5mm (K-Code, L-Code, S-Code, T-Code)
Applicable Cable Outer Diameter (OD): : 4–6mm (A, B, D Code); 6–8mm (A Code); 8–10mm (K, L, M, S, T Code)
Mating Durability: : ≥ 500 Mating Cycles
Ingress Protection Rating: : IP67 (In correct locking state)
Standard Compliance: : IEC 61076-2-101 (A/B/D-Code), IEC 61076-2-111 (K/L/M/S/T-Code), RoHS Compliant
Packaging Method & Quantity: : Bulk / Industrial Bag Packaging (Specific PCS/Bag or PCS/Carton not specified in drawing)

View Details Datasheet

M12 connector

M12 X-Code 8-Pin Male IDC Field-Wireable Connector Metal Shielded CAT6a 10Gbps IP67 Straight Plug | EDOM

Drop-in for: 1411043 / Phoenix Contact 1414752 (SACC-M12MSX-8QO-ETH) / Harting 21038811805 / TE Connectivity T4111X Series (M12 X-Code 8-Pin Shielded IDC Field-Wireable Male Plug) Mates With: M12x1 X-Code 8-Pin Female Sockets, Panel-Mount Female Receptacles, and Overmolded Female Cordsets compliant with IEC 61076-2-109

Connector Type: : M12 X-Code Shielded Straight Male Plug (Metal Field Installation)
Number of Positions / Pins: : 8-Pin (4 Twisted Pairs Isolated via Internal Cross Shell)
Termination Style: : IDC (Insulation Displacement Contact) Fast-Connection Terminal
Mounting / Orientation: : Free-Hanging / In-Line Cable Mount, Straight (180°)
Key Dimensions: : Overall Length: ~53mm; Max Outer Diameter: Ø16.50mm; Coupling Thread: M12x1; Wrench Flats: SW15, SW14, SW13
Data Transmission Rate & Category: : 10Gbit/s, CAT6a Bandwidth
Applicable Wire Gauge & Cable OD: : Wire Gauge: 26AWG–23AWG; Cable Outer Diameter: Ø6.8–9.0mm
Wiring Pin Assignment: : Dual Wiring Support: TIA/EIA-568A & TIA/EIA-568B (White/Orange, Orange, White/Green, Green, White/Brown, Brown, White/Blue, Blue)
Mating Durability: : ≥ 500 Mating Cycles
Ingress Protection Rating: : IP67 (In correct locking state)
Standard Compliance: : IEC 61076-2-109, TIA/EIA-568A, TIA/EIA-568B, CAT6a, RoHS Compliant
Packaging Method & Quantity: : Individual / Bulk Industrial Packaging (Specific PCS/Bag or PCS/Carton not specified in drawing)

View Details Datasheet
