DC Power Jacks

Industrial-grade DC power jacks and barrel connectors engineered for reliable board-level power delivery in commercial, IoT, and embedded devices. Our DC power socket portfolio includes reverse sunken DIP (mid-mount), standard through-hole, and SMT configurations featuring high-durability contacts, wide operating temperature ranges (-55°C to +105°C), and ratings up to 24V 3A. Built to withstand up to 50,000 mating cycles for demanding OEM/ODM power interface requirements.

3 products found

Browse available products in this category.

DC Power Jacks

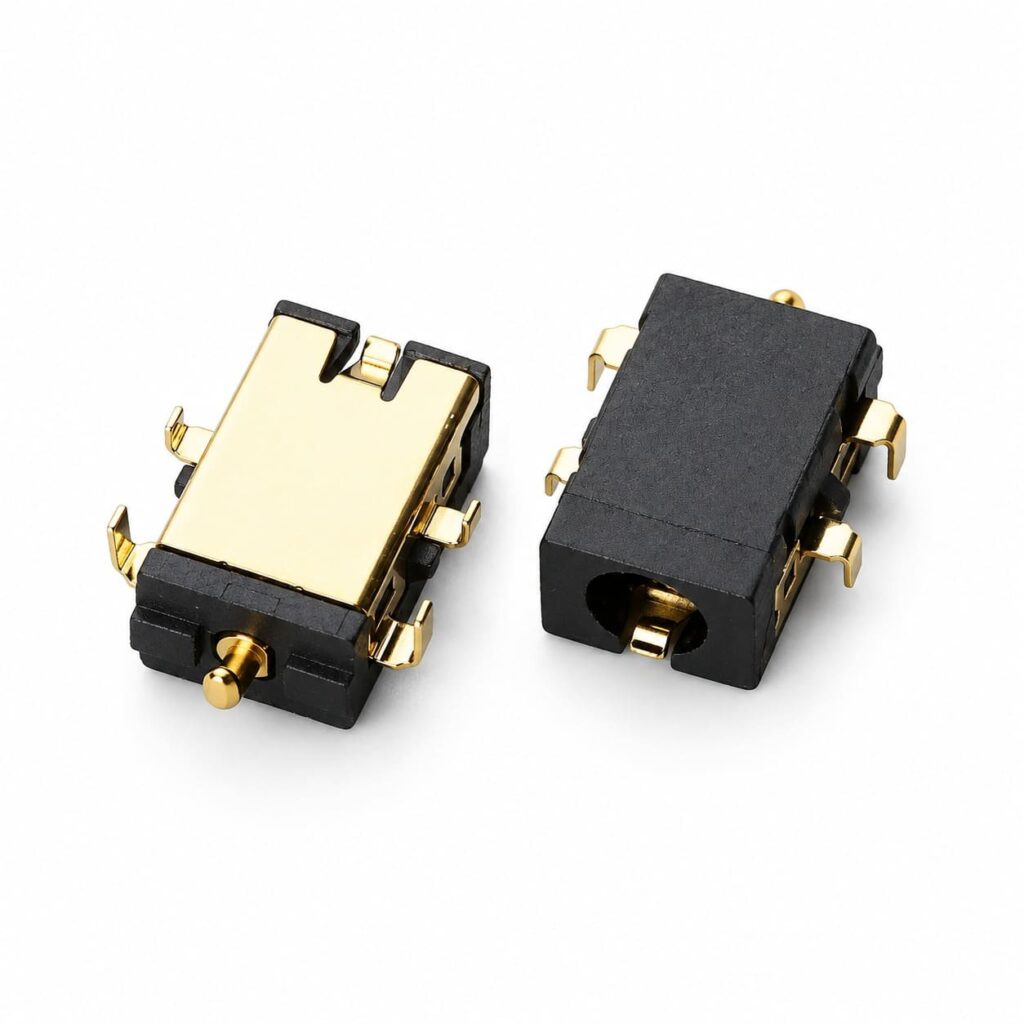

DC Power Jack Female Reverse Sinking DIP H1.60mm Flush Interface 24V 3A Connector | EDOM

Alt. for: PJ-002AH-SMT-TR / Wurth Elektronik 694106301002 Series Mates With: 2.1mm / 2.5mm Center Pin DC Power Male Plugs (Outer Diameter 5.5mm)

Connector Type: : DC Power Jack Female Receptacle
Center Pin Diameter: : Ø 1.00 mm / Ø 1.30 mm Center Pin Option
Mounting Type: : Reverse Sinking DIP (Mid-Mount / Through Hole)
Interface Feature: : Flat-Mouth / Flush Interface
Profile Height (Centerline Height): : 1.60 mm
Overall Dimensions: : 10.70 mm (L) x 8.90 mm (W) x 3.85 mm (H)
Cut-Out Depth from Edge: : 6.90 mm to PCB Edge Reference
Mating Durability: : 50,000 Mating Cycles
Insertion Force: : 0.3 kgf to 3.0 kgf
Withdrawal Force: : 0.3 kgf to 3.0 kgf
Packaging Method: : Tray / Tape & Reel (Contact Factory for Automated Line Options)
Standard Compliance: : RoHS Compliant, UL 94V-0

View Details

DC Power Jacks

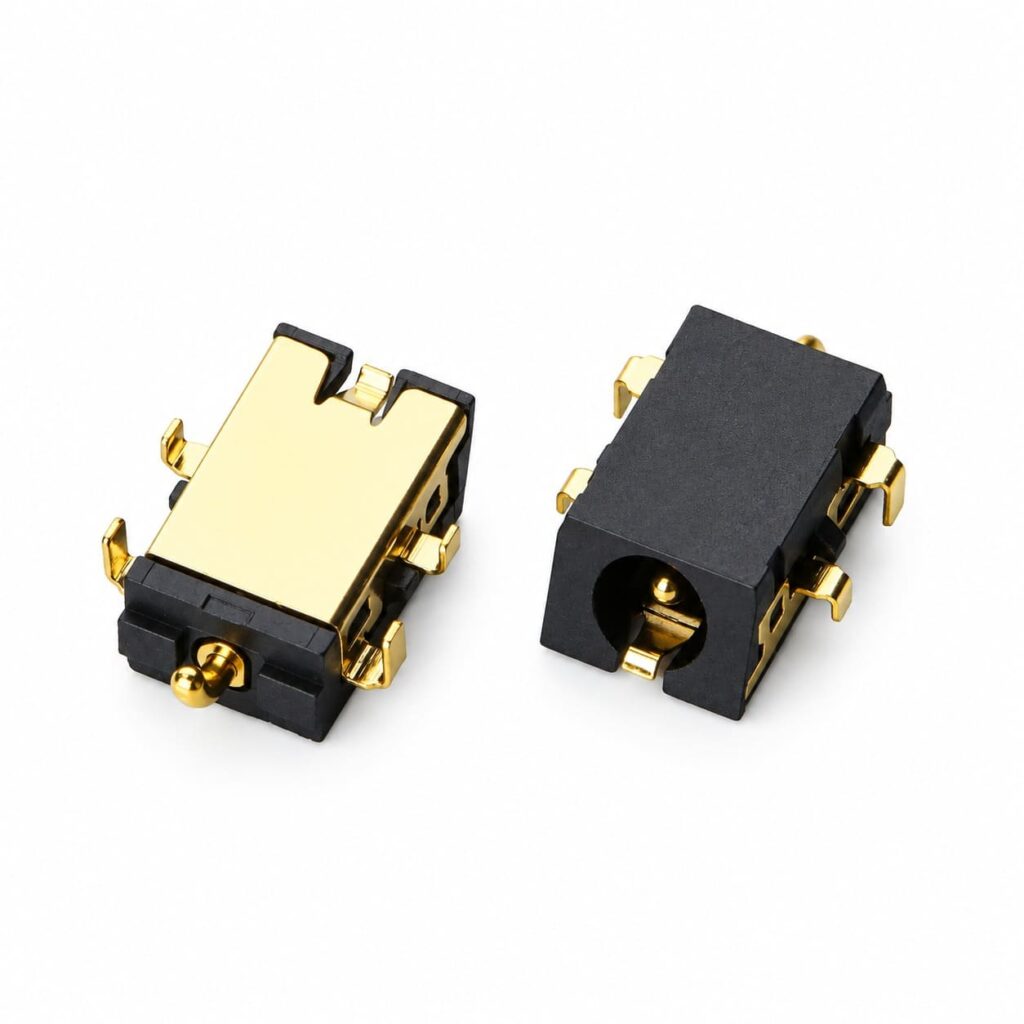

DC Power Jack Female Reverse Sinking Mount H1.60mm Beveled Interface Connector | EDOM

Alt. for: PJ-002AH-SMT-TR Series Mates With: 1.0mm / 1.3mm / 1.4mm DC Barrel Power Plugs (Outer Diameter 3.60mm / 3.85mm compatible)

Connector Type: : DC Power Jack Female Receptacle
Number of Positions / Pins: : 3 Pins / 3 Contacts (Center Pin, Shunt, Shell Ground)
Mounting Type: : Reverse Sinking Mount (Mid-Mount SMT/DIP Hybrid)
Profile Height (H): : 1.60 mm
Overall Dimensions (L x W x H): : 10.50 mm (11.20 mm max) x 8.90 mm x 1.60 mm
Center Pin / Interface Diameter: : Center Pin Ø1.00 mm / Inner Bore Ø1.30 mm / Entrance Ø1.40 mm (Beveled Entry / 斜口)
Recommended PCB Layout Cutout: : 8.90 mm width x 6.90 mm depth edge cutout
Recommended PCB Layout Pad Spacing: : Lateral pad pitch 10.70 mm; Longitudinal distance 8.55 mm to 12.45 mm
Mating Durability: : 50,000 Cycles
Insertion / Withdrawal Force: : 0.3 - 3.0 kgf
Standard Compliance: : RoHS Compliant, UL 94V-0

View Details

DC Power Jacks

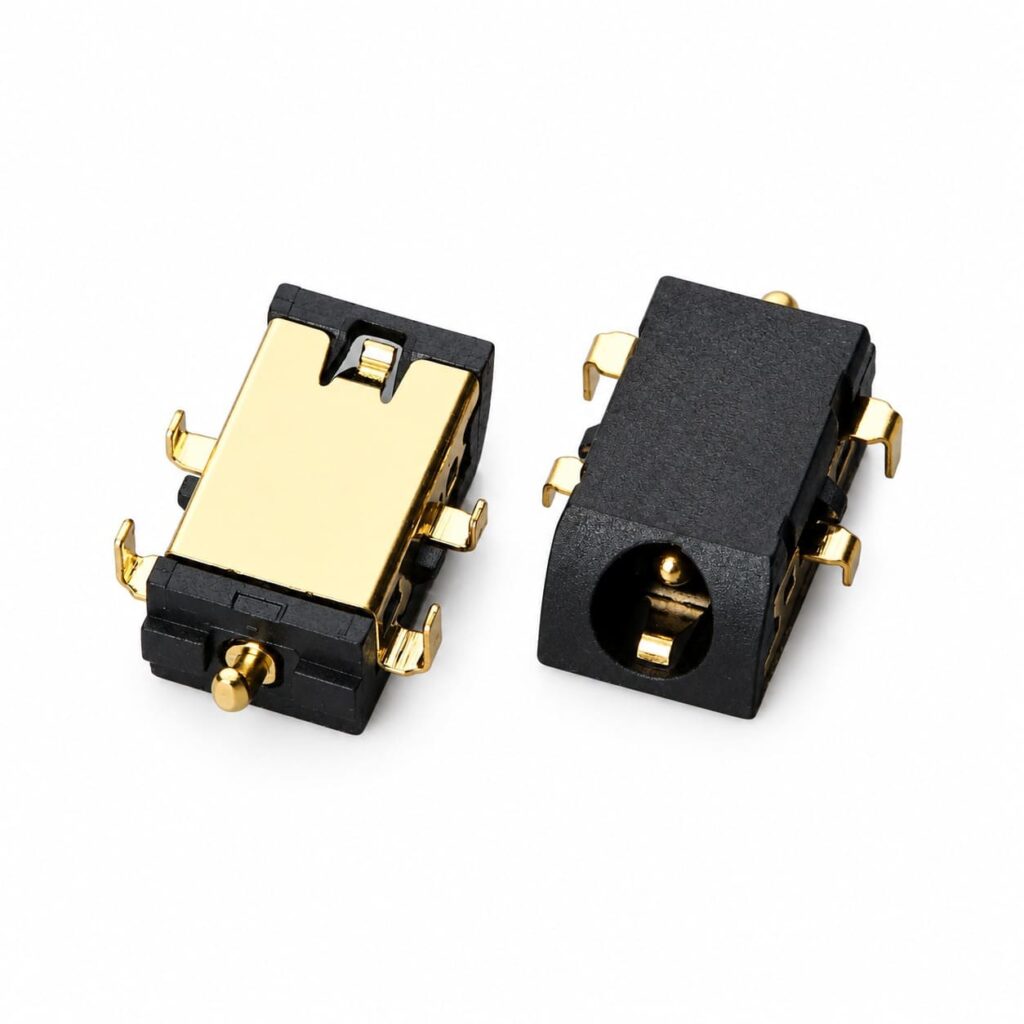

DC Power Jack Female Reverse Sinking Mount H1.6mm Curved Interface Connector | EDOM

Alt. for: PJ-002AH-SMT-TR Series Mates With: 1.0mm / 1.3mm / 1.4mm DC Barrel Power Plugs (Outer Diameter 3.60mm / 3.85mm compatible)

Connector Type: : DC Power Jack Female Receptacle
Number of Positions / Pins: : 3 Pins / 3 Contacts (Pin / Shunt / Shield)
Mounting Type: : Reverse Sinking Mount (Mid-Mount SMT)
Profile Height (H): : 1.60 mm
Overall Dimensions (L x W x H): : 11.20 mm x 8.90 mm x 1.60 mm
Center Pin / Interface Diameter: : Center pin Ø1.00 mm / Inner bore Ø1.30 mm / Entrance Ø1.40 mm (Arc/Curved mouth)
Recommended PCB Layout Cutout: : 8.90 mm width x 6.90 mm depth edge cutout
Recommended PCB Layout Pad Spacing: : Lateral pad pitch 10.70 mm; Longitudinal distance 8.55 mm to 12.45 mm
Mating Durability: : 50,000 Cycles
Insertion / Withdrawal Force: : 0.3 - 3.0 kgf
Standard Compliance: : RoHS Compliant, UL 94V-0
