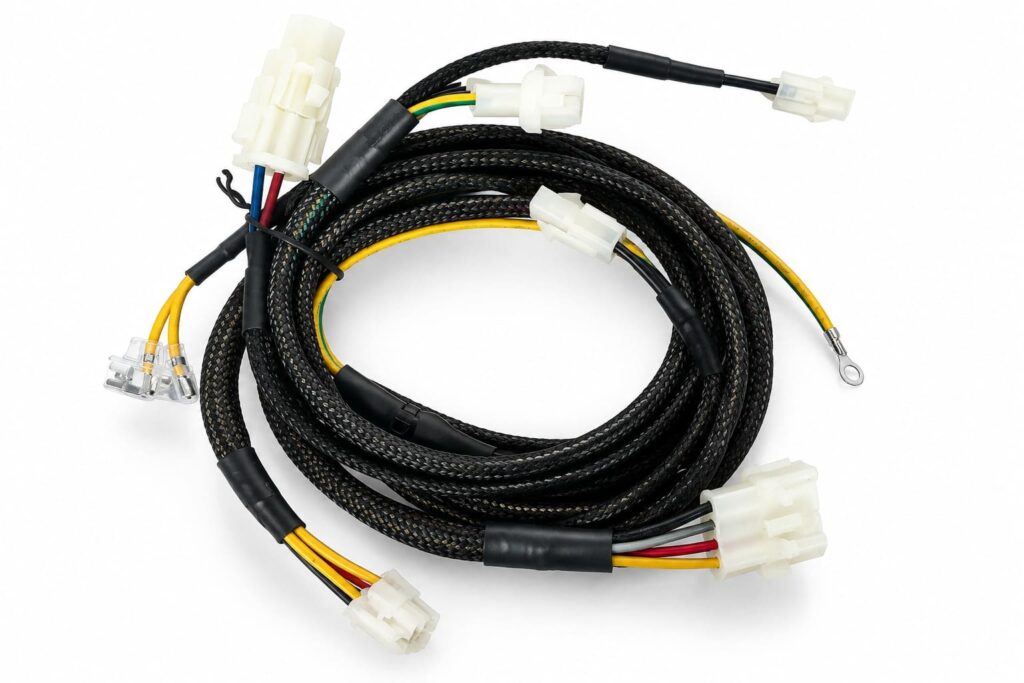

INDUSTRIAL WIRE HARNESS

Full specifications

Product Part Number

A002-00343-001

Customer Part Number

420343

Drawing Number

A002-00343

Wire Type & Gauge

UL1015 20AWG (105°C / 600V)

Branch Connectors

Molex 39012060 (6P), Molex 39012021 (2P), TE 1-480702-0 (4P), Molex 50841020 / 50842020 (2P)

Terminal Types

0.250" Quick Receptacles (TE 1-1627024-3), M5.0 Ring Lugs (TE 1-1627171-2)

Protective Sleeve

3/8" & 5/8" PET expandable braided sleeving

Main Dimensions

Main bundle 1010±30mm, branch breakouts 400~530mm

Full specifications

Cable Type

Multi-Branch Industrial Wiring Harness

Wire Gauge & Style

UL1007 18AWG (1 Set, Multi-Color)

Voltage Rating

300V

Temperature Rating

80°C

Main Trunk Length

1000±30mm

Branch Breakout Lengths

50±10mm to 950±20mm (Multi-Drop)

Heat-Shrink Tube Configuration

1x OD 4.0x410mm, 1x OD 5.0x360mm, 1x OD 3.0x150mm, 1x OD 6.0x70mm

Circuit Identification

24x White Digital Marker Tubes (OD 2.0x10mm)

Bundle Fastening

17x Black Cable Ties

Standard Compliance

IPC/WHMA-A-620E, UL486A, RoHS Compliant

Full specifications

Harness Type

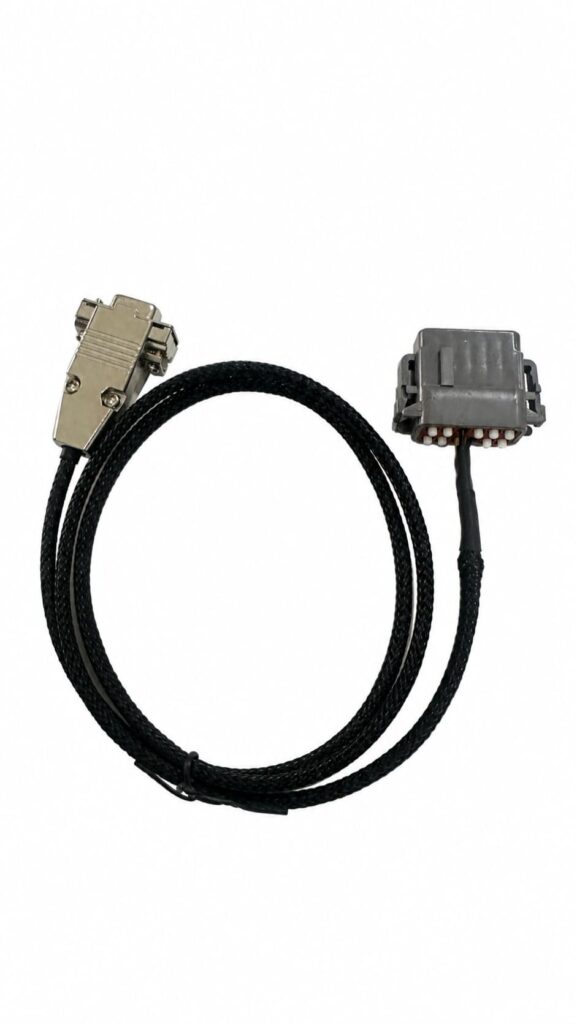

Industrial Diagnostic & Firmware Flashing Cable

Connector A

12-Pin Sealed Plug (ATM06-12SA Compatible) with Wedgelock

Connector B

D-Sub 9-Pin (DB9) Female with Screw Locks

Assembly Length

1 Meter (Custom lengths available upon request)

Wire Gauge

22 AWG Stranded Copper (UL AWM 1007, 300V, 80°C)

Wiring Configuration

CAN-H, CAN-L (Twisted Pair), Ground / Shield

Protective Loom

Expandable PET Braided Sleeving with Polyolefin Heat Shrink

Sealing Rating

IP67 (Connector A Sealed Interface)

Workmanship Standard

IPC/WHMA-A-620 Class 2 / Class 3

Standard Compliance

RoHS, REACH Compliant

Full specifications

Harness Type

Micro MATE-N-LOK 3.0mm 14-Pin to 0.110 Faston Splitter Harness

Connector P1

14-Position Receptacle Housing, 3.0mm Pitch (TE 1-794617-4 equivalent)

Secondary Terminations (P2)

16x 0.110" (2.8mm) Non-Insulated Quick-Connect Receptacles (TE 140717-1 equivalent)

Wire Gauge & Style

UL1007 22 AWG Stranded Wire (Red / Blue)

Branch Lengths

Signal Leads: 500±10 mm to 600±10 mm; Daisy-Chain Links: 150±10 mm

Identification & Marking

Digital White Heat Shrink Tubing with Printed Wire Markers (KP1–KP8, +12V)

Terminal Pull Force Standard

UL486A Compliance

Manufacturing Standard

IPC/WHMA-A-620E Compliance

Packaging Method

10 PCS / PE Bag + Label

Environmental Compliance

RoHS Compliant

Full specifications

Harness Type

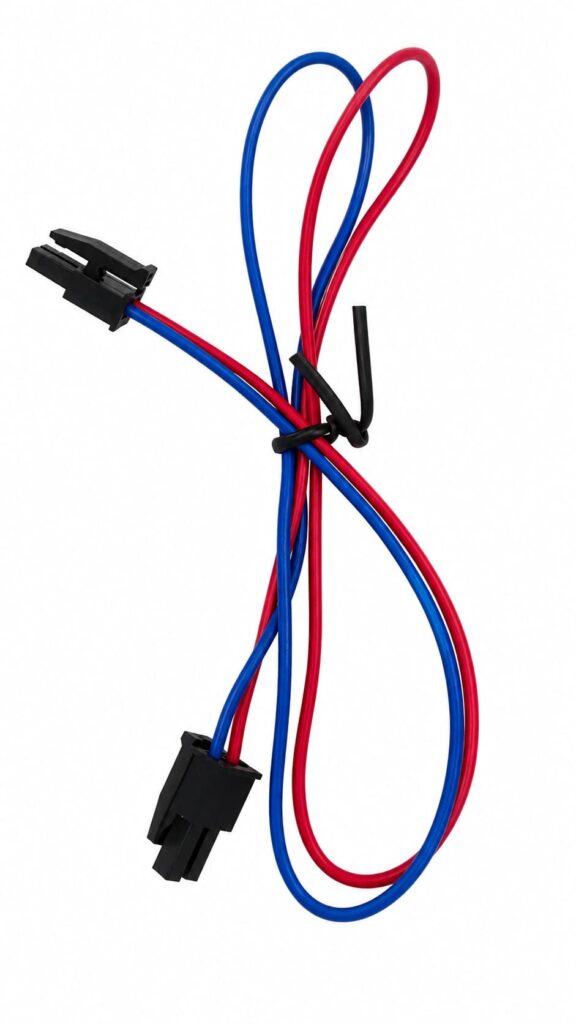

Point-to-Point Luminaire Power / RGB Wire Harness

Connector A

2-Position Micro MATE-N-LOK 3.0mm Receptacle Housing

Connector B

2-Position Micro MATE-N-LOK 3.0mm Receptacle Housing

Number of Positions

2 Pins (Single Row, 3.00 mm Centerline Pitch)

Wire Gauge & Style

24 AWG Stranded Copper (UL AWM 1007, Red & Blue)

Overall Assembly Length

300 mm ± 5 mm

Packaging Method & Quantity

10 PCS / PE Bag with Label

Manufacturing Standard

IPC/WHMA-A-620E Standard & UL 486A Pull Force Reference

Standard Compliance

RoHS, REACH Compliant

Full specifications

Harness Type

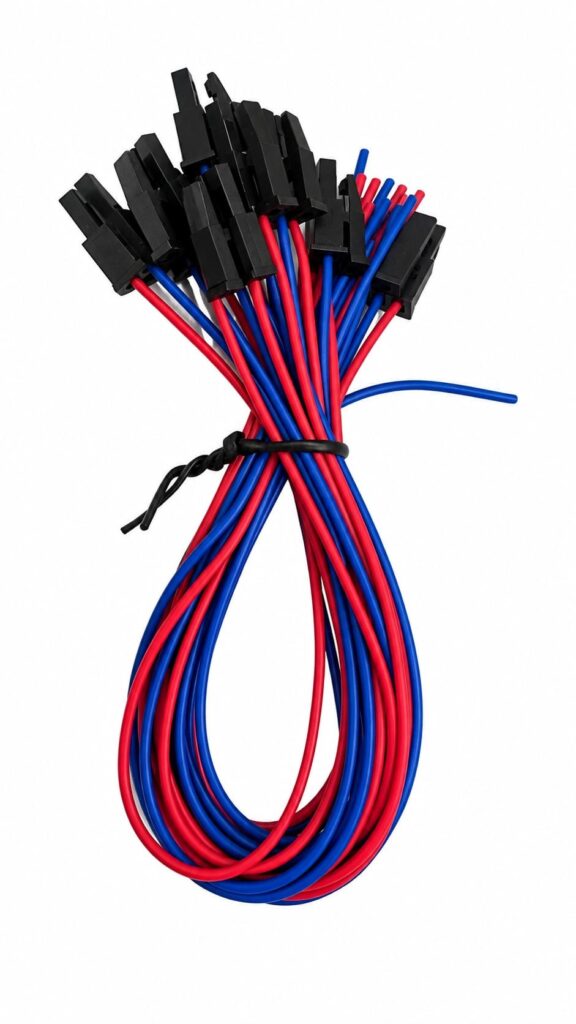

Single-Ended Heater Power / Control Pigtail Wire Harness

Connector A

2-Position Micro MATE-N-LOK 3.0mm Receptacle Housing

Connector B

Blunt Cut / Stripped Pigtail Wire Leads (P2)

Number of Positions

2 Pins (Single Row, 3.00 mm Centerline Pitch)

Wire Gauge & Style

24 AWG Stranded Copper (UL AWM 1007, Red & Blue)

Overall Assembly Length

200 mm ± 5 mm

Packaging Method & Quantity

10 PCS / PE Bag with Label

Manufacturing Standard

IPC/WHMA-A-620E Standard & UL 486A Pull Force Reference

Standard Compliance

RoHS, REACH Compliant

Full specifications

Harness Type

Micro MATE-N-LOK 3.0mm Splitter Cable Assembly

Connector P1

8-Position Receptacle Housing, 3.0mm Pitch (TE 794617-8 equivalent)

Connector P2

4-Position Receptacle Housing, 3.0mm Pitch (TE 794617-4 equivalent)

Connector P3

2-Position Receptacle Housing, 3.0mm Pitch (TE 1445022-2 equivalent)

Wire Gauge & Style

UL1007 24 AWG Stranded Wire (Red / Blue)

Overall Branch Lengths

Branch 1: 560±10 mm / Branch 2: 500±10 mm

Crimp Standard

UL486A Terminal Pulling Force Compliance

Manufacturing Standard

IPC/WHMA-A-620E Compliance

Packaging Method

10 PCS / PE Bag + Label

Environmental Compliance

RoHS Compliant

Full specifications

Harness / Cable Type

Multi-Branch DIGOUT / Analog / Speed Sensor Wire Harness

Main Interface (End A)

26-Pin Circular Receptacle (ITT Cannon MS3122E16-26S, Size 20 Contacts)

Secondary Interfaces (End B)

Samtec IPD1-02-D-K (4P), IPD1-04-D-K (8P), IPD1-12-D-K (24P x 2)

Sensor Interfaces

2x Delphi 12110192 3-Pin Sealed Pressure Transducer Connectors

Wire Gauge & Conductor Length

20 AWG Discrete Stranded Wire (532 Inches Total Wire Length)

Branch Cut Lengths

9.5", 12.0", 14.0", 15.0", 27.0" (Centerline extended measurement)

Cavity Population

Female Crimp Contacts Pre-Loaded in Unused Samtec Positions

Identification & Labeling

42x Heat-Shrink Wire Markers + Self-Laminating Cable Label

Workmanship Standard

IPC/WHMA-A-620 Class 2

Full specifications

Harness / Cable Type

Multi-Branch Industrial DIGIN / Power Wire Harness

End A Main Connector

ITT Cannon MS3122E20-41S (41-Pin Circular Receptacle, Shell Size 20)

End B Branch Connectors

Samtec IPD1-02-D-K (4-Pin), IPD1-12-D-K (24-Pin), IPD1-20-D-K (40-Pin)

Auxiliary Terminations

1/4" Fast-On Spade Receptacles (AMP 640903-1 x 5, AMP 640905-1 x 3)

Conductor Wire Gauge

20 AWG Stranded Discrete Wire (622.5 Inches Total Wire Length)

Harness Branch Lengths

7.0", 9.0", 11.0", 13.0", 14.0" (Measured along extended centerline)

Unused Cavity Loading

Pre-loaded with Size 20 Contacts & MS27488-20 Sealing Plugs

Identification Markers

55 Heat-Shrink Wire Markers + Self-Laminating Cable Label

Manufacturing Standard

IPC/WHMA-A-620 Class 2
