HDMI Connectors

EDOM Electronics provides industrial-grade HDMI Connectors engineered for reliable, high-definition multimedia transmission in embedded computing, medical devices, display panels, industrial motherboards, and automotive systems.

Our HDMI connector portfolio includes standard Type-A 19-Pin female receptacles across diverse PCB mounting profiles—including reverse sunken DIP (sink/mid-mount), surface mount (SMT), right-angle through-hole, and upright designs. Built to withstand demanding commercial and industrial environments, each connector features high-retention shielding, selective gold-plated contacts, and rugged high-temperature thermoplastic housings designed to maintain signal integrity up to 4K/8K data transfer rates.

We support full OEM/ODM customization, offering tailored standoff heights, PCB peg layouts, enhanced EMI grounding spring fingers, and custom packaging (Tape & Reel / Tray) compatible with high-speed automated SMT assembly.

8 products found

Browse available products in this category.

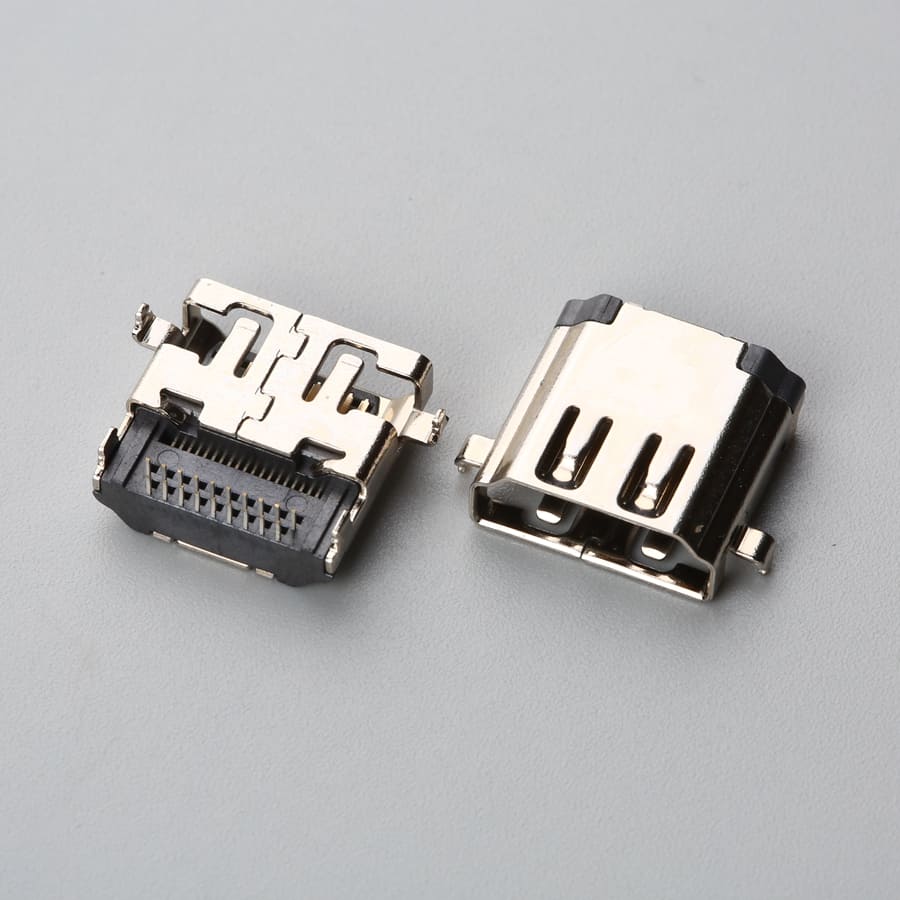

HDMI 19P Female Reverse Sinking CH1.52 BH4.30 DIP Connector
HDMI Connectors

HDMI 19P Female Reverse Sinking CH1.52 BH4.30 DIP Connector

Mates With: Standard HDMI Type A Male Cable Plugs
Connector Type
: HDMI Type A Receptacle (Female)
Number of Positions / Pins
: 19 Pins
Mounting Type
: Reverse Sinking DIP (Through-Hole)
Center Height (CH)
: 1.52 mm
Body Height (BH)
: 4.30 mm
Below-Board Height
: 1.25 mm
Connector Dimensions (L x W x H)
: 15.00 x 14.30 x 4.30 mm
Recommended PCB Thickness
: 1.20 mm to 1.60 mm
Mating Durability
: 10,000 Cycles Min.
Standard Compliance
: RoHS Compliant, Lead-Free
View Details

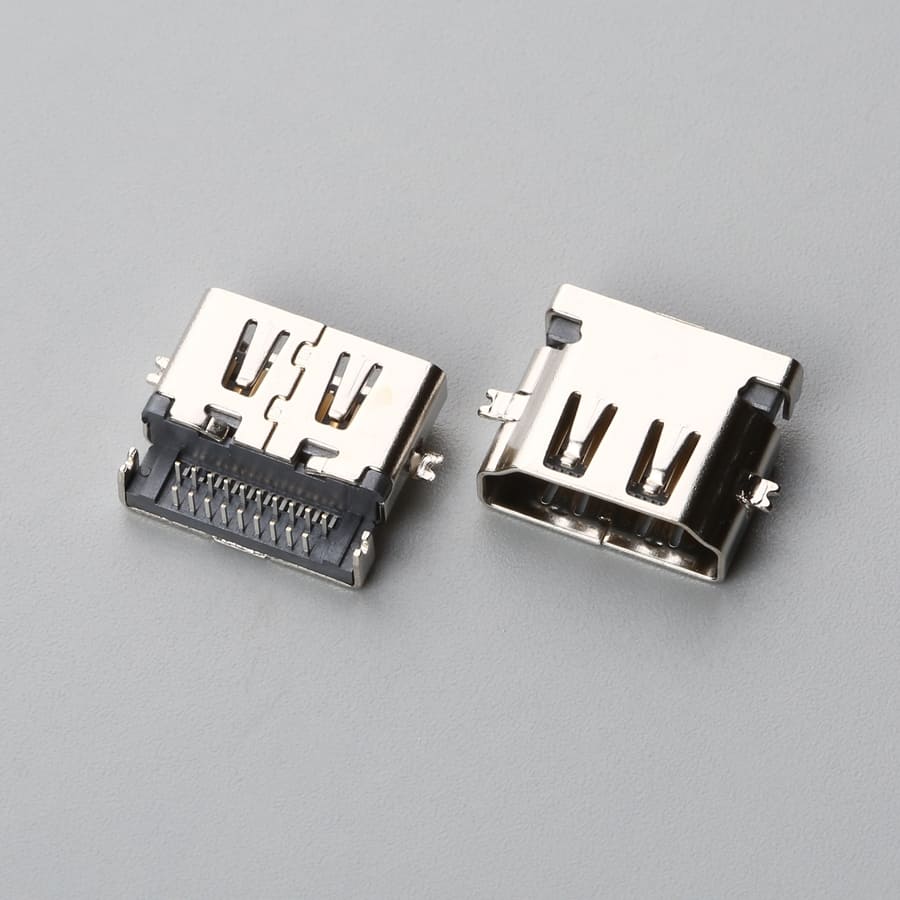

HDMI 19P Female Reverse Sinking DIP H2.27 Connector
HDMI Connectors

HDMI 19P Female Reverse Sinking DIP H2.27 Connector

Mates With: Standard HDMI Type A Male Cable Plugs
Connector Type
: HDMI Type A Receptacle (Female)
Number of Positions / Pins
: 19 Pins
Mounting Type
: Reverse Sinking DIP / Through-Hole
Profile Height
: 2.27 mm
Recommended PCB Thickness
: 1.20 mm to 1.60 mm
Mating Cycles / Durability
: 10,000 Cycles Min.
Standard Compliance
: RoHS Compliant, Lead-Free
View Details

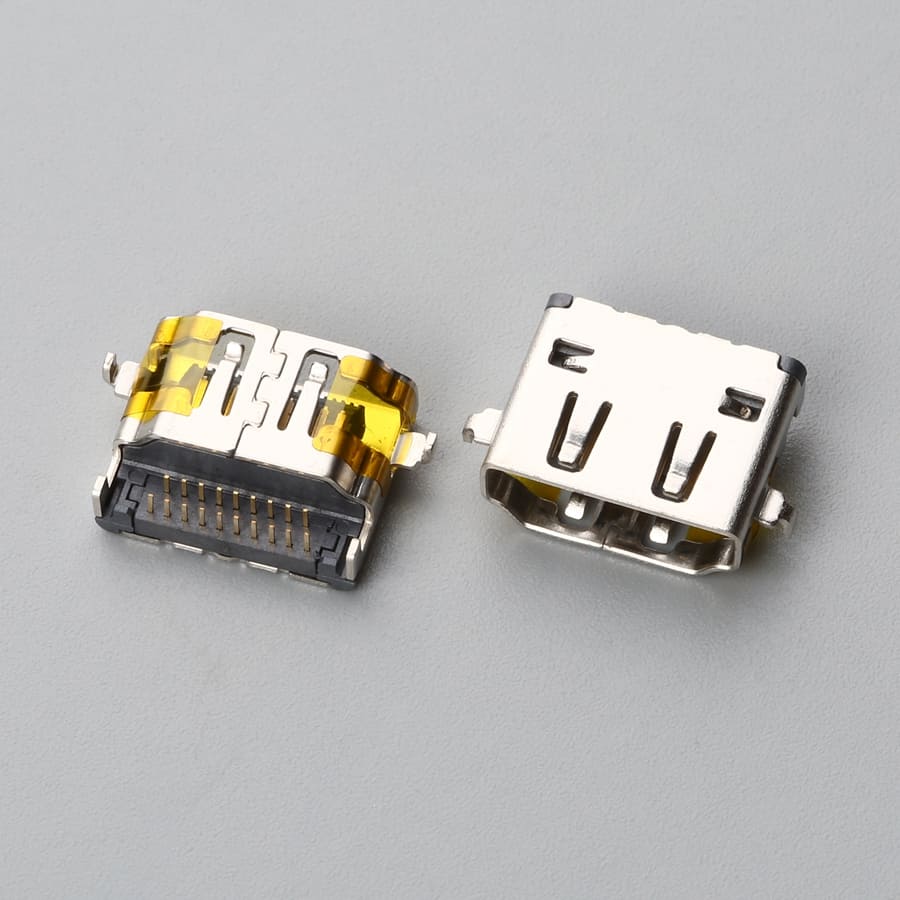

HDMI A Type Female Forward Sinking DIP H2.43 Connector
HDMI Connectors

HDMI A Type Female Forward Sinking DIP H2.43 Connector

Mates With: Standard HDMI Type A Male Cable Plugs
Connector Type
: HDMI Type A Receptacle (Female)
Number of Positions / Pins
: 19 Pins
Mounting Type
: Forward Sinking DIP (Through-Hole)
Profile Height (H)
: 2.43 mm
Packaging Method
: Tape & Reel (T&R) with Cover Tape
Carrier Tape Width
: 32.00 ± 0.10 mm
Carrier Tape Pitch
: 20.00 ± 0.10 mm
Reel Diameter
: Ø330 mm
Standard Packaging Quantity
: 500 PCS / Reel, 10 Reels / Carton (5,000 PCS / Carton)
Peel Force & Speed
: Cover Tape Peel Force: 10g - 130g; Peel Speed: 250 - 300 mm/min
Mating Durability
: 10,000 Cycles Min.
Compliance
: RoHS Compliant, Lead-Free
View Details

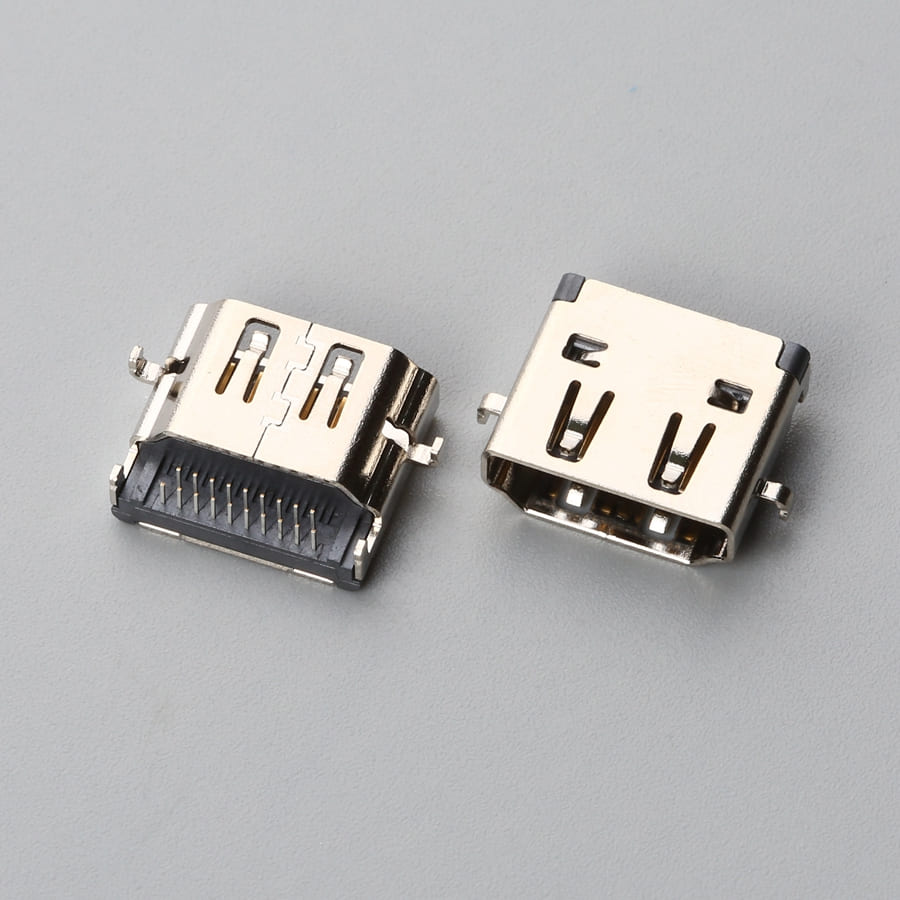

HDMI AF 19P Forward Sinking DIP H2.78 Connector
HDMI Connectors

HDMI AF 19P Forward Sinking DIP H2.78 Connector

Mates With: Standard HDMI Type A Male Cable Plugs
Connector Type
: HDMI Type A Receptacle (Female)
Number of Positions / Pins
: 19 Pins
Mounting Type
: Forward Sinking DIP (Through-Hole)
Profile Height (H)
: 2.78 mm
Front Width
: 15.00 mm (18.00 mm shell tabs)
Connector Depth
: 12.70 mm
Recommended PCB Thickness
: 1.20 mm to 1.60 mm
Mating Durability
: 10,000 Cycles Min.
Compliance
: RoHS Compliant, Lead-Free
View Details

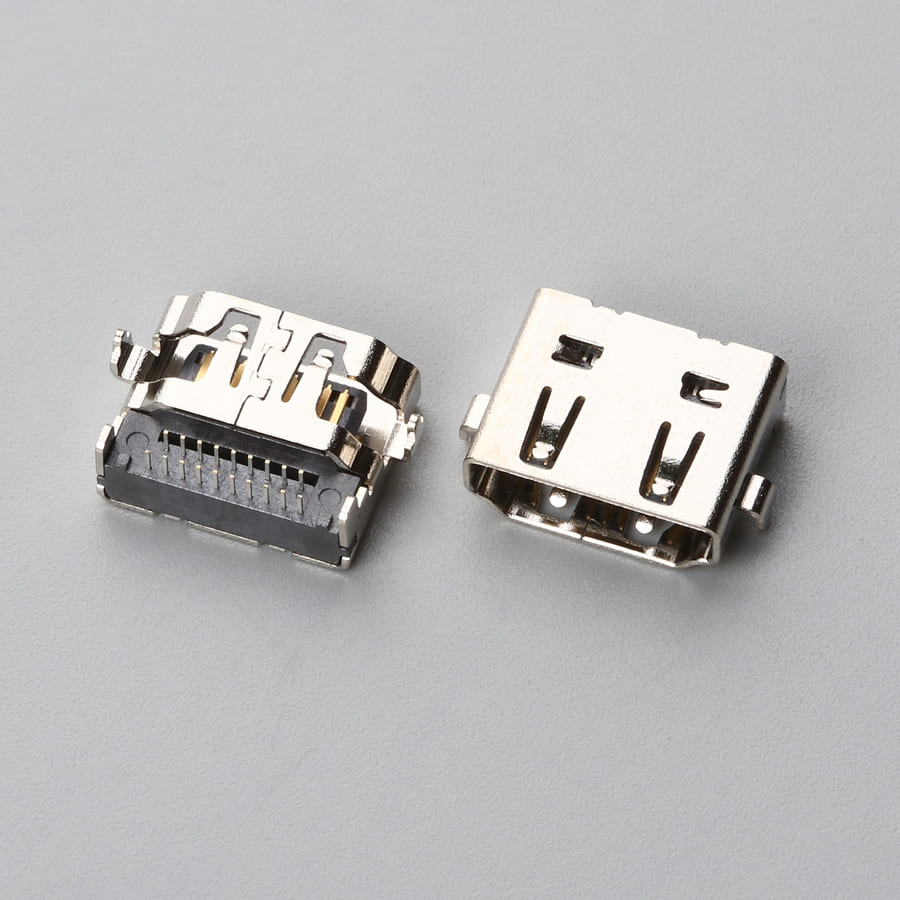

HDMI AF Sinking DIP H4.37mm Connector
HDMI Connectors

HDMI AF Sinking DIP H4.37mm Connector

Mates With: Standard HDMI Type A Male Cable Plugs
Connector Type
: HDMI Type A Receptacle (Female)
Number of Positions / Pins
: 19 Pins
Mounting Type
: Sinking DIP (Through-Hole)
Profile Height (H)
: 4.37 ± 0.15 mm
Center Height (CH)
: 1.60 ± 0.15 mm
Connector Width
: 15.00 mm (17.50 mm shell tabs)
Connector Depth
: 12.00 ± 0.20 mm
Recommended PCB Thickness
: 1.20 mm to 1.60 mm
Mating Durability
: 10,000 Cycles Min.
Compliance
: RoHS Compliant, Lead-Free
View Details

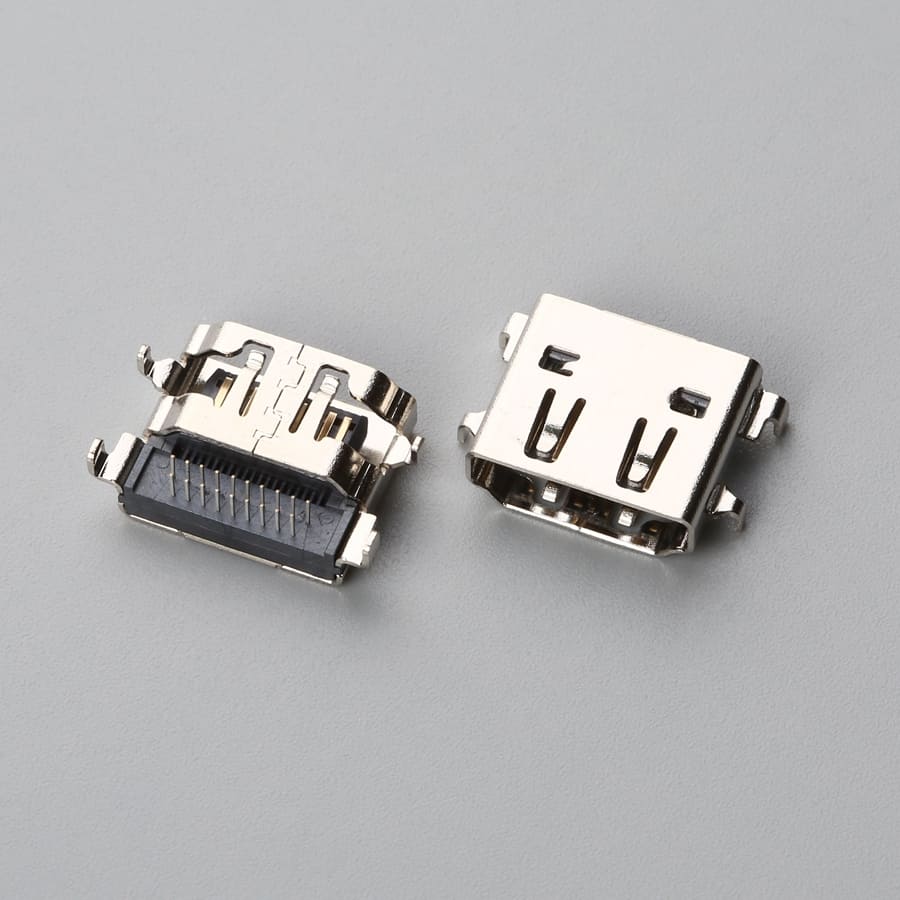

HDMI Type A Female Sinking DIP H3.75 Connector
HDMI Connectors

HDMI Type A Female Sinking DIP H3.75 Connector

Mates With: Standard HDMI Type A Male Cable Plugs
Connector Type
: HDMI Type A Receptacle (Female)
Number of Positions / Pins
: 19 Pins
Mounting Type
: Forward Sinking DIP (Through-Hole)
Profile Height (H)
: 3.75 mm
Below-Board Height
: 1.80 mm
Body Depth
: 11.65 mm (12.55 mm with shell tabs)
Front Width
: 15.00 mm (18.30 mm leg-to-leg)
Recommended PCB Thickness
: 1.20 mm to 1.60 mm
Mating Durability
: 10,000 Cycles Min.
Compliance
: RoHS Compliant, Lead-Free
View Details

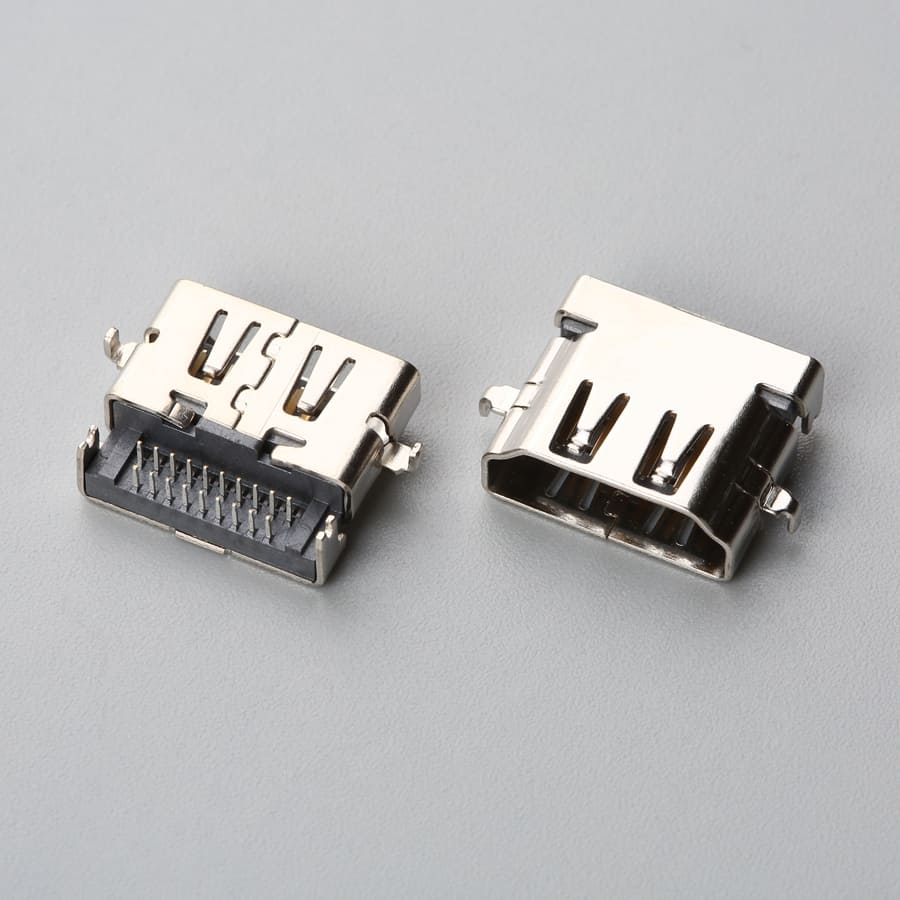

HDMI Type-A 19-Pin Reverse Mid-Mount Receptacle, Sinking DIP CL0.22 BH2.99mm
HDMI Connectors

HDMI Type-A 19-Pin Reverse Mid-Mount Receptacle, Sinking DIP CL0.22 BH2.99mm

Alt. for: 47151-0001, TE Connectivity 2013978-1, Amphenol 10029449-001RLF, Wurth Elektronik 685119136923 Mates With: Standard HDMI Type-A Male Plugs & Cable Assemblies
Gender
: Receptacle (Female)
Number of Positions
: 19 Contacts
Connector Interface
: HDMI Type-A
PCB Orientation
: Horizontal / Reverse (Mid-Mount)
PCB Mount Position
: Sink / Sunken Mount
Board Standoff Height (BH)
: 2.99mm
Center Line (CL)
: 0.22mm
Termination Style
: Through Hole DIP
Recommended PCB Thickness
: 1.20mm to 1.60mm
Mating Cycles (Durability)
: 10,000 Cycles
View Details
HDMI Type-A 19-Pin Reverse Mid-Mount Receptacle, Sinking DIP H2.78mm
HDMI Connectors

HDMI Type-A 19-Pin Reverse Mid-Mount Receptacle, Sinking DIP H2.78mm

Intermateable With: 47151-0001, TE Connectivity 2013978-1, Amphenol 10029449-001RLF, Wurth Elektronik 685119136923 Mates With: Standard HDMI Type-A Male Plugs & Cable Assemblies
Gender
: Receptacle (Female)
Number of Positions
: 19 Contacts
Connector Interface
: HDMI Type-A
PCB Orientation
: Horizontal / Reverse (Mid-Mount)
PCB Mount Position
: Sink / Sunken Mount
Board Standoff / Drop Height
: 2.78mm
Termination Style
: Through Hole DIP / Hybrid
Mating Cycles (Durability)
: 10,000 Cycles
