Detailed Product Information
Technical Data & Reference
Structured parameters, material notes, application context and frequently asked questions for engineering and procurement evaluation.
Competitor & Cross-Reference
- Alternative Type
- Functional Alternative
- Competitor Part Number
- CUI Devices PJ-002AH-SMT-TR Series
- Mates With
- Standard 1.0mm / 1.3mm / 1.4mm DC Barrel Power Plugs (Outer Diameter 3.60mm / 3.85mm compatible)
Functional Alternative: This part provides equivalent performance characteristics as a cost-optimized substitute. Minor design review recommended before adoption.
Technical Specifications
- Connector Type
- DC Power Jack Female Receptacle
- Number of Positions / Pins
- 3 Pins / 3 Contacts (Center Pin, Shunt, Shell Ground)
- Mounting Type
- Reverse Sinking Mount (Mid-Mount SMT/DIP Hybrid)
- Profile Height (H)
- 1.60 mm
- Overall Dimensions (L x W x H)
- 10.50 mm (11.20 mm max) x 8.90 mm x 1.60 mm
- Center Pin / Interface Diameter
- Center Pin Ø1.00 mm / Inner Bore Ø1.30 mm / Entrance Ø1.40 mm (Beveled Entry / 斜口)
- Recommended PCB Layout Cutout
- 8.90 mm width x 6.90 mm depth edge cutout
- Recommended PCB Layout Pad Spacing
- Lateral pad pitch 10.70 mm; Longitudinal distance 8.55 mm to 12.45 mm
- Mating Durability
- 50,000 Cycles
- Insertion / Withdrawal Force
- 0.3 - 3.0 kgf
- Standard Compliance
- RoHS Compliant, UL 94V-0
Material Composition
| Material | Value / Description |
|---|---|
| Housing Material | High-Temp Thermoplastic (PA10T), UL 94V-0, Black |
| Contact Material & Plating | Copper Alloy, Gold (Au) Plated |
| Shell Material & Plating | Copper Alloy, Gold (Au) Plated |
Technical Characteristics
| Characteristic | Value |
|---|---|
| Electrical Rating | 24V DC, 3A |
| Contact Resistance | 20 mΩ Max. |
| Insulation Resistance | 100 MΩ Min. |
| Dielectric Withstanding Voltage | AC 500V (1 minute) |
| Operating Temperature Range | -55°C to +105°C |
| General Tolerances | Metric: 0 Place ±0.50mm, 1 Place ±0.35mm, 2 Place ±0.25mm, 3 Place ±0.15mm, Angular ±3° |
Application Scenarios
-
Thin Single Board Computers (SBC) and embedded compute boards
-
Industrial IoT gateways, smart routers, and low-profile communication nodes
-
Handheld diagnostic instruments and medical telemetry hardware
-
Ultra-compact digital signage and edge AI computing modules
-
Rugged mobile field terminals and battery charging docks
Frequently Asked Questions
What is the functional advantage of a Reverse Sinking Mount (Mid-Mount) H1.60mm DC jack with a beveled interface?
The mid-mount design drops the connector body into a board cutout to achieve a minimal 1.60mm profile height, while the beveled mouth acts as a lead-in chamfer to facilitate blind-mating and reduce pin wear.
What are the critical PCB cut-out tolerances and pad dimensions for mounting this connector?
The PCB requires an 8.90mm wide by 6.90mm deep edge slot accompanied by four 2.10mm x 1.50mm pads, with layout tolerances maintained within ±0.05mm to ensure correct reflow coplanarity and shear strength.
What contact and housing materials are used to ensure soldering integrity and long-term durability?
The jack uses a UL 94V-0 black PA10T thermoplastic housing designed for high-temperature reflow soldering, paired with gold-plated copper alloy contacts and shell for corrosion resistance across -55°C to +105°C.
What electrical and cycle life ratings qualify this jack for industrial power input?
It is rated for 24V DC at 3A with AC 500V dielectric withstand voltage, tested for 50,000 insertion/withdrawal cycles at 0.3 to 3.0 kgf, exceeding conventional consumer-grade barrel jacks.

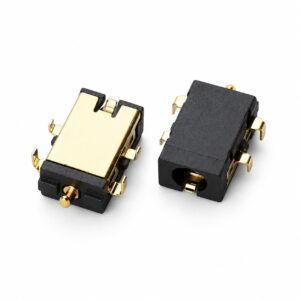

Overview and Application Notes

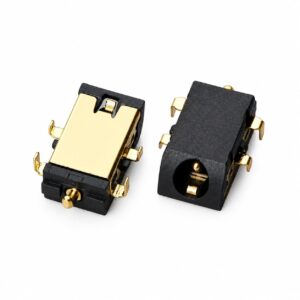

The Reverse Sinking Mount (Mid-Mount) DC Power Jack Female Connector features an ultra-low profile height of 1.60mm combined with a chamfered/beveled mouth (斜口) mating interface. Specifically engineered for space-constrained, low-profile embedded systems, this high-reliability female DC receptacle delivers 24V 3A power transmission while maximizing board-edge space efficiency and mechanical drop-impact resistance.
Key Features
- Form Factor & Profile: Reverse mid-mount (sinking mount) installation with a 1.60mm overall profile height, lowering vertical footprint.
- Beveled Mating Interface: Engineered with a chamfered entry mouth (斜口) to guide plug insertion seamlessly and prevent terminal stubbing.
- Electrical Rating: Rated for 24V DC at 3A, delivering stable DC power distribution across industrial motherboards and edge devices.
- Contact Plating & Materials: Gold-plated copper alloy contact and shell construction for superior conductivity, low contact resistance, and anti-oxidation.
- Extended Mechanical Endurance: Tested for 50,000 mating cycles with a steady 0.3 to 3.0 kgf insertion/withdrawal force.
- Reflow-Ready Housing: Built from black thermoplastic PA10T (UL 94V-0 compliant) to withstand lead-free reflow soldering profiles and operate reliably from -55°C to +105°C.
- Environmental Compliance: Fully compliant with RoHS standards.
Engineering Specifications & PCB Integration
This female DC receptacle installs into a reverse mid-mount PCB edge cutout (6.90mm depth by 8.90mm width opening). The landing pattern incorporates four balanced anchor pads (2.10mm x 1.50mm) spaced 10.70mm laterally and spanning 8.55mm to 12.45mm longitudinally. All PCB layout dimensions require a tight tolerance of ±0.05mm to ensure optimal SMT solder joint formation, planarity, and strong resistance against mechanical wrenching forces during cable mating.
