INDUSTRIAL WIRE HARNESS

Mini-Fit Jr. 4.2mm 4-Pin to M3.5 Ring Terminal Motherboard Power Cable 22AWG 260mm | EDOM

Drop-in for: 39-01-2040 / Molex 39-00-0038 / RVN 1.25-3.5M Mates With: 5556 / 5566 / 5569 Series 4.20mm Pitch Headers (Dual Row, 4 Positions) and M3.5 / #6 Grounding Studs

Harness / Cable Type: : Industrial Motherboard Power Wire Harness
Connector P1 Interface: : 4-Pin 4.20mm Pitch Receptacle Housing (Molex 39012040 Equivalent)
Connector P2 Interface: : 2x M3.5 Ring Terminals (RVN 1.25-3.5M, Ø3.7mm ID x 6.6mm OD)
Wire Specification: : UL1569 22 AWG Stranded Copper (Red, Black)
Overall Assembly Length: : 260 ±10 mm
Conductor Breakout Length: : 10 mm Ref. (Ring Terminal side) / 20 mm Ref. (Housing side)
Protective Sleeve: : Ø4.0 mm PET Braided Expandable Sleeve (230 mm Length)
Terminal Retention / Pull Force: : Compliant with UL486A Reference Standards
Workmanship & Quality Standard: : IPC/WHMA-A-620E, 100% Tested for Open, Short & Miswire
Packaging Method & Quantity: : 100 PCS / Bag
Regulatory Compliance: : RoHS 2.0 Compliant

View Details Datasheet

INDUSTRIAL WIRE HARNESS

RS-232 Event Recorder Cable Assembly 3-Pin Circular to 4-Pin 20AWG 12-Inch | EDOM

Drop-in for: B-735-0208-000 Mates With: KPT06/KPT07 Shell #12 3-Pin Female Sockets & Samtec IPD1 Series 2.54mm Pitch Headers

Harness / Cable Type: : RS-232 Serial Event Recorder Cable Assembly
End A Connector: : ITT Cannon KPT02E12-3P (3-Pin Male Circular, Shell #12, #16 Solder Contacts)
End B Connector: : Samtec IPD1-02-D-K (4-Pin Female Mini-Mate Housing)
Wire Gauge: : 20 AWG Discrete Wire (Black, Red, White)
Total Assembly Length: : 12.0 Inches (304.8 mm)
Pinout Configuration: : A -> BLK -> Pin 2; B -> RED -> Pin 1; C -> WHT -> Pin 4 (Pin 3 Unused/Installed)
Label Specification: : Self-Laminating Vinyl Label (Brady B-33-273-427 or equivalent)
Workmanship Standard: : IPC/WHMA-A-620 Class 2
Regulatory Compliance: : RoHS 2.0, REACH SVHC, ISO 9001:2015

View Details Datasheet

INDUSTRIAL WIRE HARNESS

TE 3.0mm Pitch 4-Pin Dual-Row Micro MATE-N-LOK Magnetic Sensor Wire Harness 550mm | EDOM

Intermateable With: 794617-4 / 1-794606-1 / 1-794610-2 Mates With: 3.0mm Pitch 4-Position Dual-Row Micro MATE-N-LOK PCB Headers & Free-Hanging Plug Housings (e.g., TE 794616-4, 3-794618-4, 3-794620-4)

Cable Type: : Magnetic Sensor Wire Harness Assembly
Connector Type: : 3.0mm Pitch Dual-Row Receptacle (P1 to P2)
Number of Positions / Pins: : 4 Positions (2x2 Dual Row)
Pinout Configuration: : Crossover / Reversed (P1 Pin 1-2-3-4 to P2 Pin 4-3-2-1)
Overall Cable Length: : 550 ± 10 mm
Wire Gauge & Style: : UL1007 24AWG (Orange, Green, Black, Yellow)
Voltage & Temperature Rating: : 300V, 80°C
Packaging Method & Quantity: : 10 PCS / PE Bag with Label
Standard Compliance: : IPC/WHMA-A-620E, UL486A, UL1007, RoHS Compliant

View Details Datasheet

INDUSTRIAL WIRE HARNESS

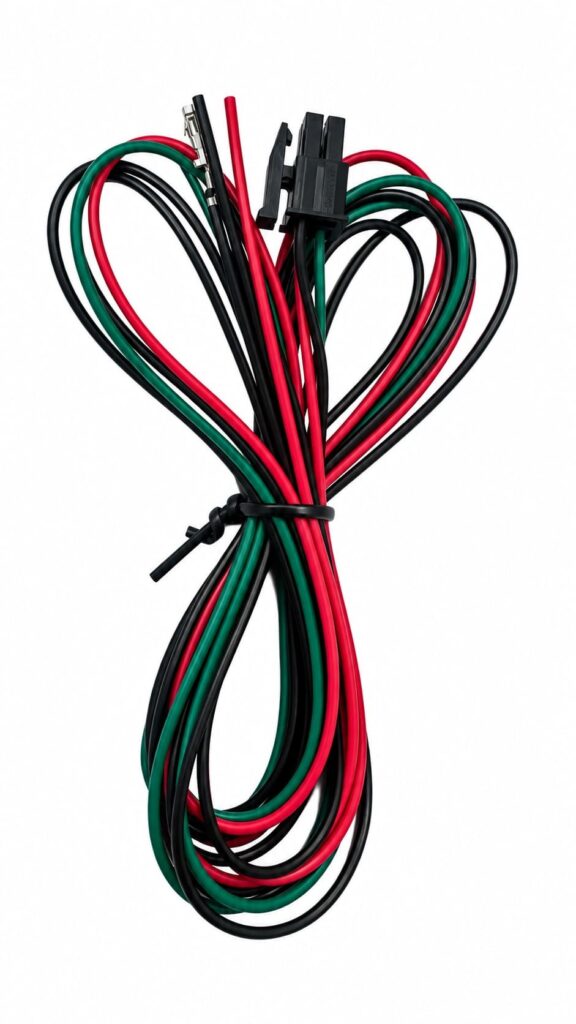

TE 3.0mm Pitch 4-Pos Receptacle to Pigtail UL1007 24AWG RGB LED Wire Harness 850mm | EDOM

Intermateable With: 794617-4 / TE Connectivity 1-794610-2 (Micro MATE-N-LOK 3.0mm Series) Mates With: 3.0mm Pitch Micro MATE-N-LOK Dual-Row 4-Position Plugs / PCB Headers

Cable Type: : Custom Single-Ended RGB LED Wire Harness Assembly
Connector Type: : 3.0mm Pitch 4-Position Receptacle Housing (P1: TE 794617-4)
Number of Positions / Pins: : 4-Position Housing (Pin 1 Unpopulated; Pins 2, 3, 4 Loaded)
Terminal Part Number: : TE 1-794610-2 Crimp Socket Terminal (20-24AWG, 4 PCS)
Wire Gauge & Style: : UL1007 24AWG (Black ×2, Green ×1, Red ×1)
Cable Length: : 850 ± 20 mm
Packaging Method & Quantity: : 10 PCS / PE Bag + Label
Standard Compliance: : IPC/WHMA-A-620E, UL486A, UL1007, RoHS Compliant

View Details Datasheet

INDUSTRIAL WIRE HARNESS

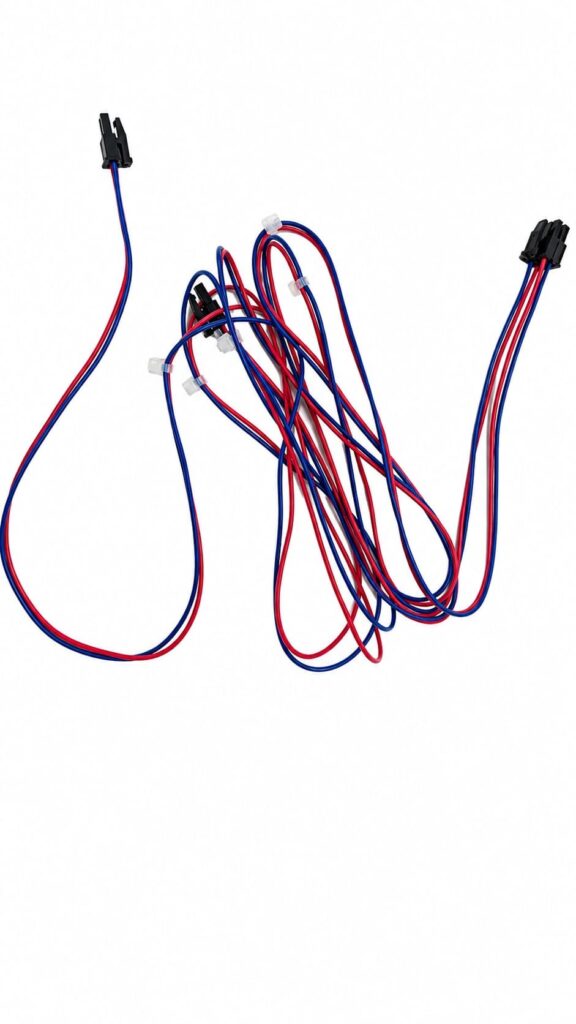

TE 3.0mm Pitch 6-Pin to Dual 2-Pin Micro MATE-N-LOK Panel Splitter Wire Harness 1450mm | EDOM

Intermateable With: 794617-6 / 1445022-2 / 1-794610-2 Mates With: 3.0mm Pitch 6-Pos Dual-Row (P1) & 2-Pos Single-Row (P2/P3) Micro MATE-N-LOK PCB Headers or Plug Housings (e.g., TE 794616-6, 1445049-2)

Cable Type: : 1-to-2 Panel Splitter Wire Harness Assembly
Connector Type (P1 Main): : TE 794617-6, 3.0mm Pitch 6-Pos Dual-Row Receptacle (4 Loaded, Pin 2 & 5 Empty)
Connector Type (P2 & P3 Branches): : 2x TE 1445022-2, 3.0mm Pitch 2-Pos Single-Row Receptacles
Number of Positions / Pins: : 6-Pin (4 Populated) to Dual 2-Pin (8 Contacts Total)
Pinout Configuration: : P1 (Pin 6 Blue, Pin 3 Red) to P2 (Pin 2, Pin 1); P1 (Pin 1 Blue, Pin 4 Red) to P3 (Pin 2, Pin 1)
Cable Branch Lengths: : 1450 ± 20 mm (Long Branch) / 550 ± 10 mm (Short Branch)
Wire Gauge & Style: : UL1007 24AWG Stranded Wire (2x Red, 2x Blue)
Voltage & Temperature Rating: : 300V, 80°C
Packaging Method & Quantity: : 10 PCS / PE Bag with Label
Standard Compliance: : IPC/WHMA-A-620E, UL486A, UL1007, RoHS Compliant

View Details Datasheet

INDUSTRIAL WIRE HARNESS

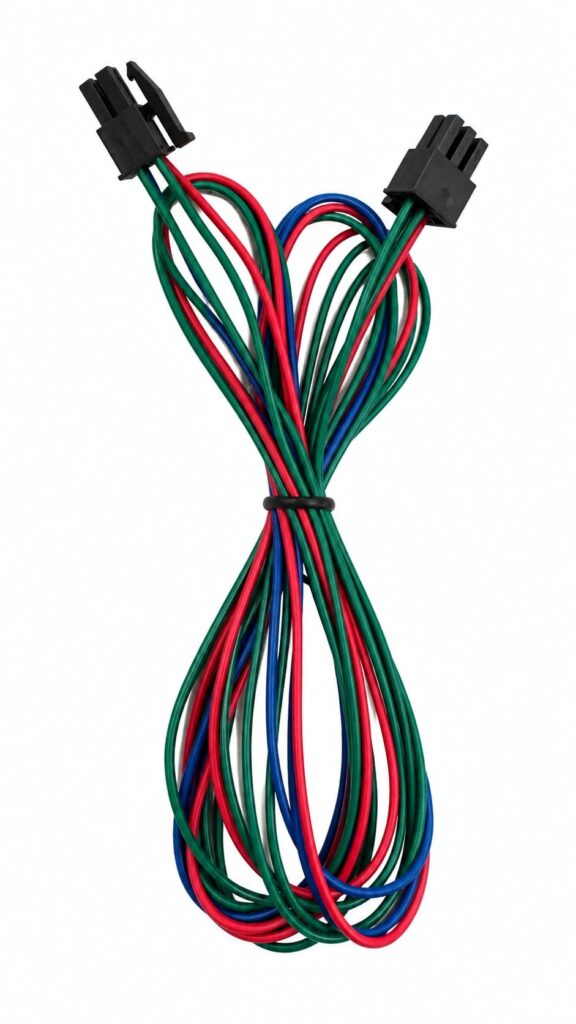

TE 3.0mm Pitch 6-Pos to 4-Pos Receptacle UL1007 24AWG Wire Harness 1050mm Cable | EDOM

Intermateable With: 794617-6 / TE Connectivity 794617-4 / TE Connectivity 1-794610-2 (Micro MATE-N-LOK 3.0mm Series) Mates With: 3.0mm Pitch Micro MATE-N-LOK Dual-Row 6-Position and 4-Position Plugs / PCB Headers

Cable Type: : Custom Dual-Ended Discrete Wire Harness Assembly
Connector Type: : 3.0mm Pitch Receptacle Housing (P1: TE 794617-6 / P2: TE 794617-4)
Number of Positions / Pins: : P1: 6-Position (4 Loaded) to P2: 4-Position (4 Loaded)
Terminal Part Number: : TE 1-794610-2 Crimp Socket Terminal (20-24AWG)
Wire Gauge & Style: : UL1007 24AWG (Green ×2, Blue ×1, Red ×1)
Cable Length: : 1050 ± 20 mm
Bundling & Accessory: : White Cable Tie (1 PC)
Packaging Method & Quantity: : 10 PCS / PE Bag + Label
Standard Compliance: : IPC/WHMA-A-620E, UL486A, UL1007, RoHS Compliant
