Rugged Robotics Cable Assemblies: Key Design Considerations
Specifying rugged robotics cable assemblies? Learn key design factors for sealing, high-flex conductors, and strain relief. Read the...
Detailed Product Information
Technical Data & Reference
Structured parameters, material notes, application context and frequently asked questions for engineering and procurement evaluation.
Competitor & Cross-Reference
- Alternative Type
- Drop-in Replacement
- Competitor Part Number
- Phoenix Contact 1681172 (SACC-E-M 8FS-4CON-M11/0,5) / TE Connectivity 2823074-1 / Amphenol M8-04PMFS-SF8001
- Mates With
- Standard M8 A-Code, B-Code, and D-Code Male Cable Plugs & Field-Wireable Connectors (IEC 61076-2-104)
Drop-in Replacement: This part is a direct, pin-compatible substitute for the competitor part number listed above. No design modification required.
Technical Specifications
- Connector Type
- Receptacle, Female Sockets
- Number of Positions
- 3, 4, 5, 6, 8
- Coding
- A-Code (3/4/6/8 Pin), B-Code (5 Pin), D-Code (4 Pin)
- Mounting Type
- Bulkhead - Front Side Nut, Panel Mount, Through Hole
- Fastening Type
- Threaded M8x1 (Mating) / M11x1 (Panel Mounting)
- Termination
- PCB Solder Pins
- Max Panel Thickness
- 4.5 mm Max.
- Recommended Panel Cut-Out
- Double D-cut: 10.1 +0.1/-0 mm x Ø11.1 ±0.1 mm
- Solder Pin Length
- 3.0 mm
- Mating Durability
- $\ge$ 500 Cycles
- Standard Compliance
- IEC 61076-2-104, RoHS
Material Composition
| Material | Value / Description |
|---|---|
| Insulator Housing | Polyamide (PA), Black |
| Contact Terminals | Copper Alloy, Gold-Plated |
| Metal Thread Shell | Copper Alloy, Nickel-Plated |
| Fastening Nut | Copper Alloy, Nickel-Plated (SW13 / SW14) |
| Sealing O-Rings | NBR, Black (Panel and Thread Seals) |
Technical Characteristics
| Characteristic | Value |
|---|---|
| Rated Voltage | 60V DC (3, 4 Pin) / 30V DC (5, 6, 8 Pin) |
| Rated Current | 4A (3, 4 Pin) / 3A (5 Pin) / 1.5A (6, 8 Pin) |
| Contact Pin Diameter | Ø1.0 mm (3, 4, 5 Pin) / Ø0.7 mm (6 Pin) / Ø0.6 mm (8 Pin) |
| Operating Temperature | -40°C to +80°C |
| Ingress Protection | IP67 (Correctly locked state) |
| General Tolerances | Decimal: ±0.5 mm; X.X: ±0.25 mm; X.XX: ±0.15 mm; Angles: ±1° |
Application Scenarios
-
Industrial automation sensors and actuators
-
Compact programmable logic controllers (PLCs) & I/O distribution blocks
-
Machine vision cameras and optical inspection systems
-
Robotics end-of-arm tooling (EOAT) and compact motor drives
-
Fieldbus and industrial Ethernet junction interfaces
Frequently Asked Questions
What are the recommended panel cutout dimensions for this M8 receptacle?
The recommended panel opening utilizes an anti-rotation flat-edge profile measuring 10.1 mm (+0.1/-0 mm) across the flat by 11.1 mm (±0.1 mm) diameter, supporting front-mount bulkheads up to 4.5 mm maximum panel thickness.
Which contact ratings and pinout configurations are supported by this M8 PCB socket?
The socket supports 3, 4, 5, 6, and 8 pin layouts in compliance with IEC 61076-2-104, featuring gold-plated contacts with ratings of 4A / 60V DC for 3 and 4 Pin (1.0 mm pins), 3A / 30V DC for 5 Pin B-Code (1.0 mm pins), and 1.5A / 30V DC for 6 and 8 Pin (0.7 mm and 0.6 mm pins).
What sealing mechanism ensures IP67 waterproof reliability in industrial environments?
Environmental sealing is established via integrated dual NBR black O-rings positioned along the M11x1 mounting thread and front bulkhead flange, providing an IP67 water and dust-tight seal when properly torqued with the SW13/SW14 fastening nut.
Overview and Application Notes

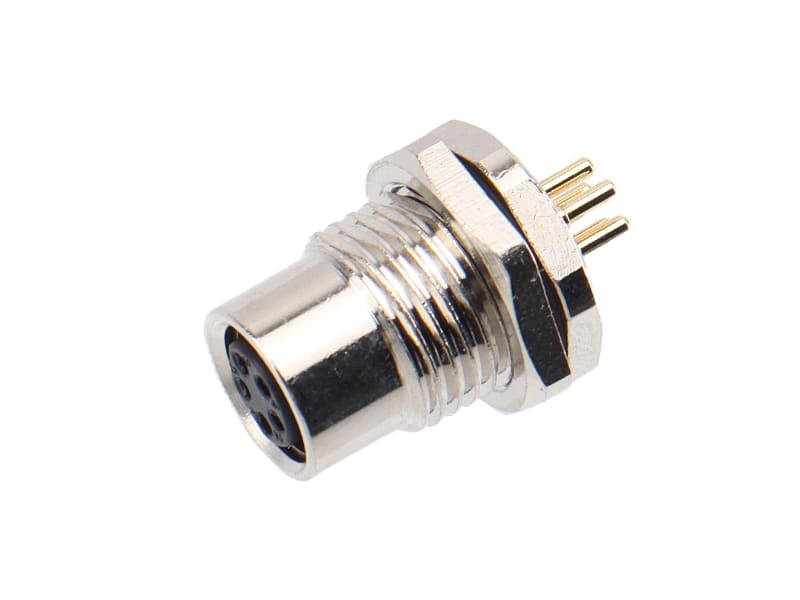

The M8 Circular Panel Front Mount Socket is an industrial-grade female receptacle engineered for direct PCB solder pin termination and secure front-panel bulkhead integration. Featuring an M8x1 mating thread and an M11x1 chassis mounting interface, this compact receptacle provides robust IP67 ingress protection and reliable board-level power and signal routing in tight automation enclosures.
Key Features
- Modular Pin Count Configurations: Available in 3-Pin, 4-Pin, 5-Pin, 6-Pin, and 8-Pin variants with standardized A-Code, B-Code, and D-Code keying options.
- Panel-to-Board Mechanical Stability: Designed with front bulkhead mounting, integrated SW10/SW13/SW14 wrench flats, and dual NBR O-rings for hermetic chassis sealing.
- High-Conductivity Contacts: Precision-machined gold-plated copper alloy terminals support 1.5A to 4A current capacities and up to 60V DC operation.
- Harsh Environment Durability: Rated for over 500 mating cycles across an extended operating temperature window of -40°C to +80°C.
- Standardized Compliance: Fully compliant with IEC 61076-2-104 and RoHS environmental safety mandates.
Engineering Specifications & PCB Integration
Designed for streamlined panel and board integration, the connector requires a standard panel cutout with a flat-edge anti-rotation profile (10.1 +0.1/-0 mm width by Ø11.1 ±0.1 mm diameter) accommodating a maximum panel thickness of 4.5 mm. The female solder pins extend 3.0 mm from the base for secure through-hole wave or selective soldering directly into industrial carrier boards.
