Detailed Product Information
Technical Data & Reference
Structured parameters, material notes, application context and frequently asked questions for engineering and procurement evaluation.
Competitor & Cross-Reference
- Alternative Type
- Intermateable With
- Competitor Part Number
- Phoenix Contact SACC-DSI-M8MS Series, Binder 713/763 Series Male Panel Plugs, TE Connectivity M8 Male Panel Mount Connectors, Molex Brad Nano-Change 120091 Series
- Mates With
- Standard IEC 61076-2-104 M8x1.0 Female Threaded Sockets or Overmolded Cordsets (Matching A-Code, B-Code, or D-Code)
Intermateable: This part is mechanically and electrically compatible for mating with the listed competitor connector. Mixed use in the same connector system is supported.
Technical Specifications
- Connector Type
- M8 Circular Device Plug, Male Pins
- Number of Positions / Coding
- 3-Pin (A-Code), 4-Pin (A-Code / D-Code), 5-Pin (B-Code), 6-Pin (A-Code), 8-Pin (A-Code)
- Mounting Type
- Panel Mount (M8x1.0 Thread with SW7.1 Nut), Right Angle Through-Hole PCB Solder
- Key Dimensions
- Thread: M8x1.0; Body Length: 17.5mm; Vertical Height: 15.4mm; Right-Angle Pin Offset: 12.5mm; Solder Tail Length: 3.0mm
- Contact Pin Diameter
- 1.0mm (3, 4, 5-Pin); 0.7mm (6-Pin); 0.6mm (8-Pin)
- Recommended Panel Thickness & Cut-out
- Max Panel Thickness: 3.0mm; Panel Cut-out: Ø8.1 (+0.1/-0) mm with 7.2 (+0.1/-0) mm Flat D-Cut
- Packaging Method & Quantity
- Tray / Bulk Packaging (Exact PCS/Carton not specified in assembly drawing)
- Mating Durability
- ≥ 500 Mating Cycles
- Ingress Protection
- IP67 (In correct locked mating state)
- Standard Compliance
- IEC 61076-2-104, RoHS Compliant
Material Composition
| Material | Value / Description |
|---|---|
| Housing / Insulation Material | Polyamide (PA), Black |
| Contact Material & Plating | Copper Alloy, Gold-Plated |
| Shell / M8 Metal Thread Material | Copper Alloy, Nickel-Plated |
| Mounting Nut Material | Copper Alloy, Nickel-Plated (SW7.1) |
| Sealing O-Ring & Potting Material | Black Nitrile Butadiene Rubber (NBR) O-Ring & Black Epoxy Potting |
Technical Characteristics
| Characteristic | Value |
|---|---|
| Rated Current | 4A (3-Pin, 4-Pin); 3A (5-Pin); 1.5A (6-Pin, 8-Pin) |
| Rated Voltage | 60V DC (3-Pin, 4-Pin); 30V DC (5-Pin, 6-Pin, 8-Pin) |
| Operating Temperature Range | -40°C to +80°C |
| General Dimensional Tolerances | X. ±0.5mm; .XX ±0.25mm; .XXX ±0.15mm; Angles ±1° |
Application Scenarios
-
Industrial Ethernet & Fieldbus Switches: D-Code 4-pin and B-Code 5-pin male panel interfaces for compact Profinet, EtherCAT, and DeviceNet nodes.
-
Automated Sensor & Actuator Hubs: Multi-port PLC I/O distribution boxes and factory automation control panels.
-
Machine Vision & Optical Inspection Systems: High-density 6-pin and 8-pin power and trigger connections in compact camera housings.
-
Robotics & Servo Drive Controllers: Vibration-resistant right-angle PCB board terminations on robotic tooling and motion modules.
-
Harsh Environment Instrumentation: IP67-sealed industrial enclosures requiring dust-tight and waterproof panel feedthroughs.
Frequently Asked Questions
What are the recommended panel cut-out dimensions and maximum panel thickness for this M8 male right-angle plug?
The connector requires a D-shaped anti-rotation panel cut-out with a diameter of 8.1mm (+0.1/-0mm) and a flat side width of 7.2mm (+0.1/-0mm). It supports a maximum enclosure panel thickness of 3.0mm and is secured using an SW7.1 nut on its M8x1.0 thread.
How do the current and voltage ratings differ across the 3-pin to 8-pin M8 male configurations?
Per IEC 61076-2-104 specifications, the 3-pin (A-Code) and 4-pin (A-Code/D-Code) models utilize 1.0mm contacts rated at 4A and 60V DC. The 5-pin (B-Code) model uses 1.0mm contacts rated at 3A and 30V DC, while the 6-pin (0.7mm contacts) and 8-pin (0.6mm contacts) A-Code models are rated at 1.5A and 30V DC.
What materials and sealing mechanisms provide IP67 waterproof protection for this PCB-mount M8 plug?
The connector features a nickel-plated copper alloy shell, gold-plated copper alloy male pins, and a black PA insulator. Environmental sealing to IP67 in the locked state is achieved through a black NBR O-ring combined with black epoxy resin potting at the rear PCB pin interface.
What are the key PCB mounting dimensions and thermal ratings for assembly integration?
The right-angle solder pins have a horizontal centerline offset of 12.5mm, a vertical body-to-board profile height of 15.4mm, and a 3.0mm solder tail length. The assembly operates reliably from -40°C to +80°C and endures at least 500 mating cycles.
Overview and Application Notes

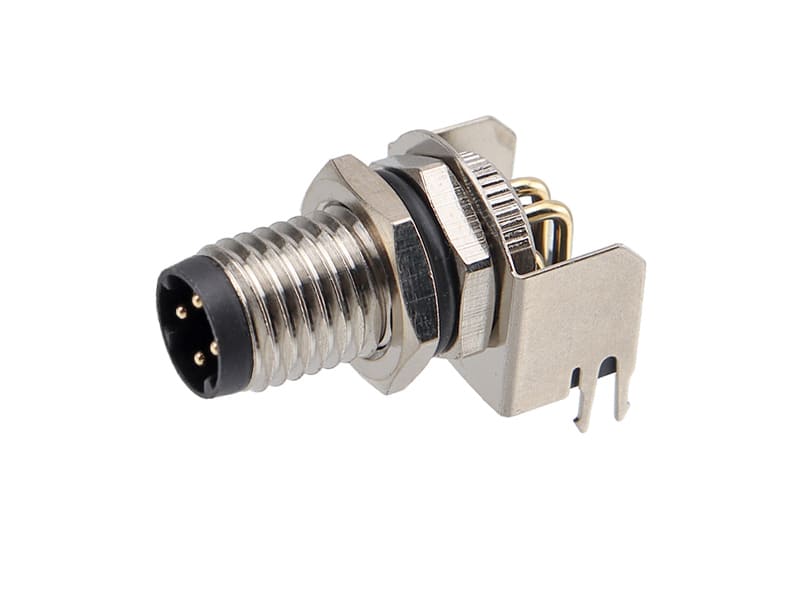

The M8 Male Right-Angle Panel Mount Plug is a compact circular device connector engineered for industrial automation, sensor interfaces, and Industrial Ethernet systems. Manufactured in compliance with IEC 61076-2-104 standards, this series supports A-Code (3, 4, 6, 8 pins), B-Code (5 pins), and D-Code (4 pins) male pin configurations with right-angle through-hole PCB solder termination. Constructed with a nickel-plated copper alloy M8x1.0 threaded shell, black epoxy potting, and an NBR O-ring seal, it ensures reliable IP67 waterproof and dustproof protection in demanding environments.
Key Features
- Multi-Code Male Pin Layouts: Available in 3-pin, 4-pin (A-Code & D-Code), 5-pin (B-Code), 6-pin, and 8-pin (A-Code) male plug variants to accommodate diverse fieldbus, power, and sensor protocols.
- IP67 Environmental Sealing: Achieves IP67 ingress protection in the locked mating condition, utilizing a precision M8x1.0 mounting thread, a black NBR O-ring, and black epoxy resin sealing.
- Industrial-Grade Materials: Built with black PA (Polyamide) insulation, gold-plated copper alloy male contacts for stable conductivity, and a corrosion-resistant nickel-plated copper alloy shell and nut.
- Scalable Electrical Performance: Rated at 4A / 60V DC for 3-pin and 4-pin models, 3A / 30V DC for 5-pin models, and 1.5A / 30V DC for high-density 6-pin and 8-pin configurations.
- High Thermal & Mechanical Durability: Designed to operate across -40°C to +80°C while withstanding a minimum of 500 mechanical mating cycles.
Engineering Specifications & PCB Integration
This right-angle M8 male panel plug supports a maximum enclosure panel thickness of 3.0mm. For secure anti-rotation mounting, the recommended panel cut-out requires an overall diameter of 8.1mm (+0.1/-0mm) with a flat D-cut measuring 7.2mm (+0.1/-0mm), fastened using an SW7.1 nut on the M8x1.0 thread. The right-angle PCB solder pins feature a 12.5mm centerline-to-pin offset, a 15.4mm vertical height profile, and 3.0mm solder tails for dependable through-hole PCB assembly.
