Technical Specifications
- Connector Type
- M8 Circular Device Receptacle, Female Socket
- Number of Positions / Coding
- 3-Pin (A-Code), 4-Pin (A-Code / D-Code), 5-Pin (B-Code), 6-Pin (A-Code), 8-Pin (A-Code)
- Mounting Type
- Panel Mount (M10x0.75 Thread with SW9 Nut), Right Angle Through-Hole PCB Solder
- Key Dimensions
- Mating Thread: M8x1.0; Panel Thread: M10x0.75; Body Length: 15.5mm / 15.4mm; Right-Angle Pin Offset: 12.5±0.1mm; Solder Tail Length: 3.0mm
- Contact Pin Diameter
- 1.0mm (3, 4, 5-Pin); 0.7mm (6-Pin); 0.6mm (8-Pin)
- Recommended Panel Thickness & Cut-out
- Max Panel Thickness: 4.5mm; Panel Cut-out: Ø10.1 (+0.1/-0) mm with 9.1 (+0.1/-0) mm Flat D-Cut
- Mating DurabilityIngress Protection
- ≥ 500 Mating Cycles
- Ingress Protection
- IP67 (In correct locked mating state)
- Standard Compliance
- IEC 61076-2-104, RoHS Compliant
Material Composition
| Material | Value / Description |
|---|---|
| Housing / Insulation Material | Polyamide (PA), Black |
| Contact Material & Plating | Copper Alloy, Gold-Plated |
| Shell / M8 Metal Thread Material | Copper Alloy, Nickel-Plated |
| Mounting Nut Material | Copper Alloy, Nickel-Plated (SW9 Hex) |
| Sealing O-Ring Material | Nitrile Butadiene Rubber (NBR), Black (2x O-Rings) |
Technical Characteristics
| Characteristic | Value |
|---|---|
| Rated Current | 4A (3-Pin, 4-Pin); 3A (5-Pin); 1.5A (6-Pin, 8-Pin) |
| Rated Voltage | 60V DC (3-Pin, 4-Pin); 30V DC (5-Pin, 6-Pin, 8-Pin) |
| Operating Temperature Range | -40°C to +80°C |
| General Dimensional Tolerances | X. ±0.5mm; .XX ±0.25mm; .XXX ±0.15mm; Angles ±1° |
Application Scenarios
-
Industrial Automation & PLC I/O Modules: Compact sensor and actuator signal termination on distributed control boxes.
-
Industrial Ethernet & Fieldbus Networks: D-Code 4-pin and B-Code 5-pin integration for Profinet, EtherCAT, and DeviceNet switches.
-
Machine Vision & Industrial Cameras: High-density 6-pin and 8-pin power/trigger interface in space-constrained optical housings.
-
Robotics & Motion Control: Vibration-resistant right-angle PCB board connections on robotic end-effectors and servo drives.
-
Process Instrumentation & Packaging Machinery: IP67 washdown-protected signal enclosures requiring reliable panel sealing.
Frequently Asked Questions
What are the panel cut-out dimensions and maximum panel thickness for this M8 right-angle receptacle?
The connector requires a D-shaped panel cut-out with an overall diameter of 10.1mm (+0.1/-0mm) and a flat anti-rotation width of 9.1mm (+0.1/-0mm) to accommodate its M10x0.75 mounting thread. It supports a maximum panel wall thickness of 4.5mm and is secured using an SW9 hex nut.
How do the electrical ratings and contact sizes vary across the 3-pin to 8-pin M8 configurations?
Electrical capacity scales by pin count and contact diameter per IEC 61076-2-104. The 3-pin (A-Code) and 4-pin (A-Code/D-Code) models use 1.0mm contacts rated at 4A and 60V DC. The 5-pin (B-Code) uses 1.0mm contacts rated at 3A and 30V DC, while the 6-pin (0.7mm contacts) and 8-pin (0.6mm contacts) A-Code models are rated at 1.5A and 30V DC.
What materials and plating processes ensure IP67 sealing and corrosion resistance in harsh environments?
The receptacle features a nickel-plated copper alloy outer threaded shell and mounting nut for mechanical strength and EMI shielding. Electrical contacts are precision-machined from copper alloy with gold plating to prevent oxidation, while two black NBR (Nitrile Butadiene Rubber) O-rings seal the housing and panel interface to achieve IP67 protection when fully mated.
What is the thermal operating range and mechanical mating lifespan of this PCB-mount M8 socket?
This right-angle PCB solder M8 connector is rated for continuous operation across an industrial temperature range of -40°C to +80°C and is mechanically tested to withstand at least 500 mating cycles.
Overview and Application Notes

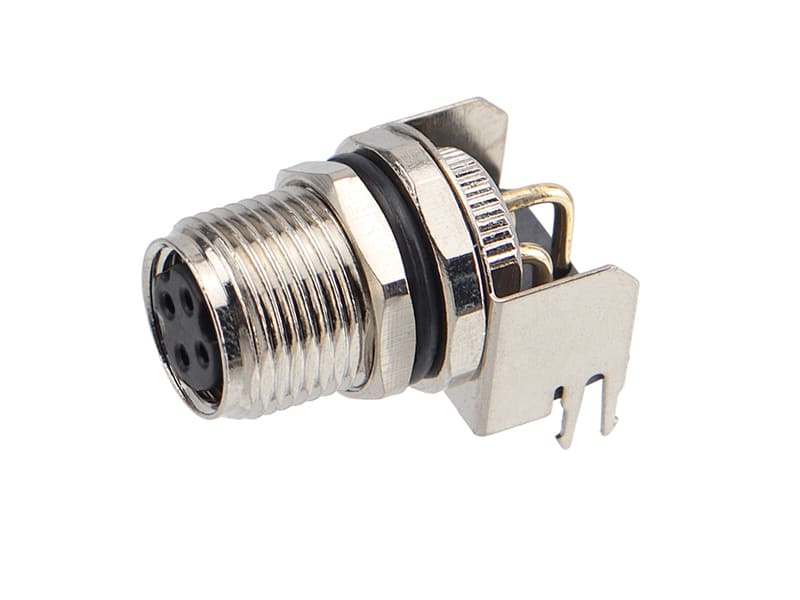

The M8 Female Right-Angle Panel Mount Receptacle is a ruggedized circular device connector engineered for compact industrial automation, sensor networks, and Industrial Ethernet applications. Designed in strict compliance with IEC 61076-2-104 standards, this series supports multiple coding configurations—including A-Code (3, 4, 6, 8 pins), B-Code (5 pins), and D-Code (4 pins)—with right-angle through-hole PCB solder pins. Featuring a nickel-plated copper alloy M8x1.0 threaded shell and dual NBR O-ring seals, it delivers reliable IP67 waterproof and dustproof protection in harsh operating environments.
Key Features
- Multi-Code & Pin Configurations: Available in 3-pin, 4-pin (A-Code & D-Code), 5-pin (B-Code), 6-pin, and 8-pin (A-Code) female socket layouts to support diverse sensor, actuator, and data protocols.
- Superior Environmental Sealing: Achieves IP67 ingress protection in the locked mating state, reinforced by dual black NBR O-rings and a precision M10x0.75 panel mounting thread.
- Robust Material Construction: Incorporates black PA (Polyamide) housing insulation, gold-plated copper alloy contacts for low-resistance signal integrity, and a nickel-plated copper alloy outer shell.
- Industrial Electrical Ratings: Supports 4A at 60V DC for 3-pin and 4-pin variants, 3A at 30V DC for 5-pin variants, and 1.5A at 30V DC for high-density 6-pin and 8-pin models.
- Wide Thermal & Mechanical Endurance: Operates reliably across a temperature range of -40°C to +80°C with a mechanical mating durability of at least 500 cycles.
Engineering Specifications & PCB Integration
This right-angle M8 receptacle is optimized for rigid enclosure integration with a maximum acceptable panel thickness of 4.5mm. For accurate mechanical anti-rotation alignment, the recommended panel cut-out requires a diameter of 10.1mm (+0.1/-0mm) with a flat anti-rotation D-cut measuring 9.1mm (+0.1/-0mm), fastened via an SW9 hex nut on the M10x0.75 thread. The right-angle PCB solder tails feature a 12.5mm (±0.1mm) centerline-to-pin-row offset and extend 3.0mm for secure through-hole wave or manual soldering.
