Detailed Product Information
Technical Data & Reference
Structured parameters, material notes, application context and frequently asked questions for engineering and procurement evaluation.
Competitor & Cross-Reference
- Alternative Type
- Intermateable With
- Competitor Part Number
- TE Connectivity 1445022-2 / TE Connectivity 1-794606-1
- Mates With
- TE Micro MATE-N-LOK 3.0mm Pitch Headers (e.g., TE 1445055-2, 1445053-2) & Micro-Fit 3.0 43045 Series Pin Headers
Intermateable: This part is mechanically and electrically compatible for mating with the listed competitor connector. Mixed use in the same connector system is supported.
Technical Specifications
- Harness Type
- Point-to-Point Luminaire Power / RGB Wire Harness
- Connector A
- 2-Position Micro MATE-N-LOK 3.0mm Receptacle Housing
- Connector B
- 2-Position Micro MATE-N-LOK 3.0mm Receptacle Housing
- Number of Positions
- 2 Pins (Single Row, 3.00 mm Centerline Pitch)
- Wire Gauge & Style
- 24 AWG Stranded Copper (UL AWM 1007, Red & Blue)
- Overall Assembly Length
- 300 mm ± 5 mm
- Packaging Method & Quantity
- 10 PCS / PE Bag with Label
- Manufacturing Standard
- IPC/WHMA-A-620E Standard & UL 486A Pull Force Reference
- Standard Compliance
- RoHS, REACH Compliant
Material Composition
| Material | Value / Description |
|---|---|
| Housing Material | Nylon / Thermoplastic (UL 94V-0 Rated, Black) |
| Contact Terminals | High-Conductivity Copper Alloy, Gold Plated |
| Wire Conductor | Tinned / Annealed Stranded Copper (24 AWG) |
| Wire Insulation | Lead-Free PVC (UL 1007 Flame Retardant) |
| Packaging Material | Transparent Anti-Static / PE Bag |
Technical Characteristics
| Characteristic | Value |
|---|---|
| Conductor Resistance | 5 Ω Max. |
| Insulation Resistance | 10 MΩ Min. |
| Voltage Proof Test | DC 300V / 0.01 sec |
| Electrical Testing | 100% Electrical Test for Open, Short & Miswire |
| Operating Temperature Range | -20°C to +80°C |
| Dimensional Tolerance | ±5 mm (Overall Length 300 mm) |
Application Scenarios
-
Architectural, Commercial, and Industrial RGB Luminaire Lighting Systems
-
Electronic Signage, LED Backlight Arrays, and Commercial Displays
-
Industrial Machinery Indicator Panels and Status Annunciators
-
Smart Home Automation and IoT Sensor Power Distribution
-
Embedded Appliance Low-Voltage DC Control Modules
Evidence & Reference Images
Frequently Asked Questions
What connector systems are compatible with this 2-pin 3.0mm wire harness?
The harness terminates with TE 1445022-2 compatible housings with 3.0 mm pitch, intermating seamlessly with TE Micro MATE-N-LOK PCB headers as well as industry-standard Molex Micro-Fit 3.0 dual/single-circuit configurations.
What standards govern the crimp retention and electrical reliability of this assembly?
Every harness assembly undergoes 100% testing for open, short, and miswire defects per IPC/WHMA-A-620E Class 2/3 criteria, with crimp terminal pull forces validated according to UL 486A mechanical tensile standards.
What are the voltage rating and conductor specifications for this RGB luminaire cable?
The cable utilizes discrete 24 AWG UL 1007 PVC-insulated stranded copper conductors rated for 300V operation up to 80°C, maintaining a maximum conductor resistance under 5 Ω and dielectric withstand of DC 300V.
Overview and Application Notes

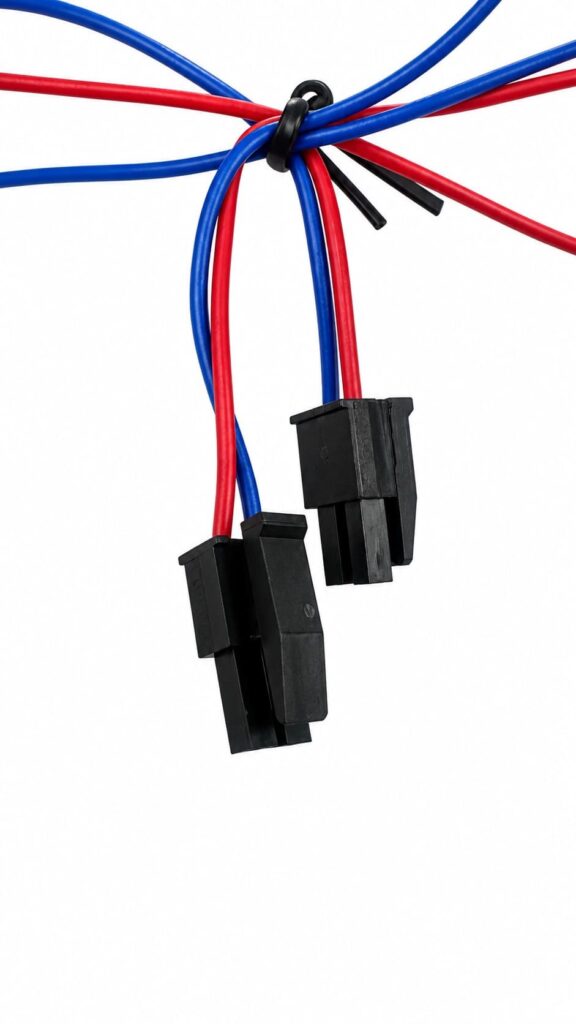

The Micro MATE-N-LOK 3.0mm 2-Pin to 2-Pin Wire Harness is an industrial-grade luminaire power and control interconnect designed for compact RGB lighting modules, commercial architectural fixtures, and distributed industrial control systems. Measuring 300 mm in total length with discrete red and blue 24 AWG conductors, this dual-ended assembly features genuine TE 1445022-2 compatible receptacle housings paired with gold-plated crimp socket terminals for reliable low-voltage DC transmission.
Key Features
- Dual-Ended 3.0mm Pitch Receptacles: Configured with 2-position single-row Micro MATE-N-LOK equivalent plug housings (TE 1445022-2) with positive latch locks preventing accidental disengagement under vibration.
- Gold-Plated Contact Interface: Terminates with precision crimp socket contacts (TE 1-794606-1 equivalent) featuring gold plating over high-conductivity copper alloy to ensure low contact resistance and long-term anti-oxidation.
- UL 1007 Certified Conductors: Built with high-purity stranded copper 24 AWG wire (Red: Pin 1 to Pin 1; Blue: Pin 2 to Pin 2), rated for 300V continuous operation and temperatures up to 80°C.
- IPC/WHMA-A-620E Class 2/3 Compliance: 100% factory verified for open, short, and miswire conditions with terminal retention pull forces validated under UL 486A guidelines.
- Compact Enclosure Routing: Symmetrical point-to-point pinout within a precise 300 mm (±5 mm) overall length enables clean wire dressing in space-constrained LED and chassis applications.
Engineering Specifications & Harness Integration
Engineered for wire-to-board and wire-to-wire power feeds, this 2-pin harness features positive polarized housing ribs to eliminate reverse mating during manual assembly. Crimped connections strictly satisfy UL 486A tensile pull-force criteria and IPC/WHMA-A-620E workmanship standards. Dielectric insulation withstand is factory certified up to DC 300V (0.01 sec) with maximum loop conductor resistance held below 5 Ω for stable RGB signal and power integrity.
