Detailed Product Information
Technical Data & Reference
Structured parameters, material notes, application context and frequently asked questions for engineering and procurement evaluation.
Competitor & Cross-Reference
- Alternative Type
- Functional Alternative
- Competitor Part Number
- TE Connectivity 1-794617-4 (Housing), TE 1-794610-2 (Gold Contacts), TE 140717-1 (0.110 Faston Receptacles)
- Mates With
- TE Micro MATE-N-LOK 3.0mm 14-Pin Headers (e.g., 1-794618-4 / 1-794620-4) or standard 0.110" (2.8mm) Male Quick-Disconnect Tabs
Functional Alternative: This part provides equivalent performance characteristics as a cost-optimized substitute. Minor design review recommended before adoption.
Technical Specifications
- Harness Type
- Micro MATE-N-LOK 3.0mm 14-Pin to 0.110 Faston Splitter Harness
- Connector P1
- 14-Position Receptacle Housing, 3.0mm Pitch (TE 1-794617-4 equivalent)
- Secondary Terminations (P2)
- 16x 0.110" (2.8mm) Non-Insulated Quick-Connect Receptacles (TE 140717-1 equivalent)
- Wire Gauge & Style
- UL1007 22 AWG Stranded Wire (Red / Blue)
- Branch Lengths
- Signal Leads: 500±10 mm to 600±10 mm; Daisy-Chain Links: 150±10 mm
- Identification & Marking
- Digital White Heat Shrink Tubing with Printed Wire Markers (KP1–KP8, +12V)
- Terminal Pull Force Standard
- UL486A Compliance
- Manufacturing Standard
- IPC/WHMA-A-620E Compliance
- Packaging Method

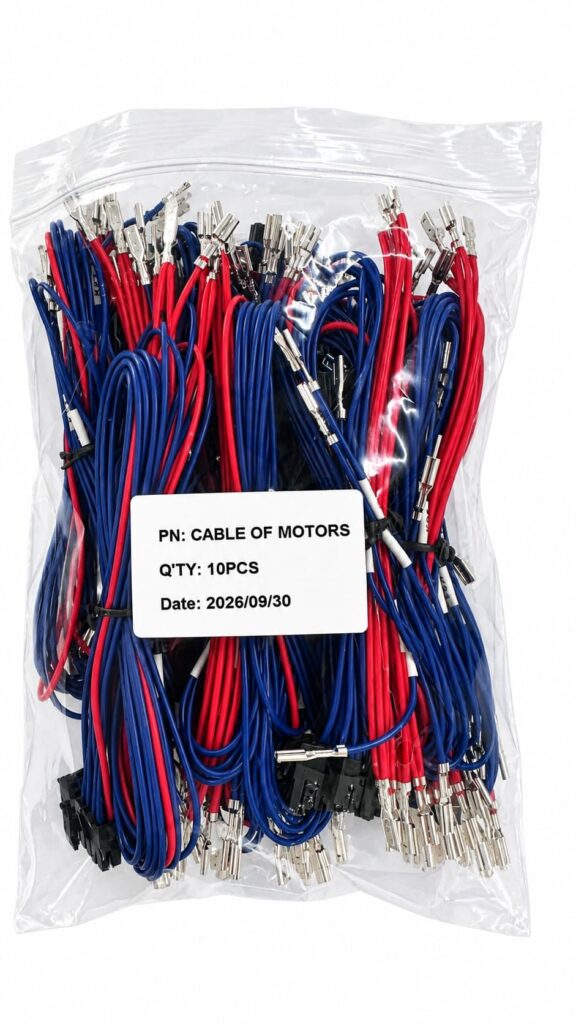

- 10 PCS / PE Bag + Label
- Environmental Compliance
- RoHS Compliant
Material Composition
| Material | Value / Description |
|---|---|
| Housing Material (P1) | Thermoplastic / Nylon (UL 94V-0, Black) |
| P1 Terminal / Socket | Crimp Socket 20-24 AWG, Phosphor Bronze, Gold Plated (TE 1-794610-2 equivalent) |
| Secondary Terminals | Brass / Tin-Plated Copper Alloy 0.110 Series Open-Barrel Receptacle (18-22 AWG) |
| Wire Conductor | Tinned Stranded Copper (22 AWG) |
| Wire Insulation | PVC (UL1007 rated 80°C, 300V) |
| Insulation Sleeving | Polyolefin Digital White Heat Shrink Tubing |
Technical Characteristics
| Characteristic | Value |
|---|---|
| Conductor Resistance | 5.0 Ω Max. |
| Insulation Resistance | 10 MΩ Min. |
| Dielectric Withstanding Voltage | DC 300V / 0.01 sec |
| Operating Temperature Range | -20°C to +80°C |
| Inspection Criteria | 100% Test Open, Short & Miswire; 100% Dimension & Crimp Inspection |
Application Scenarios
-
Industrial automation motor drives and stepper controllers
-
Commercial luminaire and UV LED driver branching
-
Industrial printing, labeling, and packaging machinery
-
Solenoid valve and relay distribution manifolds
-
Multi-channel robotic actuator wiring
Evidence & Reference Images
Frequently Asked Questions
What is the mating interface for both ends of this motor cable assembly?
The main input uses a 14-position dual-row 3.00mm pitch receptacle mating with TE Micro MATE-N-LOK or Molex Micro-Fit 3.0 shrouded headers, while the breakout ends use 16 individual 0.110" (2.8mm) quick-disconnect terminals mating with standard male tabs.
How is the +12V power line routed to multiple output channels?
The +12V supply lead exits pin 7 of the 14-pin housing and splits across an 8-tap daisy-chained jumper rail using 150 mm branch links, providing shared power connections across all 8 motor or luminaire channels.
How are individual branch channels identified during field installation?
Each of the 16 secondary leads is labeled with individual digital white heat shrink markers (KP1 through KP8 for signals, +12V for power rails) to eliminate cross-wiring during manual installation and maintenance.
Overview and Application Notes

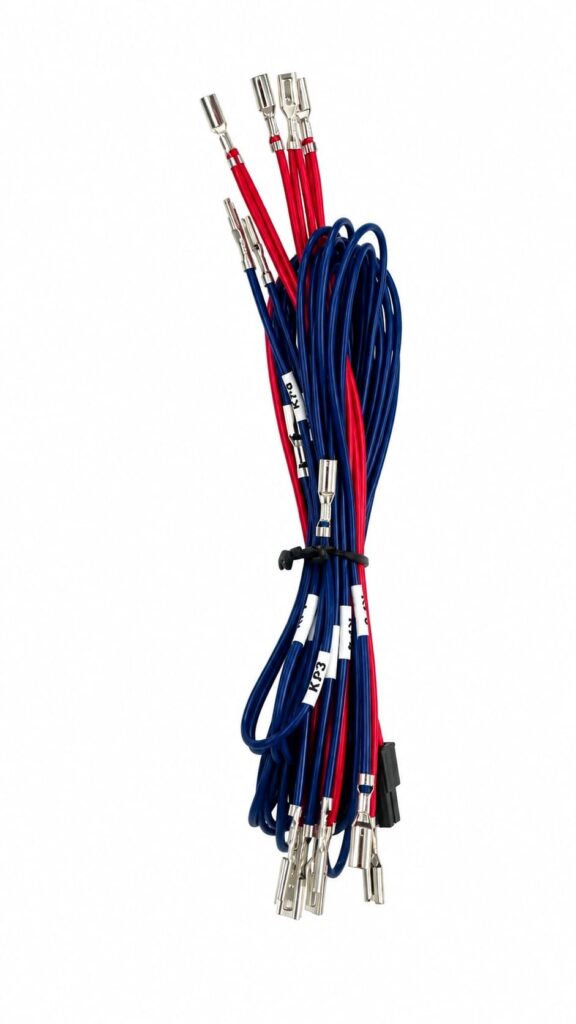

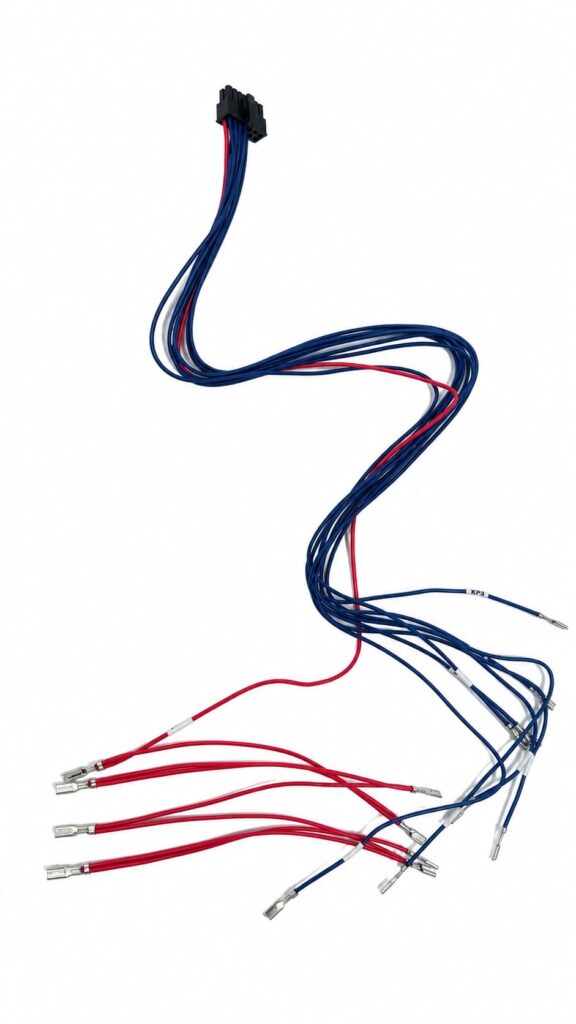

This custom industrial wire harness is engineered for motor control, luminaire drive units, and multi-channel power distribution. Featuring a 14-position dual-row 3.0mm pitch Micro MATE-N-LOK receptacle interface on the main input (P1), it distributes 8 dedicated signal lines (KP1 through KP8) and an integrated 8-tap daisy-chained +12V power rail to 16 separate 0.110-inch quick-disconnect Faston crimp terminals, wired with UL1007 22 AWG lead-free conductors rated for 300V and 80°C operation.
Key Features
- Dual-Row Micro Interface: 14-position 3.00mm pitch positive-locking receptacle with gold-plated crimp socket terminals for reliable low-resistance signal coupling.
- Daisy-Chained Power Distribution: Integrated multi-tap +12V jumper branch system supplying 8 parallel Faston supply tabs alongside individual motor/sensor signal leads.
- Quick-Disconnect Terminations: 16 individual 0.110″ (2.8mm) non-insulated quick-disconnect female terminals fitted with digital white heat shrink markers for error-free wiring.
- Heavy-Duty Wiring: Built with UL1007 22 AWG stranded copper lead wires (Color-coded Red and Blue), offering branch lengths ranging from 500 mm to 600 mm.
- Rigorous Testing: Built to IPC/WHMA-A-620E standards, verified to UL486A tensile pull force, and tested at DC 300V for dielectric integrity.
Engineering Specifications & Integration Guidance
The main 14-pin receptacle mates seamlessly with standard TE Connectivity Micro MATE-N-LOK or Molex Micro-Fit 3.0 dual-row shrouded PCB headers. The secondary side provides 0.110 series non-insulated female quick-connect receptacles configured to mate directly with industry-standard 0.110″ x 0.020″ (2.8mm x 0.5mm) male tabs commonly found on stepper motors, LED luminaires, and industrial solenoids. Every assembly undergoes automated 100% testing for continuity, short circuits, and pinout allocation.
