Detailed Product Information
Technical Data & Reference
Structured parameters, material notes, application context and frequently asked questions for engineering and procurement evaluation.
Competitor & Cross-Reference
- Alternative Type
- Functional Alternative
- Competitor Part Number
- Delta-Q Technologies 900-0080 / 900-0081
- Mates With
- Amphenol AT04-12PA / Deutsch DT04-12PA Receptacles & Standard PC DB9 Male Ports
Functional Alternative: This part provides equivalent performance characteristics as a cost-optimized substitute. Minor design review recommended before adoption.
Technical Specifications
- Harness Type
- Industrial Diagnostic & Firmware Flashing Cable
- Connector A

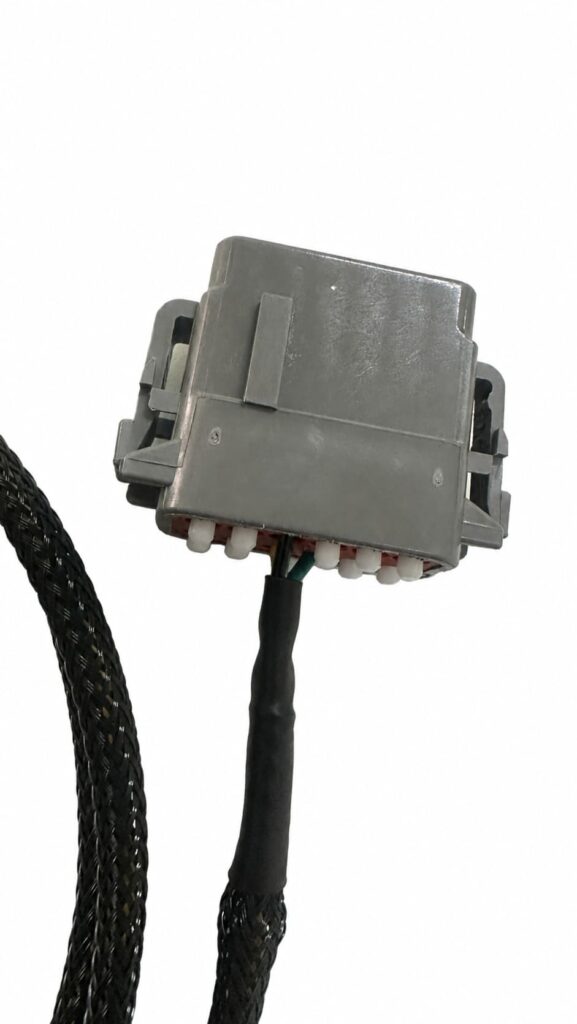

- 12-Pin Sealed Plug (ATM06-12SA Compatible) with Wedgelock
- Connector B

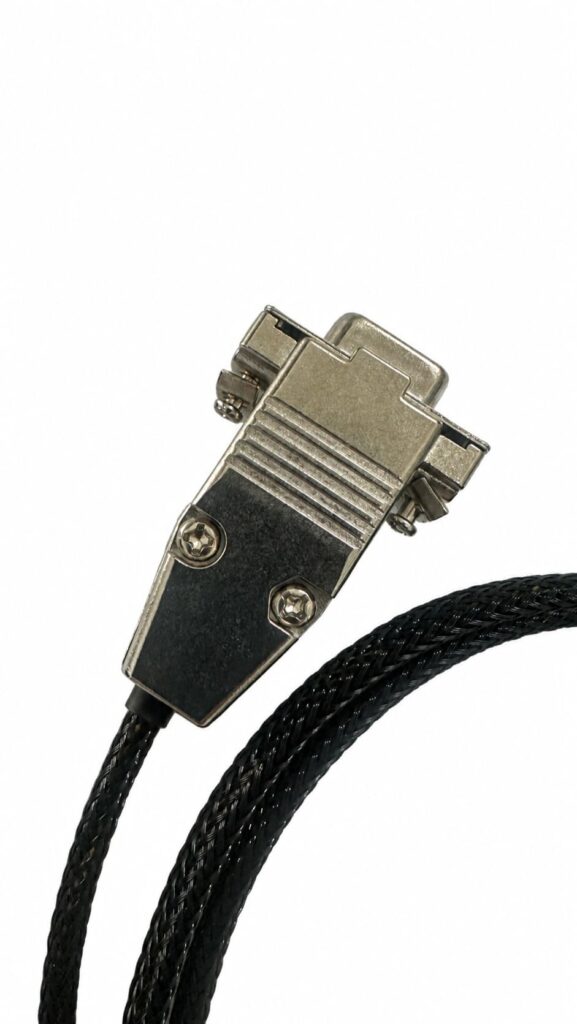

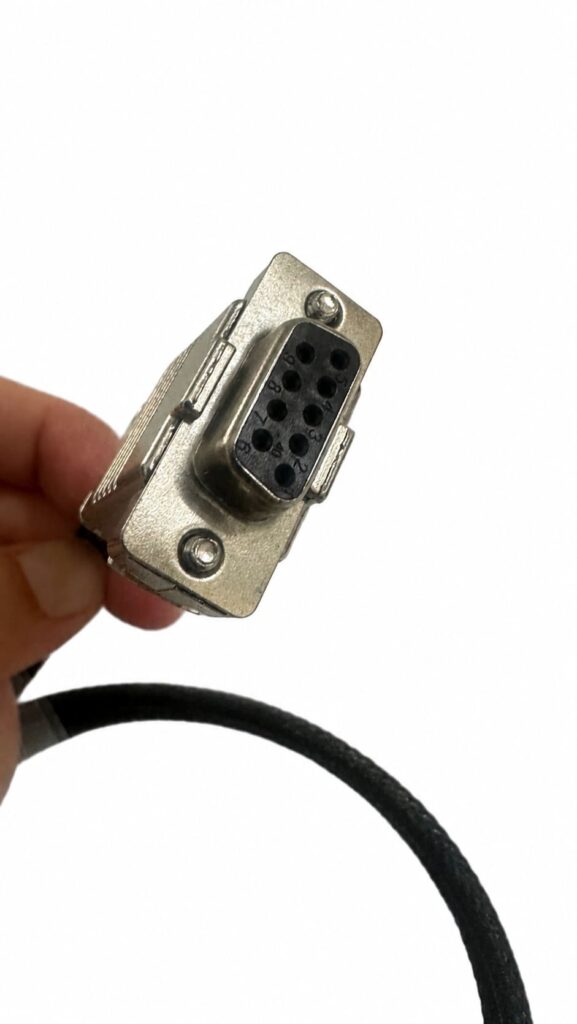

- D-Sub 9-Pin (DB9) Female with Screw Locks
- Assembly Length
- 1 Meter (Custom lengths available upon request)
- Wire Gauge
- 22 AWG Stranded Copper (UL AWM 1007, 300V, 80°C)
- Wiring Configuration
- CAN-H, CAN-L (Twisted Pair), Ground / Shield
- Protective Loom
- Expandable PET Braided Sleeving with Polyolefin Heat Shrink
- Sealing Rating
- IP67 (Connector A Sealed Interface)
- Workmanship Standard
- IPC/WHMA-A-620 Class 2 / Class 3
- Standard Compliance
- RoHS, REACH Compliant
Material Composition
| Material | Value / Description |
|---|---|
| Connector Housing (12-Pin) | Thermoplastic (PA66, UL 94V-0 Rated) |
| D-Sub Shell | Steel, Tin Plated |
| Contact Terminals | Copper Alloy, Gold/Nickel Plated |
| Wire Insulation | PVC (UL AWM 1007) |
| Outer Sleeving | Halogen-Free PET Braided Sleeving |
| Sealing Elements | Silicone Rubber Grommets & Blank Cavity Plugs |
Technical Characteristics
| Characteristic | Value |
|---|---|
| Contact Resistance | 10 mΩ Max. |
| Insulation Resistance | 100 MΩ Min. at 500V DC |
| Dielectric Withstanding Voltage | 1000V AC / 1 Minute |
| Operating Temperature Range | -20°C to +80°C (Assembly Rated per UL 1007 Wire Specs) |
| Signal Transmission | CAN 2.0A / 2.0B up to 1 Mbps |
Application Scenarios
-
Industrial Battery Chargers (Delta-Q IC / QuiQ Series Firmware Programming)
-
AGVs, Automated Warehouse Vehicles, and Material Handling Machinery
-
Electric Golf Carts, Utility Vehicles (UTVs), and Low-Speed EVs (LSEVs)
-
CAN Bus Diagnostics, ECU Field Calibration, and Service Tool Interconnects
-
Aerial Work Platforms (AWP) and Scissor Lift Control Electronics
Evidence & Reference Images
Frequently Asked Questions
What makes this flashing cable compatible with industrial CAN bus diagnostics?
The cable incorporates 22 AWG twisted pair conductors dedicated to CAN-H and CAN-L differential signals, terminating to standard DB9 pinout protocols. This ensures noise-immune signal transmission up to 1 Mbps in high-EMI industrial charging settings.
How does the 12-pin connector maintain IP67 environmental sealing with unused pins?

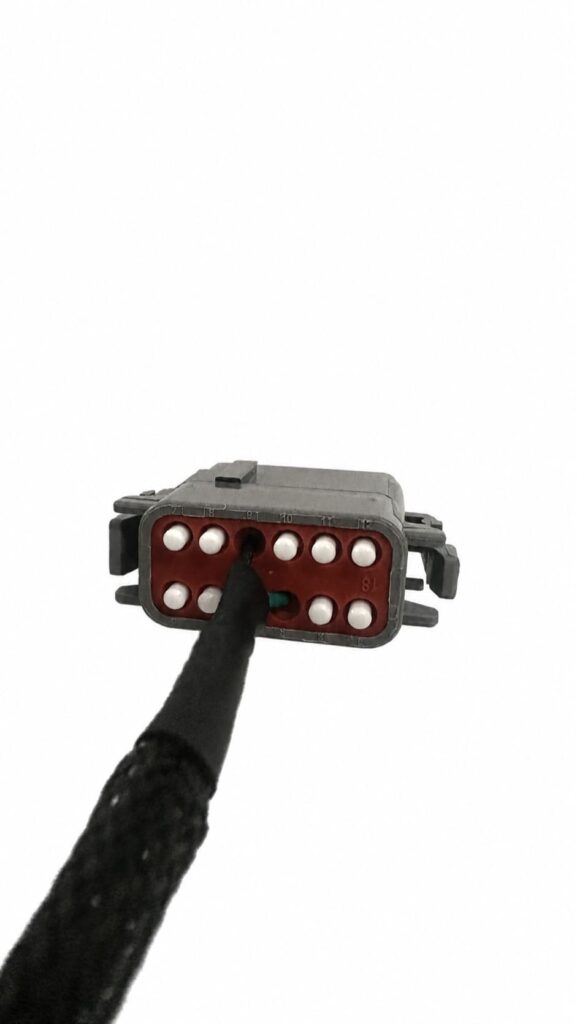

All open terminal cavities are pre-installed with industrial silicone blank seal plugs alongside rear grommet seals and secondary locking wedges, preventing water, dust, and chemical ingress into the mating chamber.
Can the harness withstand repetitive mechanical flexing in mobile service applications?
Constructed with high-density PET braided sleeving and adhesive-lined heat shrink transitions, the assembly provides high abrasion resistance, superior strain relief at terminations, and conforms to IPC/WHMA-A-620 pull-force standards.
Overview and Application Notes

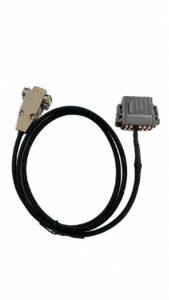

The Delta Q Flashing Cable is an industrial-grade programming and diagnostics harness designed for harsh-environment battery charger firmware updates and CAN bus telemetry. Featuring a sealed 12-pin Amphenol/Deutsch ATM series plug (ATM06-12SA) mated to an industry-standard DB9 female D-Sub interface, this assembly delivers reliable field flashing, configuration, and diagnostics for electric vehicle and industrial charging infrastructure.
Key Features
- Dual-Ended Industrial Interconnect: Engineered with an IP67-rated 12-position keyed plug (ATM06-12SA equivalent) and a rugged DB9 female connector with metal thumbscrews.
- Differential CAN Bus Integrity: Integrated 22 AWG twisted pair wiring (CAN-H and CAN-L) with dedicated drain/ground lines to suppress high-frequency EMI in active charging environments.
- Harsh Environment Protection: High-density braided expandable sleeving (snakeskin loom) with adhesive-lined heat shrink tubing delivers superior abrasion and strain relief.
- Sealed Termination: Cavity blank seal plugs installed in unused positions to maintain environmental ingress resistance against moisture, dust, and washdown spray.
- Wide Operating Temperature: Qualified for -40°C to +105°C continuous operation, meeting automotive and off-highway heavy equipment standards.
Engineering Specifications & Harness Integration
This custom flashing harness is optimized for diagnostic link controllers and CAN-to-USB hardware interfaces. Cavity assignments utilize gold/nickel-plated stamped-and-formed socket contacts crimped to IPC/WHMA-A-620 Class 3 workmanship criteria. DB9 backshell molding incorporates heavy-duty internal strain relief to prevent wire fatigue under repeated field mating cycles.
