CAN Bus Connector FAQ: Practical Answers for OEM Buyers and Design Engineers
CAN bus connector FAQ: Learn why part number matching isn't enough. Check terminal wire gauge & plating to...
Detailed Product Information
Technical Data & Reference
Structured parameters, material notes, application context and frequently asked questions for engineering and procurement evaluation.
Competitor & Cross-Reference
- Alternative Type
- Drop-in Replacement
- Competitor Part Number
- ITT Cannon MS3122E20-41S / Samtec IPD1 Series
- Mates With
- MIL-DTL-26482 Shell Size 20 41-Pin Male Plugs & Samtec IPL1 / MMSD 2.54mm Pitch Headers
Drop-in Replacement: This part is a direct, pin-compatible substitute for the competitor part number listed above. No design modification required.
Technical Specifications
- Harness / Cable Type
- Multi-Branch Industrial DIGIN / Power Wire Harness
- End A Main Connector

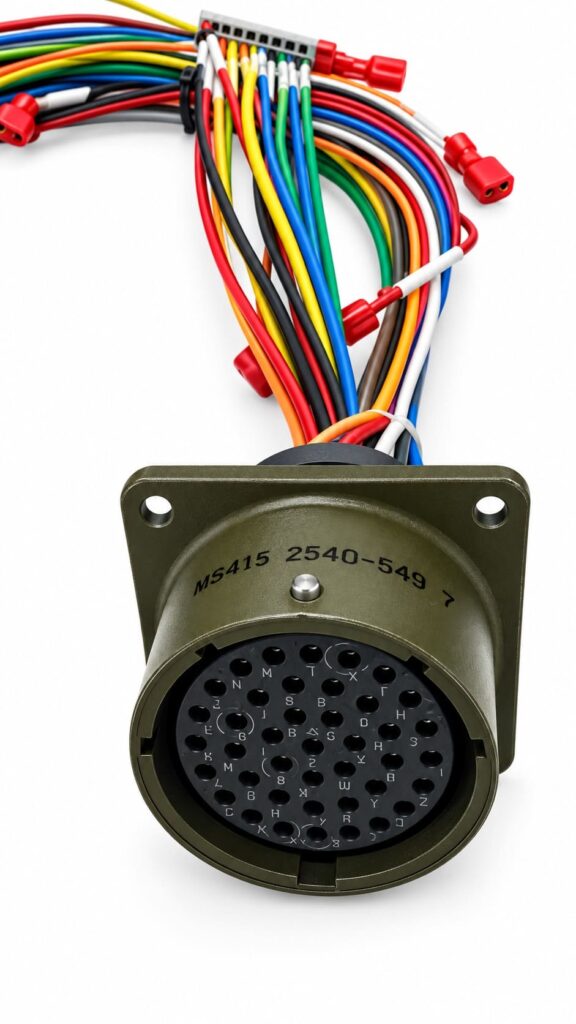

- ITT Cannon MS3122E20-41S (41-Pin Circular Receptacle, Shell Size 20)
- End B Branch Connectors
- Samtec IPD1-02-D-K (4-Pin), IPD1-12-D-K (24-Pin), IPD1-20-D-K (40-Pin)
- Auxiliary Terminations
- 1/4" Fast-On Spade Receptacles (AMP 640903-1 x 5, AMP 640905-1 x 3)
- Conductor Wire Gauge
- 20 AWG Stranded Discrete Wire (622.5 Inches Total Wire Length)
- Harness Branch Lengths
- 7.0", 9.0", 11.0", 13.0", 14.0" (Measured along extended centerline)
- Unused Cavity Loading
- Pre-loaded with Size 20 Contacts & MS27488-20 Sealing Plugs
- Identification Markers
- 55 Heat-Shrink Wire Markers + Self-Laminating Cable Label
- Manufacturing Standard
- IPC/WHMA-A-620 Class 2
Material Composition
| Material | Value / Description |
|---|---|
| Circular Connector Shell | Aluminum Alloy with Olive Drab Chromate / Cadmium Finish |
| Circular Connector Contacts | Copper Alloy, Size 20 Socket Contacts (M39029/32-259) |
| Rectangular Housings | Nylon Thermoplastic (UL 94V-0 Rated, Mini-Mate IPD1 Series) |
| Rectangular Crimp Contacts | Phosphor Bronze with Selective Gold Plating (CC79L-2024-01-L) |
| Quick Disconnect Terminals | Brass / Tin Plated with Nylon Pre-Insulated Sleeves (AMP Fast-On) |
| Strain Relief & Markers | Adhesive-Lined Polyolefin Heat Shrink Tubing & Cross-Linked Polyolefin |
Technical Characteristics
| Characteristic | Value |
|---|---|
| Electrical Testing | 100% Verified for Continuity, Pinout Mapping, and Short Circuits |
| Harness Length Tolerance (<12-60") | +2.0" / -0.0" |
| Heat Shrink Length Tolerance | +5% / -0% |
| Workmanship & Quality Standard | IPC/WHMA-A-620 Class 2 |
Application Scenarios
-
Rail Transit Event Recorders & Cab Telemetry Units
-
Rugged Industrial Automation & PLC Digital Input Racks
-
Heavy Duty Off-Highway Equipment Control Consoles
-
Substation Supervisory Control & Data Acquisition (SCADA) Panels
-
High-Density Multi-Channel Diagnostic Test Benches
Evidence & Reference Images
Frequently Asked Questions
Why are crimp contacts and sealing plugs inserted into unused connector positions?
Unused positions in Samtec housings and circular receptacle (position I) are populated with female crimp contacts and MS27488-20 seal plugs to preserve mechanical contact retention balance and maintain environmental IP sealing across the connector face.
What standard governs the manufacturing and verification of this multi-branch harness?
Every harness is manufactured and inspected to IPC/WHMA-A-620 Class 2 criteria, undergoing 100% automated electrical testing for point-to-point pinout mapping, contact continuity, and short circuits.
How are individual branch lengths measured and toleranced?
Harness branch lengths (ranging from 7.0" to 14.0") are measured along the centerline of fully extended wire bundles, with manufacturing length tolerances strictly conforming to +2.0" / -0.0" for sub-60-inch dimensions.
Overview and Application Notes

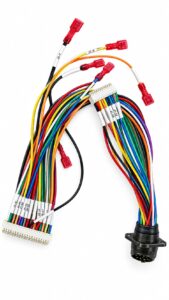

This custom industrial digital input and power breakout wire harness integrates a rugged MIL-DTL-26482 series 41-pin female circular bayonet connector with multiple discrete Samtec Mini-Mate female interfaces (4-pin, 24-pin, 40-pin) and 1/4″ Fast-On spade terminals. Constructed using 20 AWG discrete conductors with individualized heat-shrink identification markers, it is designed for demanding railway, transit telemetry, and embedded industrial automation control cabinets.
Key Features

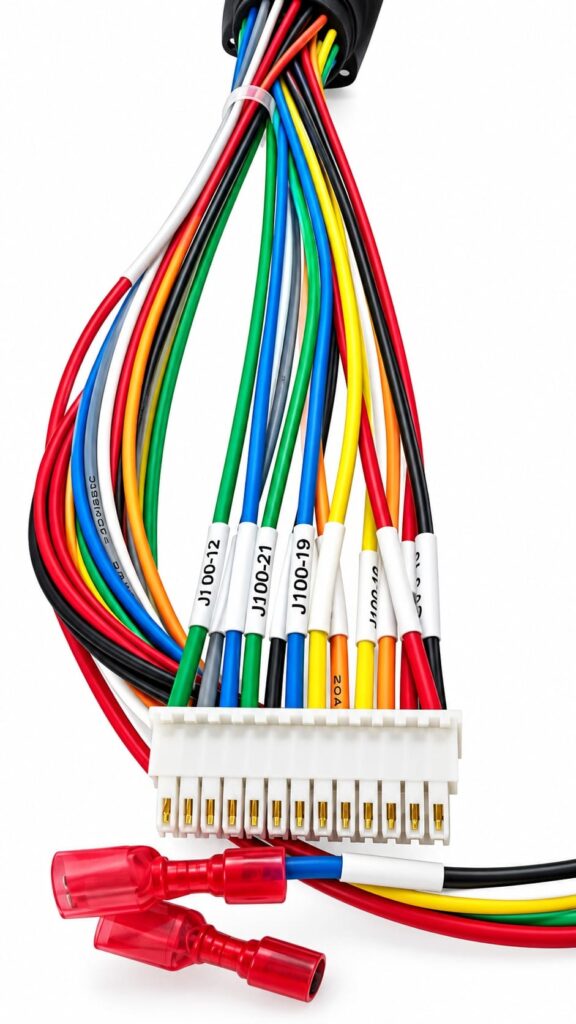

- Multi-Branch Architecture: Breaks out a 41-pin bayonet receptacle into 4-pin (J8), 24-pin (J100), 40-pin (J5) discrete connectors and eight 1/4″ Fast-On tabs.
- Precision Lead Geometry: Multi-tiered branch cut lengths spanning 7.0″, 9.0″, 11.0″, 13.0″, and 14.0″ to match complex enclosure internal routing.
- Rigid Sealing & Dummy Loading: Unused connector cavities are pre-populated with crimp contacts and MS27488-20 seal plugs to preserve mechanical stability and environmental sealing.

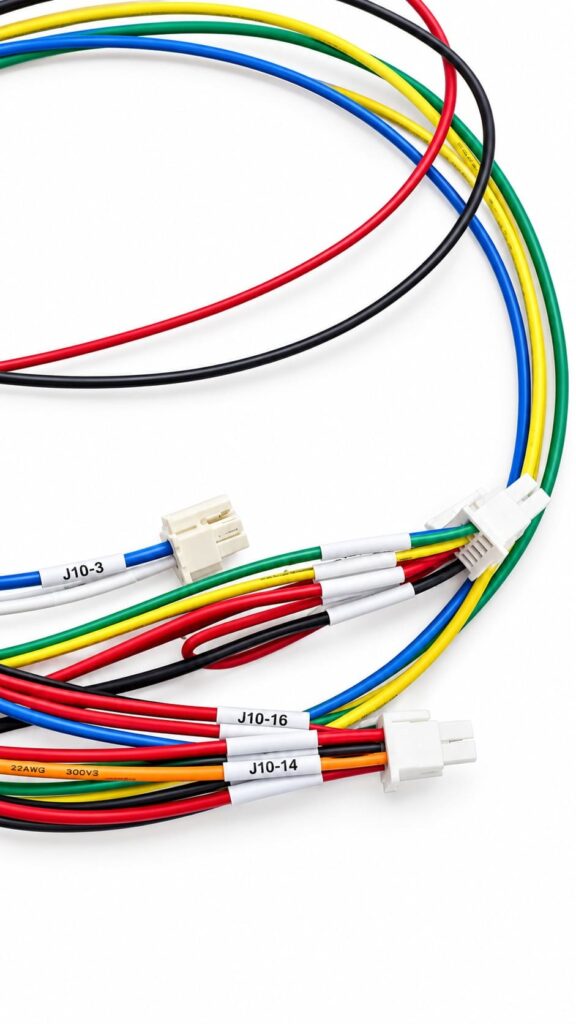

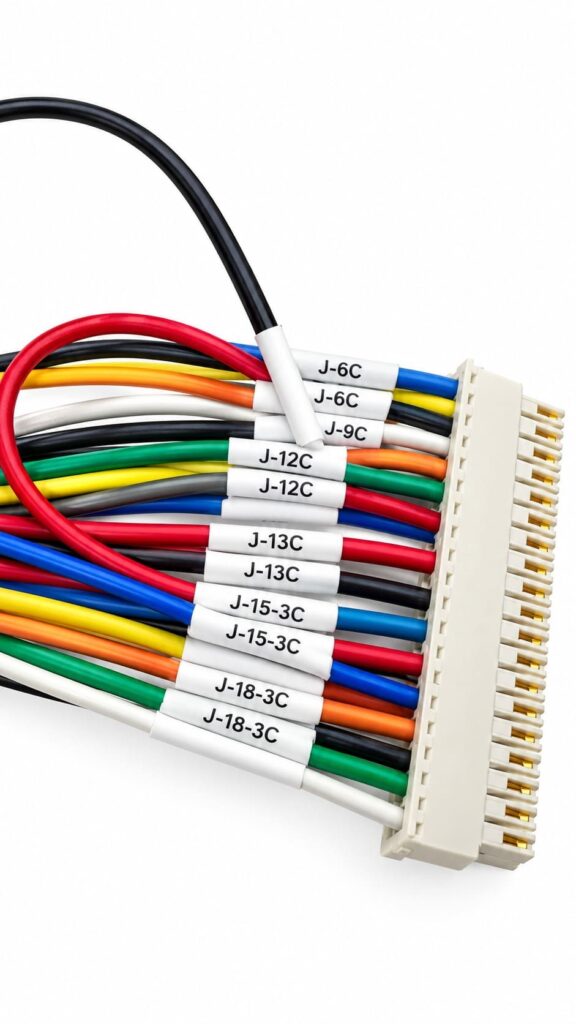

- Traceable Circuit Identification: Features 55 individualized polyolefin heat-shrink wire markers and self-laminating vinyl jacket wrap for error-free wiring diagnostics.
- Industrial Standard Compliance: Manufactured, inspected, and 100% verified to IPC/WHMA-A-620 Class 2 standards for continuity and insulation integrity.
Engineering Specifications & Harness Integration
Engineered for high-density I/O telemetry distribution, the harness utilizes MIL-DTL-26482 Series II / ITT Cannon bayonet-lock interfaces with size 20 crimp contacts (M39029/32-259). Discrete breakout runs terminate into Samtec IPD1-series discrete wire housings with positive locking latches. Unused contacts in positions J8, J100, J5, and circular position I are pre-fitted with dummy crimps and seal plugs. All branch offsets and overall lengths are governed by IPC/WHMA-A-620 Class 2 tolerances (±2.0″ for spans under 60″), ensuring ready plug-and-play assembly inside DIN-rail and chassis enclosures.
