Technical Specifications
- Connector Type
- RJ45 8P8C Female Magnetic Modular Jack (MagJack)
- Port Configuration
- 1x1 Single Port
- Data Rate / Protocol
- 10/100Base-TX (Meets or exceeds IEEE 802.3)
- Mounting Type
- Through-Hole DIP / Right Angle
- Latch Orientation
- Tab-Down (Standard Latch Bottom)
- Visual Indicators
- Dual Integrated LEDs (Left LED / Right LED)
- Overall Dimensions (L x W x H)
- 21.35 mm x 15.95 mm x 13.50 mm (Excluding solder leads)
- Height Above PCB
- 13.50 mm (Nominal)
- Solder Tail Length
- 3.05 mm
- Signal Pin Pitch
- 2.54 mm grid (11.43 mm total span across pins P1–P8)
- PCB Hole Specifications
- 8x Ø0.90 mm (Signal), 4x Ø1.02 mm (LEDs P9–P12), 2x Ø1.60 mm (Locating), 2x Ø3.25 mm (Grounding)
- Shield Grounding Center Span
- 15.75 mm
- Isolation Voltage (Hi-Pot)
- 1500 Vrms Min. per IEEE 802.3
- Standard Compliance
- RoHS Compliant, UL 94V-0, IEEE 802.3
Material Composition
| Material | Value / Description |
|---|---|
| Housing Material | Thermoplastic, PBT, UL 94V-0, Black |
| Insert Material | Thermoplastic, PBT, UL 94V-0, Black |
| Coil Base Material | Phenolic, PBT, UL 94V-0, Black |
| Contact Terminal Material | Phosphor Bronze |
| Contact Area Plating | 6µ" Gold Plating over 50µ" Nickel Underplate |
| Solder Area Plating | 100µ" Tin Plating over 50µ" Nickel Underplate |
| Coil Terminal | Copper Alloy (T = 0.40 x 0.40 mm) |
| Shield Shell Material & Plating | Copper Alloy, 30µ" Nickel Plated Overall |
Technical Characteristics
| Characteristic | Value |
|---|---|
| Turn Ratio | 1CT:1CT (TX & RX) |
| Inductance (OCL) | 350 µH Min. @ 100 kHz, 0.1V, with 8 mA DC Bias |
| Dielectric Isolation | 1500 Vrms Min. |
| Operating Temperature Range | 0°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| General Tolerances | 0 Place: ±0.50 mm; 1 Place: ±0.35 mm; 2 Place: ±0.25 mm; 3 Place: ±0.15 mm; Angular: ±3° |
Application Scenarios
-
10/100Base-TX industrial Ethernet switches, routers, and edge hubs
-
Programmable logic controllers (PLCs) and factory automation equipment
-
Embedded Single Board Computers (SBC) and IoT gateway controllers
-
Commercial POS terminals, security access systems, and network kiosks
-
IP surveillance cameras and embedded video transmission modules
Frequently Asked Questions
What are the technical benefits of an integrated transformer and dual LEDs in this RJ45 connector?
Integrating the 100Base-TX isolation transformer directly inside the connector housing eliminates discrete external magnetics on the PCB, shortening critical signal paths and ensuring 1500Vrms IEEE 802.3 isolation. The built-in dual LEDs provide immediate visual diagnostics for Ethernet link and packet traffic without additional light pipes.
What is the recommended PCB footprint and hole layout for this magnetic jack with LEDs?
The footprint requires 8x Ø0.90mm through-holes on a 2.54mm grid (11.43mm span) for signal pins P1–P8, 4x Ø1.02mm holes for LED leads P9–P12, dual Ø1.60mm alignment peg holes, and dual Ø3.25mm ground retention holes spaced 15.75mm apart with a ±0.05mm tolerance.
How do the magnetic and electrical specifications perform under DC bias current?
The internal transformer provides an open circuit inductance (OCL) of at least 350µH at 100 kHz (0.1V) when subjected to an 8mA DC bias current, suppressing noise and preventing signal saturation during standard 10/100Base-TX transmission.
How do the materials and plating ensure signal integrity and corrosion resistance?
Contacts are stamped from phosphor bronze with 6µ" gold on the mating area and 100µ" tin on solder tails over a 50µ" nickel barrier. Encased in a UL 94V-0 PBT housing and a 30µ" nickel-plated copper alloy shield, the assembly ensures continuous 360-degree EMI isolation and reliable contact resistance across 0°C to +70°C.
Overview and Application Notes

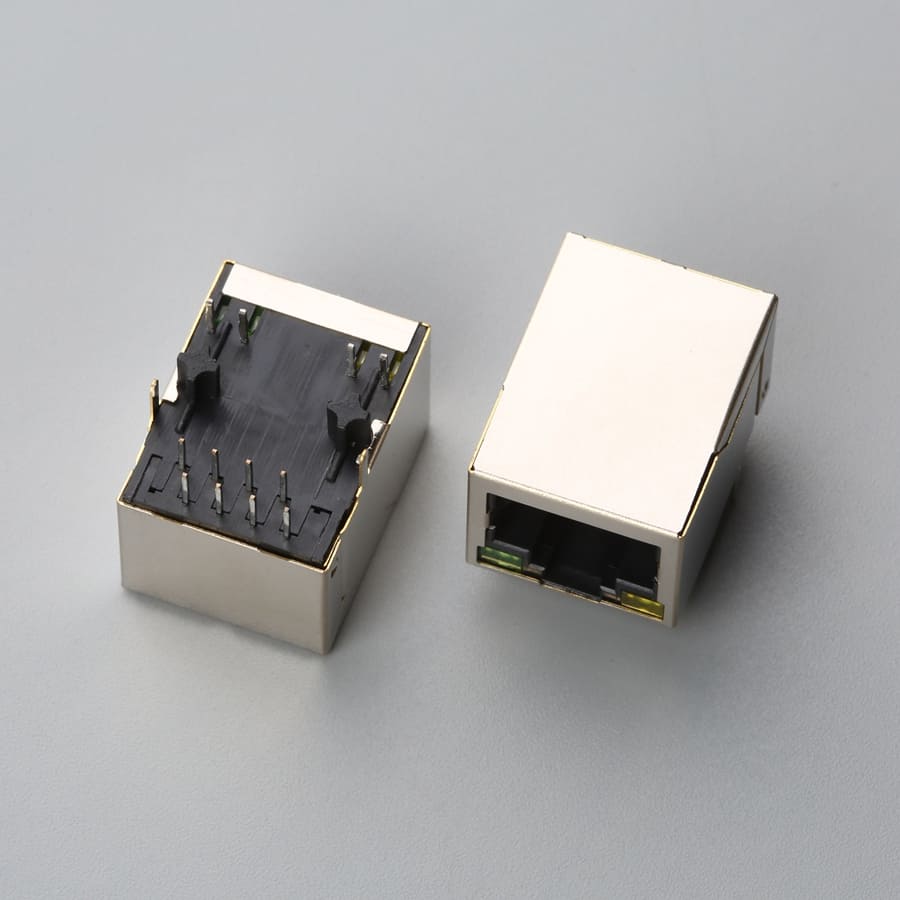

This 100Base-TX RJ45 8P8C female magnetic modular jack (MagJack) integrates internal signal isolation magnetics and dual optical LED indicators into a standardized 1×1 port assembly. Featuring a tab-down latch configuration, a 13.50mm nominal profile height above the PCB, and through-hole DIP termination, it provides IEEE 802.3 compliant 10/100 Mbps Ethernet signal conditioning, 1500Vrms isolation, and active link/activity diagnostics for industrial automation controllers, embedded networking appliances, and IoT gateways.
Key Features
- Integrated Magnetics Architecture: Single-port (1×1) 8P8C jack with integrated 10/100Base-TX transformer, minimum 350µH open circuit inductance (with 8mA DC bias), and integrated common-mode filtering.
- Integrated Optical Indicators: Pre-assembled dual LEDs (Left / Right) provide clear visual verification of network link establishment and packet transmission.
- Right-Angle DIP Mounting: Through-hole configuration with 3.05mm solder tails and standard tab-down latch orientation.
- High-Reliability Materials: UL 94V-0 black PBT thermoplastic housing and insert, phenolic PBT coil base, phosphor bronze contacts with 6µ” gold plating on the mating interface, 100µ” tin on solder tails, and a 30µ” nickel-plated copper alloy shell.
- Galvanic Isolation: Complies with IEEE 802.3 isolation standards, delivering a minimum 1500Vrms dielectric withstand capability.
- Standard Operating Temperature: Qualified for operating temperature ranges from 0°C to +70°C and storage environments from -40°C to +85°C.
Engineering Specifications & PCB Integration
