Detailed Product Information
Technical Data & Reference
Structured parameters, material notes, application context and frequently asked questions for engineering and procurement evaluation.
Competitor & Cross-Reference
- Mates With
- DB9 Female (RS232/Serial D-Sub Ports) & 2.1x5.5mm DC Power Plug
Technical Specifications
- Product Part Number
- A002-00053-001
- Drawing Number
- A002-00053
- Connector 1 (P1)
- DB9 Male 9-Pin Solder Type with Backshell
- Connector 2 (P2)
- DC Power Jack 2.1 x 5.5mm Solder Type
- Wire Type
- UL1007 18AWG Hook-up Wire (Red / Black)
- Cable Length
- 100 ± 10 mm
- Pinout / Wiring
- P1 Pin 5 to P2 Pin 2 (Black / GND), P1 Pin 6 to P2 Pin 1 (Red / VCC)
- Standard Packaging
- 10 PCS / PE Bag
Material Composition
| Material | Value / Description |
|---|---|
| Connector P1 | DB9 Male Solder Pins Black |
| Backshell | 9-Position 180° Black Backshell with Long Thumbscrews |
| Connector P2 | DC Power Jack 2.1 x 5.5mm Solder Type |
| Conductor Wire | UL1007 18AWG Tinned Copper (Black & Red) |
| Insulation Sleeve | Black Heat Shrink Tube Ø6.0 x 60mm |
| Compliance | RoHS Compliant, Lead-Free |
Technical Characteristics
| Characteristic | Value |
|---|---|
| Conductor Resistance | 5 Ohms Max. |
| Insulation Resistance | 10M Ohms Min. |
| Withstanding Voltage / Test Voltage | DC 300V / 0.01 sec |
| Electrical Testing | 100% Test for Open, Short & Miswire |
| Manufacturing Standard | IPC/WHMA-A-620E Standard |
| Terminal Pulling Force Standard | UL486A Reference Standard |
| Rated Voltage / Temperature | 300V / 80°C |
Application Scenarios
-
Industrial Serial Devices & Automation Equipment
-
Embedded Computing & Power Distribution Units
-
Sensors, Actuators & Custom D-Sub Interconnect Systems
-
Instrument Panel & Control Box Power Wiring

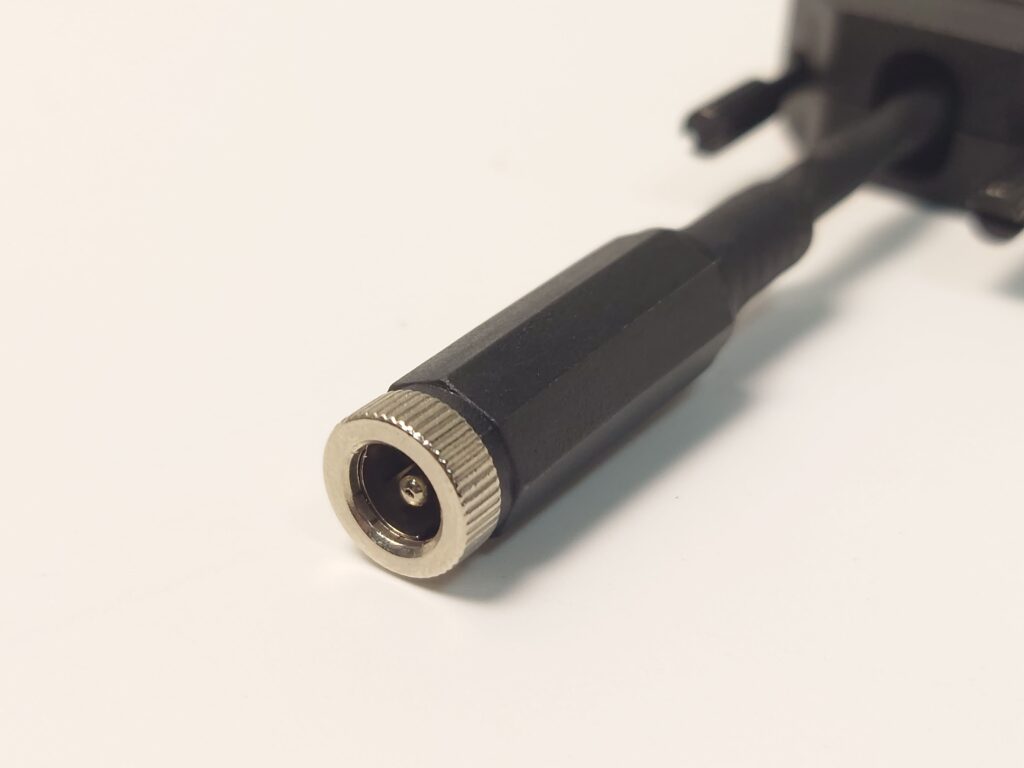

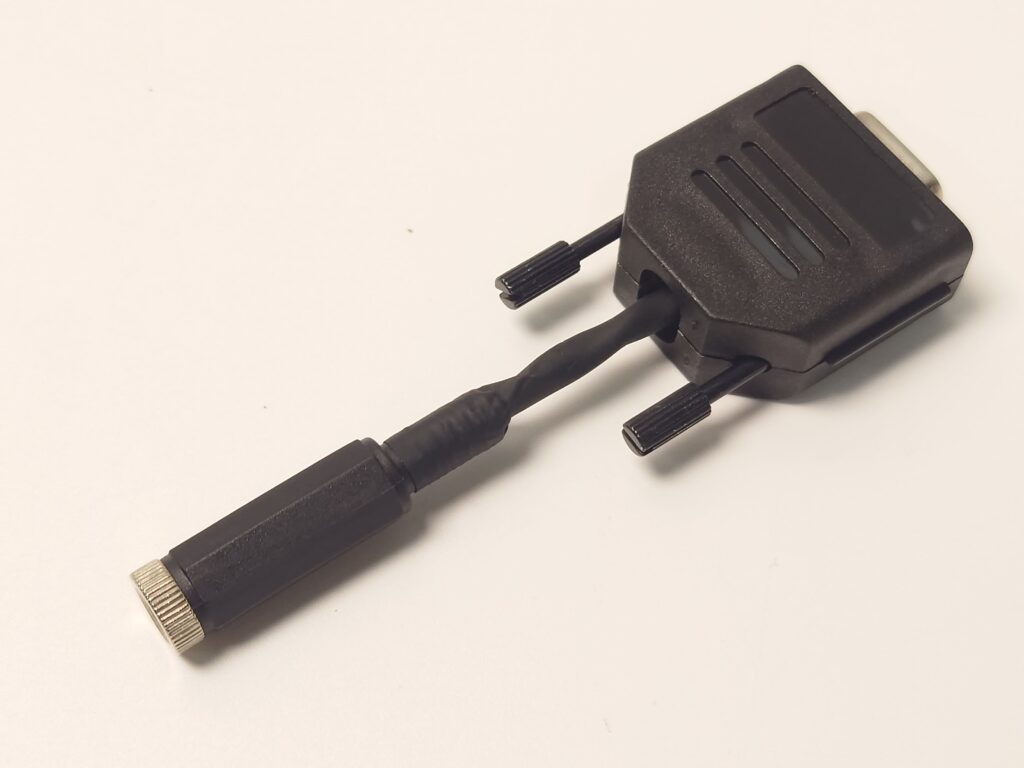

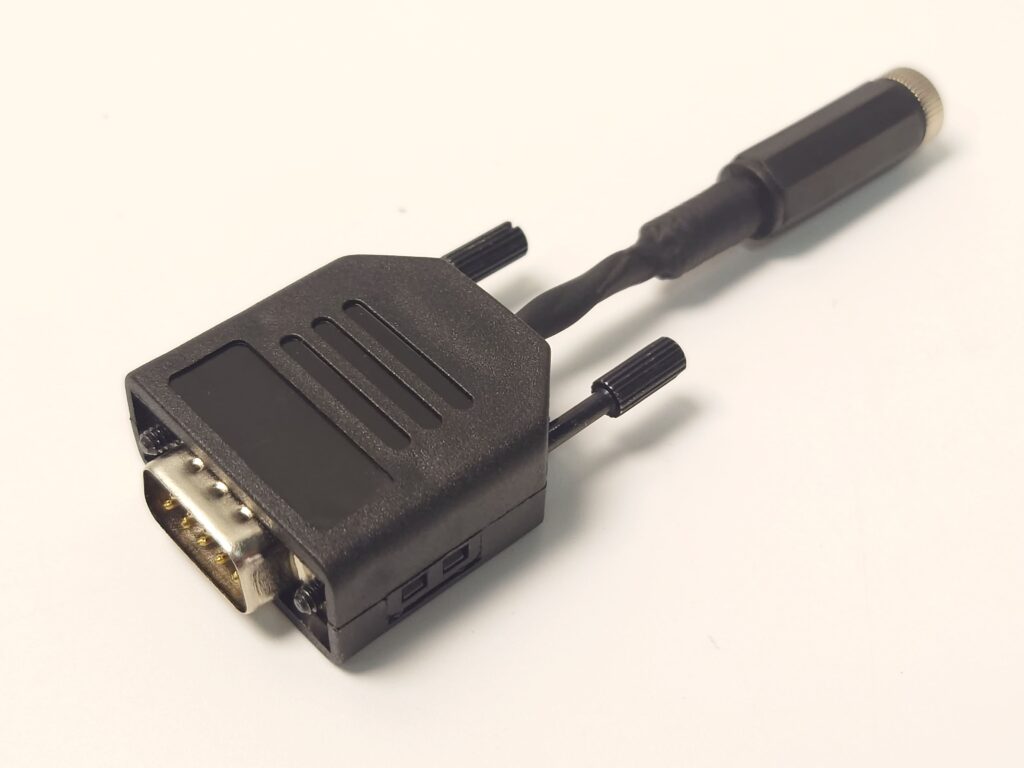

Evidence & Reference Images
Frequently Asked Questions
What standard is this DB9 to DC cable assembly manufactured to?
This cable assembly is strictly produced following the IPC/WHMA-A-620E class standard, with terminal pull-force compliance referencing UL486A.
Is the pinout customizable for different DC voltage polarity or grounding?
Yes, while standard drawing A002-00053 defines Pin 6 (+ / Red) and Pin 5 (- / Black), EDOM Electronics provides full OEM/ODM pin assignment and length customization.
How is quality verified before shipment?
100% of finished products undergo continuity, short/open circuit testing, dimension measurement, and insulation withstand testing (DC 300V).
Overview and Application Notes
The A002-00053 custom DC power cable assembly features a DB9 9-pin male connector with backshell to a standard 2.1 x 5.5mm DC power jack. Built with high-grade UL1007 18AWG hook-up wire, it provides reliable DC power delivery and signal grounding for industrial automation, serial communication interfaces, and embedded power systems.
Key Features
- Connectors: DB9 Male Solder Type (with 180° Black Backshell & Long Screws) to DC Power Jack 2.1 x 5.5mm.
- Conductors: UL1007 18AWG (Red / Black), rated for 80°C and 300V.
- Manufacturing Standard: Assembled in full compliance with IPC/WHMA-A-620E standards.
- Testing & Reliability: 100% electrically tested for open, short, and miswire circuits. Meets UL486A pull force standards.
