Direct answer: Very low frequency (VLF) cable testing is a high-voltage withstand test performed at 0.1 Hz or lower to assess the insulation integrity of medium-voltage and high-voltage cables without the massive reactive power demand of a 50/60 Hz test.
Why 0.1 Hz? The Reactive Power Problem
A 50/60 Hz AC hi-pot on a long medium-voltage cable is not simply a larger version of a bench-top insulation tester. Medium-voltage shielded power cables with XLPE insulation behave as large capacitors. The charging current required to raise the conductor to test voltage scales with frequency and cable capacitance. For a cable run of even a few hundred meters, a power-frequency withstand test demands a test set sized for enormous reactive power, which is impractical in most factory and field environments.
Lowering the test frequency to 0.1 Hz reduces the reactive power demand by 500 to 600 times (proportional to fpower / 0.1 Hz, depending on a 50 Hz or 60 Hz base grid). That makes an AC withstand test practical in a production or commissioning environment, while still producing the alternating polarity reversals that DC testing cannot. VLF stress therefore acts on the XLPE insulation in a way that can reveal water trees, voids, and termination defects — the very failure modes that a DC hi-pot or insulation resistance check may miss.
Specification writers choose VLF because it preserves the diagnostic value of an alternating voltage without requiring an oversized power-frequency test set. For shielded medium-voltage cable systems, IEEE 400.2 is the primary reference for VLF test parameters, acceptance criteria, and waveforms such as sinusoidal or cosine-rectangular 0.1 Hz.
What VLF Testing Actually Catches—and What It Misses
VLF withstand testing is a go/no-go gate. It applies a specified AC voltage for a specified time and passes the cable only if no insulation breakdown occurs. That makes it directly relevant to OEM receiving inspection, because the defects it exposes are not detectable by continuity or low-voltage insulation resistance alone.
VLF catches insulation weaknesses such as water trees in XLPE, voids, contamination, termination defects, splice defects, and severe mechanical damage. When tan delta is included, the test can indicate bulk insulation moisture or treeing trends through the dissipation factor behavior as voltage increases. When partial discharge detection is added, the test can identify localized discharge activity inside the insulation or at terminations, using inception voltage, extinction voltage, and discharge magnitude as decision parameters.
At the same time, VLF withstand alone is not a precise fault locator, and a pass does not prove remaining cable life. It is an acceptance or commissioning gate, not a replacement for a full cable condition assessment. A pass on a medium-voltage cable assembly means the cable survived the specified AC voltage for the specified time under IEEE 400.2 or the relevant project specification. A field failure can still occur later from a new installation defect or accumulated service aging.
VLF vs. DC Hi-Pot vs. 50/60 Hz Withstand vs. Insulation Resistance
OEM buyers should not treat all high-voltage insulation tests as interchangeable. The correct test depends on cable length, insulation type, service history, and what the acceptance decision needs to prove. The following table separates the four common test methods by frequency, fault coverage, and practical use on medium-voltage or high-voltage cable.
| Test method | Typical frequency | What it catches | What it misses | When to use on MV/HV cable |
|---|---|---|---|---|
| VLF withstand | 0.1 Hz, sinusoidal or cosine-rectangular | Water trees, voids, contamination, termination defects, severe mechanical damage | Exact partial discharge location without additional sensors; remaining cable life | MV/HV acceptance, commissioning, and condition screening per IEEE 400.2 |
| DC hi-pot | 0 Hz (direct current) | Some gross insulation defects and contamination | Can mask or worsen water-tree damage in service-aged XLPE insulation | Avoid as a standalone MV/HV acceptance test; limited to short proof tests where explicitly specified |
| 50/60 Hz withstand | 50 Hz or 60 Hz | Closest to normal operating stress | Impractical for long installed or factory cable lengths due to reactive power demand | Short samples, type tests, or accessory validation |
| Insulation resistance (Megger) | Direct current, typically 1 kV to 5 kV DC | Gross bulk moisture, gross contamination, sheath punctures | High-voltage localized AC defects, sub-critical water trees, micro-voids | Mandatory pre-test screening before VLF to prevent test-set tripping, not a substitute for AC withstand |
When specifying or accepting MV/HV cable assemblies for export, require a VLF test report with tan delta or partial discharge per IEEE 400.2 — not just a hi-pot pass certificate.
Why VLF Becomes the Acceptance Gate for Commissioning
In high-reliability and critical industrial power delivery harnesses, specifying VLF acceptance testing at the outgoing quality control (OQC) stage prevents the most catastrophic failure pattern in international procurement: lots that pass low-voltage continuity and DC insulation resistance at the factory, only to suffer dielectric puncture during on-site commissioning after ocean freight. For medium-voltage assemblies, a low-voltage test verifies only physical continuity, leaving water trees in XLPE, microscopic extrusion voids, and semi-conductive layer stripping damage undetected until full operational voltage is energized.

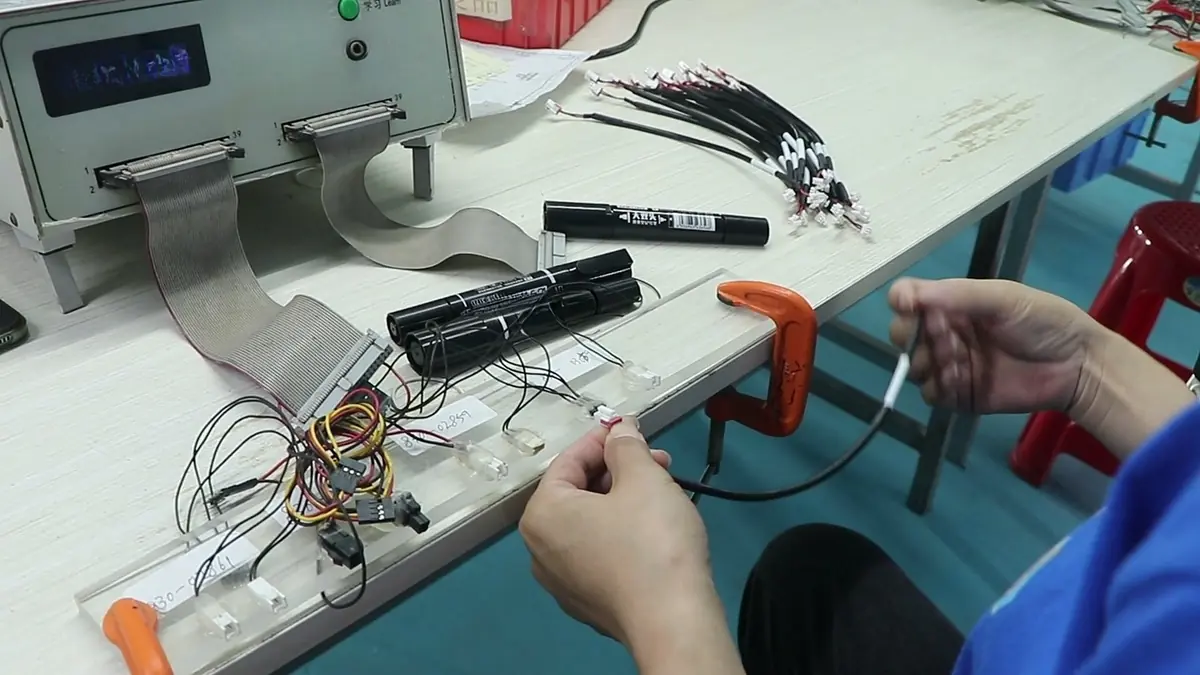

For OEM buyers, a vendor claim of “hi-pot tested” should be checked against the actual frequency, voltage, duration, and standard. A DC hi-pot pass does not equal a VLF AC withstand pass. Production-coordinated cable assembly operations such as EDOM Electronics support this verification by providing requirement review, connector matching, sample coordination, production follow-up, inspection, and export-ready packaging for custom cable assemblies and wire harnesses — with VLF reporting treated as part of the outgoing acceptance package for medium-voltage cable lots.
How to Read a VLF Test Report
A VLF report is only useful if the test parameters match the purchase order and the receiving inspection checklist. Before approving a vendor or signing a shipment release, quality engineers should verify the following fields.
| Report field | What to verify | Red flag |
|---|---|---|
| Standard cited | IEEE 400.2 or the project-specific standard | No standard reference or generic “hi-pot passed” wording |
| Cable rating and test voltage | Matches the cable rated voltage and the specified VLF test voltage | Voltage lower than required by the drawing or IEEE 400.2 table |
| Frequency and waveform | 0.1 Hz sinusoidal or cosine-rectangular | Report shows 50/60 Hz or DC without explanation |
| Duration | Time at full test voltage as specified | Duration missing or shortened from the approved test plan |
| Withstand result | No insulation breakdown during the test | Any trip, rapid current rise, or “test stopped” note |
| Tan delta | Stable or acceptably low value; no significant increase with voltage | Rising dissipation factor trend across test voltages |
| Partial discharge | Inception voltage, extinction voltage, and magnitude below project threshold | Sustained PD above the allowed threshold |
The pass criterion for a VLF withstand test is no insulation breakdown during the specified test time. Any trip should be treated as a failure until investigated. Tan delta should remain stable or acceptably low under increasing voltage, while partial discharge values should stay below the project threshold. Compare every value against the drawing and the receiving inspection checklist before shipment release.
Why Did My Cable Fail VLF Testing? 4 Common Causes
A failed VLF test is not a random event. In medium-voltage cable assemblies, the failure usually points to one of four root causes.
1. Water ingress or water trees in XLPE insulation
AC polarity reversal at 0.1 Hz exposes water-tree damage that DC testing can mask. Water trees grow inside XLPE insulation when moisture and electric stress combine, and they form the classic dielectric failure path that VLF is designed to detect.
2. Poor termination or splice workmanship

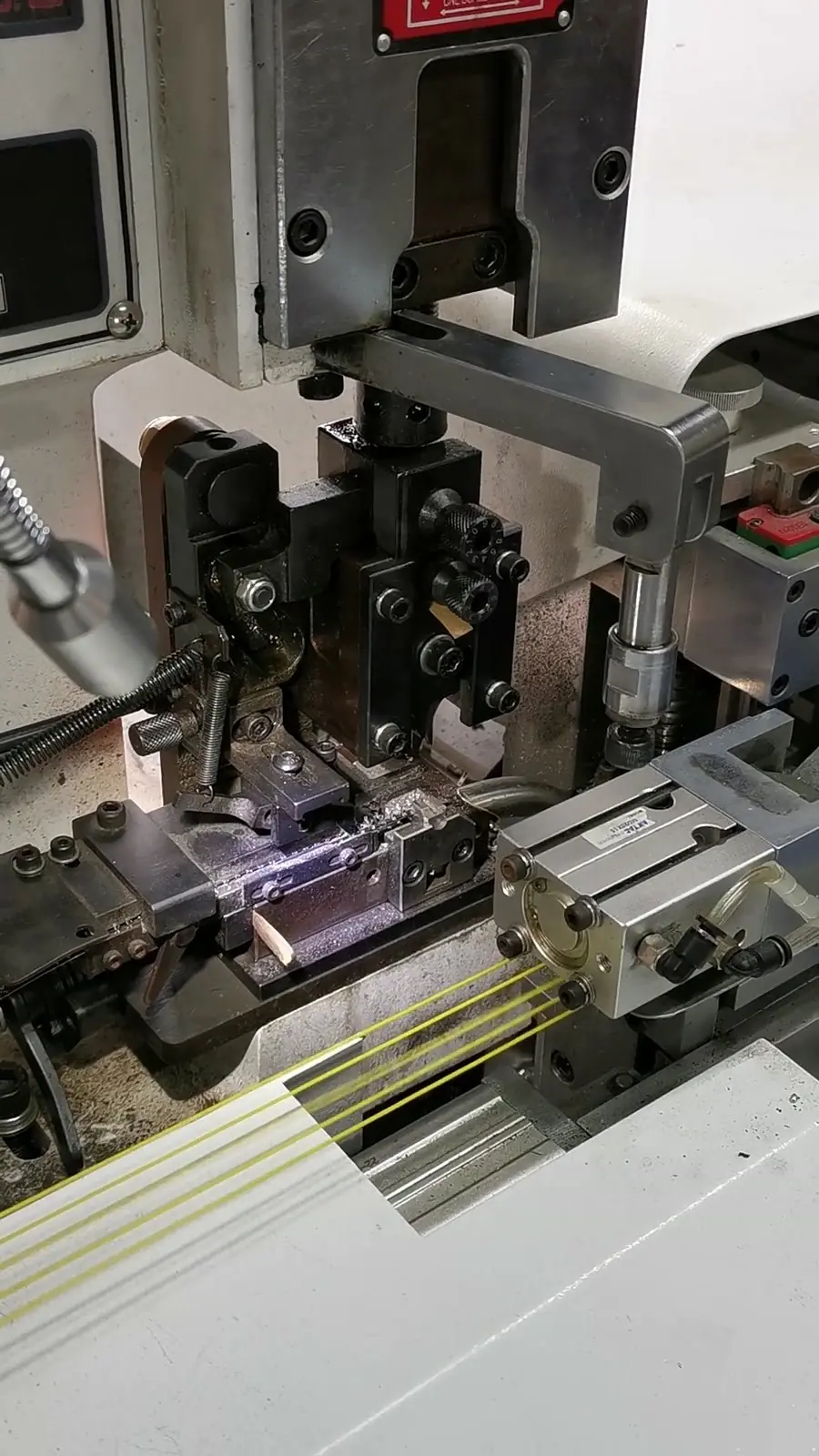

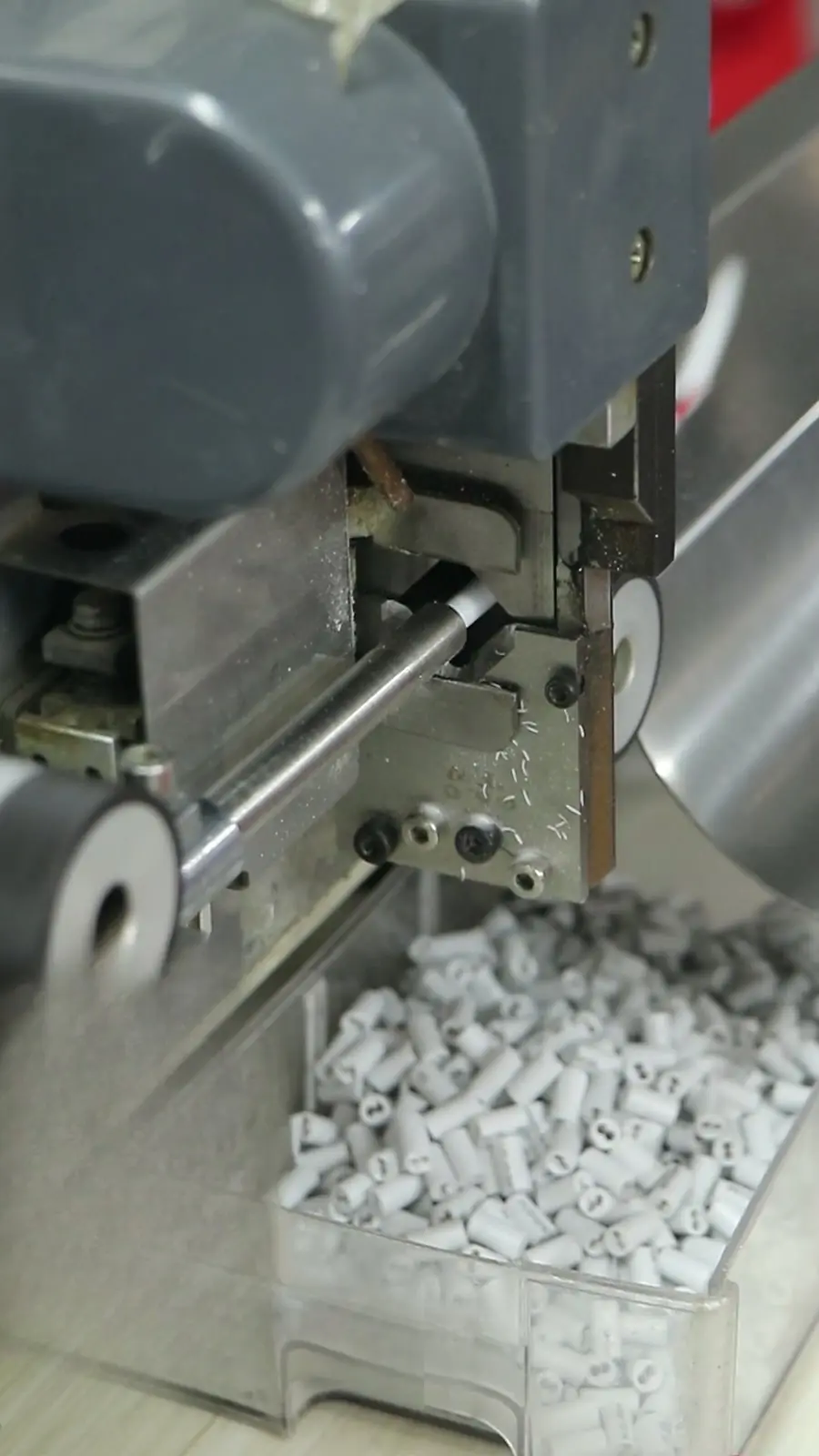

Stress cone installation, semicon edge treatment, shield termination, or connector crimp quality can all fail under VLF even if the cable body is sound. Termination workmanship requirements align with IPC/WHMA-A-620 for cable and wire harness assemblies, and production control should follow a documented wire harness manufacturing process for repeatable results.
3. Voids or contamination in the insulation
Extrusion voids, inclusions, or contamination create localized stress points that break down under high-voltage AC. These defects are invisible to insulation resistance checks and may survive a DC hi-pot.
4. Mechanical damage during export handling
Crushed cable, cut jacket, or damaged outer sheath from international transit can create a dielectric failure path that only appears under VLF. This is why export packaging and receiving inspection must be considered together.
Use the following troubleshooting sequence when a lot fails VLF acceptance:
- Isolate the failed cable from the test set and any connected load.
- Visually inspect terminations, splices, and the cable jacket for crush damage or contamination.
- Verify the test setup, grounding, and test voltage against the IEEE 400.2 parameters.
- Retest the cable at the specified VLF parameters after correcting any setup issues.
- Segment the cable to localize the fault if the full length still fails isolation.
Closing the Loop: VLF Testing, Incoming Inspection, and Export Packaging
VLF is one gate in receiving inspection, not the entire acceptance package. Pair it with continuity, insulation resistance, visual inspection, and termination workmanship review for a complete medium-voltage cable assembly approval. A VLF pass does not survive poor export packaging; crushed or flexed cable during international transit can create the very defect the test was designed to catch.
OEM buyers should specify VLF acceptance in the purchase order, require the report before shipment, and verify the test parameters against the receiving inspection checklist. For custom medium-voltage cable assemblies, that same logic extends to custom cable assembly documentation, connector matching, and sample confirmation before production release.
Suppliers such as EDOM Electronics support OEM buyers with requirement review, connector matching, sample coordination, production follow-up, inspection, and export-ready packaging for custom cable assemblies and wire harnesses. For further detail on packaging, carton labeling, and final verification for export, explore EDOM’s quality inspection and export packaging support.
Frequently Asked Questions
What does a VLF test prove on a medium-voltage cable?
A VLF withstand test proves that the cable insulation survived the specified 0.1 Hz AC voltage for the specified duration without breakdown. It verifies dielectric integrity at acceptance or commissioning, but it does not prove remaining service life.
Is VLF testing the same as DC hi-pot?
No. VLF testing uses alternating 0.1 Hz voltage, producing polarity reversals that stress XLPE insulation in a way similar to service. DC hi-pot uses unidirectional voltage and can mask or worsen water-tree damage in service-aged medium-voltage cable.
What voltage should be used for VLF testing on XLPE cable?
The test voltage and duration should follow IEEE 400.2 or the project specification. The voltage depends on cable rated voltage, insulation condition class, and whether the test is for acceptance, maintenance, or commissioning. Always verify the value against the drawing before testing.
Can VLF testing detect partial discharge?
VLF can serve as the voltage source for partial discharge measurement. When PD sensors are included, the test can detect localized discharge activity inside insulation or at terminations. VLF withstand alone is a go/no-go test and does not locate PD sources.
When should an OEM buyer require VLF testing before shipment?
Require VLF testing on any medium-voltage or high-voltage cable assembly where the drawing or receiving inspection checklist specifies it, and whenever the failure risk is dielectric breakdown rather than continuity. A DC hi-pot pass is not a substitute for a VLF AC withstand report.
Key Takeaways
- VLF cable testing is a 0.1 Hz AC withstand test that assesses medium-voltage and high-voltage insulation integrity without the reactive power demand of a 50/60 Hz test.
- IEEE 400.2 defines VLF test parameters and acceptance criteria for shielded power cable systems; tan delta and partial discharge add diagnostic value when specified.
- VLF catches water trees, voids, contamination, termination defects, and mechanical damage that continuity and insulation resistance cannot detect.
- A VLF pass is an acceptance gate, not a life prediction or fault locator; OEM buyers should require the report before shipment and verify every parameter.
- Pair VLF with insulation resistance, visual inspection, termination workmanship review, and export packaging control to close the acceptance loop.
