HDMI Type-A 19-Pin Reverse Mid-Mount Receptacle, Sinking DIP H2.78mm

Factory-backed connector sourcing and electric connection support for OEMs, distributors and electronic equipment manufacturers.

Product View

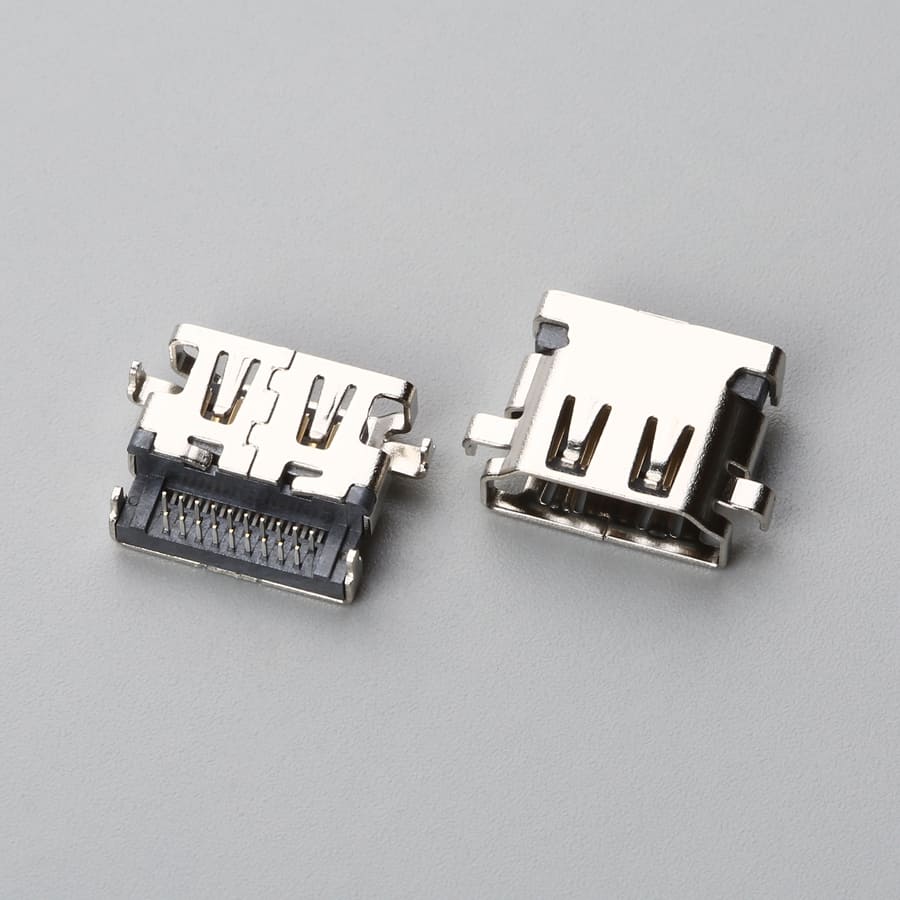

HDMI Type-A 19-Pin Reverse Mid-Mount Receptacle, Sinking DIP H2.78mm

OEM Ready

Factory Supply

Fast Quote

OEM & Manufacturing Advantages

Partner with us for factory-direct pricing, custom engineering, and complete compliance ready for global markets.

Custom Engineering Support

Tailored cable assembly & wire harness designs to meet your exact application requirements.

Full Technical Datasheets

Electrical ratings, mechanical drawings, material specs and compliance certifications on request.

Factory Direct Pricing

Competitive OEM & distributor pricing with flexible MOQ for both prototype and volume orders.

UL / CE Compliance Ready

Products engineered and tested to meet North American and European regulatory standards.

Need detailed parameters for this product?

Submit a quote request below -- our engineering team typically responds within one business day with full specifications, samples availability and lead times.

Detailed Product Information

Technical Data & Reference

Structured parameters, material notes, application context and frequently asked questions for engineering and procurement evaluation.

Competitor & Cross-Reference

Alternative Type
Intermateable With
Competitor Part Number
Molex 47151-0001, TE Connectivity 2013978-1, Amphenol 10029449-001RLF, Wurth Elektronik 685119136923
Mates With
Standard HDMI Type-A Male Plugs & Cable Assemblies

Intermateable: This part is mechanically and electrically compatible for mating with the listed competitor connector. Mixed use in the same connector system is supported.

Technical Specifications

Gender
Receptacle (Female)
Number of Positions
19 Contacts
Connector Interface
HDMI Type-A
PCB Orientation
Horizontal / Reverse (Mid-Mount)
PCB Mount Position
Sink / Sunken Mount
Board Standoff / Drop Height
2.78mm
Termination Style
Through Hole DIP / Hybrid
Mating Cycles (Durability)
10,000 Cycles

Material Composition

Material Value / Description
Housing Material High-Temperature Thermoplastic (UL 94V-0)
Contact Material Copper Alloy / Phosphor Bronze
Contact Plating Gold Flash on Contact Area, Tin Plated on Solder Tails
Shell Material Stainless Steel / Copper Alloy
Shell Plating Nickel Plated / Solderable Tinned Leg

Technical Characteristics

Characteristic Value
Current Rating 0.5A per contact
Voltage Rating 40V AC (RMS)
Contact Resistance 30 mΩ Max.
Insulation Resistance 100 MΩ Min. at 500V DC
Dielectric Withstanding Voltage 500V AC (for 1 minute)
Operating Temperature -25°C to +85°C
Mating Force 44.1 N (4.5 kgf) Max.
Unmating Force 9.8 N to 39.2 N (1.0 kgf - 4.0 kgf)

Application Scenarios

  • Embedded single-board computers & industrial motherboards

  • Medical imaging displays & diagnostic monitors

  • Thin-profile set-top boxes & multimedia consoles

  • Industrial vision systems & commercial signage

Frequently Asked Questions

What is the advantage of the reverse mid-mount (sunken DIP) design?
The mid-mount (sink-in) structure drops the connector profile into a cutout on the PCB by 2.78mm, significantly reducing overall board height and product enclosure thickness compared to standard top-mount HDMI receptacles.
Can EDOM customize the contact plating or packaging options?
Yes, we offer custom contact gold plating thicknesses (from Gold Flash up to 30u") and supply both Tape & Reel packaging for automated pick-and-place lines and anti-static tray packaging.

Overview and Application Notes

This HDMI Type-A 19-Pin Receptacle features an industrial-grade reverse mid-mount (sunken DIP) design with a low-profile board-drop height of 2.78mm. Engineered specifically for ultra-thin and space-constrained applications, it allows engineering teams to drop the connector profile directly into a PCB cutout, minimizing total stack height while maintaining rigid mechanical retention and high-integrity digital audio/video transmission.

Built with resilient phosphor bronze spring contacts, selective gold plating, and a full-shield stainless steel housing with rugged solderable legs, this connector ensures superior EMI/RFI shielding and enduring mating endurance across embedded computing, medical monitors, commercial display panels, and industrial machine vision controllers.
