Technical Specifications
- Connector Type
- Mini HDMI Type C Receptacle (Female)
- Number of Positions / Pins
- 19 Pins
- Mounting Type
- SMT Sinking (Mid-Mount / Edge Mount)
- Profile Height (H)
- 0.80 mm
- Contact Pitch
- 0.40 mm
- Connector Depth
- 8.00 mm (11.20 mm shell overall)
- Recommended PCB Thickness
- 1.00 mm to 1.20 mm
- Mating Durability
- 10,000 Cycles Min.
- Logo Configuration
- No Logo (Neutral/OEM)
- Standard Compliance
- RoHS Compliant, Lead-Free
Material Composition
| Material | Value / Description |
|---|---|
| Housing Material | Thermoplastic (LCP, UL 94V-0), Color: Black |
| Contact Material | Copper Alloy (T=0.10 mm) |
| Contact Plating | Gold (Au) Plated |
| Shell Material | Copper Alloy / Stainless Steel (T=0.30 mm) |
| Shell Plating | Gold (Au) / Nickel (Ni) Plated |
Technical Characteristics
| Characteristic | Value |
|---|---|
| Contact Resistance | 30 mΩ Max. |
| Insulation Resistance | 1000 MΩ Min. |
| Dielectric Withstanding Voltage | AC 500V (1 Minute) |
| Operating Temperature Range | -55°C to +105°C |
| General Tolerances | ±0.05 mm (PCB Layout) |
Application Scenarios
-
Ultra-compact Action Cameras & Drone Gimbal Video Links
-
Portable Field Monitors & Handheld Testing Equipment
-
Industrial Single Board Computers (SBC) & Compact IPCs
-
Embedded Vision Modules & Machine Vision Interfaces
-
Medical Imaging Displays & Handheld Diagnostic Systems
Frequently Asked Questions
What does "SMT Sinking H0.80" mean for board cutout design?
SMT Sinking (mid-mount) recesses the Mini HDMI body into a PCB edge slot, maintaining an ultra-low profile height of only 0.80mm above the board surface for slim housing designs.
What is the recommended PCB thickness for this Mini HDMI receptacle?
The recommended printed circuit board thickness is 1.00mm to 1.20mm to align the surface-mount solder leads and side anchor tabs with the PCB footprint.
What are the electrical ratings and operating temperature limits?
The connector features a contact resistance of ≤30 mΩ, insulation resistance of ≥1000 MΩ, AC 500V dielectric withstand for 1 minute, and operates from -55°C to +105°C.
Overview and Application Notes

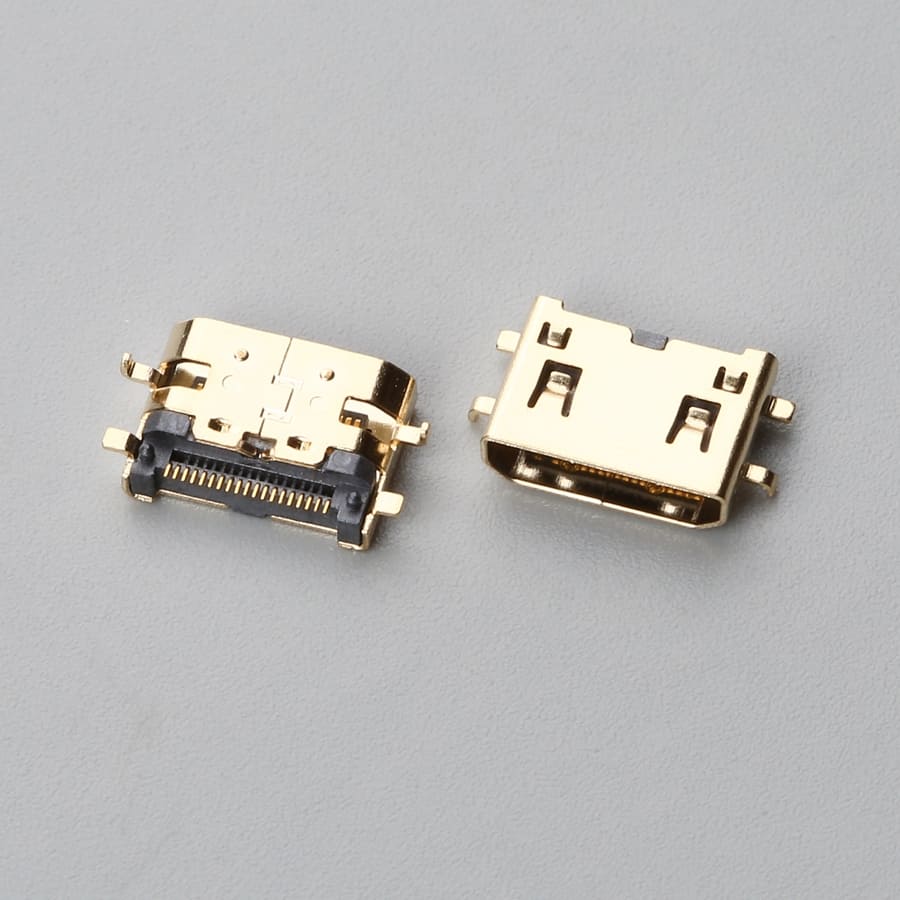

This Mini HDMI (Type C) 19-position female receptacle is engineered with an SMT sinking (mid-mount) configuration and an ultra-low profile height of 0.80mm, designed for compact board-edge PCB cutouts requiring high-definition digital multimedia performance in space-constrained embedded devices.
Key Features
- Form Factor & Pinout: Mini HDMI Type C 19-Pin female receptacle with SMT sinking mount design.
- Ultra-Low Profile: 0.80mm profile height (H=0.80mm) with dual retention latches engineered for tight enclosure integration.
- Robust Shielding & Housing: High-grade copper alloy/stainless steel shielding shell and UL 94V-0 high-temperature thermoplastic (LCP) housing.
- High-Conductivity Contacts: 19 copper alloy contacts with gold plating for reliable high-speed signal integrity.
- Mechanical Durability: Rated for a minimum of 10,000 mating cycles.
- Wide Operating Temperature: Fully rated for operation across -55°C to +105°C.
Engineering Specifications & PCB Integration
Engineered for high-density surface-mount pick-and-place lines, this connector integrates dual-row 0.40mm pitch SMT contact pads and four robust board-retention solder tabs. Designed specifically for 1.00mm to 1.20mm PCB thicknesses, the sinking architecture minimizes the above-board vertical footprint while providing high mechanical peel strength against cable insertion stress.
