Detailed Product Information
Technical Data & Reference
Structured parameters, material notes, application context and frequently asked questions for engineering and procurement evaluation.
Competitor & Cross-Reference
- Mates With
- IEC 60320 C14 Inlets and Standard European Schuko Sockets
Technical Specifications
- Number of Pins
- 3 Pins (Live, Neutral, Ground)
- Left Connector
- CEE7/7 Schuko Plug (European Standard)
- Right Connector
- IEC 60320 C13 Receptacle
- AWG Gauge / Cross Section
- 3 x 0.75mm², 3 x 1.0mm², 3 x 1.5mm² (Approx. 14 AWG - 18 AWG equivalent)
- Wire & Cable Length
- 1.2m, 1.5m, 1.8m, 2.0m, 3.0m (Customizable upon request)
- Connection Type
- Plug and unplug (Friction fit)
Material Composition
| Material | Value / Description |
|---|---|
| Housing & Insulation | Flame-retardant PVC / PA (Nylon) |
| Contacts | Brass, Nickel-Plated (Anti-corrosion and high conductivity) |
| Wire & Cable Conductor | High-purity Bare Copper / Oxygen-Free Copper (OFC) |
| Wire & Cable Jacket | PVC (e.g., H05VV-F) / Rubber (e.g., H05RR-F) / PUR (Customizable) |
| Overmolding | Durable PVC Injection Molding |
Technical Characteristics
| Characteristic | Value |
|---|---|
| Rated Current | 10A / 16A (Based on wire gauge) |
| Rated Voltage | 250V AC |
| Rated Temperature | -20°C to +70°C (Standard) / Up to +105°C (High-temp option available) |
| Insulation Resistance | ≥ 100 MΩ |
| Contact Resistance | ≤ 50 mΩ |
| Flame Retardant Grade | VW-1 / FT1 |
| Durability (Mating Cycles) | ≥ 5,000 Times |
| Product Certification | VDE, CE, RoHS Compliant |
Application Scenarios
-
IT Infrastructure & Data Centers: Reliable AC power supply for rack-mounted servers, UPS (Uninterruptible Power Supplies), PDU networks, and heavy-duty networking switches.
-
Industrial Automation: Durable power connections for factory control panels, test equipment, and manufacturing machinery.
-
Medical & Laboratory Equipment: Standardized, safe power feeds for diagnostic devices and laboratory workstations (medical-grade variations available).
-
Enterprise Office Electronics: Powering desktop computers, high-end workstations, large-format commercial displays, and digital signage.
Frequently Asked Questions
Are your CEE7 to C13 power cords VDE certified?
Yes, our European power cords comply with strict VDE safety standards. They are also CE and RoHS certified, ensuring safe and legal deployment across all EU member states.
What is the Minimum Order Quantity (MOQ) for custom power cords?
We offer flexible MOQs to support your trial orders and volume production. Please contact our sales team with your specific length and material requirements for an accurate quote.
Can I customize the jacket material for industrial environments?
Absolutely. While PVC (H05VV-F) is standard for indoor IT use, we can manufacture these cables with Rubber (H05RR-F) or PUR jackets for enhanced oil, wear, and temperature resistance in harsh industrial settings.
What is the standard lead time for OEM mass production?
Standard lead times typically range from 3 to 5 weeks depending on the order volume and specific raw material requirements. We will provide a precise delivery schedule during the RFQ process.
Overview and Application Notes

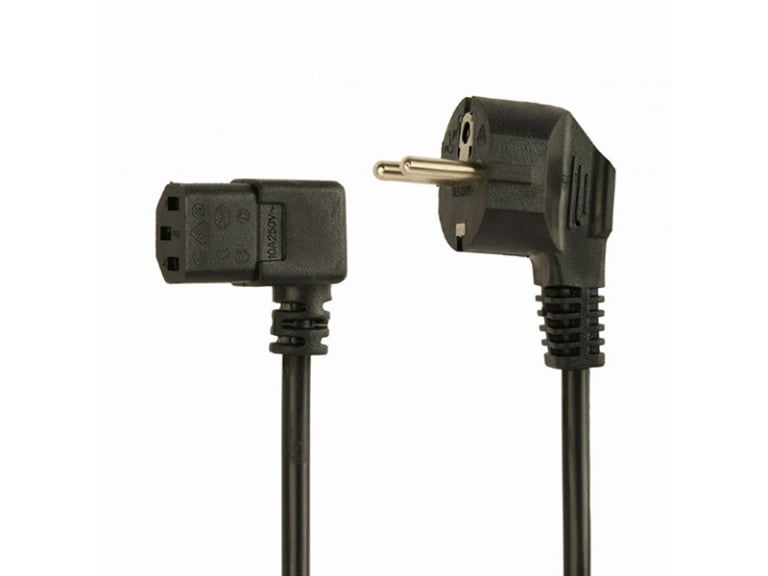

Overview The CEE7 to IEC C13 power cord is an essential power supply solution for the European market, designed to seamlessly connect IT equipment, industrial machinery, and consumer electronics to standard AC outlets. Featuring a robust European Schuko (CEE7/7) plug and a universal IEC 60320 C13 receptacle, this cable assembly guarantees safe and consistent AC power transmission. At EDOM Electronics, we provide factory-direct OEM manufacturing with full VDE certification, offering customizable wire gauges (such as 3×0.75mm², 3×1.0mm², 3×1.5mm²) and outer jacket materials (PVC, Rubber, PUR) to meet the strict compliance and durability demands of distributors and electronic equipment manufacturers across Europe.
Application Notes
-
Safety Compliance: Ensure the host equipment’s power draw does not exceed the rated 10A/16A capacity. The cables are strictly tested to meet VDE, CE, and RoHS standards.
-
Environmental Adaptability: For standard office or IT environments, PVC (H05VV-F) jackets are recommended. For industrial, outdoor, or abrasive environments, specify Rubber (H05RR-F) or PUR jackets during your RFQ for enhanced mechanical protection and oil resistance.
-
Durability: Integrated strain relief molding at both the CEE7 and C13 connector junctions significantly reduces the risk of wire fraying during frequent mating cycles in commercial settings.
