Detailed Product Information
Technical Data & Reference
Structured parameters, material notes, application context and frequently asked questions for engineering and procurement evaluation.
Competitor & Cross-Reference
- Mates With
- IEC 60320 C14 Inlets and Standard European Schuko Sockets
Technical Specifications
- Number of Pins
- 3 Pins (Live, Neutral, Earth / Ground)
- Left Connector
- IEC 60320 C13 Receptacle (Straight)
- Right Connector
- European Schuko CEE7/7 Plug (90° Right Angle)
- Wire Cross-Section / AWG Gauge
- H05VV-F 3G0.75mm² / 3G1.0mm² / 3G1.5mm² (Equivalent to 14 AWG ~ 18 AWG)
- Wire & Cable Length
- 1.2m, 1.5m, 1.8m, 2.0m, 3.0m (Custom lengths available upon request)
- Connection Type
- Plug and unplug (Friction fit)
Material Composition
| Material | Value / Description |
|---|---|
| Housing & Insulation | Flame-retardant PVC / PA66 (UL94V-0) |
| Contacts | High-purity Brass, Nickel-Plated (Corrosion-resistant with optimal conductivity) |
| Wire Conductor | 100% Bare Copper / Oxygen-Free Copper (OFC) |
| Wire Jacket | Flexible PVC (H05VV-F) / Heavy-duty Rubber (H05RR-F / H07RN-F) / PUR |
| Overmolding | Ergonomic Molded PVC Strain Relief |
Technical Characteristics
| Characteristic | Value |
|---|---|
| Rated Current | 10A / 16A (Depending on wire gauge selection) |
| Rated Voltage | 250V AC |
| Rated Temperature | -20°C to +70°C (Standard PVC) / Up to +105°C (High-temp options) |
| Insulation Resistance | ≥ 100 MΩ |
| Contact Resistance | ≤ 10 mΩ |
| Flame Retardant Grade | VW-1 / UL94V-0 / IEC 60332-1 |
| Durability (Mating Cycles) | ≥ 10,000 Times |
| Product Certifications | VDE, CE, RoHS, REACH compliant |
| Production Standards | IPC/WHMA-A-620 manufacturing compliance |
Application Scenarios
-
Server Racks & IT Equipment: Space-constrained server enclosures, network switches, and PDU connections in European data centers.
-
Wall-Mounted Industrial Displays: Digital signage, commercial TVs, and kiosks installed flat against walls requiring tight clearance.
-
Industrial Automation Chassis: Control cabinets and machine enclosures where internal cabling requires 90-degree low-profile routing.
-
Enterprise & Laboratory Instrumentation: Medical diagnostic carts, office workstations, and precision test equipment.
Frequently Asked Questions
What is the main advantage of choosing a 90-degree angled CEE7 plug?
The 90-degree right-angle plug allows the cord to sit flush against wall outlets and enclosures. This minimizes required depth clearance, prevents heavy cable bending, and reduces strain on the wall outlet and cable entry point.
Are your European power cords VDE certified?
Yes. Our European power cord assemblies are engineered to meet strict VDE and CE safety standards, fully compliant with EU regulations (RoHS/REACH) for legally distributing and selling in European markets.
Can we order custom cable lengths and outer jacket materials?
Absolutely. As an OEM manufacturer, we support custom lengths (from 0.5m to 10m+) as well as specialized outer jackets including PVC, Rubber (for outdoor/industrial use), and PUR (for oil resistance).
What is the Minimum Order Quantity (MOQ) and lead time for mass production?
We offer flexible MOQs to accommodate both pilot prototyping and volume orders. Typical lead times range from 2 to 4 weeks depending on material availability and custom specifications.
Overview and Application Notes

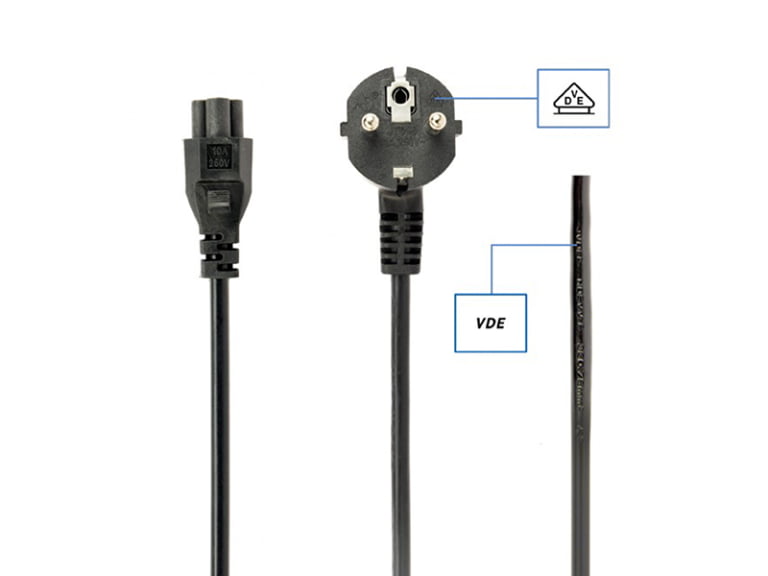

Overview The Right Angle CEE7 to IEC C13 Power Cord Assembly is engineered specifically for the European market to deliver safe, space-saving AC power connections. Featuring a 90-degree molded European Schuko (CEE7/7) plug and a standard IEC 60320 C13 receptacle, this cable allows equipment to be positioned flush against walls or inside tight enclosures without putting strain on the cable bend. At EDOM Electronics, we provide OEM manufacturing with full VDE certification support, customizable cable lengths, and jacket materials (H05VV-F PVC, Rubber, PUR) tailored to the requirements of European distributors and industrial equipment manufacturers.
Application Notes
-
Space-Saving Ergonomics: The 90-degree angled Schuko plug significantly reduces mechanical tension on the socket and prevents cable degradation when deployed in shallow depth spaces or wall-mounted equipment setups.
-
Safety & Compliance: Built to meet strict VDE, CE, and RoHS requirements. Rated for standard European AC voltage (250V AC) with conductor cross-sections suited for up to 10A/16A current draw.
-
Strain Relief Integration: Heavy-duty overmolding at both connector interfaces absorbs physical pulling forces, ensuring a durable connection in high-traffic commercial environments.
