Detailed Product Information
Technical Data & Reference
Structured parameters, material notes, application context and frequently asked questions for engineering and procurement evaluation.
Competitor & Cross-Reference
- Alternative Type
- Drop-in Replacement
- Competitor Part Number
- Molex 47151-0001, Amphenol 10029449-001RLF, TE Connectivity 2007435-1
- Mates With
- Standard HDMI Type A Male Cable Plugs
Drop-in Replacement: This part is a direct, pin-compatible substitute for the competitor part number listed above. No design modification required.
Technical Specifications
- Interface Type
- HDMI Type A Female Receptacle
- Pin Count
- 19 Positions
- Contact Pitch
- 0.50 mm
- Mounting Type
- SMT (Surface Mount Technology) with Through-Hole Shell Tabs
- Orientation / Design
- Right Angle, Without Shell Flange / Convex, Without Rear Cover, Without Logo
- Recommended PCB Thickness
- 1.20 mm to 1.60 mm
- Environmental Compliance
- RoHS Compliant
Material Composition
| Material | Value / Description |
|---|---|
| Housing | Thermoplastic (LCP), UL 94V-0, Black |
| Contact Material | Copper Alloy (19 Pins) |
| Contact Area Plating | 10 u" Gold Plated (Au 10") |
| Solder Area Plating | 100 u" Matte Tin Plated (Sn 100") |
| Shell Material | Copper Alloy |
| Shell Plating | Gold Flash Plated |
Technical Characteristics
| Characteristic | Value |
|---|---|
| Contact Resistance | 20 mΩ Max |
| Insulation Resistance | 1000 MΩ Min |
| Dielectric Withstanding Voltage | AC 500V, 1 Minute |
| Durability / Mating Cycles | 10,000 Cycles Min |
| Operating Temperature | -25°C to +85°C |
Application Scenarios
-
High-Definition Multimedia Systems & Displays
-
Industrial Embedded Boards & IPC Systems
-
Professional Audio / Video (AV) Equipment
-
Consumer Electronics (Set-Top Boxes, Projectors, Gaming Consoles)
-
Medical Imaging & Digital Video Recording (DVR) Units
Frequently Asked Questions
What standard does this HDMI Type A female receptacle adhere to?
This connector features standard 19-pin HDMI Type A female geometry with a 0.50mm contact pitch, making it fully compatible with standard HDMI cables and suitable for high-speed digital AV signal routing.
What is the contact and shell plating specification?
The copper alloy contacts feature 10 u" gold plating on the contact mating interface and 100 u" tin plating on the solder tail, while the copper alloy shell is gold flash plated to provide low contact resistance and high corrosion resistance.
What PCB thickness and soldering profile are recommended?
The recommended PCB thickness is 1.20mm to 1.60mm. Built with high-temperature LCP (UL 94V-0) housing, it supports standard surface-mount reflow soldering processes.
Overview and Application Notes
Overview

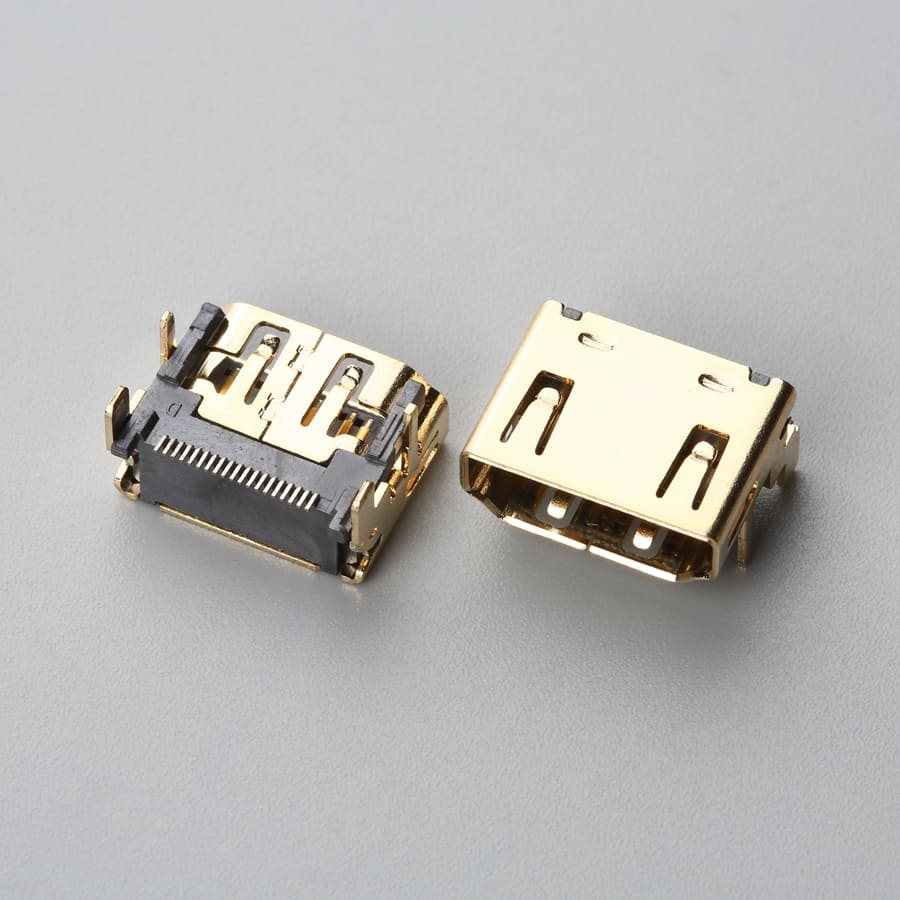

The HDMI Type A 19-Pin Female Receptacle SMT Connector is a precision-engineered, high-speed digital interface designed for modern PCB surface-mount applications. Featuring a compact right-angle form factor without a rear cover, flange, or front logo, this connector provides a clean, flush-mount mechanical profile ideal for high-density audio/video boards, embedded industrial systems, and digital display modules.
Engineered with a high-grade UL 94V-0 Thermoplastic (LCP) housing, this connector reliably withstands standard lead-free SMT reflow soldering profiles. The combination of high-precision surface-mount signal contacts and robust through-hole mechanical retention shell tabs guarantees excellent coplanarity, structural durability, and high signal integrity under continuous commercial and industrial operation.
—
Key Features & Engineering Advantages
- Optimized High-Speed Signal Integrity: Features standard 19-pin Type-A geometry with a 0.50 mm contact pitch, providing seamless transmission for high-definition video and multi-channel digital audio formats.
- Superior Contact Metallurgy: Equipped with precision copper alloy contacts plated with 10 u” gold in the active contact mating zone to minimize contact resistance (20 mΩ max) and resist oxidation, combined with 100 u” matte tin on solder tails for optimal solderability.
- Robust Shielding & Grounding: Full copper alloy outer shell with gold flash plating ensures continuous 360-degree EMI/RFI shielding and reliable chassis ground connection.
- High Mechanical Durability: Rated for a minimum of 10,000 mating cycles, making it suitable for rigorous test ports, consumer devices, and frequently connected industrial equipment.
- Broad Board Compatibility: Engineered for standard PCB thicknesses ranging from 1.20 mm to 1.60 mm with dual through-hole shell retention tabs for high mechanical shear strength.
—
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Interface & Gender | HDMI Type A, 19 Positions, Female Receptacle |
| Contact Pitch | 0.50 mm |
| Mounting Style | SMT (Surface Mount Technology) + Through-Hole Shell Tabs |
| Housing Material | Thermoplastic (LCP), UL 94V-0, Black |
| Contact Material | Copper Alloy |
| Contact Plating | 10 u” Gold in Mating Area; 100 u” Matte Tin in Solder Area |
| Shell Material & Finish | Copper Alloy, Gold Flash Plated |
| Contact Resistance | 20 mΩ Max |
| Insulation Resistance | 1000 MΩ Min (at 500V DC) |
| Dielectric Withstanding Voltage | 500V AC (1 Minute) |
| Durability Rating | 10,000 Mating / Unmating Cycles Min |
| Operating Temperature | -25°C to +85°C |
| Recommended PCB Thickness | 1.20 mm to 1.60 mm |
| Environmental Compliance | RoHS Compliant, Lead-Free |
—
Industrial & Commercial Applications
- Digital Displays & Monitors: Commercial signage, 4K/UHD monitors, projection units, and interactive smart displays.
- Embedded Computing & IPC: Industrial single-board computers (SBC), embedded motherboards, vision processing units, and IoT gateways.
- Professional Audio/Video Systems: Broadcast hardware, AV matrix switchers, video capture cards, and set-top boxes.
- Medical & Instrumentation: Medical imaging consoles, patient monitoring video outputs, and precision laboratory diagnostics.
—
Cross-Reference & Compatibility Guidance
This 19-pin female HDMI receptacle is an exact Drop-in Replacement for industry-standard footprint receptacles (such as Molex 47151 series, Amphenol 10029449 series, and TE Connectivity 2007435 series). It matches standard 19-pad SMT solder patterns and through-hole shell retention layouts, enabling seamless BOM second-sourcing and cost reduction without redesigning the PCB footprint.
