Competitor & Cross-Reference
- Alternative Type
- Drop-in Replacement
- Competitor Part Number
- Phoenix Contact 1681156 (SACC-M 8MS-4CON-M-SW) / TE Connectivity T4011008041-000 / Binder 99 3401 00 04
- Mates With
- Standard M8 Female Receptacles, Panel Mount Sockets, and Overmolded Sensor Cables (IEC 61076-2-104)
Drop-in Replacement: This part is a direct, pin-compatible substitute for the competitor part number listed above. No design modification required.
Technical Specifications
- Connector Type
- Plug, Male Pins
- Number of Positions
- 3, 4, 5, 6, 8
- Coding
- A-Code (3/4/6/8 Pin), B-Code (5 Pin), D-Code (4 Pin)
- Mounting Type
- Free Hanging (In-Line), Straight
- Fastening Type
- Threaded Coupling Nut (M8x1)
- Termination
- Solder Cup / Solder Pins
- Overall Dimensions
- Length ~46.5 mm x Outer Diameter Ø12.0 mm
- Wrench Flat Width
- SW11 (Coupling Nut & Pressing Nut), SW10.5 (Body)
- Applicable Cable Diameter
- Ø3.0 mm ~ 5.0 mm
- Mating Durability
- $\ge$ 500 Cycles
- Standard Compliance
- IEC 61076-2-104, RoHS
Material Composition
| Material | Value / Description |
|---|---|
| Insulator Body | Polyamide (PA), Black |
| Male Contacts | Copper Alloy, Gold-Plated |
| M8 Metal Thread | Copper Alloy, Nickel-Plated |
| Coupling Connect Nut | Copper Alloy, Nickel-Plated |
| Housing Shell | Polyamide (PA), Black |
| Cable Seal & Clamp | Silicon (Seal), Polyamide PA (Clamp), Black |
| Pressing Nut | Polyamide (PA), Black |
| Internal O-Ring | NBR, Black |
Technical Characteristics
| Characteristic | Value |
|---|---|
| Rated Voltage | 60V DC (3, 4 Pin) / 30V DC (5, 6, 8 Pin) |
| Rated Current | 4A (3, 4 Pin) / 3A (5 Pin) / 1.5A (6, 8 Pin) |
| Contact Pin Diameter | Ø1.0 mm (3, 4, 5 Pin) / Ø0.7 mm (6 Pin) / Ø0.6 mm (8 Pin) |
| Operating Temperature | -40°C to +80°C |
| Ingress Protection | IP67 (Correct locking state) |
| General Tolerances | Decimal: ±0.5 mm; X.X: ±0.25 mm; Angles: ±1° |
Application Scenarios
-
Factory automation proximity sensors and photoelectric switches
-
Pneumatic solenoid valves and pneumatic distribution manifolds
-
Compact robotic arm end-effector and gripper cabling
-
Conveyor sortation systems and field I/O distribution blocks
-
Machine vision strobe lighting and trigger interfaces
Frequently Asked Questions
What cable outer diameter is compatible with this M8 field-wireable plug?
The integrated silicon seal and PA collet clamp accommodate circular cables with an outer jacket diameter between 3.0 mm and 5.0 mm, ensuring IP67 water ingress protection when tightened with the SW11 pressing nut.
Which pinout coding standards and electrical ratings are supported?
The connector complies with IEC 61076-2-104, providing 3 and 4 Pin A/D-code rated at 4A / 60V DC (1.0 mm contacts), 5 Pin B-code rated at 3A / 30V DC (1.0 mm contacts), and 6 and 8 Pin A-code rated at 1.5A / 30V DC (0.7 mm and 0.6 mm contacts).
What tools and soldering methods are required for field installation?
Termination requires standard manual iron soldering for wire conductor attachment to the internal solder pins, along with standard SW10.5 and SW11 open-end wrenches to secure the body and compress the rear pressing nut.
Overview and Application Notes

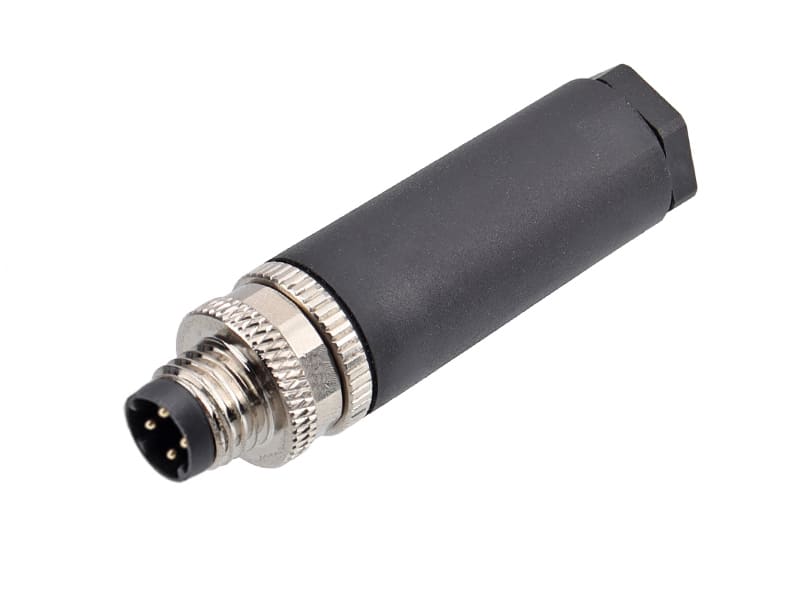

The M8 Circular Field Installation Plug is an industrial-grade straight male interconnect engineered for rapid on-site cable assembly and reliable sensor-actuator connectivity. Featuring an industry-standard M8x1 threaded coupling nut, robust PA housing, and an integrated silicon cable clamping seal, it provides dependable IP67 environmental sealing for automation field wiring across harsh operational environments.
Key Features
- Modular Coding & Contact Densities: Supports 3-Pin, 4-Pin, 5-Pin, 6-Pin, and 8-Pin configurations with standardized A-Code, B-Code, and D-Code keying options.
- Field-Serviceable Assembly: Built with internal solder cups and dual SW11 wrench flats on the housing and pressing nut for rapid, secure field termination.
- Precision Contact Performance: Machined gold-plated copper alloy terminals deliver 1.5A to 4A current capacity and up to 60V DC rated voltage with low contact resistance.
- IP67 Environmental Protection: Silicon cable gland seal and NBR internal O-ring ensure dust-tight and waterproof integrity for OD 3.0 mm to 5.0 mm cables.
- Standards Compliance: Fully compliant with IEC 61076-2-104 dimensional standards and RoHS environmental directives.
Engineering Specifications & PCB Integration
Designed for inline field installation, the plug accommodates single-ended or multi-core sensor cables ranging from Ø3.0 mm to Ø5.0 mm outer diameter. Internal contact terminals feature generous solder cups suited for manual iron soldering up to 24-28 AWG conductors. During final field assembly, the rear pressing nut should be tightened against the integrated SW10.5 and SW11 housing flats to achieve full mechanical strain relief and IP67 waterproof compression.
