Detailed Product Information
Technical Data & Reference
Structured parameters, material notes, application context and frequently asked questions for engineering and procurement evaluation.
Competitor & Cross-Reference
- Alternative Type
- Drop-in Replacement
- Competitor Part Number
- Molex 46765-0301 / Amphenol 10029449 Series
- Mates With
- Standard Micro HDMI Type D 19-Pin Male Cable Plug
Drop-in Replacement: This part is a direct, pin-compatible substitute for the competitor part number listed above. No design modification required.
Technical Specifications
- Connector Type
- Micro HDMI Type D Receptacle (Female)
- Number of Positions
- 19 Pin
- Mounting Type
- Top-Mount / On-Board, Dual-Row SMT
- Center Height (CH)
- 1.55 mm
- Mating Durability
- 10,000 Cycles
- Environmental Compliance
- RoHS Compliant, Lead-Free
- Packaging Method
- Tape & Reel (T&R) for Automated SMT Pick-and-Place
Material Composition
| Material | Value / Description |
|---|---|
| Housing Material | Liquid Crystal Polymer (LCP), Black, UL 94V-0 |
| Contact Material | Phosphor Bronze (C5191, T=0.12mm) |
| Contact Plating | Gold Plating 1 u" (AU 1u") |
| Shell Material | Brass (C2680, T=0.30mm) |
| Shell Plating | Nickel Plated overall |
Technical Characteristics
| Characteristic | Value |
|---|---|
| Contact Resistance | 30 mΩ Max. |
| Insulation Resistance | 1000 MΩ Min. |
| Dielectric Withstanding Voltage | AC 500V, 1 Minute |
| Operating Temperature Range | -25°C to +85°C |
| General Tolerances | 0 Place: ±0.50 mm; 1 Place: ±0.35 mm; 2 Place: ±0.25 mm; 3 Place: ±0.15 mm; Angular: ±3° |
Application Scenarios
-
Embedded Single Board Computers (SBC) and compact industrial motherboards
-
Ultra-thin digital cameras, camcorders, and portable video recording systems
-
Handheld test equipment, diagnostic devices, and field instruments
-
Drone payload systems, gimbal controllers, and miniature FPV video transmitters
-
Wearable enterprise devices, AR/VR optical modules, and portable medical monitors
Frequently Asked Questions
What does the CH=1.55mm dimension indicate in this Micro HDMI connector?
The center height (CH=1.55mm) defines the nominal vertical distance from the PCB surface to the geometric center line of the HDMI Type D mating interface, ensuring precise aperture alignment in thin enclosure designs.
What are the reflow soldering and material specifications for this SMT receptacle?
The connector housing is molded from high-temperature black LCP rated UL 94V-0, fully compatible with standard lead-free reflow profiles up to +85°C continuous operating temperatures.
What contact plating and mechanical durability ratings are specified?
The 19 contacts are stamped from C5191 phosphor bronze finished with 1 micro-inch gold plating over the contact area, ensuring 30 mΩ max contact resistance and 10,000 insertion/extraction cycles.
How does the dual-row SMT layout integrate with high-density PCB designs?
The dual-row surface-mount contact configuration maximizes pitch density while robust solder-down brass shell tabs anchor the receptacle directly to ground planes, providing mechanical strain relief.
Overview and Application Notes

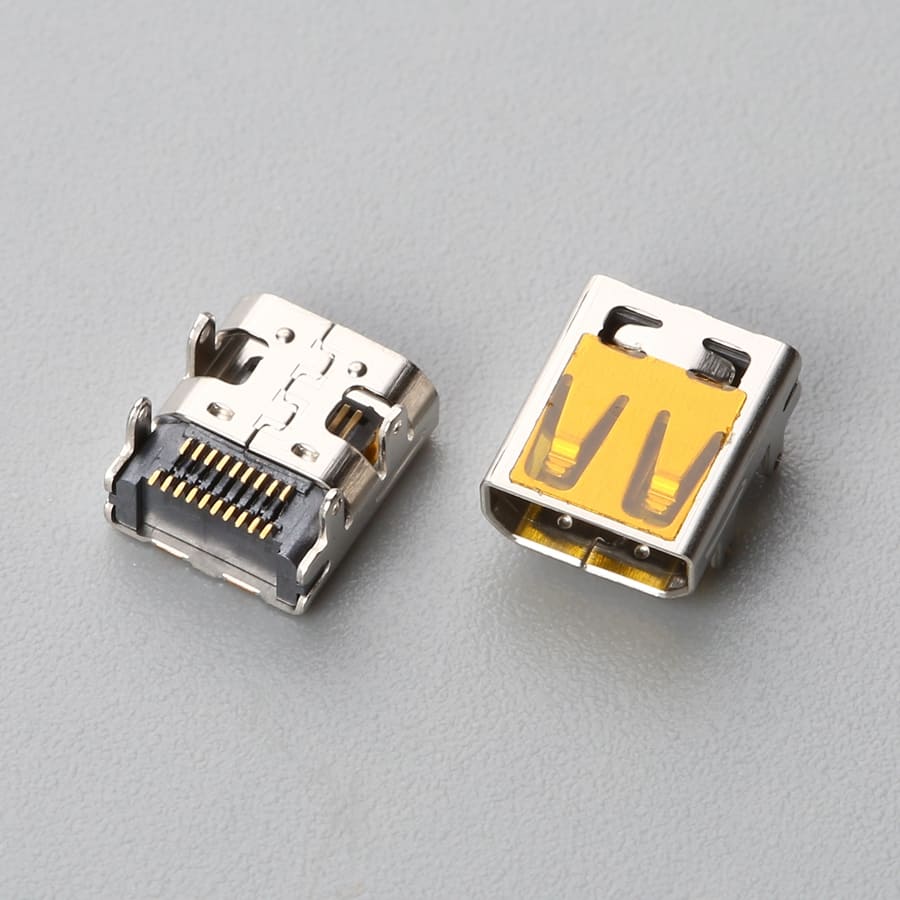

The Micro HDMI Type D 19-Pin female receptacle is designed for high-density audio/video signal transmission in ultra-compact electronics. Featuring a top-mount dual-row SMT layout with a center height of 1.55mm, this interface provides robust signal integrity and compact board integration.
Key Features
- Standard Micro HDMI Type D 19-position female receptacle configuration.
- Top-mount (on-board) dual-row surface-mount technology (SMT) with ground retention tabs.
- Contact resistance rated at 30 mΩ max; insulation resistance at 1000 MΩ min.
- Dielectric withstanding voltage: AC 500V for 1 minute.
- High-durability phosphor bronze contacts rated for 10,000 mating cycles.
- High-temperature LCP black housing (UL 94V-0 compliant) suitable for lead-free reflow soldering.
- Operating temperature range: -25°C to +85°C.
Engineering Specifications & PCB Integration
Engineered for high-volume automated SMT pick-and-place assembly, the connector features dual-row contact leads paired with sturdy shell retention posts to absorb mechanical insertion stress. The center height of 1.55mm ensures seamless alignment with ultra-thin enclosure apertures. For reliable solder fillet formation and structural grounding, adhere strictly to the recommended PCB land pattern tolerances and stencil aperture guidelines.
