An insulation resistance test duration for cable assemblies is the minimum electrification or stabilization time during which a specified DC test voltage is applied to allow capacitive charging current and dielectric absorption to settle before the megohm value is recorded, used to validate insulation condition against an agreed acceptance threshold.
A quality engineer reviews a first article inspection report, a quality-inspection topic covered in our What Is a Cable Tester? Function and Quality Inspection Uses article. The megohm values look acceptable—high enough to pass any reasonable threshold—but the electrification time field is blank. Without that timing record, the reading is not yet a compliance result. It is a number captured at some unknown point in a time-dependent measurement process.
The Missing Column: Megohms Without Electrification Time
The first question is not “what is the universal test duration?” but “under what agreed procedure and stabilization time was this reading taken?” Insulation resistance is not a single physical constant. When a DC test voltage is first applied across insulation, a capacitive charging current flows almost immediately. After that, a slower dielectric absorption current continues as dipoles in the insulation align. Only after both have decayed does the steady leakage current remain, and it is this steady leakage current that a meaningful megohm value represents.
An isolated megohm reading taken early in this sequence can be misleading: it may appear low because absorption current has not settled, or it may appear acceptable while still being unstable. For a cable assembly first article report, the missing electrification or stabilization time means the reading cannot be compared against any documented acceptance threshold. The megohm value alone is not a pass/fail result.
Validate the Test Protocol Before Accepting the Megohm Value
Before any acceptance decision, request four fields from the supplier’s test report: referenced standard or agreed procedure, applied test voltage, electrification/stabilization time, and pass/fail threshold. This is not administrative overhead. It is the minimum information required to reproduce the test and verify that the recorded megohm value belongs to the same conditions as the acceptance criteria.
| Report Field | Why It Matters | What to Verify |
|---|---|---|
| Referenced standard or agreed procedure | Defines the test method, conditioning, and acceptance basis | IPC/WHMA-A-620, IEEE 43, ASTM D257, or a contract-specific drawing procedure |
| Applied test voltage | Insulation resistance is voltage-dependent; a different voltage changes the measured value | Matches the drawing, BOM, or agreed procedure such as 500 VDC |
| Electrification/stabilization time | Ensures charging and absorption currents have decayed | Documented in seconds or minutes and matches the procedure |
| Pass/fail threshold | Converts a measured megohm value into an acceptance decision | Stated in MΩ and tied to the same voltage and time |
IPC/WHMA-A-620, the acceptance standard for cable and wire harness assemblies, requires that test conditions—including voltage and duration—be agreed and documented rather than leaving the reading as an isolated number. IEEE 43 and ASTM D257 provide conditional procedure guidance: IEEE 43 is commonly referenced for insulation resistance of rotating machinery and uses timed readings, while ASTM D257 provides laboratory methods for insulating materials with electrification time. Neither standard supplies an unattributed universal number of seconds for every cable assembly. If the supplier cannot cite which procedure was applied, the megohm value is unverifiable regardless of how high the reading appears.
IR Test Duration Decision Tool
The following table is a decision aid for comparing a supplier’s stated test conditions against common documented procedures. It is not a substitute for the governing contract, drawing, or product-specific acceptance plan. Match the supplier’s reported procedure to the correct row; if the report cannot populate a row, reject or conditionally accept.
IR Test Duration Decision Tool
| Governing standard / agreed procedure | Test voltage | Electrification / stabilization time | Acceptance threshold | Pass/fail action |
|---|---|---|---|---|
| IPC/WHMA-A-620 agreed procedure | 500 VDC or as specified in drawing | 60 s stabilization | Product-specific MΩ minimum from drawing or agreement | Accept if timed 60 s value meets threshold; reject if timing field is blank |
| IEEE 43 for motor or generator windings where applicable | Selected by equipment voltage rating | 1-minute reading | Minimum IR per equipment class and temperature | Accept if 1-minute reading meets limit; reject early or unstated timing |
| ASTM D257 insulating material or component procedure | Per material spec or test plan | 60 s electrification | Resistance at 60 s per material or product spec | Accept if conditions and time match; reject if only a single unlabeled meter reading |
| Supplier report missing time | Any or unknown | Not recorded | Unknown | Reject or request corrected retest with full timing data |
Use the table by first identifying the governing procedure on the purchase order, drawing, or IPC/WHMA-A-620 class requirement. If the supplier’s test report lists “IR test” but no timing, the report falls into the last row, and the correct action is reject or request a controlled retest—not acceptance based on a high megohm number.
For OEM cable assembly and wire harness projects, the test voltage and hold time often appear in the product drawing or the manufacturing quality plan. When they are missing from both the drawing and the report, the buyer should close the documentation gap before releasing material to production.
Why Seconds Matter: Charging Current, Leakage Current, Dielectric Absorption, and Polarization Index
A megohmmeter applies a known DC test voltage to the insulation and measures the resulting current in megohms. The measured value changes with time because three currents are present in sequence. Capacitive charging current is largest at the instant voltage is applied and decays rapidly as the capacitance charges. Dielectric absorption current then decays more slowly as the insulation’s molecular dipoles align with the field. Steady leakage current remains after both have decayed and reflects the true insulation condition.
This is why timed readings matter. The dielectric absorption ratio is the ratio of a 60-second insulation resistance reading to a 30-second reading. The polarization index is the ratio of a 10-minute reading to a 1-minute reading. Both ratios use the time-dependent behavior of absorption current to detect contaminated or moisture-affected insulation that a single early megohm reading might hide.
The guard terminal on a megohmmeter helps prevent surface leakage current from flowing through the measurement circuit. When connected to a guard path, it diverts surface current and allows the meter to measure the bulk insulation resistance more accurately. The applied test voltage must also match the agreed procedure: a reading taken at 250 VDC is not equivalent to a reading specified at 500 VDC, because insulation resistance does not scale linearly with voltage.
A quick final-inspection meter reading taken before export may produce a megohm value that appears compliant but is functionally meaningless if the charging and absorption phases were still in progress. The number may be high enough for the sheet, but it does not describe the cable assembly’s condition under the agreed test.
What goes wrong in the field
Failure mode 1: Readings taken too early during charging
If the operator records the megohm value seconds after applying the test voltage, charging and absorption currents may still dominate. The result can be artificially low or unstable, and it cannot be compared to a threshold defined at 60 s or 1 minute. A high-looking value taken early may still be invalid because it was not stabilized.
Failure mode 2: Moisture uptake from export packaging or transit
Insulation resistance is sensitive to moisture. A cable assembly that leaves production dry can absorb humidity inside export packaging or during maritime transit. A rapid final-inspection reading before packing may miss this environmental shift. If the first article report has no conditioning or timing context, it is impossible to know whether the reported megohm value reflects a dry, conditioned sample or a moisture-affected one.
Failure mode 3: Test voltage inconsistencies
Using 250 VDC for a test specified at 500 VDC changes the measured current and the resulting megohm value. The recorded number may fall above or below the acceptance threshold for reasons unrelated to actual insulation quality. Without a documented test voltage, the value is non-comparable to the specification.
Failure mode 4: Guard terminal not used or misconnected
For cable assemblies with exposed conductor ends or contaminated connector surfaces, surface leakage current can flow along the outer surface and dominate the measurement. If the guard terminal is not used or is connected incorrectly, the megohmmeter may measure surface leakage as if it were bulk insulation current, producing a lower or misleading reading. A formally compliant value becomes functionally meaningless when the test setup does not control this variable.
These field failure modes are why voltage, time, and procedure verification are part of acceptance. They are not separate quality tasks; they are what make the megohm number usable for an incoming inspection decision. For OEM buyers coordinating custom cable assemblies or wire harness manufacturing, these failure modes should be included in the supplier evaluation checklist before first article sign-off.
Supplier Questions and Required Documentation
When a first article report lists megohm values but no timing, send the following questions back to the supplier before accepting the lot:
- Which standard or agreed procedure was applied?
- What test voltage was used?
- What electrification/stabilization time was applied?
- What acceptance threshold was used for pass/fail?
- What megohmmeter model and range were used, and was the guard terminal connected?
- What were the ambient temperature and humidity during the test, if relevant to the procedure?
- Can the supplier provide raw resistance-versus-time data or plotted values, not just a single final megohm number?

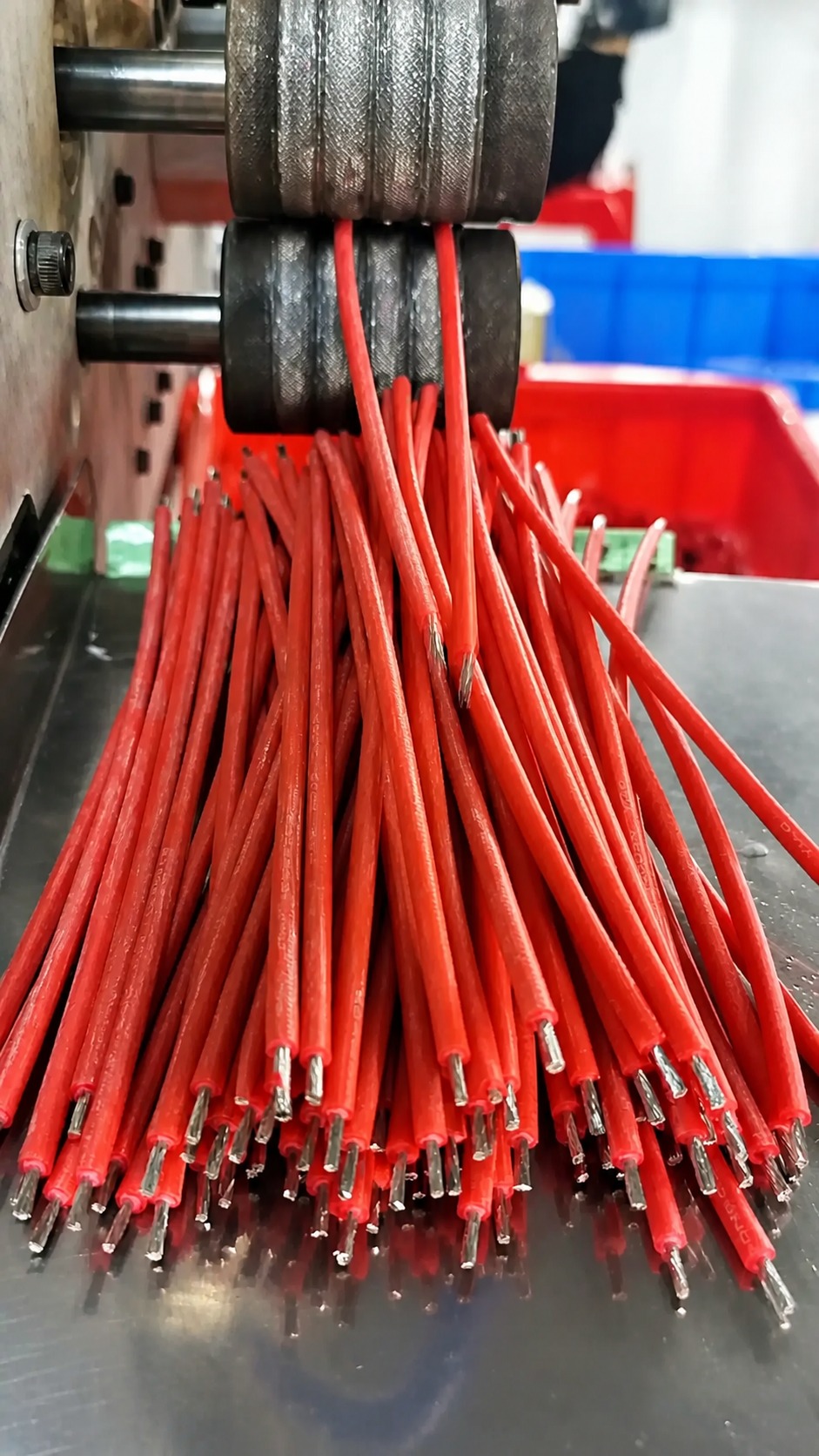

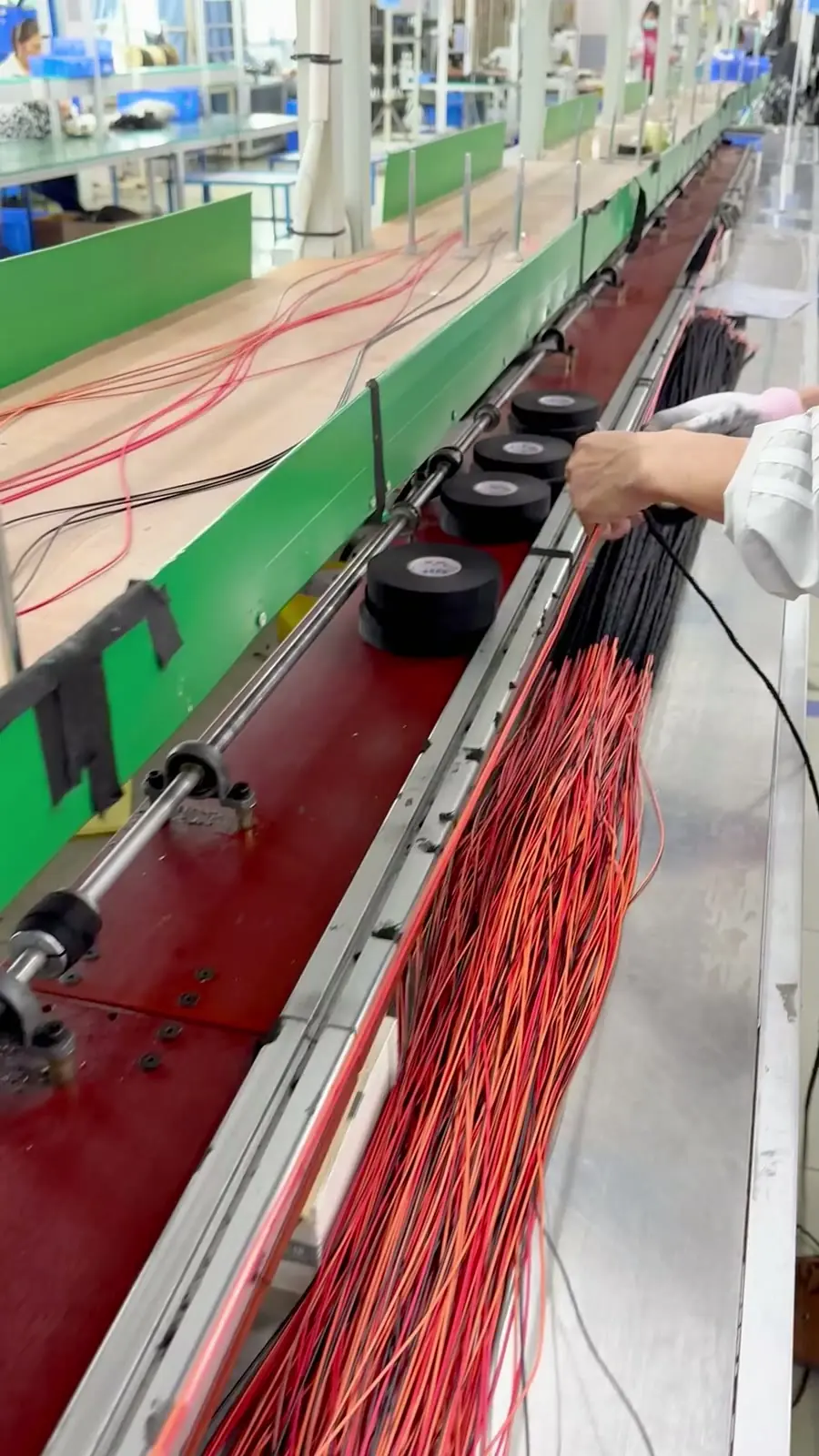

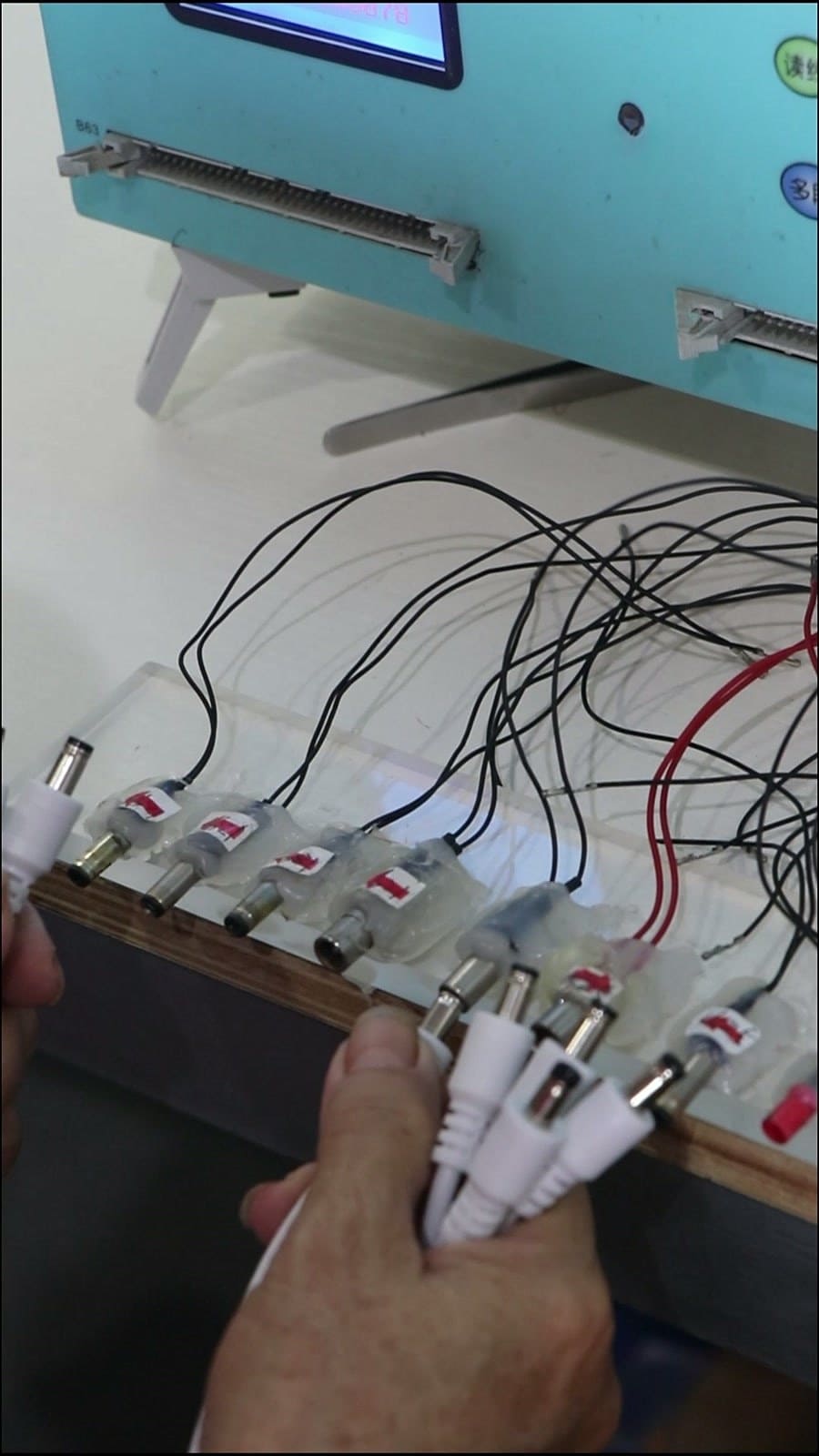

Request a corrected first article report with the missing timing fields completed. The corrected report must also confirm the test voltage and threshold. For custom cable assembly or wire harness projects, the supplier should be able to show how the insulation resistance test fits into the broader process from cutting and stripping to crimping, continuity testing, appearance inspection, and export packaging, as discussed in our How Manufacturers Ensure Consistent Cable Assembly Quality article,.
Suppliers such as EDOM Electronics support OEM buyers with requirement review, connector matching, sample coordination, production follow-up, inspection, and export-ready packaging for custom cable assemblies and wire harnesses. This type of documentation discipline confirms that insulation resistance timing is treated as a process parameter, not an optional field.
Final Decision: Accept, Conditionally Accept, or Reject
Use a simple go/no-go framework. Accept the first article only when the report cites a procedure, test voltage, hold time, and acceptance threshold that all align with the purchase order or drawing. Conditionally accept if the measured values meet the agreed threshold but the documentation is incomplete—for example, the timing is recorded only in an email, not in the formal report. Reject if the timing, voltage, or procedure cannot be verified under any documented condition.
A megohm value alone is not a pass/fail result. It is a data point tied to documented test conditions. The same numerical reading could mean very different things at 1 second and 60 seconds, at 250 V and 500 V, with or without a guard terminal. Electrification and stabilization time should be a mandatory field in first article reports and incoming inspection checklists. Once that field is populated and verified, the IR test can serve its intended purpose: a reliable insulation condition check before cable assemblies move into production release or export.
Frequently Asked Questions
Does a 1-second megohmmeter reading count as a valid insulation resistance test for cable assemblies?
It depends on the test phase and product capacitance. For 100% routine production testing on short OEM wire harnesses, high-speed automated cable testers frequently use dwell times of 0.5 to 1 second because low-capacitance harnesses stabilize almost instantaneously. However, for First Article Inspection (FAI), qualification tests, or high-resistance requirements (>1000 MΩ), a 1-second test is generally insufficient to satisfy steady-state absorption or standards requiring 60-second electrification (such as EIA-364-21 or MIL-STD-202 Method 302).
What electrification time does IPC/WHMA-A-620 require for cable assemblies?
IPC/WHMA-A-620 requires that test conditions be agreed and documented rather than prescribing one standalone number of seconds for every assembly. A 60-second stabilization time is common when defined in the drawing or manufacturing quality plan, but the report must record the actual duration used.
What is the difference between dielectric absorption ratio and polarization index?
Dielectric absorption ratio is the insulation resistance reading at 60 seconds divided by the reading at 30 seconds. Polarization index is the 10-minute reading divided by the 1-minute reading. Both compare timed readings to assess how quickly absorption current settles, with polarization index used more often for larger equipment such as motor windings.
Should an OEM buyer accept a high megohm value if the test voltage is unknown?
No. Insulation resistance changes with applied voltage. A high reading taken at 250 VDC cannot be compared to an acceptance threshold defined at 500 VDC. The test voltage, hold time, and procedure must be documented together.
What should a procurement manager request when the IR test timing is missing from a first article report?
Request a corrected report with the referenced standard or procedure, test voltage, electrification/stabilization time, acceptance threshold, megohmmeter model and range, guard terminal connection, and ambient conditions if relevant. Ask for raw resistance-versus-time data where available before accepting the lot.
Key Takeaways
- A megohm value is only a pass/fail result when tied to a documented procedure, test voltage, hold time, and acceptance threshold.
- IPC/WHMA-A-620 requires agreed and documented test conditions; there is no universal unattributed number of seconds for cable assemblies.
- Missing electrification/stabilization time means the measured value cannot be verified—request a corrected first article report.
- Timed ratios such as dielectric absorption ratio and polarization index help detect moisture and contamination that single early readings miss.
- Use an accept/conditionally accept/reject decision framework before releasing material to production or export.
