Technical Specifications
- Connector Type
- Mini HDMI Type C Receptacle (Female)
- Number of Positions / Pins
- 19 Pins
- Mounting Type
- SMT Sinking (Mid-Mount / Flat Mouth)
- Profile Height (H)
- 1.50 ± 0.15 mm
- Contact Pitch
- 0.40 mm
- Connector Depth
- 8.00 mm (11.20 mm shell tabs)
- Front Shell Dimensions
- 10.50 x 2.50 mm
- Recommended PCB Thickness
- 1.00 mm to 1.20 mm
- Mating Durability
- 10,000 Cycles Min.
- Logo Configuration
- No Logo (Neutral/OEM)
- Standard Compliance
- RoHS Compliant, Lead-Free
Material Composition
| Material | Value / Description |
|---|---|
| Housing Material | Thermoplastic (LCP, UL 94V-0), Color: Black |
| Contact Material | Copper Alloy C2680 (T=0.10 mm) |
| Contact Plating | Au 1u + GF Plated |
| Shell Material | Copper Alloy C2680 (T=0.30 mm) |
| Shell Plating | Au 0.8u Plated |
Technical Characteristics
| Characteristic | Value |
|---|---|
| Contact Resistance | 30 mΩ Max. |
| Insulation Resistance | 1000 MΩ Min. |
| Dielectric Withstanding Voltage | AC 500V, 1 Minute |
| Operating Temperature Range | -55°C to +105°C |
| General Tolerances | ±0.05 mm (PCB Layout) |
Application Scenarios
-
Compact Action Cameras & Gimbal Video Transmission Modules
-
Portable Field Monitors & Handheld Test/Measurement Devices
-
Industrial Single Board Computers (SBC) & Thin Embedded PCs
-
High-Definition Video Splitters & Converters
-
Automotive Display Interfaces & Medical Handheld Hardware
Frequently Asked Questions
What does "SMT Flat-Mouth Mid-Mount H1.50" mean for PCB cutout design?
It specifies that the Mini HDMI female receptacle is engineered with a flush/flat mating interface and mid-mount (sinking) design. When mounted into the board-edge cutout, it maintains an above-board profile height of 1.50mm, significantly reducing enclosure thickness.
What PCB thickness is recommended for this Mini HDMI receptacle?
The recommended printed circuit board thickness is 1.00mm to 1.20mm to ensure proper solder tail coplanarity (within 0.08mm) and mechanical stability across all 19 SMT contacts.
What are the environmental and electrical reliability ratings?
It operates across an extended temperature range of -55°C to +105°C, features contact resistance ≤30 mΩ, insulation resistance ≥1000 MΩ, and withstands AC 500V for 1 minute.
Overview and Application Notes

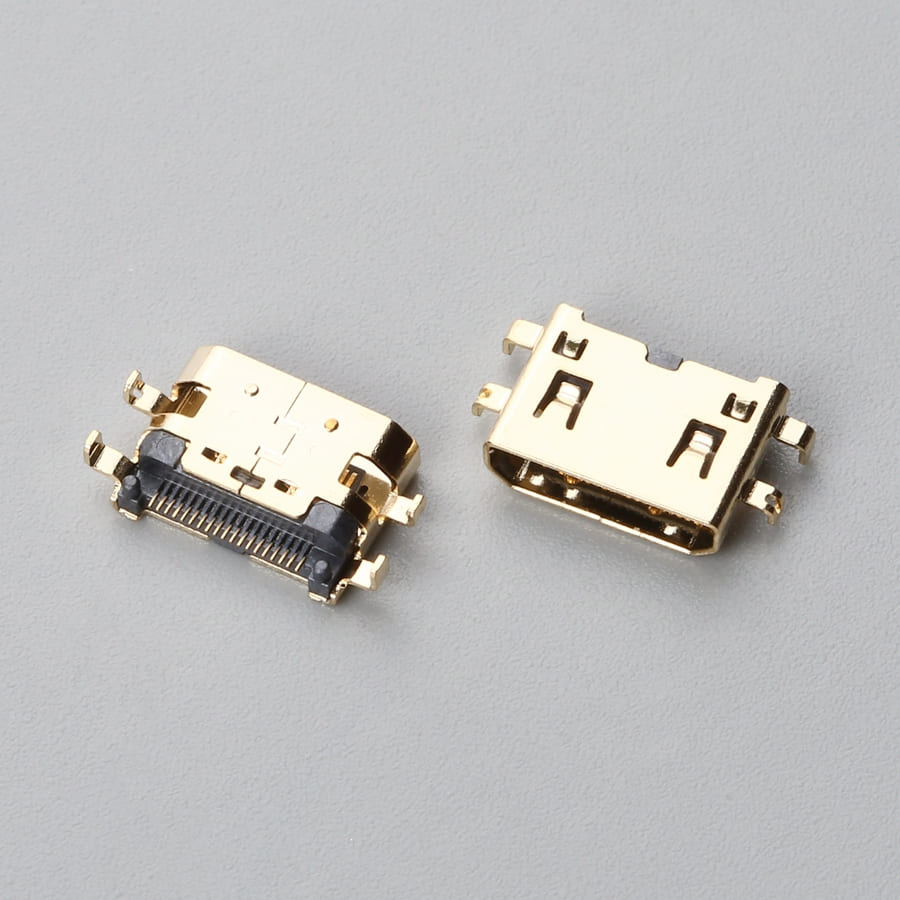

This Mini HDMI (Type C) 19-position female receptacle features a flat-mouth (平口) SMT sinking mount architecture with a 1.50mm profile height, engineered for board-edge PCB cutouts requiring high-speed digital audio and video transmission in low-profile electronic designs.
Key Features
- Form Factor & Pinout: Mini HDMI Type C 19-Pin female receptacle with flat-mouth SMT sinking (mid-mount) configuration.
- Low-Profile Design: 1.50mm sinking profile height (H=1.50mm) engineered to minimize overall PCB vertical clearance.
- Rugged Construction: C2680 copper alloy shell (T=0.30mm, Au 0.8u plated) and high-temperature UL 94V-0 black thermoplastic (LCP) housing.
- High-Conductivity Contacts: 19 copper alloy contacts (C2680 T=0.10mm) plated with Au 1u + Gold Flash for superior signal integrity and wear resistance.
- Mechanical Durability: Rated for a minimum of 10,000 mating cycles.
- Extended Temperature Range: Qualified for operating environments from -55°C to +105°C.
Engineering Specifications & PCB Integration
Designed for automated SMT surface-mount assembly, this receptacle incorporates a high-density 0.40mm signal pitch and 4 grounding hold-down tabs to deliver robust mechanical retention against insertion and extraction forces. Sinking the connector body directly into the PCB cutout lowers the vertical envelope above the board to 1.50mm, ensuring tight mechanical alignment with outer enclosure ports on standard 1.00mm to 1.20mm PCBs.
