Technical Specifications
- Connector Type

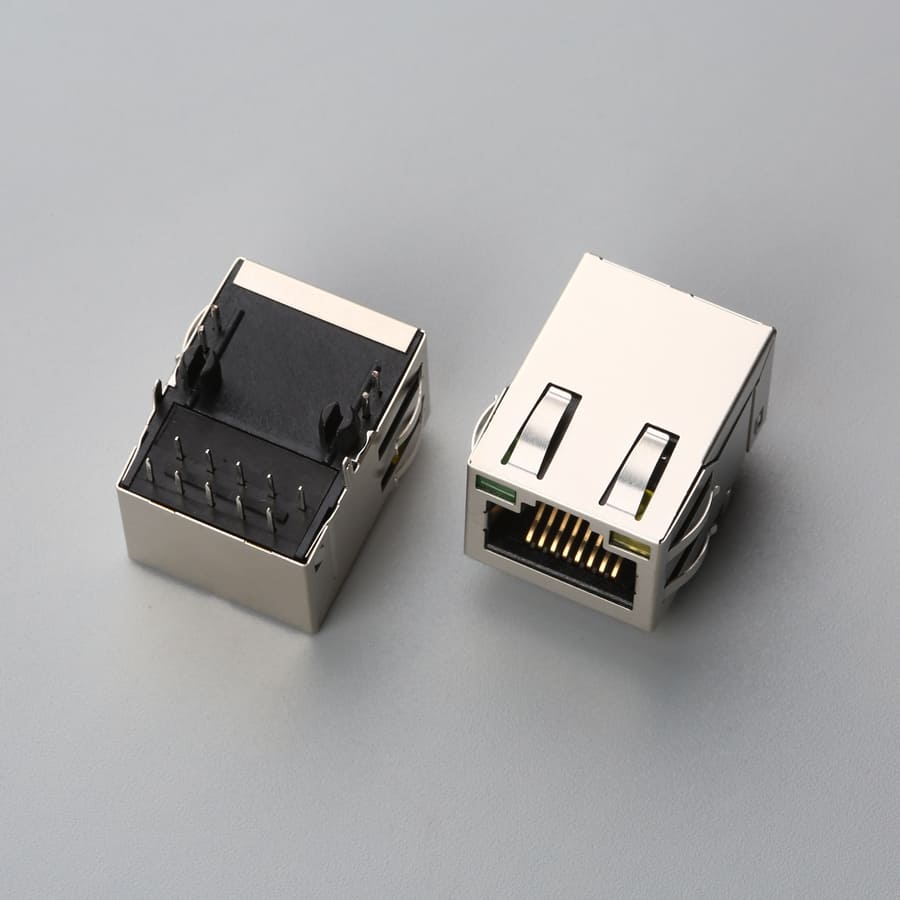

- RJ45 8P8C Female Modular Jack
- Number of Positions / Contacts
- 8 Positions / 8 Contacts (8P8C)
- Mounting Type
- Through-Hole DIP / Right Angle
- Body Length (Depth)
- 21.35 mm
- Overall Dimensions (L x W x H)
- 21.35 mm x 15.95 mm x 13.60 mm (Excluding solder leads)
- Visual Indicators
- Dual Integrated LEDs: Left (Green) / Right (Yellow)
- Signal Pin Pitch
- 1.02 mm (11.43 mm overall row span across pin pattern)
- PCB Hole Specifications
- 10x Ø0.89 mm (Signal), 4x Ø1.02 mm (LEDs 11–14), 2x Ø1.63 mm (Locating), 2x Ø3.20 mm (Grounding)
- Grounding / Retention Pitch
- 15.75 mm (Center-to-center)
- Mating Durability
- 750 Mating Cycles Min.
- Mating Force
- 23 N Max.
- Standard Compliance
- RoHS Compliant, UL 94V-0
Material Composition
| Material | Value / Description |
|---|---|
| Housing Material | Polybutylene Terephthalate (PBT), UL 94V-0, Black |
| Terminals Bracket Material | Polybutylene Terephthalate (PBT), UL 94V-0, Black |
| Terminal / Contact Material | Phosphor Bronze C5210, T=0.35 mm |
| Contact Area Plating | 6µ" Gold Plating on Contact Area |
| Shell Material | Brass (C2680), T=0.20 mm |
| Shell Plating | Nickel Plating Overall |
Technical Characteristics
| Characteristic | Value |
|---|---|
| Mating Force | 23 N Max. |
| Durability | 750 Cycles Min. |
| Operating Temperature Range | -40°C to +85°C |
| Storage Temperature Range | -40°C to +85°C |
| General Tolerances | 0 Place: ±0.50 mm; 1 Place: ±0.35 mm; 2 Place: ±0.25 mm; 3 Place: ±0.15 mm; Angular: ±3° |
Application Scenarios
-
Industrial automation controllers, programmable logic controllers (PLCs), and IPCs
-
Heavy-duty Ethernet switches, industrial routers, and enterprise gateways
-
IP video surveillance cameras, network video recorders (NVRs), and security servers
-
Smart commercial POS equipment, access control panels, and interactive display systems
-
Industrial motion controllers and robotics communication interfaces
Frequently Asked Questions
What are the key footprint specifications for this DIP right-angle RJ45 jack with LEDs?
The footprint requires a signal array using 10x Ø0.89mm through-holes (11.43mm span, 0.635mm offset), 4x Ø1.02mm holes for integrated LED leads (pins 11–14), dual Ø1.63mm alignment holes, and dual Ø3.20mm board-lock grounding holes spaced 15.75mm apart with standard ±0.05mm positioning tolerances.
What optical status indication does this connector provide for network diagnosis?
The front interface integrates dual LEDs with Green on the left and Yellow on the right. This allows immediate visual feedback for Ethernet connection state, link transmission speed (10/100/1000 Mbps), and packet traffic without requiring external optical light pipes.
How do the contact plating and materials ensure high reliability in industrial hardware?
The terminal contacts are fabricated from C5210 phosphor bronze (0.35mm thickness) plated with 6µ" gold at the contact mating area. Paired with a nickel-plated C2680 brass shield and UL 94V-0 rated PBT housing, it provides stable low contact resistance, 750 mating cycles, and complete EMI/RFI suppression across -40°C to +85°C.
What are the mechanical retention and mating force ratings for this connector?
The connector features a maximum mating insertion force of 23N and is mechanically qualified for at least 750 mating cycles, utilizing dual Ø3.20mm grounding solder pegs to resist mechanical shear force and cable strain during field maintenance.
Overview and Application Notes
This through-hole DIP right angle RJ45 8P8C female modular jack features integrated dual LED indicators (Left Green / Right Yellow) and an extended 21.35mm body depth. Engineered for robust board-level Ethernet connectivity, it provides 360-degree EMI/RFI nickel shielding, high contact gold plating, and rigid mechanical anchoring for harsh industrial automation controllers, embedded network switches, and security appliances.
