Detailed Product Information
Technical Data & Reference
Structured parameters, material notes, application context and frequently asked questions for engineering and procurement evaluation.
Specifications
- Number of Pins
- 24 Pins
- Key Position
- Type C

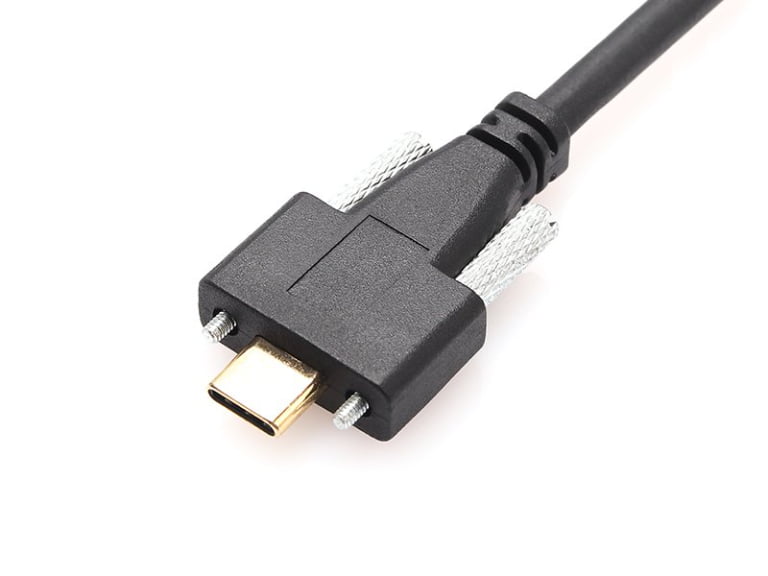

- Left Connector
- Type-C Plug

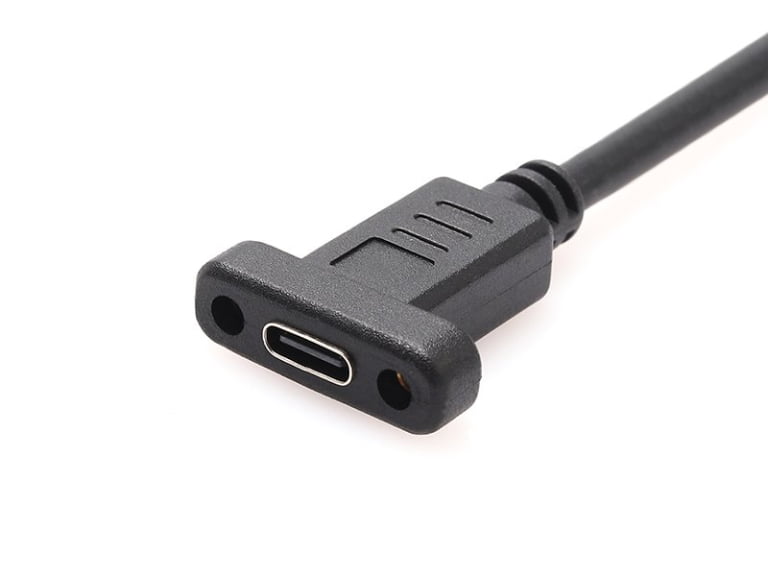

- Right Connector
- Type-C Socket
- AWG Gauge
- 24 AWG ~ 30 AWG
- Connection Type
- Plug and unplug
- Wires & Cables Length
- Customization length
Material Composition
| Material | Value / Description |
|---|---|
| Housing & Insulation | LCP, Black |
| Contacts | Copper Alloy, Gold-Plated |
| Shell | Copper Alloy, Nickel & Gold-Plated |
| Sealing | - |
| Shielding | Shield |
| Overmolding | PVC |
| Wires & Cables Conductor | Tinned Copper |
| Wires & Cables Jacket | PVC / TPE |
Technical Characteristics
| Characteristic | Value |
|---|---|
| Rated Current | 1A / 2A / 3A / 5A |
| Rated Voltage | 30V |
| Rated Temperature | -40°C ~ + 105°C |
| Flame Retardant Grade | VW-1 / UL94V-0 |
| Insulation Resistance | ≥ 100 MΩ |
| Contact Resistance | ≤10mΩ |
| Durability | ≥ 10000 Times |
| Protection Grade | - |
| Product Certification | ISO 9001:2015 |
| Production Design Standards | IPC 620 |
Application Scenarios
-
Industrial Automation & Machine Vision
-
Medical Equipment & Testing Devices
-
Commercial Electronics & Robotics
Frequently Asked Questions
Can EDOM Electronics customize the cable length, pinout, and jacket material?
Yes. We offer comprehensive OEM/ODM customization services including custom wire gauges (24-30 AWG), specialized connector mating orientations, TPE/PVC jackets, and custom branding.
What compliance standards do these cable assemblies meet?
Our factory operates under ISO 9001:2015 quality management systems, and production follows IPC-620 cable assembly standards.
Overview and Application Notes
Overview & Engineering Support
The Type-C Male-to-Female Plug Socket Cable Assembly is an industrial-grade interconnect solution designed for high-reliability data transmission, modern industrial automation, and rugged power delivery systems. Engineeered to meet demanding OEM and ODM standards, this custom cable assembly features robust shielding, high-temperature resistance, and versatile pin configurations (up to 24 Pins) for seamless plug-and-play integration.
Whether you require custom wire lengths (AWG 24 to 30), specialized overmolding materials (PVC/TPE), or strict IP rating requirements, EDOM Electronics provides end-to-end technical support, rapid prototyping, and IPC-620 compliant factory production.
Key Features & Performance Highlights
- High-Speed & Power Delivery: Supports multi-pin configurations with rated currents from 1A up to 5A and a rated voltage of 30V DC.
- Rugged Environmental Tolerance: Operates efficiently across extreme temperature ranges (-40°C to +105°C) with UL94V-0 / VW-1 flame retardants.
- Durable Mechanical Construction: Tested for ≥10,000 mating cycles, featuring gold-plated copper alloy contacts and LCP high-insulation housing.
- Industrial Shielding: Integrated full-metal shell and braided shield to minimize EMI/RFI interference in complex electrical environments.
Target Applications & Industry Use Cases
This industrial Type-C extension cable assembly is extensively used across several high-demanding sectors:
- Industrial Automation & Machine Vision: Reliable signal routing for automated optical inspection (AOI) cameras and motion controllers.
- Medical Equipment & Testing Devices: Secure data acquisition and diagnostic interface connections requiring high durability.
- Commercial Electronics & Robotics: Embedded power and data links for mobile autonomous robots (AMR) and industrial display panels.
