Detailed Product Information
Technical Data & Reference
Structured parameters, material notes, application context and frequently asked questions for engineering and procurement evaluation.
Competitor & Cross-Reference
- Alternative Type
- Drop-in Replacement
- Competitor Part Number
- Molex 47151-6001, Amphenol 10029449-211RLF
- Mates With
- Standard HDMI Type A Male Cable Plugs
Drop-in Replacement: This part is a direct, pin-compatible substitute for the competitor part number listed above. No design modification required.
Technical Specifications
- Interface Type
- HDMI Type A Female Receptacle
- Pin Count
- 19 Positions
- Orientation / Mounting
- 180° Straddle Mount / Edge Mount
- Contact Pitch
- 0.50 mm (Pad Pitch 1.00 mm staggered)
- Shell Thickness
- 0.50 mm (T = 0.50 mm)
- Recommended PCB Thickness
- 1.20 mm
- Environmental Compliance
- RoHS Compliant
Material Composition
| Material | Value / Description |
|---|---|
| Housing | Thermoplastic (LCP), UL 94V-0, Blue / Black |
| Contact Material | Copper Alloy (T = 0.20 mm) |
| Contact Plating | Gold Plated in Mating Area (Au), Tin/Lead-Free Tin Plated in Solder Area (Tin/Sn) |
| Shell Material | Copper Alloy C2680 (T = 0.50 mm) |
| Shell Plating | Nickel Plated (Ni) |
Technical Characteristics
| Characteristic | Value |
|---|---|
| Contact Resistance | 20 mΩ Max |
| Insulation Resistance | 1000 MΩ Min |
| Dielectric Withstanding Voltage | AC 500V, 1 Minute |
| Durability / Mating Cycles | 10,000 Cycles Min |
| Operating Temperature | -55°C to +105°C |
Application Scenarios
-
Thin Embedded Motherboards & Low-Profile IPCs
-
Industrial Automation Interfaces & Edge AI Devices
-
Multi-Screen Video Splitters & Extenders
-
Edge-to-Edge Display Modules & Broadcast Gear
-
Compact Drone Ground Stations & Video Transmission Receivers
Frequently Asked Questions
What is the board mounting type and recommended PCB thickness for this HDMI receptacle?
This connector features a 180-degree straddle mount (edge clamp) configuration designed specifically for 1.20mm thick PCBs, allowing seamless coplanar board-edge integration.
What is the shell thickness and shielding structure?
It utilizes a robust 0.50mm heavy-gauge copper alloy shell with nickel plating, providing enhanced structural rigidity and continuous 360-degree EMI/RFI grounding.
What temperature environments can this connector support?
Engineered with high-temperature UL 94V-0 thermoplastic housing, it operates across an industrial temperature range from -55°C to +105°C.
Overview and Application Notes
Overview

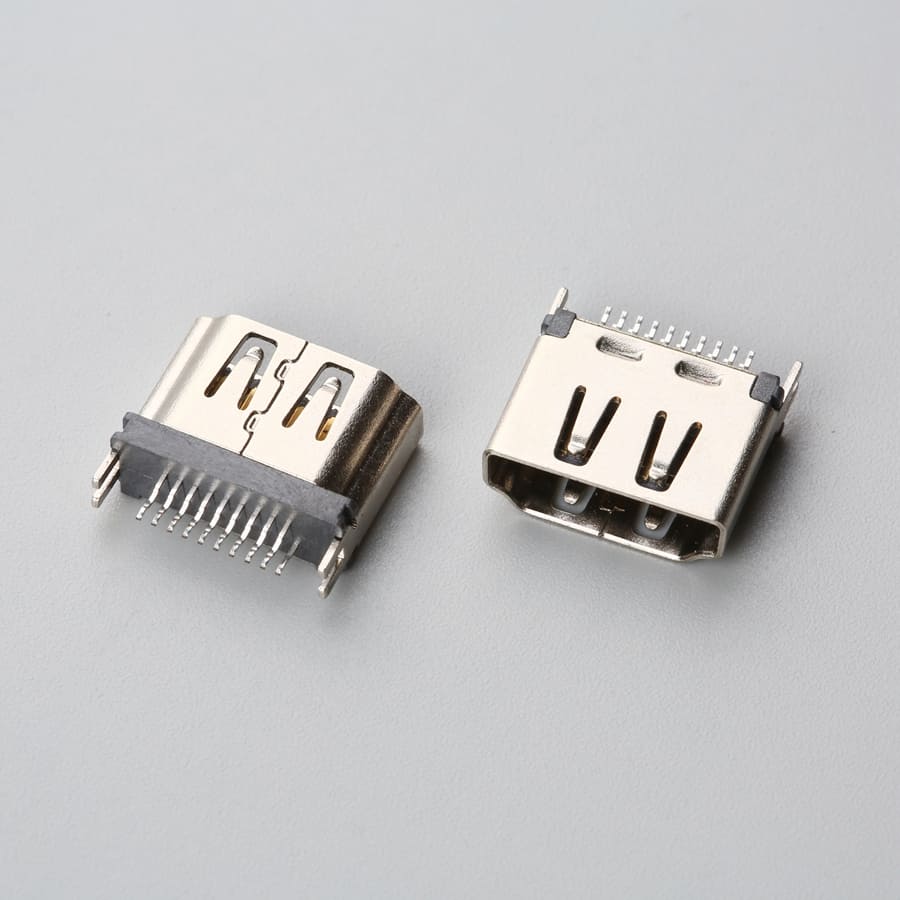

The HDMI Type A 19-Pin Female 180° Straddle Mount Connector is an industrial-grade edge-mount interconnect engineered specifically for 1.20 mm PCB thickness applications. Designed to sandwich directly onto the board edge, this 180-degree in-line configuration significantly reduces vertical profile height, making it an ideal choice for ultra-slim embedded systems, low-profile industrial computers, and space-constrained video processing hardware.
Constructed with an extra-durable 0.50 mm copper alloy shell and high-performance UL 94V-0 thermoplastic housing, this receptacle delivers superior mechanical retention against high cable pull forces. With an extended operating range of -55°C to +105°C and 10,000 mating cycle endurance, it provides rock-solid electrical and high-speed AV signal integrity under harsh industrial conditions.
—
Key Features & Engineering Advantages
- 180° Straddle Mount Form Factor: Clamps directly onto the edge of 1.20 mm PCBs, minimizing vertical height and eliminating connector overhang.
- Heavy-Gauge 0.50 mm Shell: Fabricated from 0.50 mm thick copper alloy (C2680) with nickel plating, delivering exceptional structural stiffness and complete EMI/RFI shielding.
- Reliable Contact Metallurgy: High-conductivity copper alloy contacts (T=0.20 mm) with gold plating on mating points for low contact resistance (20 mΩ max) and tin plating on solder tails.
- Wide Operating Temperature: Qualified for industrial environments spanning -55°C to +105°C, surpassing consumer-grade alternatives.
- High Mechanical Durability: Rated for a minimum of 10,000 insertion and withdrawal cycles, ensuring long-term port reliability.
—
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Interface & Gender | HDMI Type A, 19 Positions, Female Receptacle |
| Mounting Configuration | 180° Straddle Mount / Edge Clamp (夹板式) |
| Recommended PCB Thickness | 1.20 mm |
| Housing Material | Thermoplastic (LCP), UL 94V-0, Blue / Black |
| Contact Material & Finish | Copper Alloy (T = 0.20 mm), Selective Au / Tin Plated |
| Shell Material & Finish | Copper Alloy C2680 (T = 0.50 mm), Nickel Plated |
| Contact Resistance | 20 mΩ Max |
| Insulation Resistance | 1000 MΩ Min |
| Dielectric Withstanding Voltage | 500V AC (1 Minute) |
| Operating Temperature | -55°C to +105°C |
| Durability Rating | 10,000 Mating Cycles Min |
| Environmental Compliance | RoHS Compliant |
—
Target Applications
- Slim Embedded Motherboards: Low-profile IPCs, Mini-ITX boards, Din-rail edge devices, and compact industrial gateways.
- Commercial Display Interfaces: Ultra-thin digital signage controllers, LED video wall controllers, and multi-display splitters.
- Audio / Video Infrastructure: Matrix switchers, HDMI capture cards, optical extenders, and broadcast transceivers.
- Field Test & Monitoring: Handheld diagnostic tablets, medical video output cards, and robotics ground stations.
—
Cross-Reference & Compatibility Guidance
This 19-pin 180° straddle-mount female HDMI connector serves as an exact Drop-in Replacement for industry standard 1.20mm edge-mount HDMI receptacles (such as Molex 47151-6001 and Amphenol 10029449-211RLF). It matches standard dual-sided staggered PCB landing pads and grounding pad dimensions, allowing zero-redesign BOM second-sourcing and immediate manufacturing cost optimization.
