Technical Specifications
- Interface Type
- HDMI Type A Female Receptacle
- Pin Count
- 19 Positions
- Contact Pitch
- 0.50 mm
- Design / Form Factor
- Short Body , SMT Type
- Mechanical Features
- With Flange / Mounting Ear (M3.0*0.5), Without Logo, Without Convex
- Recommended PCB Thickness
- 1.20 mm to 1.60 mm
- Coplanarity
- 0.10 mm Max
- Environmental Compliance
- RoHS Compliant
Material Composition
| Material | Value / Description |
|---|---|
| Housing | Thermoplastic, UL 94V-0, Black |
| Contact Material | Copper Alloy (T = 0.20 mm) |
| Contact Plating | Gold Plated in Mating Area, Tin Plated in Solder Area (Au / Tin Plated) |
| Shell Material | Copper Alloy (T = 0.50 mm) |
| Shell Plating | Nickel Plated (Ni Plated) |
Technical Characteristics
| Characteristic | Value |
|---|---|
| Contact Resistance | 20 mΩ Max |
| Insulation Resistance | 1000 MΩ Min |
| Dielectric Withstanding Voltage | AC 500V, 1 Minute |
| Durability / Mating Cycles | 10,000 Cycles Min |
| Operating Temperature | -55°C to +105°C |
Application Scenarios
-
Embedded Panel Mount Displays & Monitors
-
Industrial PCs (IPC), SBCs & Automation Control Boxes
-
Ruggedized AV Equipment & Video Matrix Switchers
-
Medical Visual Diagnostic Consoles & Mobile Carts
-
Vehicle Infotainment & Fleet Video Management Units
Frequently Asked Questions
What is the mounting flange specification of this HDMI connector?
This connector features an integrated top mounting flange with M3.0*0.5 threading, designed for secure mechanical panel or chassis fastening to absorb cable pulling stress.
What is the operating temperature range for this short-body HDMI receptacle?
It features an industrial wide operating temperature range of -55°C to +105°C, ensuring reliable operation in demanding thermal environments.
What materials and surface platings are used?
Built with a UL 94V-0 thermoplastic housing, a 0.50mm nickel-plated copper alloy shell, and 0.20mm copper alloy contacts with gold/tin plating for optimal corrosion resistance and solder joint integrity.
Overview and Application Notes
Overview

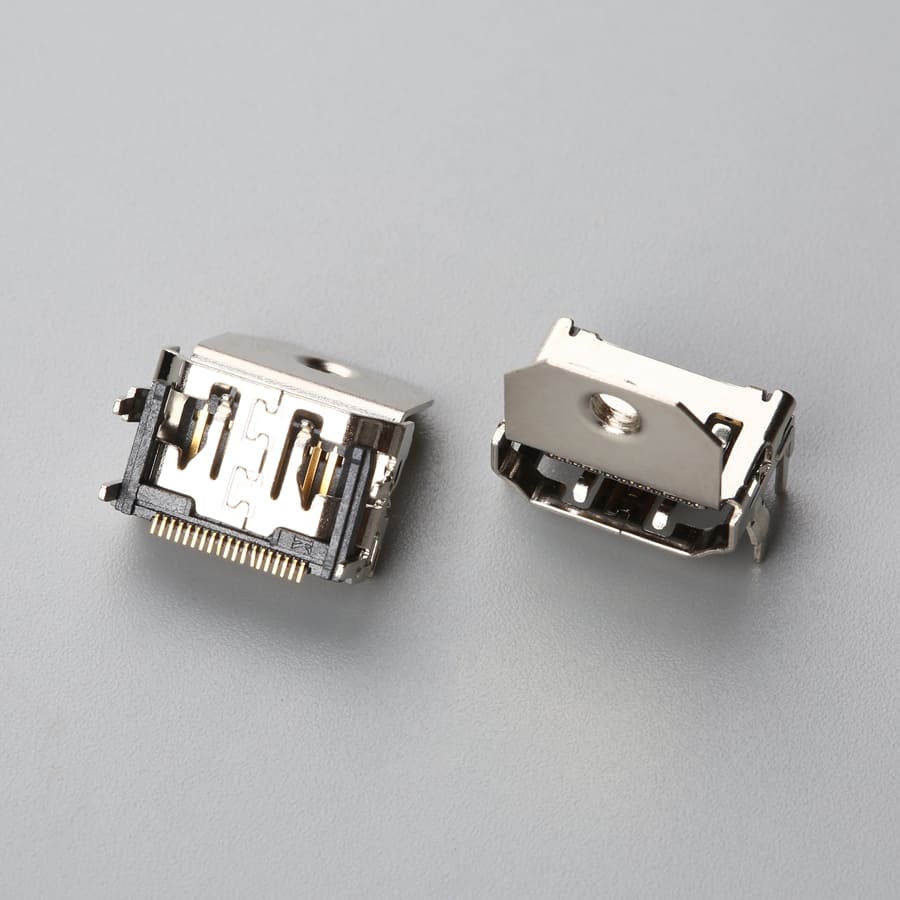

The HDMI Type A 19-Pin Female Receptacle Short Body SMT Connector with Flange is an industrial-grade interconnect designed for space-constrained PCB layouts requiring enhanced mechanical chassis retention. Built with a compact short-body profile (9.50 mm depth), this connector integrates an upper mounting ear with standard M3.0*0.5 threading, allowing engineers to secure the receptacle directly to equipment panels or internal structural brackets.
Featuring an extended operating temperature rating of -55°C to +105°C, a robust 0.50 mm nickel-plated copper alloy shell, and high-temp UL 94V-0 thermoplastic, this connector delivers exceptional structural rigidity and EMI shielding across mission-critical display, industrial automation, and professional AV hardware.
—
Key Features & Engineering Advantages
- M3 Flange Mechanical Locking: Integrated mounting ear with M3.0*0.5 threads relieves mechanical strain from heavy external HDMI cables away from surface-mount solder joints.
- Space-Saving Short-Body Design: Compact 9.50 mm body depth optimizes PCB real estate in dense embedded boards, thin-client terminals, and low-profile enclosures.
- Rugged Temperature Endurance: Rated for operation from -55°C to +105°C, exceeding standard consumer-grade specifications for harsh industrial and outdoor environments.
- Consistent Signal & Coplanarity: Precision contact alignment with 0.10 mm max coplanarity ensures defect-free SMT reflow and reliable high-speed differential signal transfer.
- 10,000 Mating Durability: Hard-wearing copper alloy contacts with selective gold/tin plating maintain low contact resistance (20 mΩ max) over extensive service life.
—
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Interface & Gender | HDMI Type A, 19 Positions, Female Receptacle |
| Form Factor | Short Body SMT with Mounting Flange (With Ear, No Logo, No Convex) |
| Mounting Hardware | M3.0 * 0.5 Threaded Hole |
| Contact Pitch | 0.50 mm |
| Housing Material | Thermoplastic, UL 94V-0, Black |
| Contact Material & Finish | Copper Alloy (T = 0.20 mm), Selective Au / Tin Plated |
| Shell Material & Finish | Copper Alloy (T = 0.50 mm), Nickel Plated |
| Contact Resistance | 20 mΩ Max |
| Insulation Resistance | 1000 MΩ Min |
| Dielectric Withstanding Voltage | 500V AC (1 Minute) |
| Operating Temperature | -55°C to +105°C |
| Durability Rating | 10,000 Mating / Unmating Cycles |
| Recommended PCB Thickness | 1.20 mm to 1.60 mm |
| Coplanarity | 0.10 mm Max |
| Environmental Compliance | RoHS Compliant |
—
Target Applications
- Panel-Mounted Displays: Industrial HMIs, ruggedized field tablets, interactive kiosks, and digital signage boards.
- Industrial Computing: Compact IPC motherboards, Din-rail computing units, and embedded edge AI gateways.
- Broadcast & AV Systems: Rackmount video switchers, AV transmitters/receivers, and professional video capture hardware.
- Medical Visualization: Surgical monitor hubs, medical diagnostic carts, and endoscopy imaging interfaces.
—
Drop-in Compatibility Guidance
This flanged short-body receptacle serves as a direct Drop-in Replacement for industry standard flanged panel-mount HDMI connectors (including Molex 47151 series flanged options and Amphenol 10029449 series). It matches standard 0.50 mm pitch SMT pad configurations and panel screw centerlines, enabling secondary sourcing and supply chain security without PCB re-spin.
