Technical Specifications
- Interface Type
- HDMI Type A Male Plug (AM)
- Pin Count
- 19 Positions
- Mounting Type
- Straddle Mount / Edge Mount
- Recommended PCB Thickness
- 1.20 mm to 1.60 mm
- Environmental Compliance
- RoHS Compliant
Material Composition
| Material | Value / Description |
|---|---|
| Housing | Thermoplastic, UL 94V-0, Black |
| Contact Material | Copper Alloy (Thickness = 0.20 mm) |
| Contact Plating | Gold Plated in Mating Area (Au), Tin Plated in Solder Area |
| Shell Material | SPCC (Steel Plate Cold Rolled) |
| Shell Plating | Nickel Plated (Ni Plated) |
Technical Characteristics
| Characteristic | Value |
|---|---|
| Contact Resistance | 20 mΩ Max |
| Insulation Resistance | 1000 MΩ Min |
| Dielectric Withstanding Voltage | AC 500V, 1 Minute |
| Durability / Mating Cycles | 10,000 Cycles Min |
| Operating Temperature | -55°C to +105°C |
Application Scenarios
-
HDMI Streaming Dongles, TV Sticks & Wireless Display Adapters
-
Direct PCB-to-Port Display Modules & Video Test Fixtures
-
Industrial Edge Computing Units & Video Encoders
-
Custom Active Optical Cable (AOC) PCB Termination Modules
-
Digital Signage Media Players & Low-Profile Video Interfaces
Frequently Asked Questions
What is the interface gender and board mounting design of this connector?
This connector is a 19-pin HDMI Type A male plug configured for straddle/edge mounting directly over a 1.20mm to 1.60mm PCB, enabling direct cableless plugging into female display ports.
What are the shell and contact materials?
It features an SPCC cold-rolled steel shell with nickel plating for structural rigidity and EMI shielding, along with 0.20mm copper alloy contacts plated with gold in the mating area and tin in the solder area.
What is the operating temperature range?
It supports an industrial operating temperature range from -55°C to +105°C and is certified for 10,000 mating cycles.
Overview and Application Notes
Overview

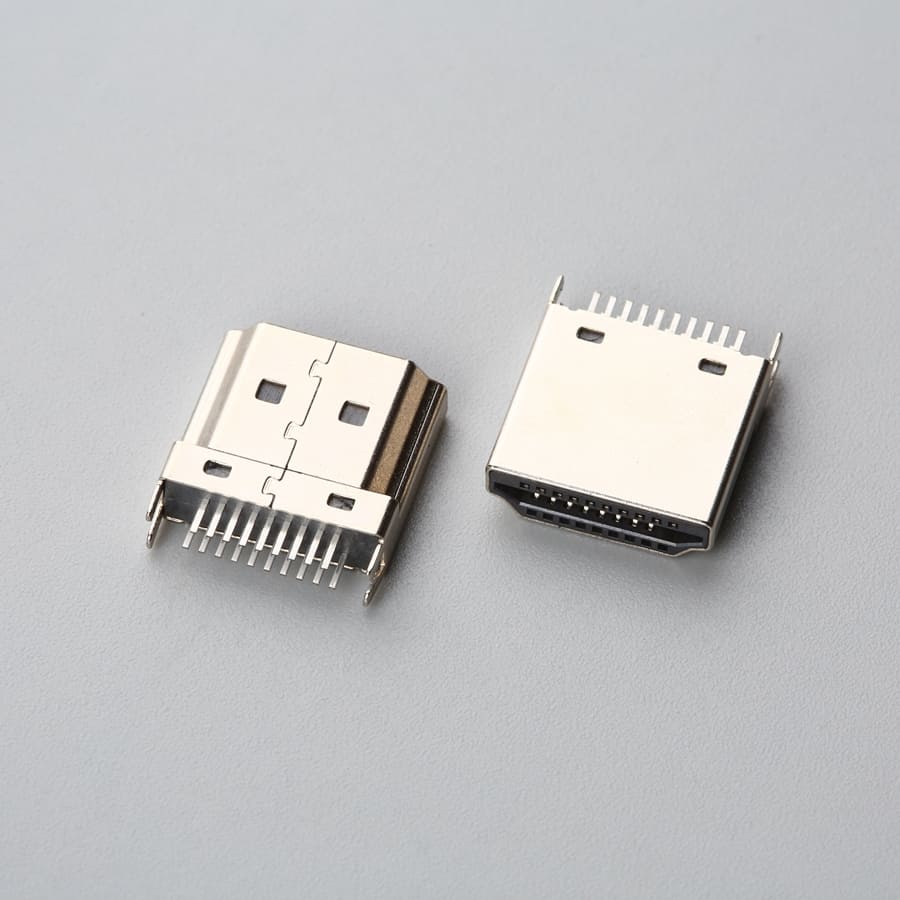

The HDMI Type A 19-Pin Male Straddle Mount Connector is an industrial-grade board-edge interconnect designed for direct device-to-display connectivity. By sandwiching directly onto the edge of 1.20 mm to 1.60 mm PCBs, this male (AM) plug eliminates the need for intermediate jumper cables, allowing engineers to build ultra-compact HDMI dongles, compute sticks, wireless display transmitters, and specialized video test fixtures.
Built with a high-strength SPCC nickel-plated steel shell and high-performance UL 94V-0 thermoplastic housing, this connector provides superior retention and resistance to bending moments when plugged into display ports. Rated for operation from -55°C to +105°C and tested to exceed 10,000 mating cycles, it ensures continuous, high-definition digital audio/video transmission under rigorous industrial and commercial conditions.
—
Key Features & Engineering Advantages
- Direct Edge Straddle Mount: Clamps directly onto 1.20 mm to 1.60 mm thick printed circuit boards, reducing BOM count and simplifying enclosure integration for compact video adapters.
- Rugged SPCC Shell Construction: Manufactured with cold-rolled SPCC steel finished with protective nickel plating, delivering exceptional mechanical rigidity, anti-deformation performance, and continuous 360° EMI/RFI shielding.
- Dual-Finish Contact Metallurgy: Features precision copper alloy contacts (T=0.20 mm) with gold plating on the active mating interface for low contact resistance (20 mΩ max) and matte tin on solder tails for high solder joint reliability.
- Wide Operating Temperature: Qualified for operation from -55°C to +105°C, ensuring robust stability in sealed enclosures, enclosed display sticks, and unventilated installations.
- High Mechanical Durability: Engineered for 10,000 mating cycles, providing long service life in frequently inserted diagnostic tools and portable video hardware.
—
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Interface & Gender | HDMI Type A, 19 Positions, Male Plug (AM) |
| Mounting Configuration | Straddle Mount / Edge Mount (夹板式) |
| Recommended PCB Thickness | 1.20 mm to 1.60 mm |
| Housing Material | Thermoplastic, UL 94V-0, Black |
| Contact Material & Finish | Copper Alloy (T = 0.20 mm), Au / Tin Plated |
| Shell Material & Finish | SPCC, Nickel Plated |
| Contact Resistance | 20 mΩ Max |
| Insulation Resistance | 1000 MΩ Min |
| Dielectric Withstanding Voltage | 500V AC (1 Minute) |
| Operating Temperature | -55°C to +105°C |
| Durability Rating | 10,000 Mating Cycles |
| Environmental Compliance | RoHS Compliant |
—
Target Applications
- Streaming & Wireless Displays: HDMI media streaming sticks, wireless presentation dongles, and mini video transmitters.
- Testing & Measurement: HDMI protocol analyzers, manufacturing burn-in test boards, and display loopback fixtures.
- Active Cable Assemblies: Hybrid optical HDMI (AOC) internal transceiver PCB terminations.
- Embedded Video Adapters: Direct-plug video converters, format transcoders, and portable mini-PC display interfaces.
—
Cross-Reference & Compatibility Guidance
This 19-pin straddle-mount male HDMI plug serves as a functional Drop-in Replacement for industry-standard edge-mount male connectors (such as Molex 47266 series and Amphenol 10029449 male variants). It matches standard 1.20mm–1.60mm board-edge dual-sided trace landing layouts, providing a cost-effective alternative source without requiring changes to circuit routing.
