Detailed Product Information
Technical Data & Reference
Structured parameters, material notes, application context and frequently asked questions for engineering and procurement evaluation.
Competitor & Cross-Reference
- Alternative Type
- Intermateable With
- Competitor Part Number
- Molex 46765-0301 / 46765-1001 (Mini HDMI Type C SMT Series)
- Mates With
- Standard HDMI Type C (Mini HDMI) Male Cable Plugs & Adaptors
Intermateable: This part is mechanically and electrically compatible for mating with the listed competitor connector. Mixed use in the same connector system is supported.
Technical Specifications
- Connector Type
- HDMI Type C (Mini HDMI) Receptacle
- Number of Positions / Pins
- 19 Pins
- Mounting Type
- SMT Mid-Mount (Sinking Mount)
- Key Dimensions
- Profile Height: 1.50mm ± 0.12mm; Width: 11.20mm; Depth: 7.50mm
- Recommended PCB Thickness
- 1.00mm to 1.20mm
- Center-to-Center Pitch
- 0.40mm pin pitch / 0.80mm pin span
- Mating Durability
- 10,000 Cycles
- Branding / Logo
- Neutral / Without Logo
- Standard Compliance
- RoHS Compliant, Lead-Free Reflow Capable
Material Composition
| Material | Value / Description |
|---|---|
| Housing Material | High-Temperature Thermoplastic (LCP), UL 94V-0, Black |
| Contact Material & Plating | Copper Alloy (T=0.10mm), Gold Plated (Au Plated) |
| Shell Material & Plating | C2680 Brass Alloy (T=0.30mm), Gold Plated (Au Plated) |
Technical Characteristics
| Characteristic | Value |
|---|---|
| Contact Resistance | 30 mΩ Max. |
| Insulation Resistance | 1000 MΩ Min. |
| Dielectric Withstanding Voltage | 500V AC RMS for 1 minute |
| Operating Temperature Range | -55°C to +105°C |
| General Tolerances | ±0.05mm (PCB Layout) / ±0.15mm (General Drawing) |
| Lead Coplanarity | 0.08mm Max. |
Application Scenarios
-
Embedded Single Board Computers (SBC) and IoT gateway video outputs
-
Industrial portable test meters, inspection monitors, and handheld tablets
-
Digital video cameras, DSLR field monitors, and compact gimbal displays
-
Compact medical diagnostic imaging terminals and endoscopy displays
-
Commercial signage media player boxes and ultra-slim edge computing units
Frequently Asked Questions
What does the 1.50mm mid-mount sinking profile indicate for PCB mechanical design?
The 1.50mm mid-mount (sinking) design indicates that the receptacle sits recessed within a cut-out on the PCB edge, establishing a 1.50mm center height to balance vertical clearance both above and below the board for ultra-thin enclosure assemblies.
What is the recommended PCB thickness and pad coplanarity tolerance for automated reflow?
The recommended PCB thickness is 1.00mm to 1.20mm. The 19 SMT signal leads require a strict coplanarity tolerance within 0.08mm to prevent soldering opens or bridging across the 0.40mm center-to-center lead pitches during SMT stencil printing.
What are the performance advantages of the gold-plated shell and contact construction?
Both the copper alloy contacts and C2680 brass shell feature gold plating, ensuring a low contact resistance of ≤30 mΩ, superior oxidation resistance in industrial environments, and reliable high-frequency shielding through 10,000 mating cycles.
What electrical and environmental endurance limits are certified for this Mini HDMI connector?
This connector is tested for a dielectric withstand voltage of 500V AC (1 minute), an insulation resistance of ≥1000 MΩ, and is certified for extended environmental operating temperatures ranging from -55°C to +105°C.
Overview and Application Notes

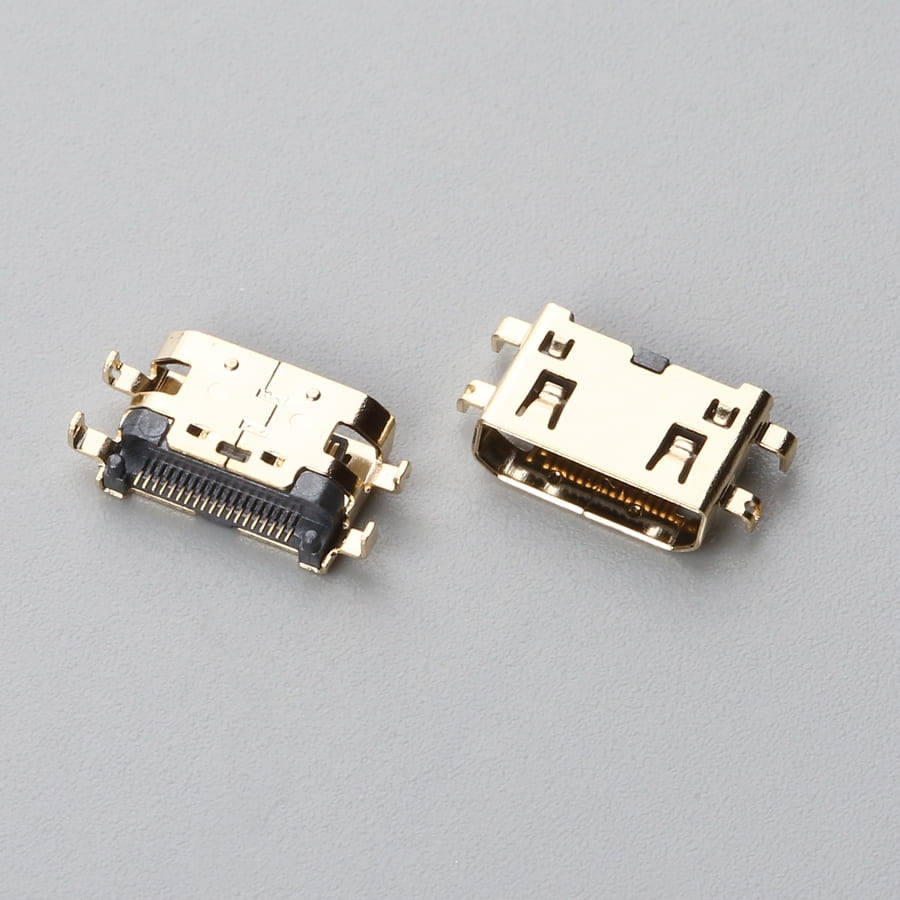

The HDMI Type C (Mini HDMI) Female receptacle is engineered for ultra-compact embedded display architectures and high-density PCB layouts. Featuring a precision SMT mid-mount (sinking mount) configuration with a 1.50mm profile height and beveled interface, this connector reduces above-board profile while delivering reliable high-definition digital signal transmission in ruggedized environments.
Key Features
- Standard Compliance: HDMI Type C 19-Pin interface, compliant with RoHS standards.
- Mounting Architecture: Surface Mount Technology (SMT) with mid-mount sinking tabs and locating posts for rigid mechanical stability.
- Precision Geometry: 1.50mm sinking profile height with an optimized beveled mating opening for smooth cable plug insertion.
- High Reliability Contact System: Copper alloy contacts with selective Gold plating (Au Plated) ensuring low contact resistance (≤30 mΩ).
- Robust Shielding: C2680 brass alloy shell (T=0.30mm) with overall Gold plating for superior EMI/RFI suppression and corrosion resistance.
- Wide Temperature Range: High-grade LCP housing (UL 94V-0) supporting harsh operating environments from -55°C to +105°C.
- Mechanical Durability: Rated for up to 10,000 mating/unmating cycles.
Engineering Specifications & PCB Integration
This connector requires a precision cutout along the PCB edge with a nominal sinking aperture of 11.70mm to 14.00mm, optimized for board thicknesses between 1.00mm and 1.20mm. Four structural ground soldering tabs provide reinforced peel-strength against cable-twist mechanical loads, while dual positioning posts (Ø0.80mm ± 0.05mm) ensure self-aligning accuracy during high-speed automated reflow soldering.
