Detailed Product Information
Technical Data & Reference
Structured parameters, material notes, application context and frequently asked questions for engineering and procurement evaluation.
Competitor & Cross-Reference
- Mates With

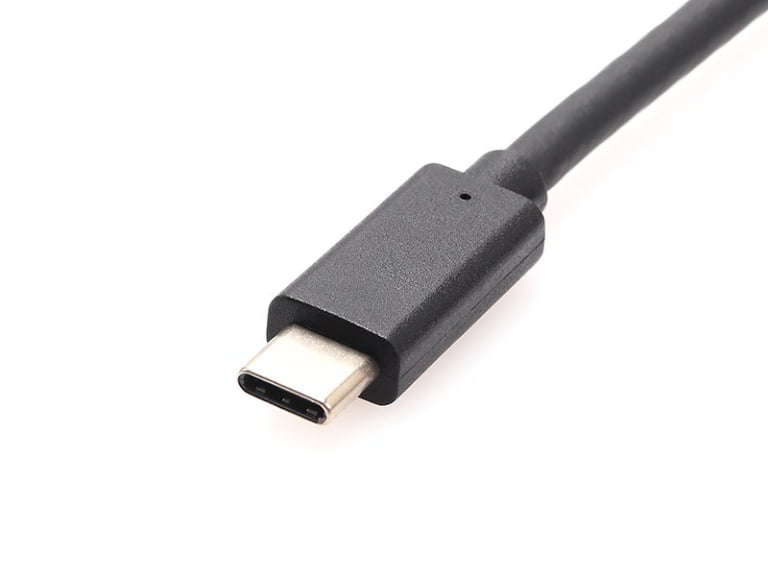

- Standard USB Type-C Plugs (with or without locking screws)
Technical Specifications
- Number of Pins
- 24 Pins
- Key Position
- Type C
- Left Connector
- Type-C Plug
- Right Connector
- Type-C Socket
- AWG Gauge
- 24 AWG ~ 30 AWG
- Connection Type
- Plug and unplug
- Wires & Cables Length
- Customization length
Material Composition
| Material | Value / Description |
|---|---|
| Housing & Insulation | LCP, Black |
| Contacts | Copper Alloy, Gold-Plated |
| Shell | Copper Alloy, Nickel & Gold-Plated |
| Overmolding | PVC |
| Wires & Cables Conductor | Tinned Copper |
| Wires & Cables Jacket | PVC / TPE |
Technical Characteristics
| Characteristic | Value |
|---|---|
| Rated Current | 1A / 2A / 3A / 5A |
| Rated Voltage | 30V |
| Rated Temperature | -40°C ~ + 105°C |
| Flame Retardant Grade | VW-1 / UL94V-0 |
| Insulation Resistance | ≥ 100 MΩ |
| Contact Resistance | ≤10mΩ |
| Durability | ≥ 10000 Times |
| Protection Grade | - |
| Product Certification | RoHS Compliant, UL94V-0 Material |
| Production Design Standards | IPC 620 |
Application Scenarios
-
Industrial Automation & Control Panels: Provides a robust external Type-C diagnostic or data port on PLC enclosures and automated machinery.
-
Self-Service Terminals & Kiosks: Ideal for ATMs, ticket vending machines, and outdoor kiosks requiring secure, tamper-resistant internal-to-external cable routing.
-
Machine Vision Systems: Ensures uninterrupted high-speed data transmission for industrial cameras subjected to continuous movement or vibration.
-
Medical Diagnostic Equipment: Delivers reliable power and data connectivity for patient monitoring systems and portable diagnostic devices.
Frequently Asked Questions
What is the main benefit of the screw field assembly design?
The screw-lock mechanism ensures the Type-C socket is firmly anchored to the device panel. This prevents the port from being pushed inward or wiggled loose during frequent plugging and unplugging, making it highly reliable for industrial applications.
Does this panel mount cable support full 24-pin Type-C functionality?
Yes, this assembly is designed with a full 24-pin configuration, supporting comprehensive Type-C features including high-speed data transfer, video output (if applicable), and Power Delivery (up to 5A).
Can you customize the cable length and jacket material for OEM orders?
Absolutely. As a factory-direct supplier, we offer flexible OEM/ODM services. You can customize the cable length, wire gauge (24-30 AWG), and choose between PVC or TPE jacket materials to suit your operating environment.
Do your manufacturing processes comply with international standards?
Yes. Our production strictly adheres to IPC 620 standards for cable assemblies, and we use UL94V-0 / VW-1 rated flame-retardant materials to ensure global compliance for your end products.
Overview and Application Notes
Product Overview: Type-C Panel Mount Cable Assembly with Screw Lock
Engineered for rugged industrial and commercial environments, this Type-C Socket Panel Mount Cable Assembly features a secure screw-locking mechanism for field assembly. Designed to bridge internal PCB connections to external equipment panels, it ensures a highly stable, vibration-resistant Type-C interface (plug-to-socket) that prevents accidental disconnections.
With a fully populated 24-pin configuration, this cable assembly supports maximum Type-C capabilities, delivering reliable power (up to 5A/30V) and high-speed data transmission required by modern electronic equipment manufacturers.
Core Technical Advantages
-
Secure Screw-Lock Design: The integrated panel-mount bracket with screw holes allows for firm attachment to machine enclosures, control cabinets, or custom chassis, ensuring zero connection failures in high-vibration environments.
-
Industrial-Grade Durability: Built with gold-plated copper alloy contacts and a robust LCP housing, the connectors boast a lifespan of ≥ 10,000 mating cycles. It operates flawlessly in extreme temperatures from -40°C to +105°C.
-
Certified Safety & Quality: Manufactured under rigorous IPC/WHMA-A-620 production design standards. The PVC/TPE jacket and overmolding utilize VW-1 / UL94V-0 flame-retardant materials for ultimate equipment safety.
-
Flexible OEM Customization: We offer tailored cable lengths and adjustable wire gauges (ranging from 24 AWG to 30 AWG) to perfectly match your specific routing and power requirements.
