HDMI Connectors

HDMI Type A 19-Pin Male Straddle Mount Connector (1.20mm – 1.60mm PCB)

Drop-in for: 47266-0001, Amphenol 10029449-311RLF, TE Connectivity 2013978-1 Mates With: Standard HDMI Type A Female Receptacles / Ports

Interface Type: : HDMI Type A Male Plug (AM)
Pin Count: : 19 Positions
Mounting Type: : Straddle Mount / Edge Mount
Recommended PCB Thickness: : 1.20 mm to 1.60 mm
Environmental Compliance: : RoHS Compliant

View Details

HDMI Connectors

HDMI Type A Female Sinking DIP H3.75 Connector

Mates With: Standard HDMI Type A Male Cable Plugs

Connector Type: : HDMI Type A Receptacle (Female)
Number of Positions / Pins: : 19 Pins
Mounting Type: : Forward Sinking DIP (Through-Hole)
Profile Height (H): : 3.75 mm
Below-Board Height: : 1.80 mm
Body Depth: : 11.65 mm (12.55 mm with shell tabs)
Front Width: : 15.00 mm (18.30 mm leg-to-leg)
Recommended PCB Thickness: : 1.20 mm to 1.60 mm
Mating Durability: : 10,000 Cycles Min.
Compliance: : RoHS Compliant, Lead-Free

View Details

HDMI Connectors

HDMI Type C Female SMT Mid-Mount 1.50mm Beveled Neutral Connector

Intermateable With: 46765-0301 / 46765-1001 (Mini HDMI Type C SMT Series) Mates With: Standard HDMI Type C (Mini HDMI) Male Cable Plugs & Adaptors

Connector Type: : HDMI Type C (Mini HDMI) Receptacle
Number of Positions / Pins: : 19 Pins
Mounting Type: : SMT Mid-Mount (Sinking Mount)
Key Dimensions: : Profile Height: 1.50mm ± 0.12mm; Width: 11.20mm; Depth: 7.50mm
Recommended PCB Thickness: : 1.00mm to 1.20mm
Center-to-Center Pitch: : 0.40mm pin pitch / 0.80mm pin span
Mating Durability: : 10,000 Cycles
Branding / Logo: : Neutral / Without Logo
Standard Compliance: : RoHS Compliant, Lead-Free Reflow Capable

View Details

HDMI Connectors

HDMI Type-A 19-Pin Reverse Mid-Mount Receptacle, Sinking DIP CL0.22 BH2.99mm

Alt. for: 47151-0001, TE Connectivity 2013978-1, Amphenol 10029449-001RLF, Wurth Elektronik 685119136923 Mates With: Standard HDMI Type-A Male Plugs & Cable Assemblies

Gender: : Receptacle (Female)
Number of Positions: : 19 Contacts
Connector Interface: : HDMI Type-A
PCB Orientation: : Horizontal / Reverse (Mid-Mount)
PCB Mount Position: : Sink / Sunken Mount
Board Standoff Height (BH): : 2.99mm
Center Line (CL): : 0.22mm
Termination Style: : Through Hole DIP
Recommended PCB Thickness: : 1.20mm to 1.60mm
Mating Cycles (Durability): : 10,000 Cycles

View Details

HDMI Connectors

HDMI Type-A 19-Pin Reverse Mid-Mount Receptacle, Sinking DIP H2.78mm

Intermateable With: 47151-0001, TE Connectivity 2013978-1, Amphenol 10029449-001RLF, Wurth Elektronik 685119136923 Mates With: Standard HDMI Type-A Male Plugs & Cable Assemblies

Gender: : Receptacle (Female)
Number of Positions: : 19 Contacts
Connector Interface: : HDMI Type-A
PCB Orientation: : Horizontal / Reverse (Mid-Mount)
PCB Mount Position: : Sink / Sunken Mount
Board Standoff / Drop Height: : 2.78mm
Termination Style: : Through Hole DIP / Hybrid
Mating Cycles (Durability): : 10,000 Cycles

View Details

HDMI Connectors

Micro HDMI Type D 19-Pin Female Connector, Top-Mount Dual-Row SMT, Center Height CH=1.55mm | EDOM

Drop-in for: 46765-0301 / Amphenol 10029449 Series Mates With: 19-Pin Male Cable Plug

Connector Type: : Micro HDMI Type D Receptacle (Female)
Number of Positions: : 19 Pin
Mounting Type: : Top-Mount / On-Board, Dual-Row SMT
Center Height (CH): : 1.55 mm
Mating Durability: : 10,000 Cycles
Environmental Compliance: : RoHS Compliant, Lead-Free
Packaging Method: : Tape & Reel (T&R) for Automated SMT Pick-and-Place

View Details

HDMI Connectors

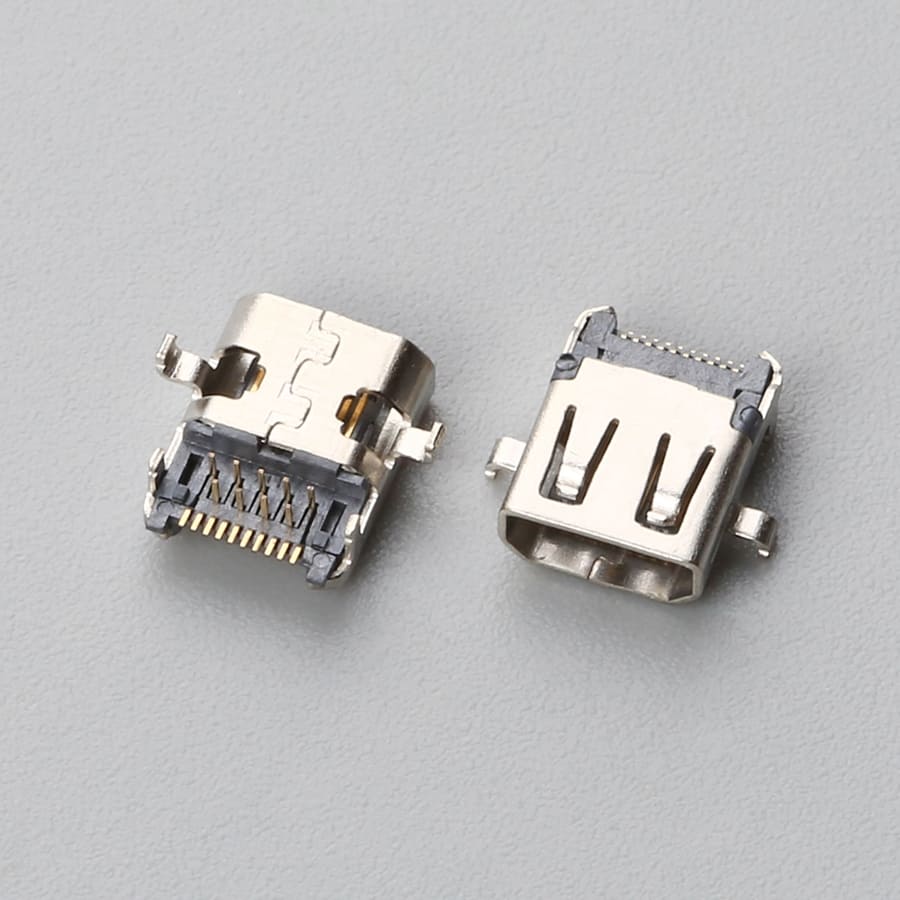

Micro HDMI Type D Female SMT+DIP Connector H2.25mm Low Profile | EDOM

Drop-in for: 46765-1001 / Amphenol 10118241 Series Mates With: Standard Micro HDMI Type D Male Plug / Cable Assemblies

Connector Type: : Micro HDMI (Type D) Receptacle / Female
Number of Positions / Pins: : 19 Pins (10 SMT + 9 DIP)
Mounting Type: : On-Board Hybrid SMT + DIP
Key Dimensions: : 8.50 mm (L) × 8.70 mm (W) × 2.25 mm (Profile Height H)
Profile Height (H): : 2.25 ± 0.15 mm
Contact Pitch: : 0.40 mm Pitch (Contact Span: 3.60 mm)
Recommended PCB Thickness: : 1.20 mm to 1.60 mm (Layout Target: 0.90 mm)
Coplanarity: : 0.10 mm Max.
Packaging Method: : Tape & Reel (EIA-481 Standard)
Carrier Tape Width: : 24.00 mm (Pitch: 16.00 mm)
Reel Specification: : Ø330 mm Reel (Plastic Reel)
Packaging Quantity: : 1,000 PCS/Reel; 10 Reels/Carton (10,000 PCS/Carton)
Carton Dimensions: : 350 mm × 350 mm × 325 mm
Mating Durability: : 10,000 Cycles
Standard Compliance: : RoHS Compliant, Halogen-Free (HF)

View Details

HDMI Connectors

Micro HDMI Type D Female SMT+DIP On-Board Connector CH 1.50mm BH 2.90mm | EDOM

Drop-in for: 46765-1001 / Amphenol 10118241 Series Mates With: Standard Micro HDMI Type D Male Plug / Cable Assemblies

Connector Type: : Micro HDMI (Type D) Receptacle / Female
Number of Positions / Pins: : 19 Pins (10 SMT + 9 DIP)
Mounting Type: : On-Board Hybrid SMT + DIP
Key Dimensions: : 7.70 mm (L) × 6.20 mm (W) × 2.90 mm (Body Height BH)
Center Height (CH): : 1.50 mm
Contact Pitch: : 0.40 mm Pitch (Span: 3.60 mm)
Recommended PCB Thickness: : 0.80 mm (Tolerance: ±0.05 mm)
Coplanarity: : 0.10 mm Max.
Mating Durability: : 10,000 Cycles
Standard Compliance: : RoHS Compliant

View Details

HDMI Connectors

Micro HDMI Type D Female Straddle Mount Connector for 1.0mm-1.2mm PCB | EDOM

Drop-in for: 46765-0301 / 46765-1001 (Micro HDMI Type D Series) Mates With: Standard Micro HDMI Type D Male Plug / Cable Assemblies

Connector Type: : Micro HDMI (Type D) Receptacle / Female
Number of Positions / Pins: : 19 Pins
Mounting Type: : Straddle Mount / Edge Mount
Key Dimensions: : 12.70 mm (L) × 8.30 mm (W) × 3.80 mm (H)
Mating Interface Length: : 7.00 ± 0.05 mm
Contact Pitch: : 0.75 mm (Contact Width: 6.75 mm)
Compatible PCB Thickness: : 1.00 mm / 1.20 mm
Mechanical Mating Durability: : 5,000 Cycles (at 100 ± 50 cycles/hr)
Insertion / Withdrawal Force: : Insertion: 4.5 kgf Max. / Removal: 0.5 kgf Min., 2.5 kgf Max.
Standard Compliance: : RoHS Compliant

View Details
