Detailed Product Information
Technical Data & Reference
Structured parameters, material notes, application context and frequently asked questions for engineering and procurement evaluation.
Competitor & Cross-Reference
- Alternative Type
- Drop-in Replacement
- Competitor Part Number
- Molex 46765-1001 / Amphenol 10118241 Series
- Mates With
- Standard Micro HDMI Type D Male Plug / Cable Assemblies
Drop-in Replacement: This part is a direct, pin-compatible substitute for the competitor part number listed above. No design modification required.
Technical Specifications
- Connector Type
- Micro HDMI (Type D) Receptacle / Female
- Number of Positions / Pins
- 19 Pins (10 SMT + 9 DIP)
- Mounting Type
- On-Board Hybrid SMT + DIP
- Key Dimensions
- 7.70 mm (L) × 6.20 mm (W) × 2.90 mm (Body Height BH)
- Center Height (CH)
- 1.50 mm
- Contact Pitch
- 0.40 mm Pitch (Span: 3.60 mm)
- Recommended PCB Thickness
- 0.80 mm (Tolerance: ±0.05 mm)
- Coplanarity
- 0.10 mm Max.
- Mating Durability
- 10,000 Cycles
- Standard Compliance
- RoHS Compliant
Material Composition
| Material | Value / Description |
|---|---|
| Housing (Top / Bottom Insulator) | High Thermoplastic, UL 94V-0 Rated, Black |
| SMT Contact Material (10P) | Copper Alloy |
| DIP Contact Material (9P) | Copper Alloy |
| Shell Material | Stainless Steel |
Technical Characteristics
| Characteristic | Value |
|---|---|
| Contact Resistance | 30 mΩ Max. |
| Insulation Resistance | 1000 MΩ Min. |
| Dielectric Withstanding Voltage | 500V AC / 1 Minute |
| Operating Temperature Range | -55°C to +105°C |
| General Tolerances | 3 Places: ±0.15 mm; 2 Places: ±0.20 mm; 1 Place: ±0.25 mm; Angular: ±3° |
Application Scenarios
-
Single-board industrial computers (SBC) and embedded automation controllers
-
Portable medical diagnostics, endoscopy devices, and handheld monitoring gear
-
Drone FPV ground stations, aerial camera transmitters, and gimbal units
-
Rugged tablets, thin commercial display panels, and digital signage players
-
In-vehicle camera links and mini infotainment head units
Frequently Asked Questions
What does On-Board SMT+DIP mounting signify for this Micro HDMI Type D connector?
It describes a hybrid PCB assembly architecture where 10 surface-mount (SMT) contact leads handle high-speed differential pairs, while 9 through-hole (DIP) contact pins combined with dual shield pegs anchor directly through the PCB, delivering mechanical rip-off strength with an overall profile height of 2.90 mm and a center height (CH) of 1.50 mm.
What is the recommended PCB thickness and layout tolerance for this connector?
The recommended PCB substrate thickness is 0.80 mm with a manufacturing tolerance of ±0.05 mm. The footprint incorporates 0.40 mm pitch signal traces with a tight coplanarity specification of 0.10 mm to avoid soldering bridging or cold joints during standard reflow.
What are the electrical withstanding and environmental limits of this connector?
The receptacle features an insulation resistance of 1000 MΩ minimum, contact resistance capped at 30 mΩ maximum, and dielectric withstanding voltage rated at 500V AC for 1 minute. It operates across an industrial temperature range of -55°C to +105°C and supports 10,000 mating cycles.
Overview and Application Notes

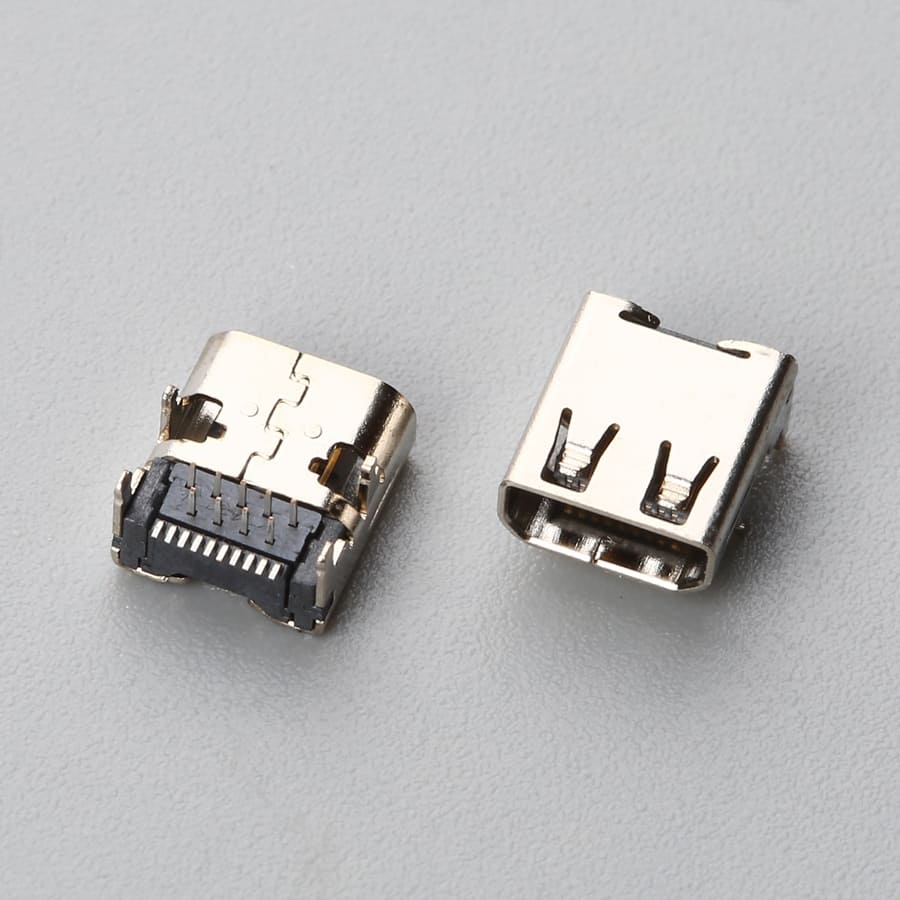

The Micro HDMI Type D Female 19-Pin connector is engineered for high-density on-board PCB mounting, featuring a hybrid SMT and DIP termination layout. With a center height (CH) of 1.50 mm and an overall body height (BH) of 2.90 mm, this low-profile receptacle provides robust mechanical board retention and superior high-speed digital audio/video signal transmission for compact industrial devices and embedded hardware.
Key Features
- Standard 19-Position Micro HDMI Interface: Fully compliant with Type D specifications for high-definition multimedia interfaces.
- Hybrid SMT + DIP Board Termination: Combines 10 SMT contact leads with 9 DIP contact pins and dual through-hole shell hold-downs for superior peel and shear resistance.
- High-Temperature Thermoplastic Insulator: Constructed from UL 94V-0 rated high-temperature thermoplastic to withstand rigorous automated reflow soldering.
- Heavy-Duty Mechanical Endurance: Rated for up to 10,000 mating cycles with a durable stainless steel protective shield.
- Extended Temperature Operation: Designed to perform reliably across a wide operating temperature range from -55°C to +105°C.
Engineering Specifications & PCB Integration
This on-board receptacle features a 0.40 mm pitch contact layout across an effective contact span of 3.60 mm. The hybrid termination footprint requires a recommended PCB thickness of 0.80 mm. The footprint integrates surface-mount pads (10-0.25 mm width) paired with through-hole solder apertures (9-Ø0.40 mm signal pin holes and 2-Ø0.80 mm locating pegs) to ensure self-aligning coplanarity (within 0.10 mm) and high mechanical anchoring against cable pull forces.
