Detailed Product Information
Technical Data & Reference
Structured parameters, material notes, application context and frequently asked questions for engineering and procurement evaluation.
Competitor & Cross-Reference
- Alternative Type
- Drop-in Replacement
- Competitor Part Number
- Molex 46765-1001 / Amphenol 10029449 Series
- Mates With
- Standard 19-Pin Mini HDMI Type C Female Receptacle / Jack
Drop-in Replacement: This part is a direct, pin-compatible substitute for the competitor part number listed above. No design modification required.
Technical Specifications
- Connector Type
- Mini HDMI Type C Plug (Male)
- Number of Positions
- 19 Pins
- Mounting Type
- Straddle Mount / Edge Clamp Mount
- Board Slot Width (Clamp Gap)
- 1.00 mm
- Pitch (Signal Pins)
- 0.40 mm
- Overall Dimensions
- 11.72 mm (W) x 12.20 mm (L) x 2.42 mm (H)
- Recommended PCB Thickness
- 1.20 mm to 1.60 mm
- Mating Durability
- 10,000 Mating Cycles
- Environmental Compliance
- RoHS Compliant
Material Composition
| Material | Value / Description |
|---|---|
| Housing Material | High-Temperature Thermoplastic (LCP), UL 94V-0, Black |
| Cap Material | High-Temperature Thermoplastic (LCP), UL 94V-0, Black |
| Contact Material & Plating | Copper Alloy (T=0.20 mm), Gold/Tin Plated (Au/Sn) |
| Shell Material & Plating | Copper Alloy (T=0.50 mm), Gold Plated (Au) |
Technical Characteristics
| Characteristic | Value |
|---|---|
| Contact Resistance | 20 mΩ Max. |
| Insulation Resistance | 1000 MΩ Min. |
| Dielectric Withstanding Voltage | AC 500V, 1 Minute |
| Operating Temperature Range | -55°C to +105°C |
| General Tolerances | ±0.15 mm (Linear) / ±3° (Angular) |
Application Scenarios
-
HDMI Wireless Display Transmitters, Cast Adapters, and Media Streaming Sticks
-
Drone FPV Aerial Video Transmitters and Gimbal Camera Interface Modules
-
Handheld Test Instrumentation, Field Calibrators, and Digital Diagnostic Devices
-
Embedded Single Board Computers (SBCs) and Industrial Edge Compute Gateways
-
Wearable Medical Endoscopes, Portable Monitors, and Optical Imaging Systems
-
Commercial Digital Signage Converters, Splitters, and Video Capture Cards
Frequently Asked Questions
What does the 1.00mm clamp straddle mount structure mean for board assembly?
The 1.00mm clamp structure straddles the edge of the PCB, allowing top and bottom solder pads to sandwich the board edge. This design eliminates vertical height above the PCB, resulting in an ultra-low profile plug assembly for compact dongles and modules.
What is the recommended PCB thickness and solder pad layout for this connector?
The recommended PCB thickness is 1.20mm to 1.60mm to achieve an optimal straddle fit. Solder pads must be routed to align with the 0.40mm terminal pitch, with adequate solder paste volume on edge fingers to ensure high mechanical shear resistance.
How do the contact and shell plating ensure signal and mechanical durability?
The copper alloy contacts feature an Au/Sn plating configuration, while the 0.50mm heavy-duty shell is fully gold-plated. This combination limits contact resistance to under 20 mΩ and guarantees endurance exceeding 10,000 mating cycles.
What thermal and environmental certifications does this Mini HDMI plug meet?
It is fully RoHS compliant and built with UL 94V-0 rated LCP thermoplastic. It withstands lead-free reflow soldering profiles and operates reliably in extreme temperatures ranging from -55°C to +105°C.
Overview and Application Notes

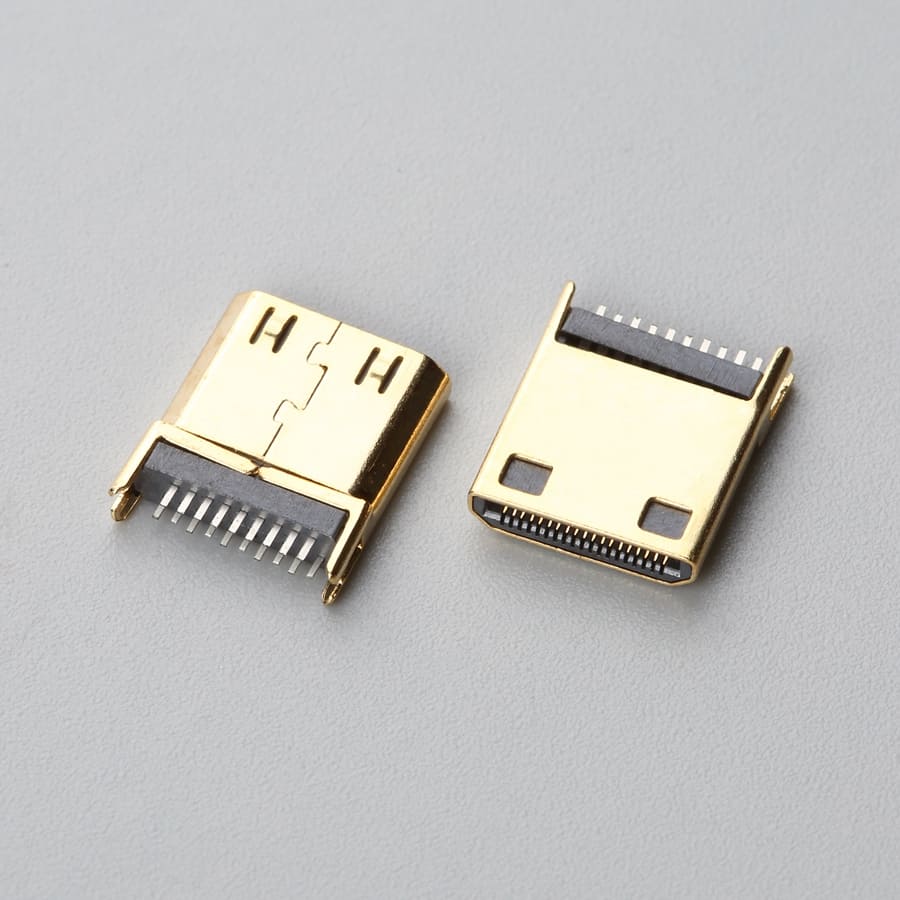

The Mini HDMI Type C male plug connector is engineered with a 1.00mm edge straddle-mount clamp configuration for direct PCB edge termination. Designed to deliver high-bandwidth digital audio-video transmission, it features an ultra-compact footprint, 19 precision contacts, and robust gold-plated copper alloy shielding, making it ideal for compact video transmission dongles, embedded computing modules, and portable field gear.
Key Features
- Form Factor & Interface: 19-position Mini HDMI Type C male plug compliant with standard digital AV transmission protocols.
- Straddle-Mount Clamp Architecture: 1.00mm edge-clamp slot spacing optimized for direct board-edge straddle soldering and rigid mechanical anchoring.
- Heavy-Duty Contact Durability: Rated for up to 10,000 mating cycles to support demanding industrial and commercial applications.
- High-Temperature Insulation: Flame-retardant LCP thermoplastic housing and cap (UL 94V-0, Black) compatible with high-temperature lead-free soldering processes.
- Superior Plating Protection: Copper alloy contacts with Au/Sn finish and Au-plated copper alloy shell for ultra-low contact resistance and corrosion immunity.
- Extended Temperature Reliability: Engineered to operate stably across wide operating temperatures from -55°C to +105°C.
Engineering Specifications & PCB Integration
The connector features a 1.00mm board-docking slot width with a pitch of 0.40mm between signal contact terminals. Recommended edge PCB thickness is 1.20mm to 1.60mm to ensure a secure straddle clamp fit. Solder contact pads require precise alignment with the 0.40mm pitch layout to maintain differential impedance, while the outer 0.50mm copper alloy shell lugs provide rigid ground continuity and mechanical strain relief during cyclic cable mating.
