Product Category

USB Connectors

USB connectors including Type-C Type-A Micro-B and Mini-B. USB 2.0 3.0 and 3.1 standards with SMT and through-hole mounting options.

Technical Filters Filter USB Connectors 0 selected Reset

Scroll horizontally to browse specification columns.

USB Connector Style
USB Version
Interface
Waterproof
Approvals
Gender
PCB Orientation
Number of Contacts
PCB Mount Position
Elevated
Mating Cycles
Power Rating
Current Rating
Contact Pin Type
Voltage Rating
Shell Stake Type
Locating Peg
Mating Face Lead In

62 products found

Product cards show key ACF specification fields. Hover or focus a specification area to view full details in a tooltip.

USB 3.0 Type-A Receptacle, Top Mount, Through Hole (PN: EU09F2Y1N12306ST)
USB Connectors

USB 3.0 Type-A Receptacle, Top Mount, Through Hole (PN: EU09F2Y1N12306ST)

Drop-in for: 48320-0001 / TE Connectivity 1932788-1 (Standard Top Mount Through-Hole USB 3.0 Type-A) Mates With: 3.0 Type-A Plugs (Cable Assemblies)
Gender
: Receptacle (socket)
PCB Orientation
: Horizontal
Locating Peg
: Without
Elevated
: No
Mating Cycles
: 5,000
Current Rating
: 2A
Number of Contacts
: 9
Voltage Rating
: 30V AC/DC
USB Connector Style
: Type A
USB Version
: 3.0
Interface
: A
Waterproof
: N/A
Approvals
: N/A
PCB Mount Position
: Top Mount
Power Rating
: N/A
Contact Pin Type
: Through Hole
Shell Stake Type
: Through Hole
Mating Face Lead In
: Without
View Details Datasheet
USB 3.0 Type-A Receptacle, Top Mount, Through Hole (PN: EU09FL1N12212)
USB Connectors

USB 3.0 Type-A Receptacle, Top Mount, Through Hole (PN: EU09FL1N12212)

Drop-in for: 48320 Series / TE Connectivity 1932836 Series Mates With: 3.0 Type-A Plugs & Cable Assemblies
Gender
: Receptacle (socket)
PCB Orientation
: Horizontal
Locating Peg
: Without
Elevated
: No
Mating Cycles
: 5,000
Current Rating
: 1.8A
Number of Contacts
: 9
Voltage Rating
: 30V AC/DC
USB Connector Style
: Type A
USB Version
: 3.0
Interface
: A
Waterproof
: N/A
Approvals
: N/A
PCB Mount Position
: Top Mount
Power Rating
: 9W
Contact Pin Type
: Through Hole
Shell Stake Type
: Through Hole
Mating Face Lead In
: Without
View Details Datasheet
USB 3.0 Type-A Receptacle, Top Mount, Through Hole (PN: EU09FL2N1274)
USB Connectors

USB 3.0 Type-A Receptacle, Top Mount, Through Hole (PN: EU09FL2N1274)

Drop-in for: 48320 Series / TE Connectivity 1932836 Series Mates With: 3.0 Type-A Plugs & Cable Assemblies
Gender
: Receptacle (socket)
PCB Orientation
: Horizontal
Locating Peg
: Without
Elevated
: No
Mating Cycles
: 10,000
Current Rating
: 1.8A
Number of Contacts
: 9
Voltage Rating
: 30V AC/DC
USB Connector Style
: Type A
USB Version
: 3.0
Interface
: A
Waterproof
: N/A
Approvals
: N/A
PCB Mount Position
: Top Mount
Power Rating
: 9W
Contact Pin Type
: Through Hole
Shell Stake Type
: Through Hole
Mating Face Lead In
: Without
View Details Datasheet

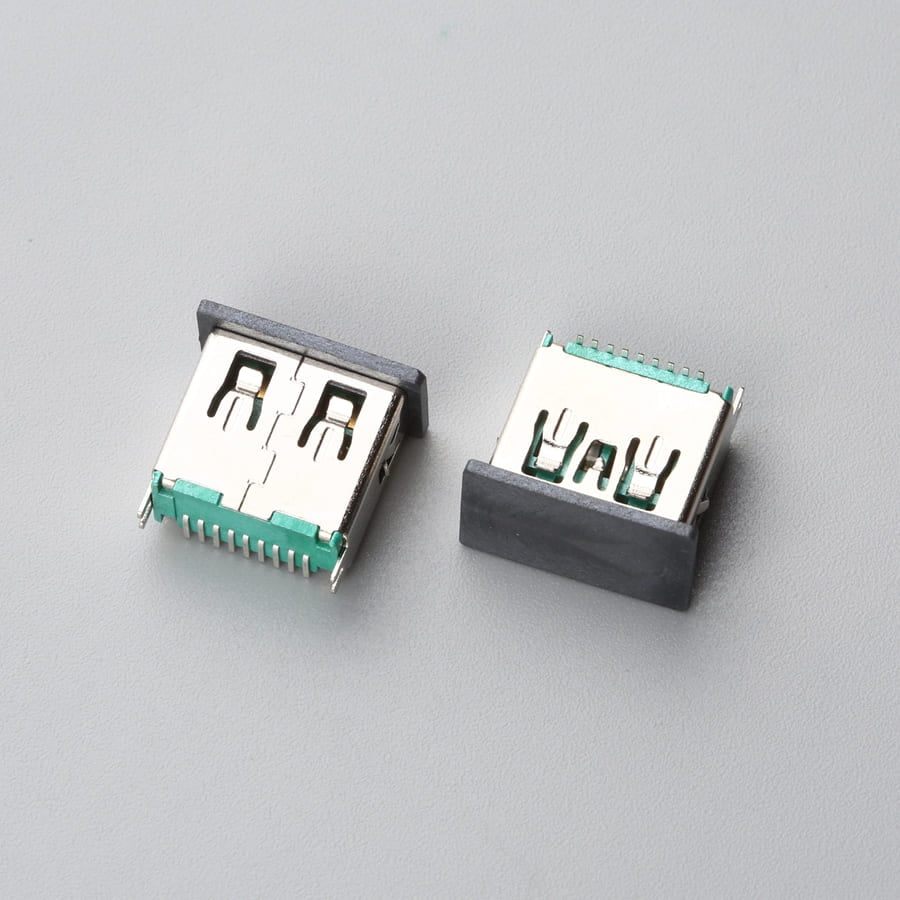

USB 3.0 Type-A Receptacle, Vertical SMT, H11.5mm (PN: EU09FG1N12274)
USB Connectors

USB 3.0 Type-A Receptacle, Vertical SMT, H11.5mm (PN: EU09FG1N12274)

Drop-in for: 692112030100 / Amphenol GSB3111 Series (Vertical SMT configurations) Mates With: 3.0 & 2.0 Type-A Male Cable Assemblies
Gender
: Receptacle (socket)
PCB Orientation
: Vertical
Locating Peg
: Without
Elevated
: Yes
Mating Cycles
: 10,000
Current Rating
: 1.8A
Number of Contacts
: 9
Voltage Rating
: 30V AC/DC
USB Connector Style
: Type A
USB Version
: 3.0
Interface
: A
Waterproof
: N/A
Approvals
: N/A
PCB Mount Position
: Top Mount
Power Rating
: N/A
Contact Pin Type
: Surface Mount
Shell Stake Type
: Through Hole
Mating Face Lead In
: Without
View Details Datasheet
USB 3.0 Type-A Receptacle, Vertical Through-Hole (PN: EU09FB3N62282H)
USB Connectors

USB 3.0 Type-A Receptacle, Vertical Through-Hole (PN: EU09FB3N62282H)

Drop-in for: 692112030100 / Amphenol GSB31 Series (Vertical Through-Hole configurations) Mates With: 3.0 & 2.0 Type-A Male Cable Assemblies
Gender
: Receptacle (socket)
PCB Orientation
: Vertical
Locating Peg
: Without
Elevated
: No
Mating Cycles
: 10,000
Current Rating
: 1.8A
Number of Contacts
: 9
Voltage Rating
: 30V AC/DC
USB Connector Style
: Type A
USB Version
: 3.0
Interface
: A
Waterproof
: N/A
Approvals
: N/A
PCB Mount Position
: Top Mount
Power Rating
: N/A
Contact Pin Type
: Through Hole
Shell Stake Type
: Through Hole
Mating Face Lead In
: Without
View Details Datasheet

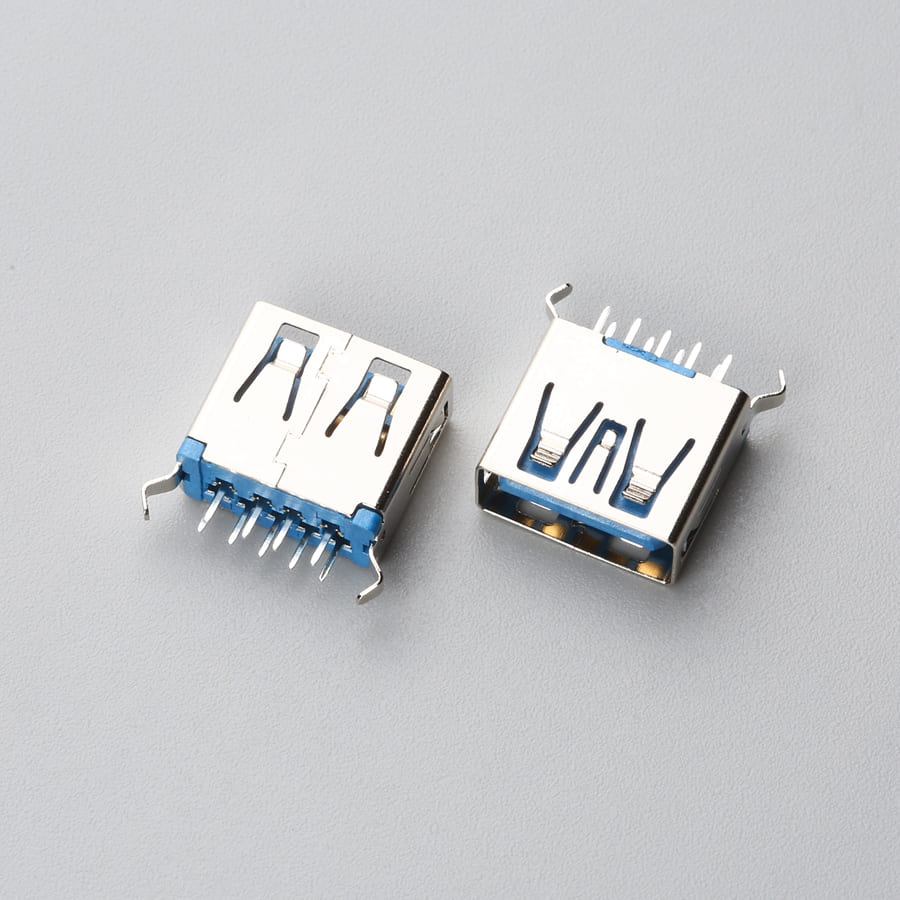

USB 3.0 Type-A Receptacle, Vertical Through-Hole, H11.50mm (PN: EU09FL1N12145)
USB Connectors

USB 3.0 Type-A Receptacle, Vertical Through-Hole, H11.50mm (PN: EU09FL1N12145)

Drop-in for: 692112030100 / Amphenol GSB31 Series (Vertical Through-Hole configurations) Mates With: 3.0 & 2.0 Type-A Male Cable Assemblies
Gender
: Receptacle (socket)
PCB Orientation
: Vertical
Locating Peg
: Without
Elevated
: No
Mating Cycles
: 5,000
Current Rating
: 1.8A
Number of Contacts
: 9
Voltage Rating
: 30V AC/DC
USB Connector Style
: Type A
USB Version
: 3.0
Interface
: A
Waterproof
: N/A
Approvals
: N/A
PCB Mount Position
: Top Mount
Power Rating
: N/A
Contact Pin Type
: Through Hole
Shell Stake Type
: Through Hole
Mating Face Lead In
: Without
View Details Datasheet
USB 3.0 Type-A Receptacle, Vertical Through-Hole, H15.0mm (PN: EU09FL1N1206)
USB Connectors

USB 3.0 Type-A Receptacle, Vertical Through-Hole, H15.0mm (PN: EU09FL1N1206)

Drop-in for: 692112030100 / Amphenol GSB31 Series (Vertical H15.0mm configurations) Mates With: 3.0 & 2.0 Type-A Male Cable Assemblies
Gender
: Receptacle (socket)
PCB Orientation
: Vertical
Locating Peg
: Without
Elevated
: No
Mating Cycles
: 5,000
Current Rating
: 1.8A
Number of Contacts
: 9
Voltage Rating
: 30V AC/DC
USB Connector Style
: Type A
USB Version
: 3.0
Interface
: A
Waterproof
: N/A
Approvals
: N/A
PCB Mount Position
: Top Mount
Power Rating
: N/A
Contact Pin Type
: Through Hole
Shell Stake Type
: Through Hole
Mating Face Lead In
: Without
View Details Datasheet
USB 3.0 Type-B Receptacle, Horizontal Through-Hole (PN: EU09F2L1N1201)
USB Connectors

USB 3.0 Type-B Receptacle, Horizontal Through-Hole (PN: EU09F2L1N1201)

Drop-in for: 1932258-1 / Amphenol 10117835-002LF Mates With: 3.0 Type-B Cable Plugs
Gender
: Receptacle (socket)
PCB Orientation
: Horizontal
Locating Peg
: Without
Elevated
: No
Mating Cycles
: 1,500
Current Rating
: 1.8A
Number of Contacts
: 9
Voltage Rating
: 30V AC/DC
USB Connector Style
: Type B
USB Version
: 3.0
Interface
: B
Waterproof
: N/A
Approvals
: N/A
PCB Mount Position
: Top Mount
Power Rating
: N/A
Contact Pin Type
: Through Hole
Shell Stake Type
: Through Hole
Mating Face Lead In
: With
View Details Datasheet
USB 3.0 Type-B Receptacle, Right Angle Through Hole (PN: EU09F1L2N1285)
USB Connectors

USB 3.0 Type-B Receptacle, Right Angle Through Hole (PN: EU09F1L2N1285)

Drop-in for: 2041249-1 / Molex 48258-0001 Mates With: 3.0 Type-B Plugs (e.g., Molex 48257 series)
Gender
: Receptacle (socket)
PCB Orientation
: Horizontal
Locating Peg
: Without
Elevated
: No
Mating Cycles
: 10,000
Current Rating
: 1.8A
Number of Contacts
: 9
Voltage Rating
: 30V AC/DC
USB Connector Style
: Type B
USB Version
: 3.0
Interface
: B
Waterproof
: N/A
Approvals
: N/A
PCB Mount Position
: Top Mount
Power Rating
: N/A
Contact Pin Type
: Through Hole
Shell Stake Type
: Through Hole
Mating Face Lead In
: Without
View Details Datasheet
